RJ45 to D-sub 15-pin Adapter

Introduction

An RJ45 to D-sub 15-pin adapter bridges connectivity between RJ45 Ethernet ports and legacy D-sub 15-pin interfaces, commonly used in industrial, audiovisual, and specialized equipment. These compact adapters enable seamless signal conversion for devices relying on serial, VGA, or proprietary protocols. By facilitating cross-interface communication, they extend the usability of older hardware in modern networked environments. Key applications include industrial control systems, video equipment, and retro computing.

Types and Features

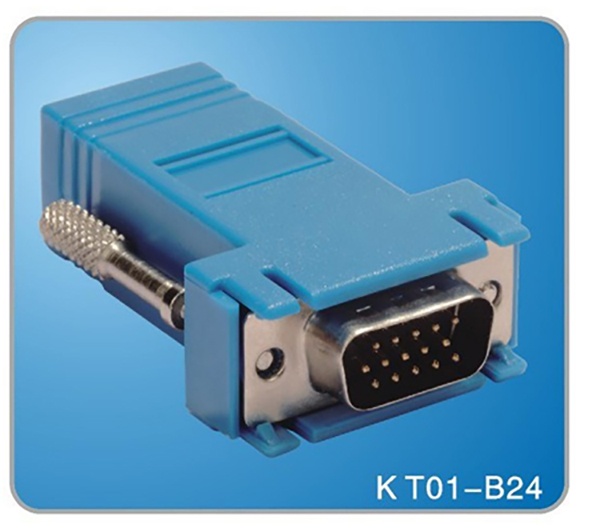

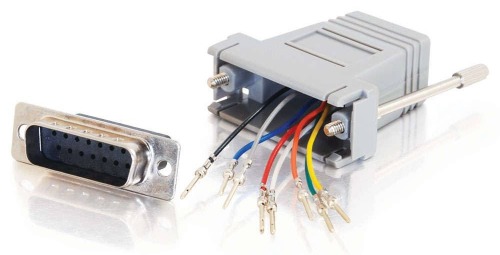

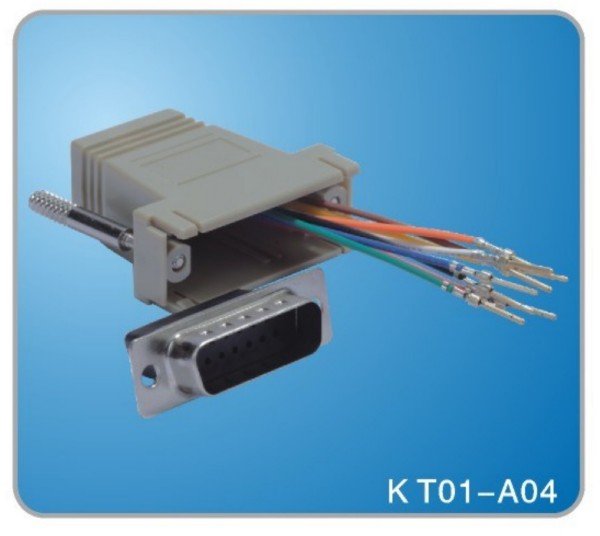

​​RJ45 to DB15 Male Adapter​​

This adapter features a male DB15 connector paired with an RJ45 port, serving primarily as an extension or termination point for female DB15 sockets. Its compact design makes it ideal for linking VGA monitors to RJ45-based KVM switches or extending serial signals in industrial controllers. Rugged construction ensures reliable performance in environments like factory floors or broadcast studios, avoiding signal degradation over extended distances.

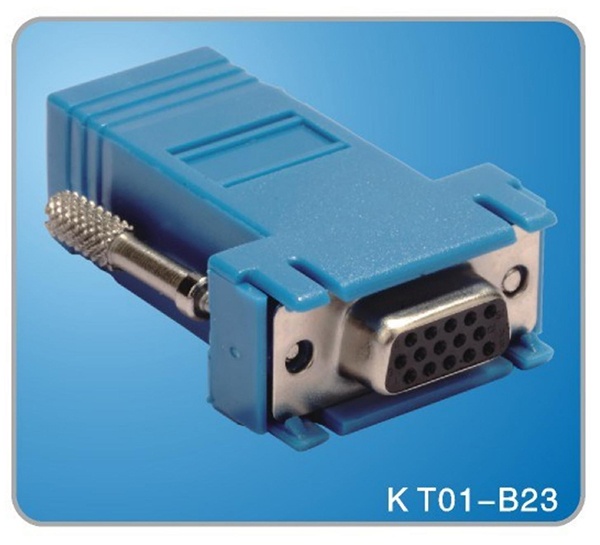

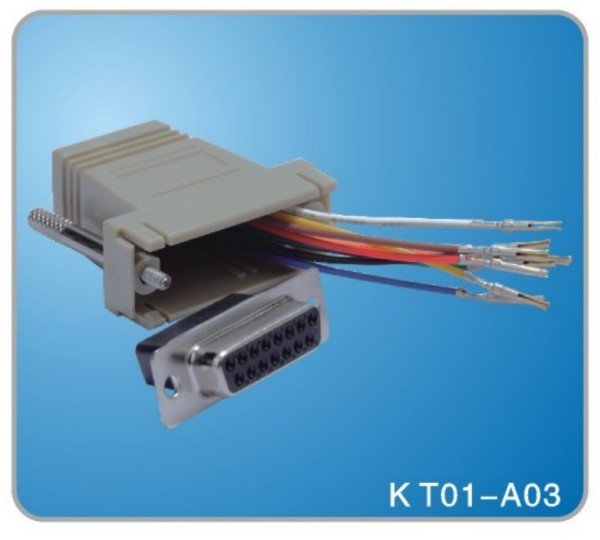

​​RJ45 to DB15 Female Adapter​​

With a female DB15 interface, this adapter accepts male DB15 plugs and converts signals to an RJ45 format. It excels in integrating male-ended legacy devices—like old PCs or PLCs—into RJ45-centric infrastructure. Common uses include retrofitting VGA cabling for remote displays or enabling serial communication in automation systems. Its shielded design minimizes electromagnetic interference, crucial for precision-critical applications.

Applications

These adapters unlock versatility across sectors by merging the ubiquity of RJ45 with the legacy compatibility of DB15. They solve connectivity gaps without costly hardware replacements.

1. ​​Industrial Automation​: Linking PLCs and sensors via serial protocols.
2. ​​AV Systems​: Routing VGA video signals through Ethernet extenders.
3. ​​Legacy Computing​: Connecting vintage computers to modern networks.
4. ​​Medical Equipment​: Integrating older diagnostic tools into data systems.
5. ​​KVM Switches​: Extending control to DB15-based servers/displays.
6. ​​Broadcast Studios​: Transmitting SDI/HD-SDI video over RJ45 cabling.
7. ​​Security Systems​: Interfacing analog CCTV devices with IP networks.
8. ​​Aerospace​: Test-bed instrumentation with serial-to-Ethernet conversion.

Conclusion

RJ45 to D-sub 15-pin adapters are indispensable tools for interoperability, merging contemporary RJ45 infrastructure with legacy DB15 devices. They reduce costs by extending the lifespan of specialized equipment—from industrial controllers to VGA displays—while ensuring signal integrity and ease of integration. By eliminating compatibility barriers, these adapters facilitate sustainable technology adoption across various fields, including manufacturing, healthcare, and broadcasting. As industries evolve, such solutions will remain vital for efficiently bridging generational hardware gaps.

Customize Your Adapter

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
