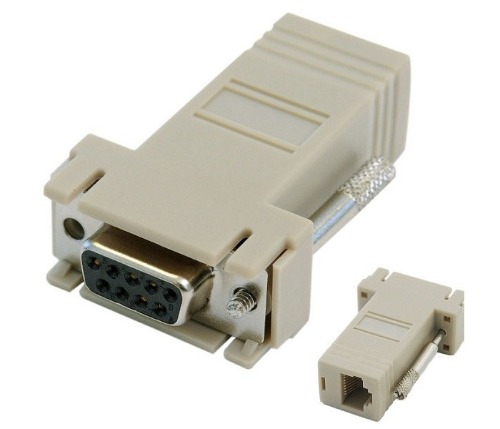

RJ45 to D-sub 9-pin Adapter

Introduction

The RJ45 to D-sub 9-pin adapter serves as a critical interface bridging modern Ethernet-compatible RJ45 connectors with legacy D-sub 9-pin (DB9) serial ports. Designed to facilitate communication between devices with differing port standards, these adapters are widely used in industrial, networking, and telecommunications environments. They enable seamless connectivity for equipment relying on RS-232 serial protocols, such as routers, legacy machinery, or diagnostic tools. Compact and durable, these adapters ensure reliable data transmission while simplifying the integration of older systems into contemporary networks. Their versatility makes them indispensable in scenarios requiring hybrid connectivity, offering a cost-effective solution to extend the lifespan of legacy hardware without compromising modern infrastructure compatibility.

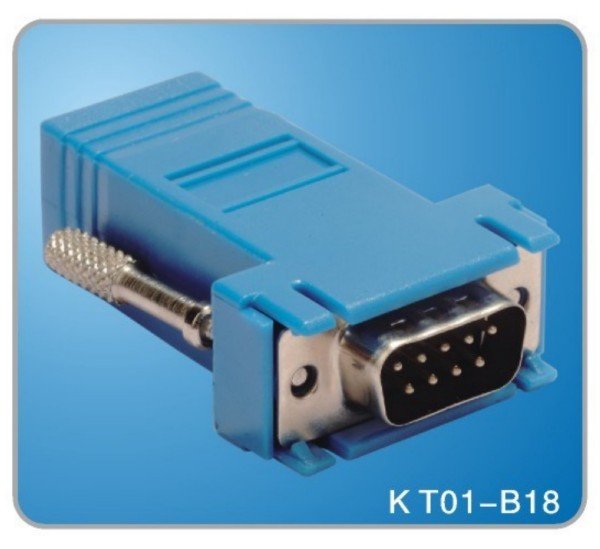

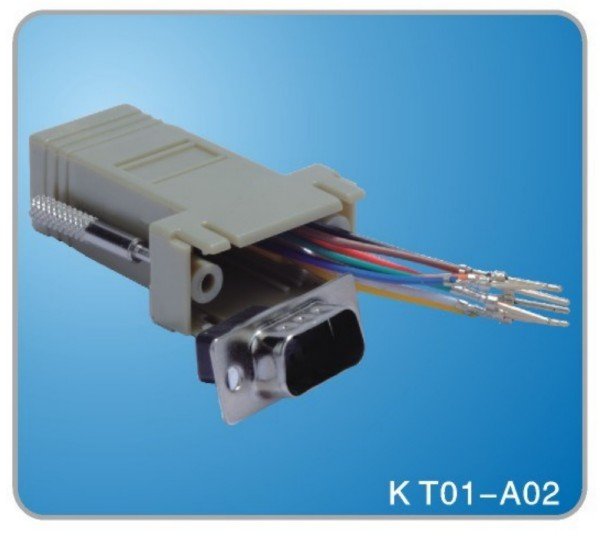

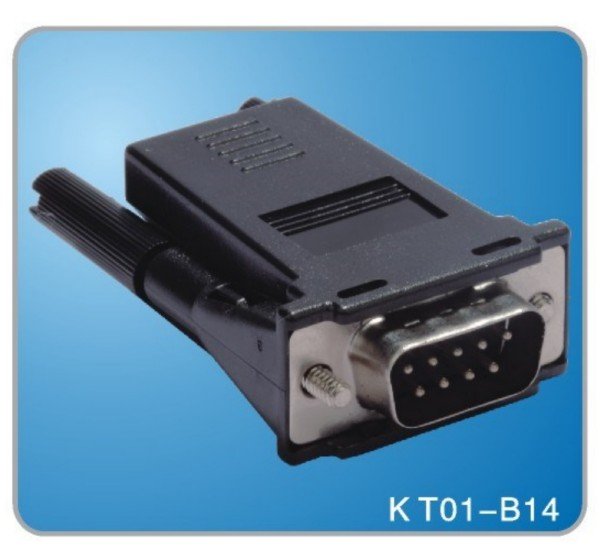

RJ45 to DB9 Male Adapter

This adapter features a male DB9 connector with protruding pins, designed to interface directly with female DB9 ports. It is commonly used to connect devices like industrial controllers or networking equipment to systems requiring serial communication. Its robust construction ensures stable performance in high-vibration environments, while the compact design minimizes space constraints. Ideal for configuring routers via console ports or integrating legacy machinery with modern control systems, this adapter simplifies cross-generational hardware communication without requiring complex rewiring.

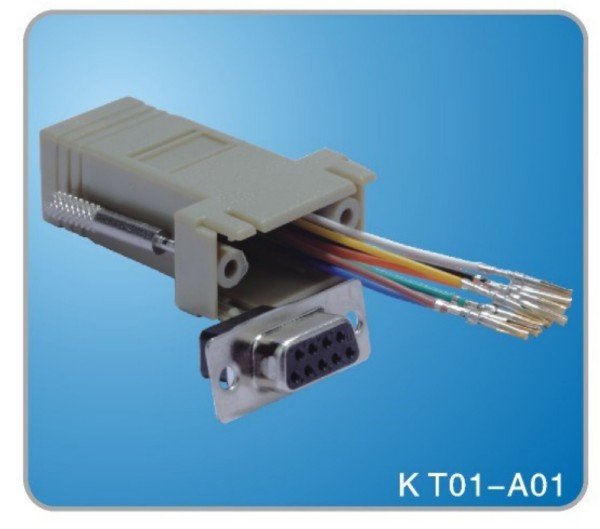

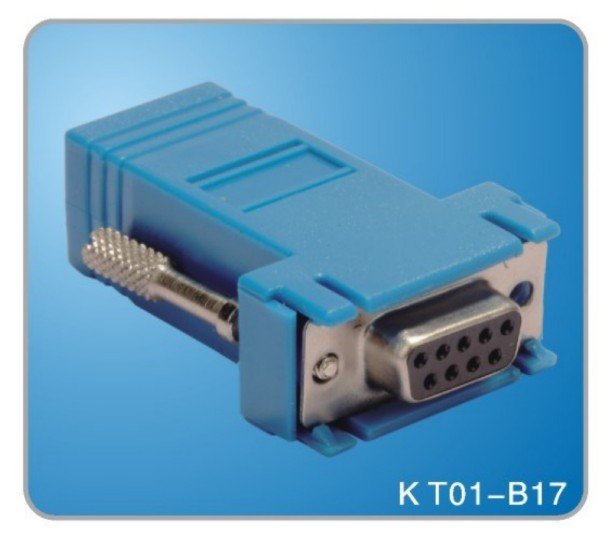

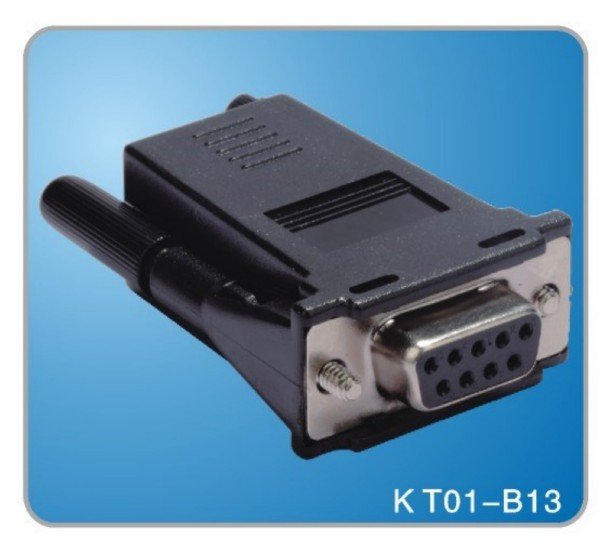

RJ45 to DB9 Female Adapter

Equipped with a female DB9 socket, this adapter accommodates male DB9 plugs, making it suitable for connecting computers or diagnostic tools to RJ45-based serial interfaces. It is often employed in telecommunications setups, automotive diagnostics, or retrofitting older peripherals into updated networks. Enhanced shielding reduces electromagnetic interference, ensuring reliable data transfer in electrically noisy settings. This variant is essential for technicians managing legacy servers, POS systems, or medical devices that rely on serial protocols for operation.

Applications

These adapters bridge connectivity gaps across industries, enabling legacy-to-modern system integration. From industrial automation to network management, they support configurations where RS-232 serial communication remains vital. Their applications span equipment diagnostics, hardware retrofitting, and hybrid network setups, ensuring uninterrupted workflows in environments where replacing aging infrastructure is impractical or cost-prohibitive.

1. Configuring network routers/switches via console ports.
2. Connecting industrial machinery (CNC, PLCs) to control systems.
3. Integrating legacy POS terminals with modern payment networks.
4. Facilitating automotive OBD-II diagnostics using serial tools.
5. Retrofitting medical devices (e.g., ultrasound machines) into digital networks.
6. Enabling communication with legacy telecom or server hardware.
7. Supporting CCTV systems with serial-based camera controls.
8. Interfacing scientific instruments with data-logging PCs.

Conclusion

The RJ45 to D-sub 9-pin adapter exemplifies the synergy between legacy and contemporary technologies, offering a pragmatic solution for industries reliant on serial communication. By enabling seamless connectivity across generations of hardware, these adapters reduce the need for costly system overhauls while maintaining operational continuity. Their durability, ease of use, and compatibility with RS-232 protocols make them vital in networking, manufacturing, healthcare, and beyond. As organizations balance modernization with legacy dependencies, such adapters ensure that aging devices remain functional within evolving infrastructures. Whether for configuring network gear, diagnosing machinery, or integrating specialized equipment, these adapters underscore the importance of adaptable connectivity in sustaining efficiency and innovation across diverse technological landscapes.

Customize Your Adapter

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
