SUPERSEAL Connector 1.0 mm, Custom Wiring Harness Assembly
Superseal 1.0 Connector
Superseal 1.0 Connector is a compact, high-density solution engineered for sealed wire-to-board and wire-to-device connectivity in harsh automotive and industrial environments. Featuring 1.0 mm contacts, it supports up to 44 positions in 2- or 4-row configurations with 3.0 mm or 3.5 mm pitch, ensuring space-efficient PCB integration. Its robust thermoplastic housing, integrated sealing, and terminal position assurance (TPA) protect against moisture, dust, and vibration, while operating reliably in temperatures from -40°C to +125°C. Compliant with RoHS and ELV directives, it is ideal for engine control units (ECUs), transmission systems, sensors, and lighting modules, delivering secure power and signal transmission under extreme conditions.
We support custom wire harness assembly using Superseal 1.0 connectors, tailored for automotive, industrial, or transportation systems. Our service includes precision crimping, sealing, and rigorous testing to ensure optimal performance in extreme conditions, delivering durable, compliant solutions for power and signal connectivity needs. send us your design for a free of quotes.
Features
- Accepts contact size 1.0 mm (up to 15 amps)
- 1.25-0.50 mm²
- 26, 34, and 60 cavity arrangements
- PCB mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- TPA confirms contact alignment and retention
- Connector Shape: Rectangular
- Connector System: Wire-to-Board, Wire-to-Device
- Connector Housing Type: Housing for Female Terminals, Plug
- Sealable: Yes
- Connector Contact Terminates To: Wire Cable
- Primary Locking Feature: Integrated in Housing
- Mixed Hybrid Connector: No

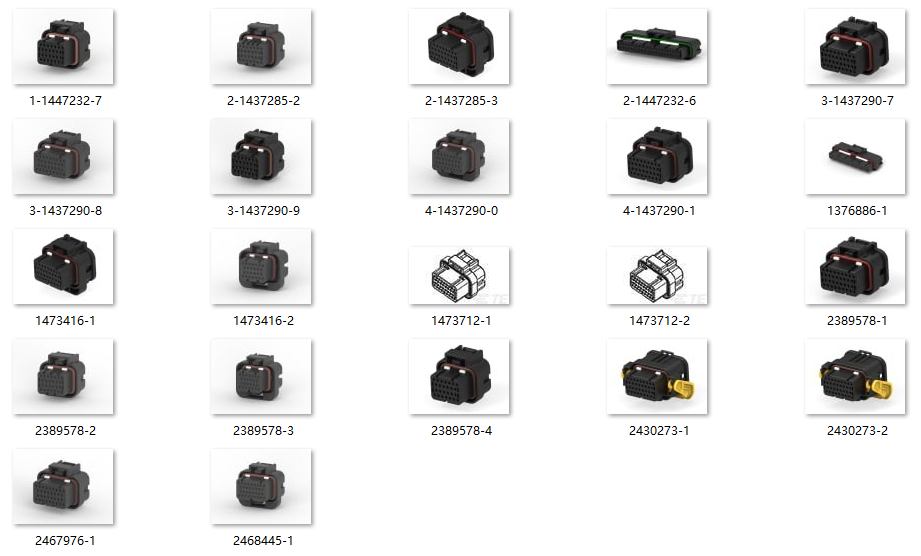

Connector Specifications Chart
| P/N | Poles | Descriptions | Type | Pitch | Descriptions |
| 2467976-1 | 26 | 26POS, 1.0 SERIES, REC HSG ASSY, SLD, COD 1 | Plug | 3 mm | https://www.te.com/en/product-2467976-1.html |
| 2-1437285-2 | 26 | 26POS, SUPERSEAL, REC HSG ASSY, SLD, COD 1 | Plug | 3 mm | https://www.te.com/en/product-2-1437285-2.html |
| 1473416-2 | 26 | SUPER SEAL 26POS PLUG ASSY | Plug | 3 mm | https://www.te.com/en/product-1473416-2.html |
| 1473416-1 | 26 | SUPER SEAL 26POS PLUG ASSY | Plug | 3 mm | https://www.te.com/en/product-1473416-1.html |
| 1473712-1 | 26 | SUPER SEAL 2ROW 26POS PLUG ASS | Housing for Female Terminals | 3.5 mm | https://www.te.com/en/product-1473712-1.html |
| 1-1447232-7 | 26 | 26POS, SUPERSEAL, REC HSG ASSY, SLD, COD 2 | Plug | 3 mm | https://www.te.com/en/product-1-1447232-7.html |
| 3-1437290-8 | 26 | 26POS, SUPERSEAL, REC HSG ASSY, SLD, COD 2 | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-3-1437290-8.html |
| 3-1437290-7 | 26 | 26POS, SUPERSEAL, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-3-1437290-7.html |
| 1473712-2 | 26 | SUPER SEAL 2ROW 26POS PLUG ASS | Housing for Female Terminals | 3.5 mm | https://www.te.com/en/product-1473712-2.html |
| 2430273-2 | 34 | 34POS, AMP SUPERSEAL 1.0MM, SOC HSG ASSY | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-2430273-2.html |
| 2468445-1 | 34 | 34POS, SUPERSEAL, REC HSG ASSY, SLD, COD 1 | Plug | 3 mm | https://www.te.com/en/product-2468445-1.html |
| 4-1437290-1 | 34 | 34POS, SUPERSEAL, REC HSG ASSY, SLD, COD 2 | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-4-1437290-1.html |
| 2430273-1 | 34 | 34POS, AMP SUPERSEAL 1.0MM, SOC HSG ASSY | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-2430273-1.html |
| 2389578-4 | 34 | 34POS, AMP SUPERSEAL 1.0MM, SOC HSG ASSY | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-2389578-4.html |
| 2389578-2 | 34 | 34POS, AMP SUPERSEAL 1.0MM, SOC HSG ASSY | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-2389578-2.html |
| 2389578-3 | 34 | 34POS, AMP SUPERSEAL 1.0MM, SOC HSG ASSY | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-2389578-3.html |
| 2389578-1 | 34 | 34POS, AMP SUPERSEAL 1.0MM, SOC HSG ASSY | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-2389578-1.html |
| 3-1437290-9 | 34 | 34POS, SUPERSEAL, REC HSG ASSY, SLD, COD 2 | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-3-1437290-9.html |
| 2-1437285-3 | 34 | 34POS, SUPERSEAL, REC HSG ASSY, SLD, COD 1 | Plug | 3 mm | https://www.te.com/en/product-2-1437285-3.html |
| 4-1437290-0 | 34 | 34POS, SUPERSEAL, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | 3 mm | https://www.te.com/en/product-4-1437290-0.html |
| 1376886-1 | 44 | 3900281-442=S/S PLUG ASSY 44P | Housing for Female Terminals | 3.5 mm | https://www.te.com/en/product-1376886-1.html |
| 2-1447232-6 | 44 | 3900281-441=SP/SEAL 44P PLUG | Plug | 3.5 mm | https://www.te.com/en/product-2-1447232-6.html |
Superseal 1.0 Connector Custom Wire Harness Cases

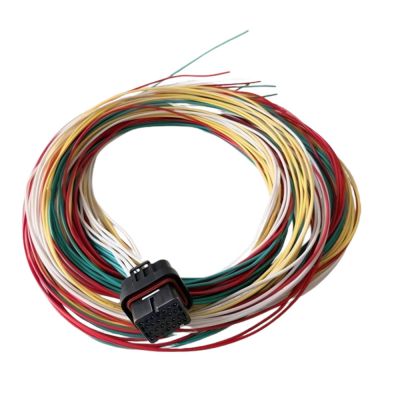

3-1437290-7
Custom Wire Harness

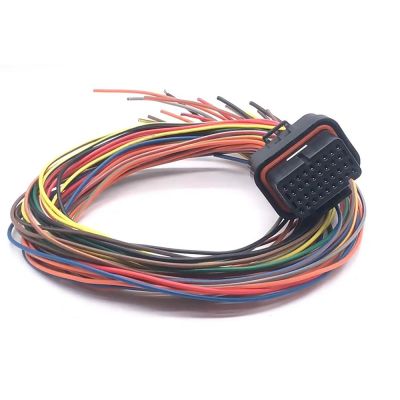

4-1437290-0
Custom Wire Harness

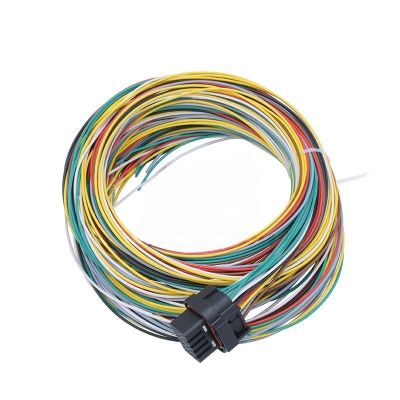

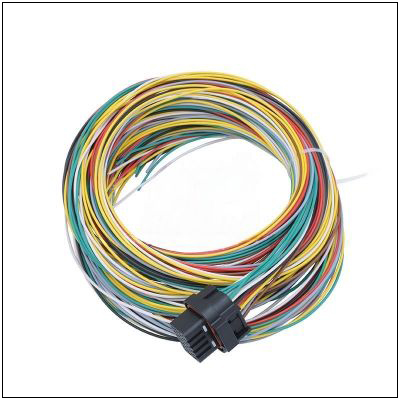

1473416-2
Custom Wire Harness

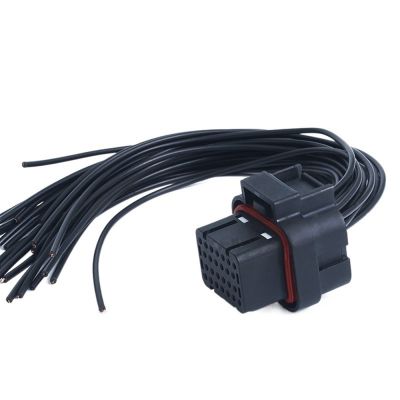

3-1437290-8
Custom Wire Harness

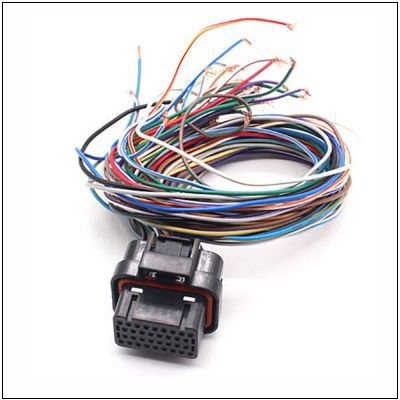

4-1437290-1
Custom Wire Harness

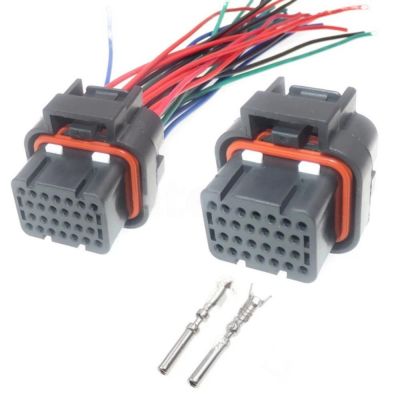

1473416-1
Custom Wire Harness
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
