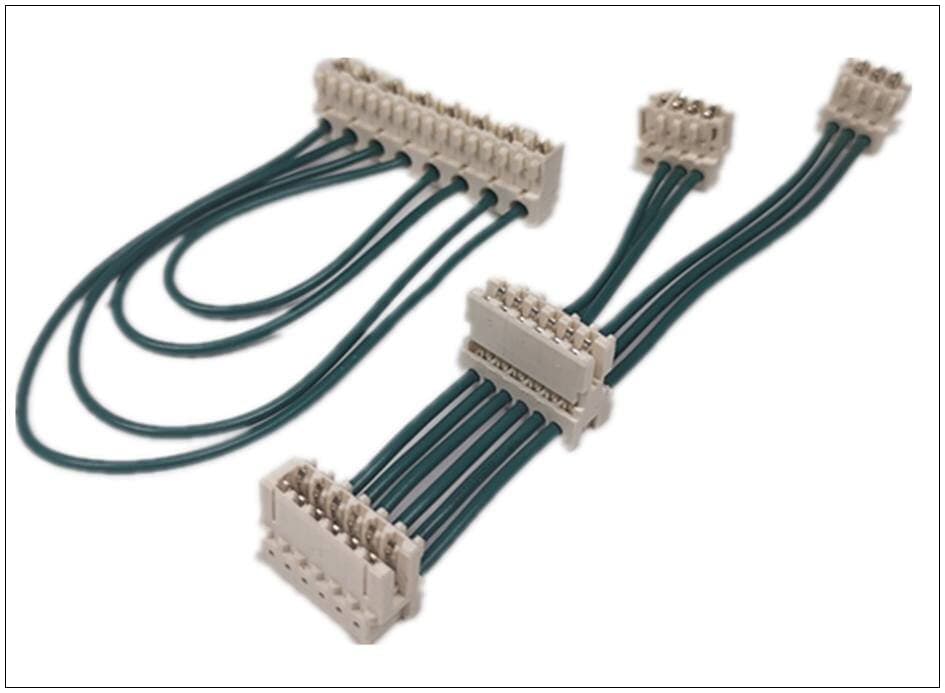

Stocko Connector, Custom Wire Harness Manufactuer in China

Stocko Connector Introduction

Stocko Connectors is a leading manufacturer of high-quality electrical connectors, serving a broad range of industries. Their extensive product range includes PCB connectors, terminal blocks, rectangular connectors, and custom solutions. Known for robust construction, these connectors offer specifications such as various pitch sizes, high current ratings, and secure locking mechanisms. Key features often include screwless, tool-free assembly for rapid installation, reliability in harsh environments, and resistance to vibration. Stocko connectors are widely applied in industrial automation, machinery, transportation, renewable energy systems, and control cabinet wiring, providing dependable and efficient electrical connections critical for modern electronic and electrical systems.

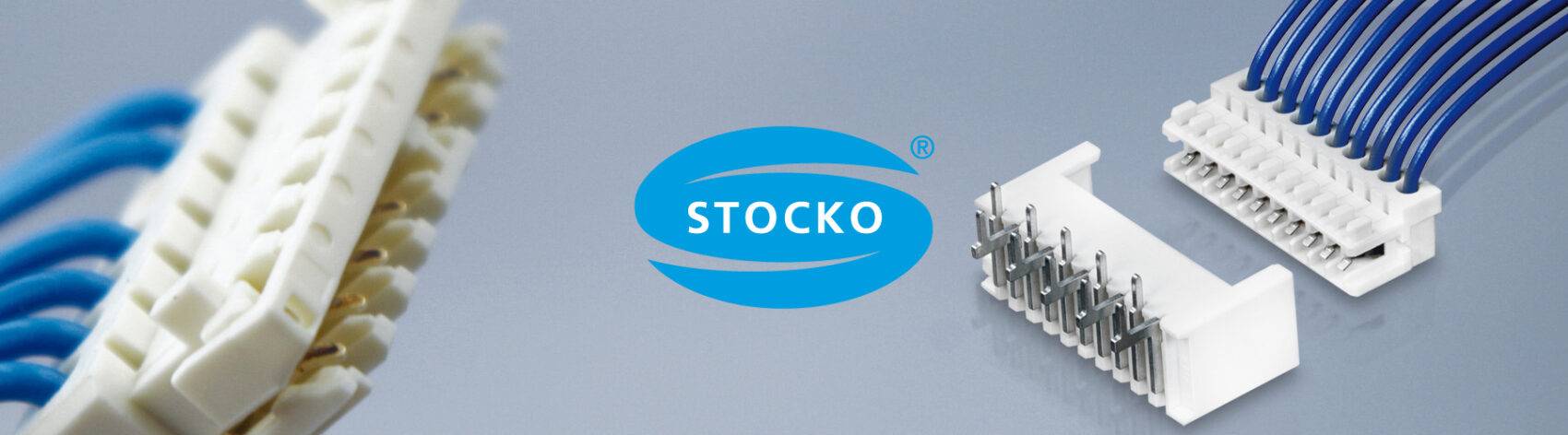

Stocko Connector



Classification



  • Fine Pitch (1.27mm - 2.54mm): For high-density PCB connections.

    • 1.27mm: S-LINX 1.27 D

    • 1.5mm: S-TECX 1.5

    • 2.54mm: S-GRID

  • Standard Pitch (2.5mm - 5mm): The most extensive range, ideal for general-purpose industrial wiring.

    • 2.5mm: ECO-TRONIC, RFK 2

    • 3.5mm: HLK 3500

    • 4.2mm: S-FIT 4.20

    • 5mm: ECO-DOMO NF, ECO-TRONIC SPM

  • Large Pitch (6.35mm): For higher power or larger wire applications.

    • 6.35mm: S-LOCK 6.35



Popular Series Connector



  • ECO-TRONIC Family (2.5mm pitch): The flagship range with an immense variety.

    • Features: Options for direct/indirect PCB connection, daisy-chaining, various PCB locking mechanisms (passive, active, screw locks), and different wire types (single wire, ribbon cable, solid wire).

    • Applications: General industrial control, automation, PCB interfacing.



  • ECO-DOMO NF (5mm pitch): Aligns with the RAST 5 standard for home appliances and consumer goods.

    • Features: Crimp technology, polarization options, and various cable exit angles.

    • Applications: White goods, consumer electronics.



  • S-FIT 4.20 & S-LOCK 6.35: Robust, higher-current connectors.

    • Features: Housings for panel mounting and flying leads.

    • Applications: Power supplies, industrial machinery, heavy equipment.



  • S-LINX & S-GRID: PCB-oriented headers and housings.

    • Applications: Internal board-to-board and board-to-wire connections in electronics.



What Connectors Can We Process?

Sort by the pitch

Pitch Connector System Series Positions Part number Type Application Notes
1.27mm S-LINX 1.27 D MF 7058 2 MFVV 7058 - 002 - * IDC housings Direct connector;
CB contacting on both sides
Designed for FR4 PCBs		 * Polarizations on request.
1.27mm S-LINX 1.27 D MF 7058 3 MFVV 7058 - 003 - * IDC housings
1.27mm S-LINX 1.27 D MF 7058 4 MFVV 7058 - 004 - * IDC housings
1.27mm S-LINX 1.27 D MF 7058 5 MFVV 7058 - 005 - * IDC housings
1.27mm S-LINX 1.27 D MF 7058 6 MFVV 7058 - 006 - * IDC housings
1.27mm S-LINX 1.27 D MF 7058 8 MFVV 7058 - 008 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 2 MFVV 7134 - 002 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 3 MFVV 7134 - 003 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 4 MFVV 7134 - 004 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 5 MFVV 7134 - 005 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 6 MFVV 7134 - 006 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 7 MFVV 7134 - 007 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 8 MFVV 7134 - 008 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 9 MFVV 7134 - 009 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 10 MFVV 7134 - 010 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 11 MFVV 7134 - 011 - * IDC housings
1.5 mm S-TECX 1.5 MF 7134 12 MFVV 7134 - 012 - * IDC housings
2.5 mm RFK 2 MKF 13260 2 MKF 13262 - 6 - * - 202 IDC Socket Connectors for ribbon cable and discrete wire * 2-way version for double insulated wires of 2 mm Ø
* for different wire gauge, "1" for 26AWG, and "0" for 24AWG.
2.5 mm RFK 2 MKF 13260 2 * MKF 13262 - 6 - 20 - 202 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 3 MKF 13263 - 6 - * - 303 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 4 MKF 13264 - 6 - * - 404 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 5 MKF 13265 - 6 - * - 505 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 6 MKF 13266 - 6 - * - 606 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 7 MKF 13267 - 6 - * - 707 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 8 MKF 13268 - 6 - * - 808 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 9 MKF 13269 - 6 - * - 909 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 10 MKF 13270 - 6 - * - 1010 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 11 MKF 13271 - 6 - * - 1111 IDC Socket Connectors
2.5 mm RFK 2 MKF 13260 12 MKF 13272 - 6 - * - 1212 IDC Socket Connectors
2.5 mm RFK 2 MKF 13470 2 MKF 13472 - 6 - * - 202 IDC edge connectors for ribbon cable and discrete wire * for different wire gauge, "1" for 26AWG, and "0" for 24AWG.
2.5 mm RFK 2 MKF 13470 3 MKF 13473 - 6 - * - 303 IDC edge connectors
2.5 mm RFK 2 MKF 13470 4 MKF 13474 - 6 - * - 404 IDC edge connectors
2.5 mm RFK 2 MKF 13470 5 MKF 13475 - 6 - * - 505 IDC edge connectors
2.5 mm RFK 2 MKF 13470 6 MKF 13476 - 6 - * - 606 IDC edge connectors
2.5 mm RFK 2 MKF 13470 7 MKF 13477 - 6 - * - 707 IDC edge connectors
2.5 mm RFK 2 MKF 13470 8 MKF 13478 - 6 - * - 808 IDC edge connectors
2.5 mm RFK 2 MKF 13470 9 MKF 13479 - 6 - * - 909 IDC edge connectors
2.5 mm RFK 2 MKF 13470 10 MKF 13480 - 6 - * - 1010 IDC edge connectors
2.5 mm RFK 2 MKF 13470 11 MKF 13481 - 6 - * - 1111 IDC edge connectors
2.5 mm RFK 2 MKF 13470 12 MKF 13482 - 6 - * - 1212 IDC edge connectors
2.5 mm RFK 2 MKH 5130 2 * MKH 5131 - 1 - 0 - 200 Housings with crimp connection for discrete wire * 2 2 way wide version
2.5 mm RFK 2 MKH 5130 2 MKH 5132 - 1 - 0 - 200 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 3 MKH 5133 - 1 - 0 - 300 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 4 MKH 5134 - 1 - 0 - 400 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 5 MKH 5135 - 1 - 0 - 500 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 6 MKH 5136 - 1 - 0 - 600 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 7 MKH 5137 - 1 - 0 - 700 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 8 MKH 5138 - 1 - 0 - 800 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 9 MKH 5139 - 1 - 0 - 900 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 10 MKH 5140 - 1 - 0 - 1000 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 11 MKH 5141 - 1 - 0 - 1100 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 12 MKH 5142 - 1 - 0 - 1200 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 13 MKH 5143 - 1 - 0 - 1300 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 14 MKH 5144 - 1 - 0 - 1400 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 15 MKH 5145 - 1 - 0 - 1500 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 16 MKH 5146 - 1 - 0 - 1600 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 17 MKH 5147 - 1 - 0 - 1700 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 18 MKH 5148 - 1 - 0 - 1800 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 19 MKH 5149 - 1 - 0 - 1900 Housings with crimp connection
2.5 mm RFK 2 MKH 5130 20 MKH 5150 - 1 - 0 - 2000 Housings with crimp connection
2.5 mm ECO-TRONIC MF 7234 2 MFVV 7234 - 202 - * IDC housings for single wire for direct and indirect connections * Part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7234 3 MFVV 7234 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 4 MFVV 7234 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 5 MFVV 7234 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 6 MFVV 7234 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 7 MFVV 7234 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 8 MFVV 7234 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 9 MFVV 7234 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 10 MFVV 7234 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 11 MFVV 7234 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 12 MFVV 7234 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 13 MFVV 7234 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 14 MFVV 7234 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 15 MFVV 7234 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 16 MFVV 7234 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 17 MFVV 7234 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 18 MFVV 7234 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 19 MFVV 7234 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7234 20 MFVV 7234 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 2 MFVV 7235 - 202 - * IDC housings for single wire for direct and indirect connections, as daisy chain connector * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7235 3 MFVV 7235 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 4 MFVV 7235 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 5 MFVV 7235 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 6 MFVV 7235 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 7 MFVV 7235 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 8 MFVV 7235 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 9 MFVV 7235 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 10 MFVV 7235 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 11 MFVV 7235 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 12 MFVV 7235 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 13 MFVV 7235 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 14 MFVV 7235 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 15 MFVV 7235 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 16 MFVV 7235 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 17 MFVV 7235 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 18 MFVV 7235 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 19 MFVV 7235 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7235 20 MFVV 7235 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 2 MFVV 7236 - 202 - * IDC housings for single wire for direct and indirect connections, with locking feature inside * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7236 3 MFVV 7236 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 4 MFVV 7236 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 5 MFVV 7236 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 6 MFVV 7236 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 7 MFVV 7236 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 8 MFVV 7236 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 9 MFVV 7236 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 10 MFVV 7236 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 11 MFVV 7236 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 12 MFVV 7236 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 13 MFVV 7236 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 14 MFVV 7236 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 15 MFVV 7236 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 16 MFVV 7236 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 17 MFVV 7236 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 18 MFVV 7236 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 19 MFVV 7236 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7236 20 MFVV 7236 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 2 MFVV 7237 - 202 - * IDC housings for single wire for direct and indirect connections, with locking feature inside as daisy chain connector * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7237 3 MFVV 7237 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 4 MFVV 7237 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 5 MFVV 7237 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 6 MFVV 7237 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 7 MFVV 7237 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 8 MFVV 7237 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 9 MFVV 7237 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 10 MFVV 7237 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 11 MFVV 7237 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 12 MFVV 7237 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 13 MFVV 7237 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 14 MFVV 7237 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 15 MFVV 7237 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 16 MFVV 7237 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 17 MFVV 7237 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 18 MFVV 7237 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 19 MFVV 7237 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7237 20 MFVV 7237 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 2 MFVV 7238 - 202 - * IDC housings for single wire for direct connections, with PCB locking without loss of contact * Part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7238 3 MFVV 7238 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 4 MFVV 7238 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 5 MFVV 7238 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 6 MFVV 7238 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 7 MFVV 7238 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 8 MFVV 7238 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 9 MFVV 7238 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 10 MFVV 7238 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 11 MFVV 7238 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 12 MFVV 7238 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 13 MFVV 7238 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 14 MFVV 7238 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 15 MFVV 7238 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 16 MFVV 7238 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 17 MFVV 7238 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 18 MFVV 7238 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 19 MFVV 7238 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7238 20 MFVV 7238 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 2 MFVV 7239 - 202 - * IDC housings for single wire for direct connections, with PCB locking without loss of contact as daisy chain connector * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7239 3 MFVV 7239 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 4 MFVV 7239 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 5 MFVV 7239 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 6 MFVV 7239 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 7 MFVV 7239 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 8 MFVV 7239 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 9 MFVV 7239 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 10 MFVV 7239 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 11 MFVV 7239 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 12 MFVV 7239 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 13 MFVV 7239 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 14 MFVV 7239 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 15 MFVV 7239 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 16 MFVV 7239 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 17 MFVV 7239 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 18 MFVV 7239 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 19 MFVV 7239 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7239 20 MFVV 7239 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 3 MFVV 7242 - 003 - * IDC housings for single wire for direct connections, with active PCB locking and loss of contact * Part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7242 4 MFVV 7242 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 5 MFVV 7242 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 6 MFVV 7242 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 7 MFVV 7242 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 8 MFVV 7242 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 9 MFVV 7242 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 10 MFVV 7242 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 11 MFVV 7242 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 12 MFVV 7242 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 13 MFVV 7242 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 14 MFVV 7242 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 15 MFVV 7242 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 16 MFVV 7242 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 17 MFVV 7242 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 18 MFVV 7242 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 19 MFVV 7242 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7242 20 MFVV 7242 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 3 MFVV 7243 - 003 - * IDC housings for single wire for direct connections, with active PCB locking and loss of contact as daisy chain connector * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7243 4 MFVV 7243 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 5 MFVV 7243 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 6 MFVV 7243 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 7 MFVV 7243 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 8 MFVV 7243 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 9 MFVV 7243 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 10 MFVV 7243 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 11 MFVV 7243 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 12 MFVV 7243 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 13 MFVV 7243 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 14 MFVV 7243 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 15 MFVV 7243 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 16 MFVV 7243 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 17 MFVV 7243 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 18 MFVV 7243 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 19 MFVV 7243 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7243 20 MFVV 7243 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 3 MFVV 7244 - 003 - * IDC housings for solid wire / lead frame 0.51 x 0.60 mm for direct and indirect connetions * Part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7244 4 MFVV 7244 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 5 MFVV 7244 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 6 MFVV 7244 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 7 MFVV 7244 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 8 MFVV 7244 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 9 MFVV 7244 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 10 MFVV 7244 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 11 MFVV 7244 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 12 MFVV 7244 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 13 MFVV 7244 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 14 MFVV 7244 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 15 MFVV 7244 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 16 MFVV 7244 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 17 MFVV 7244 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 18 MFVV 7244 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 19 MFVV 7244 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7244 20 MFVV 7244 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 2 MFVV 7274 - 202 - * IDC housings for single wire for direct and indirect connections, for wire sizes 0.12-0.14 mm² / AWG 26 * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7274 3 MFVV 7274 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 4 MFVV 7274 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 5 MFVV 7274 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 6 MFVV 7274 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 7 MFVV 7274 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 8 MFVV 7274 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 9 MFVV 7274 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 10 MFVV 7274 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 11 MFVV 7274 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 12 MFVV 7274 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 13 MFVV 7274 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 14 MFVV 7274 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 15 MFVV 7274 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 16 MFVV 7274 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 17 MFVV 7274 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 18 MFVV 7274 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 19 MFVV 7274 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7274 20 MFVV 7274 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 2 MFVV 7278 - 202 - * IDC housings for single wire for direct connections, with PCB locking without loss of contact, for wire sizes 0.12-0.14 mm² / AWG 26 * Polarizings, part assemblies in 5 mm spacing, special contact loading on request.
2.5 mm ECO-TRONIC MF 7278 3 MFVV 7278 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 4 MFVV 7278 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 5 MFVV 7278 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 6 MFVV 7278 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 7 MFVV 7278 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 8 MFVV 7278 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 9 MFVV 7278 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 10 MFVV 7278 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 11 MFVV 7278 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 12 MFVV 7278 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 13 MFVV 7278 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 14 MFVV 7278 - 014 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 15 MFVV 7278 - 015 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 16 MFVV 7278 - 016 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 17 MFVV 7278 - 017 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 18 MFVV 7278 - 018 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 19 MFVV 7278 - 019 - * IDC housings
2.5 mm ECO-TRONIC MF 7278 20 MFVV 7278 - 020 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 2 MFVV 7534 - 202 - * IDC housings for ribbon cable for direct and indirect connections, for wire sizes 0.22 mm² * Part assemblies in 5 mm spacing and special contact loading on request.
2.5 mm ECO-TRONIC MF 7534 3 MFVV 7534 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 4 MFVV 7534 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 5 MFVV 7534 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 6 MFVV 7534 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 7 MFVV 7534 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 8 MFVV 7534 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 9 MFVV 7534 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 10 MFVV 7534 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 11 MFVV 7534 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 12 MFVV 7534 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7534 13 MFVV 7534 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 2 MFVV 7538 - 202 - * IDC housings
for ribbon cable with PCB locking without loss of contact for wire sizes 0.22 mm²		 * Polarizings and special contact loading on request.
2.5 mm ECO-TRONIC MF 7538 3 MFVV 7538 - 003 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 4 MFVV 7538 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 5 MFVV 7538 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 6 MFVV 7538 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 7 MFVV 7538 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 8 MFVV 7538 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 9 MFVV 7538 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 10 MFVV 7538 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 11 MFVV 7538 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 12 MFVV 7538 - 012 - * IDC housings
2.5 mm ECO-TRONIC MF 7538 13 MFVV 7538 - 013 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 3 MFVV 7934 - 003 - * IDC housings for single wire for direct connections, with PCB locking at sides (80N holding force) * Coding and positions on request.
2.5 mm ECO-TRONIC MF 7934 4 MFVV 7934 - 004 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 5 MFVV 7934 - 005 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 6 MFVV 7934 - 006 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 7 MFVV 7934 - 007 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 8 MFVV 7934 - 008 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 9 MFVV 7934 - 009 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 10 MFVV 7934 - 010 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 11 MFVV 7934 - 011 - * IDC housings
2.5 mm ECO-TRONIC MF 7934 12 MFVV 7934 - 012 - * IDC housings
2.5 mm ECO-TRONIC Crimp MH 7434 2 MH 7434 - 002 - * Housing for crimp contacts for direct and indirect connections 13-20 poles on request
* Polarizings on request.
2.5 mm ECO-TRONIC Crimp MH 7434 3 MH 7434 - 003 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 4 MH 7434 - 004 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 5 MH 7434 - 005 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 6 MH 7434 - 006 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 7 MH 7434 - 007 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 8 MH 7434 - 008 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 9 MH 7434 - 009 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 10 MH 7434 - 010 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 11 MH 7434 - 011 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 12 MH 7434 - 012 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 13 MH 7434 - 013 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 14 MH 7434 - 014 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 15 MH 7434 - 015 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 16 MH 7434 - 016 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 17 MH 7434 - 017 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 18 MH 7434 - 018 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 19 MH 7434 - 019 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7434 20 MH 7434 - 020 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 2 MH 7438 - 002 - * Housing for crimp contacts for direct connections, with PCB locking without loss of contact 13-20 poles on request
optionally with polarizing bar and fully closed front.
* Polarizings on request.
2.5 mm ECO-TRONIC Crimp MH 7438 3 MH 7438 - 003 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 4 MH 7438 - 004 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 5 MH 7438 - 005 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 6 MH 7438 - 006 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 7 MH 7438 - 007 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 8 MH 7438 - 008 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 9 MH 7438 - 009 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 10 MH 7438 - 010 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 11 MH 7438 - 011 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 12 MH 7438 - 012 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 13 MH 7438 - 013 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 14 MH 7438 - 014 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 15 MH 7438 - 015 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 16 MH 7438 - 016 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 17 MH 7438 - 017 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 18 MH 7438 - 018 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 19 MH 7438 - 019 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7438 20 MH 7438 - 020 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 3 MH 7442 - 003 - * Housing for crimp contacts for direct connections, with active PCB locking and loss of contact 13-20 poles on request
optionally with polarizing bar and fully closed front.
* Polarizings on request.
2.5 mm ECO-TRONIC Crimp MH 7442 4 MH 7442 - 004 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 5 MH 7442 - 005 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 6 MH 7442 - 006 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 7 MH 7442 - 007 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 8 MH 7442 - 008 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 9 MH 7442 - 009 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 10 MH 7442 - 010 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 11 MH 7442 - 011 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 12 MH 7442 - 012 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 13 MH 7442 - 013 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 14 MH 7442 - 014 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 15 MH 7442 - 015 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 16 MH 7442 - 016 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 17 MH 7442 - 017 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 18 MH 7442 - 018 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 19 MH 7442 - 019 - * Housing for crimp contacts
2.5 mm ECO-TRONIC Crimp MH 7442 20 MH 7442 - 020 - * Housing for crimp contacts
2.5 mm ECO-TRONIC SPM MS 7352 3 MSVV 7352 - 003 - * Pin connector as sealed panel mount
connection in IDC termination		 sealed panel mount connector pitch 2.5 mm for Iso Ø 1.30 - 1.50 mm, wire size 0.22 - 0.35 mm² * Coding and positions on request.
2.5 mm ECO-TRONIC SPM MS 7352 4 MSVV 7352 - 004 - *
2.5 mm ECO-TRONIC SPM MS 7352 5 MSVV 7352 - 005 - *
2.5 mm ECO-TRONIC FB MF 7838 2 MFVV 7838 - 202 - * IDC housings for single wire for direct connections, PCB 1 mm, with passive locking * Coding and positions on request.
2.5 mm ECO-TRONIC FB MF 7838 3 MFVV 7838 - 003 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 4 MFVV 7838 - 004 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 5 MFVV 7838 - 005 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 6 MFVV 7838 - 006 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 7 MFVV 7838 - 007 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 8 MFVV 7838 - 008 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 9 MFVV 7838 - 009 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 10 MFVV 7838 - 010 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 11 MFVV 7838 - 011 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 12 MFVV 7838 - 012 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 13 MFVV 7838 - 013 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 14 MFVV 7838 - 014 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 15 MFVV 7838 - 015 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 16 MFVV 7838 - 016 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 17 MFVV 7838 - 017 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 18 MFVV 7838 - 018 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 19 MFVV 7838 - 019 - * IDC housings
2.5 mm ECO-TRONIC FB MF 7838 20 MFVV 7838 - 020 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 3 MFVV 7738 - 003 - * IDC housings for single wire for direct connections, with one-sided contacting on IMS printed circuit boards Insulation comb MV 7640 mounted
* Coding and positions on request.
2.5 mm ECO-TRONIC IMS MF 7738 4 MFVV 7738 - 004 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 5 MFVV 7738 - 005 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 6 MFVV 7738 - 006 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 7 MFVV 7738 - 007 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 8 MFVV 7738 - 008 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 9 MFVV 7738 - 009 - * IDC housings
2.5 mm ECO-TRONIC IMS MF 7738 10 MFVV 7738 - 010 - * IDC housings
2.54 mm S-GRID MH 780 3 MH 780 - 03 - * Housing for crimp contacts   * Polarizings, material and colours on request
2.54 mm S-GRID MH 790 6 MH 790 - 06 -* Housing for crimp contacts
3.5 mm HLK 3500 MH 9850 4 MH 9850 - 004 - 905 Housing for crimp contacts   wire size 0.12 - 0.50 mm²
4.2 mm S-FIT 4.20 EH 704 2 EH 704 - 002 - * Plug housings for panel mounting single-row plug housings for panel mounting * Material and colours, see example for ordering
4.2 mm S-FIT 4.20 EH 704 3 EH 704 - 003 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 704 4 EH 704 - 004 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 704 5 EH 704 - 005 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 704 6 EH 704 - 006 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 2 EH 714 - 002 - * Plug housings for panel mounting dual-row plug housings for panel mounting * Material and colours, see example for ordering
4.2 mm S-FIT 4.20 EH 714 4 EH 714 - 004 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 6 EH 714 - 006 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 8 EH 714 - 008 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 10 EH 714 - 010 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 12 EH 714 - 012 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 14 EH 714 - 014 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 16 EH 714 - 016 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 18 EH 714 - 018 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 20 EH 714 - 020 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 22 EH 714 - 022 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 714 24 EH 714 - 024 - * Plug housings for panel mounting
4.2 mm S-FIT 4.20 EH 705 2 EH 705 - 002 - * Receptacle housings single-row receptacle housings * Material and colours, see example for ordering
¹ Material 003 only on request
4.2 mm S-FIT 4.20 EH 705 3 EH 705 - 003 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 705 3 EH 705 - 103 - * ¹ Receptacle housings
4.2 mm S-FIT 4.20 EH 705 4 EH 705 - 004 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 705 5 EH 705 - 005 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 705 6 EH 705 - 006 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 2 EH 715 - 002 - * Receptacle housings dual-row receptacle housings * Material and colours, see example for ordering
4.2 mm S-FIT 4.20 EH 715 4 EH 715 - 004 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 6 EH 715 - 006 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 8 EH 715 - 008 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 10 EH 715 - 010 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 12 EH 715 - 012 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 14 EH 715 - 014 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 16 EH 715 - 016 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 18 EH 715 - 018 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 20 EH 715 - 020 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 22 EH 715 - 022 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 715 24 EH 715 - 024 - * Receptacle housings
4.2 mm S-FIT 4.20 EH 706 2 EH 706 - 002 - * Plug housings single-row plug housing for flying lead connection * Material and colours, see example for ordering
4.2 mm S-FIT 4.20 EH 706 3 EH 706 - 003 - * Plug housings
4.2 mm S-FIT 4.20 EH 706 4 EH 706 - 004 - * Plug housings
4.2 mm S-FIT 4.20 EH 706 5 EH 706 - 005 - * Plug housings
4.2 mm S-FIT 4.20 EH 706 6 EH 706 - 006 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 2 EH 716 - 002 - * Plug housings dual-row plug housing for flying lead connection * Material and colours, see example for ordering
4.2 mm S-FIT 4.20 EH 716 4 EH 716 - 004 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 6 EH 716 - 006 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 8 EH 716 - 008 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 10 EH 716 - 010 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 12 EH 716 - 012 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 14 EH 716 - 014 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 16 EH 716 - 016 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 18 EH 716 - 018 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 20 EH 716 - 020 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 22 EH 716 - 022 - * Plug housings
4.2 mm S-FIT 4.20 EH 716 24 EH 716 - 024 - * Plug housings
5 mm ECO-DOMO NF EH 688 1 EH 688 - 001 - 0 * Housing for crimp contacts indirect connector with crimp connection, for tab connector series MS 9407 and MS 9408, locking by receptacles * See preferential types overview. More polarizing on request.
5 mm ECO-DOMO NF EH 688 2 EH 688 - 002 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688 3 EH 688 - 003 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688 4 EH 688 - 004 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688 5 EH 688 - 005 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688 6 EH 688 - 006 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688 7 EH 688 - 007 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688 8 EH 688 - 008 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.300 3 EH 688.300 - 003 - 0 * Housing for crimp contacts indirect connector with crimp connection, for tab connector series MS 9407 and MS 9408, with closed chambers, locking by receptacles * More polarizing on request.
5 mm ECO-DOMO NF EH 688.300 4 EH 688.300 - 004 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.300 5 EH 688.300 - 005 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.300 6 EH 688.300 - 006 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.300 7 EH 688.300 - 007 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.300 8 EH 688.300 - 008 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.400 2 EH 688.400 - 002 - 0 * Housing for crimp contacts indirect connector with crimp connection, locking feature inside, for RAST 5 tab connectors * Please enter here the version number as per the RAST 5 polarizing chart.
Example: EH 688.400 - 002 - 00A = 2-way housing with polarizing 0A to RAST 5.
5 mm ECO-DOMO NF EH 688.400 3 EH 688.400 - 003 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.400 4 EH 688.400 - 004 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.400 5 EH 688.400 - 005 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.400 6 EH 688.400 - 006 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.400 7 EH 688.400 - 007 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 688.400 8 EH 688.400 - 008 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699 2 EH 699 - 002 - 0 * Housing for crimp contacts indirect connector with crimp connection, locking feature inside, various 90°or 180°cable exits, for RAST 5 tab connectors * See preferential types overview. More polarizing on request.
5 mm ECO-DOMO NF EH 699 3 EH 699 - 003 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699 4 EH 699 - 004 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699 5 EH 699 - 005 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699 6 EH 699 - 006 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699 7 EH 699 - 007 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699 8 EH 699 - 008 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699.300 2 EH 699.300 - 002 - 0 * Housing for crimp contacts indirect connector with crimp connection, locking feature inside, closed chambers, various 90°or 180°cable exits, for RAST 5 tab connectors * More codings on request.
5 mm ECO-DOMO NF EH 699.300 3 EH 699.300 - 003 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699.300 4 EH 699.300 - 004 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699.300 5 EH 699.300 - 005 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699.300 6 EH 699.300 - 006 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699.300 7 EH 699.300 - 007 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 699.300 8 EH 699.300 - 008 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 788 2 EH 788 - 002 - 0 * Housing for crimp contacts housing for tabs 6.3 x 0.8 mm. Flying lead for housing according to RAST 5 Standard * More codings on request.
5 mm ECO-DOMO NF EH 788 3 EH 788 - 003 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 788 4 EH 788 - 004 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 788 5 EH 788 - 005 - 0 * Housing for crimp contacts
5 mm ECO-DOMO NF EH 788 6 EH 788 - 006 - 0 * Housing for crimp contacts
5 mm ECO-TRONIC SPM MS 7353 2 MSVV 7353 - 002 - * Pin connector as sealed panel mount
connection in IDC termination		 sealed panel mount connector pitch 5 mm for Iso Ø 1.30 - 1.50 mm, wire size 0.22 - 0.35 mm² * Coding and positions on request.
5 mm ECO-TRONIC SPM MS 7353 3 MSVV 7353 - 003 - *
5 mm ECO-TRONIC SPM MS 7353 4 MSVV 7353 - 004 - *
6.35 mm S-LOCK 6.35 EH 702 2 EH 702 - 002 - * Housings for panel mounting in-line housings
6.35 mm S-LOCK 6.35 EH 702 3 EH 702 - 003 - * Housings for panel mounting
6.35 mm S-LOCK 6.35 EH 702 4 EH 702 - 004 - * Housings for panel mounting
6.35 mm S-LOCK 6.35 EH 702 5 EH 702 - 005 - * Housings for panel mounting
6.35 mm S-LOCK 6.35 EH 712 6 EH 712 - 006 - * Housings for panel mounting multi-row housings
6.35 mm S-LOCK 6.35 EH 712 9 EH 712 - 009 - * Housings for panel mounting
6.35 mm S-LOCK 6.35 EH 712 12 EH 712 - 012 - * Housings for panel mounting
6.35 mm S-LOCK 6.35 EH 712 15 EH 712 - 015 - * Housings for panel mounting
6.35 mm S-LOCK 6.35 EH 703 2 EH 703 - 002 - * Plug housings in-line housings
6.35 mm S-LOCK 6.35 EH 703 3 EH 703 - 003 - * Plug housings
6.35 mm S-LOCK 6.35 EH 703 4 EH 703 - 004 - * Plug housings
6.35 mm S-LOCK 6.35 EH 703 5 EH 703 - 005 - * Plug housings
6.35 mm S-LOCK 6.35 EH 713 6 EH 713 - 006 - * Plug housings multi-row housings
6.35 mm S-LOCK 6.35 EH 713 9 EH 713 - 009 - * Plug housings
6.35 mm S-LOCK 6.35 EH 713 12 EH 713 - 012 - * Plug housings
6.35 mm S-LOCK 6.35 EH 713 15 EH 713 - 015 - * Plug housings



Support Custom Wire Harness Assembly



  • Connectors: All series.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Please provide as many details as possible to help us customize.
  • Minimum Order: 200 pieces per order.

Stocko Connector Wire Harness



Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE Connector
Molex Connector
JST Connector
Aptive Connector
Amphenol Connector
Deutsch Connector
Yazaki Connector
Sumitomo Connector
Lear Connector
KET Connector
Neutrik Connector
Switchcraft Connector
Julet Connector
Higo Connector
XT Connector
Hirose Connector
Yeonho Connector
Anderson Connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
