Sumitomo 250, 305, 375 type sealed Connector, Custom Wire Harness

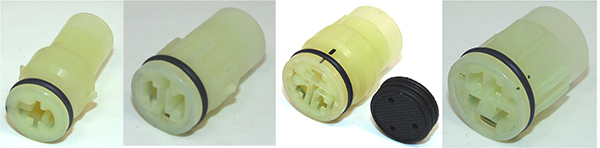

Sumitomo 250, 305, 375 type sealed Connector
This waterproof connector is designed to meet the unprecedented demand for water-tightness in various applications, particularly in vehicles and other wiring systems. Its exceptional ability to withstand water ingress has been proven through rigorous testing, even when used in harsh environmental conditions such as inside the engine compartment.
One of the key features of this connector is its flat plug-in type terminal, which not only ensures consistent electrical characteristics but also enhances its overall water-tightness. This terminal design has been extensively tested and proven reliable in various field applications. It provides a secure connection that can be trusted for both control circuits and power circuits.
Furthermore, these connectors come in different sizes, allowing them to be used across a wide range of applications. Whether it's for small-scale control circuits or high-power circuits, there is a suitable size available to accommodate specific needs.
In addition to their outstanding waterproof characteristics and consistent electrical performance, these connectors are also known for their durability and longevity. They are built with high-quality materials that can withstand extreme temperatures, vibrations, and other challenging operating conditions commonly encountered within vehicles or industrial settings.
250 Type Connector and Terminals
| Part name | No.of way | Housing part No. | Terminal part No. | Rubber plug No. | Note |
| Connector Male | 1 | 6180-1541 | 8230-4040 | 7160-5110 | Housing lance type |
| 2 | 6180-2541 | 1800-2093 | 7161-3223 | ||
| 3 | 6180-3541 | 08230-4040 | 7161-3224 | Housing lance type | |
| 4 | 6180-4541 | 1800-2093 | 7160-3746 | ||
| 5 | 6180-5541 | 7160-3960 | |||
| Connector Female | 1 | 6187-1551 | 48240-4140 | 7160-5110 | Housing lance type |
| 2 | 6189-0274 | 1800-2094 | 7161-3223 | ||
| 3 | 6187-3551 | 08240-4140 | 7161-3224 | Housinglance type | |
| 4 | 6189-0285 | 1800-2094 | 7160-3746 | ||
| 5 | 6189-0291 | 7160-3960 |
305 Type Connector and Terminals
| Part name | No.of way | Housing part No. | Terminal part No. | Rubber plug No. |
| Connector Male | 1 | 6180-1481 | 8235-4050 | 7160-3367 |
| 2 | 6180-2480 | 7160-3897 | ||
| Connector Female | 1 | 6189-1491 | 8245-4060 | 7160-3367 |
| 2 | 6189-0299 | 7160-3897 |
375 Type Connector and Terminals
| Part name | No.of way | Housing part No. | Terminal part No. | Rubber plug No. |
| Connector Male | 1 | 6180-1011 | 1800-2174 | 7160-5591 |
| Connector Female | 1 | 6187-1021 | 1800-2193 | 7160-5591 |

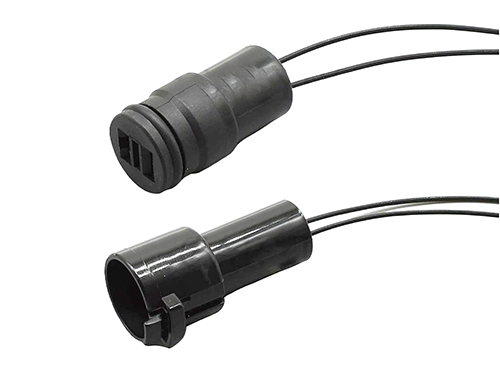

Support Custom Wire Harness Assembly
- Connectors: 1P to 5P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
