Sumitomo 250-type Connector



The Sumitomo 250 Series Connectors are versatile, medium-current connectors known for their reliable electrical performance and extensive variation options. These connectors include LT variants without housing locking functions, LT connectors with locking mechanisms, arm-type connectors, and TIL connectors that feature an integrated arm locking function. Designed with a flat plug-in type terminal, they offer consistent electrical characteristics and have demonstrated field-proven reliability across various applications. A notable feature is the availability of connectors that prevent mis-engagement, particularly useful when the same connector type is used in multiple locations. This compatibility ensures safe and secure connections, minimizing the risk of incorrect installations. The wide range of styles makes them ideal for applications that require dependable medium-current connections with robust performance.





Sumitomo 250 Connector Features



Consistent electrical characteristics

A flat plug-in type terminal, with field-proven reliability, ensures consistent electrical characteristics



Wide range variation

In the case of using the same-way connectors at one portion, a different style is suitable for the prevention of mis-engagement compatible connectors are also useful for connectional ones.







250 Connector Series types



• ETN type
• Armlock type
• TIL type
• ET type
• Lock type
• LT type



ETN type of Connector Part Number



No. Of Way	Male Connector	Female Connector
1	6070-1881	6070-1891
2	6070-2921	6070-2911
	6070-2371
	6070-2081
	6070-2881	6070-2891
3	6070-3881	6070-3891
	6070-3371
4	6070-4921	6070-4891
	6070-4371
6	6070-6881	6070-6891
	6070-6371
8	6070-8371	6070-8891
	6070-8881

Notes:

• 2way and 4way connectors are Block type.
• Block type connectors can be attached to each other.
• It is also possible to connect with the block type HM090 connectors.
• Clamping a single connector on a device, etc. where only a narrow clamping location is available makes it possible to clamp a multiple number of connectors.





Armlock type of Connector Part Number



Housing lance type, materials are 66 Nylon.



No. Of Way	Male Connector	Female Connector
1	6070-1621	6070-1611
2	6070-2621	6070-2611
3	6070-3621	6070-3611
4	6070-4621	6070-4611
6	6070-6621	6070-6611
8	6070-8621	6070-8611
10	6071-0621	6071-0611



Terminal lance type, materials are 66 Nylon.



No. Of Way	Male Connector	Female Connector
1	6110-2683	6110-2682
2	6111-2567	6111-2568
3	6111-2556	6111-2557
4	6111-2009	6111-2010
6	6111-2007	6111-2008
8	6111-2011	6111-2012
10	6111-2576	6111-2575



Terminal lance type, materials are Polypropylene.



No. Of Way	Male Connector	Female Connector
1	6070-1381	6070-1391
2	6070-2381	6070-2391
3	6070-3381	6070-3391
4	6070-4381	6070-4391
6	6070-6381	6070-6391
8	6070-8381	6070-8391
10	6071-0381	6071-0391





TIL type of Connector Part Number



No. Of Way	Male Connector	Female Connector
1	6230-1011	6230-5011
2	6230-1021	6230-5021
3	6230-1031	6230-5031
4	6230-1041	6230-5041
5	6230-1051	6230-5051
7	6230-1071	6230-5071
9	6230-1091	6230-5091



ET type of Connector Part Number



No. Of Way	Male Connector	Female Connector
1	6070-1471	6070-1481
2	6070-2471	6070-2481
3	6070-3471	6070-3481
4	6070-4471	6070-4481
6	6070-6471	6070-6481
8	6070-8471	6070-8481

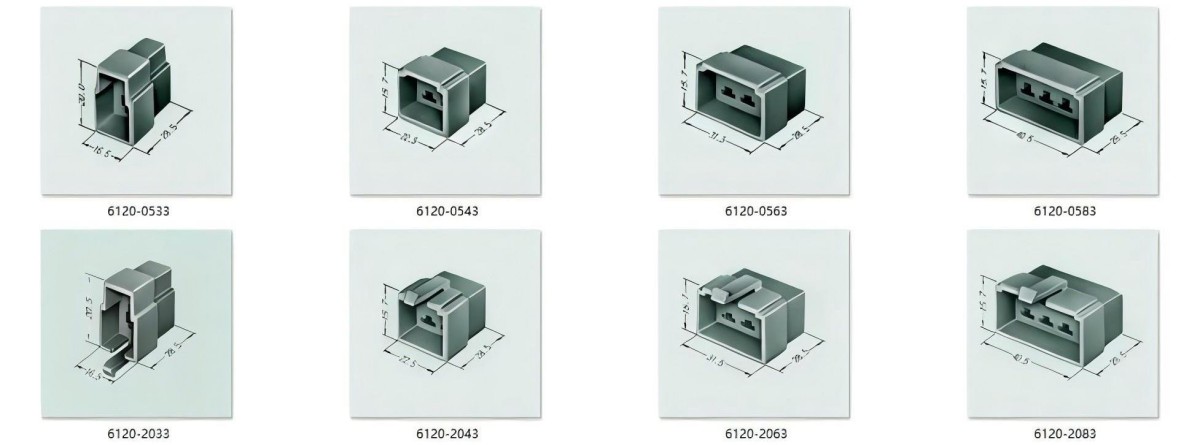

Lock type of Connector Part Number



No. Of Way	Male Connector	Female Connector
2	6120-3523	6110-4623
3	6120-2033	6110-4533
		6020-3261
4	6120-2043	6110-4543
		6110-4643
6	6120-2063	6110-4563
8	6120-2083	6110-4583
9	6120-2093	6110-4593



LT type of Connector Part Number



No. Of Way	Male Connector	Female Connector
1	6120-0513	6190-0513
		6190-1513
2	6120-0523	6110-8323
3	6120-0533	6110-0333
		6110-2533
4	6120-0543	6110-0343
		6110-2543
6	6120-0563	6110-0363
		6110-2563
8	6120-0583	6110-0583
		6110-2583

Contact us for a free connector and terminal size.





250 Connector Specifications Chart



Sort by the number of poles.





Sumitomo 250 Connector Applications



1. Automotive Wiring Harnesses

Frequently used in engine compartments, lighting systems, sensors, and other critical electrical components in cars, trucks, and motorcycles.



2. Motorcycle Electrical Systems

Ideal for connecting headlamps, tail lamps, and indicator lights due to its durability and resistance to harsh conditions.



3. Marine Applications

Often employed in boat wiring systems because of its water resistance and ability to withstand corrosive environments.



4. Agricultural Machinery

Found in wiring harnesses for tractors, harvesters, and other heavy equipment, where reliability in rugged environments is crucial.



5. Industrial Machinery

Used in equipment control systems, allowing secure and long-lasting connections in industrial settings.



6. Off-road Vehicles

Utilized in ATVs and other off-road vehicles that require connectors resistant to mud, dust, and vibration.





Custom Wiring Harness Cases





Custom Wire Harness Solutions



We offer high-quality custom wire harness solutions using the trusted Sumitomo 250 connectors, as well as a cost-effective Chinese replacement that maintains the same reliability and performance. Both options ensure secure and efficient connections for automotive, industrial, and off-road applications.

Our Chinese replacement connectors provide the same level of quality as Sumitomo 250 connectors, with the added benefits of competitive pricing and shorter lead times, ensuring faster project completion without compromising on durability.

Whether you choose Sumitomo or its quality alternative, we guarantee high-performance wire harnesses suited for engine compartments, lighting systems, sensors, and other critical components across a variety of demanding environments.
