Sumitomo 58 Connector
The Sumitomo 58 Connector features a robust design with a terminal secondary-lock mechanism that ensures secure and reliable connections. This mechanism involves a dual-locking system where the terminal, initially secured by a housing lance, is further reinforced by a mechanical stop at the back of the housing. This design minimizes the risk of terminal disconnection, providing a stable and secure connection even in challenging conditions. Additionally, the connector utilizes an inertia lock mechanism, where the terminal insertion peak value is higher at the locking point than at full insertion. This feature ensures that the terminal fully engages and seats firmly within the connector, preventing it from stopping halfway during insertion. These design elements make the Sumitomo 58 Connector highly reliable for applications requiring secure and stable electrical connections.

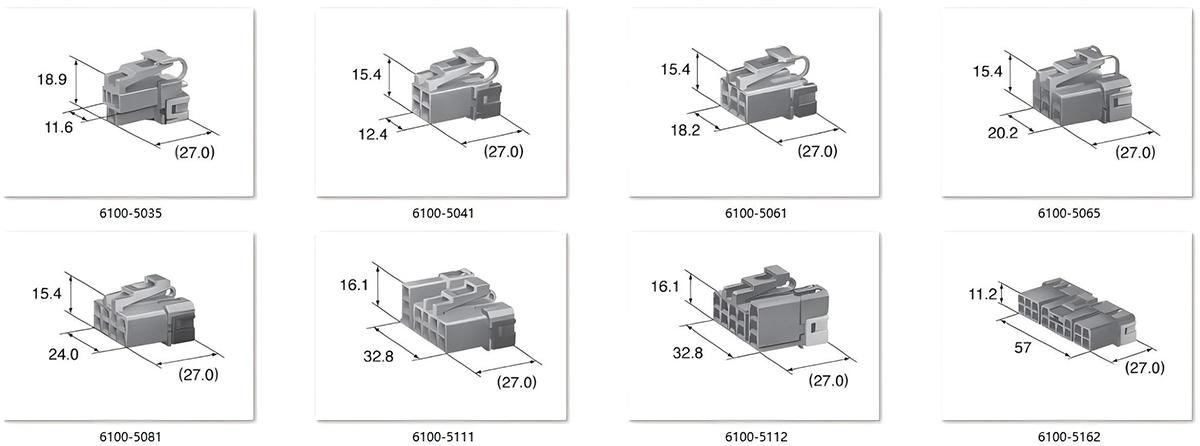

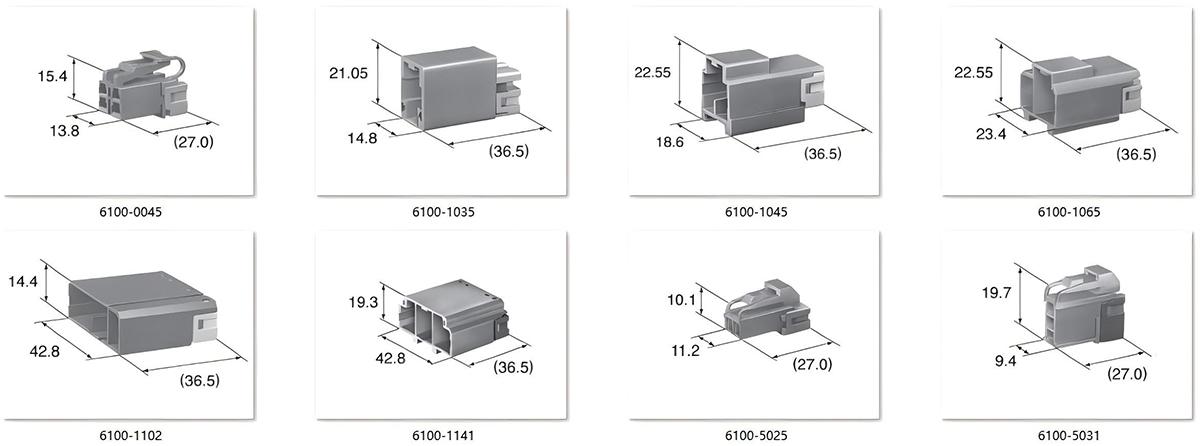

58 Sealed Connector Specifications Chart
Sort by the number of poles.

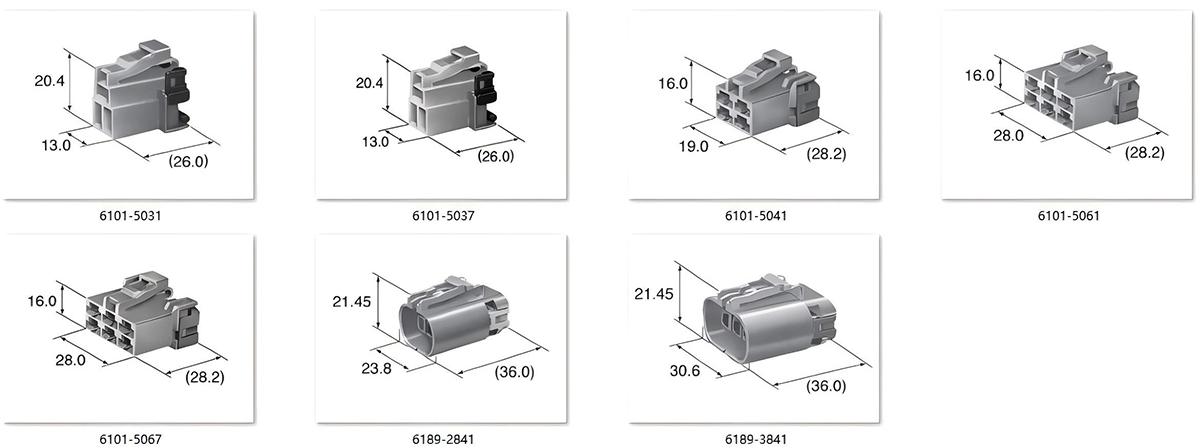

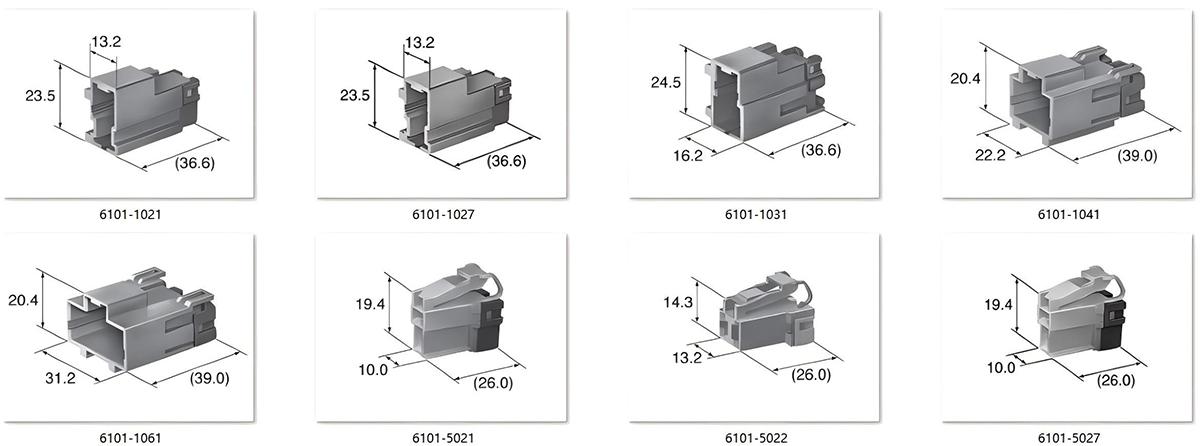

58 Unsealed Connector Specifications Chart
Sort by the number of poles.
Support Custom Wire Harness Assembly
- Connectors: 2P to 16P.
- Applicable cable option: 0.3 - 3.0mm²
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
