Sumitomo 62 Connector, Custom Wire Harness Manufacturer
Sumitomo 62 Connector
The Sumitomo 62 Connector Series is a compact and lightweight solution designed to ensure reliable connections across various applications. This series incorporates a robust secondary-lock mechanism, which enhances connection reliability by guaranteeing complete engagement with other connectors. The secondary lock feature uses a retainer that pushes any partially inserted terminal securely into place, preventing the installation of the retainer if the terminal is not fully engaged. This makes the system foolproof and ensures a stable electrical connection. Additionally, the Sumitomo 62 Connectors feature an inertia lock mechanism, providing added security by preventing accidental disconnection. It is a sealing type of C-type connector and is a miniaturized version of the 58 Sealed Series W-type. These design elements make the Sumitomo 62 Series ideal for environments where space, weight, and connection reliability are critical.

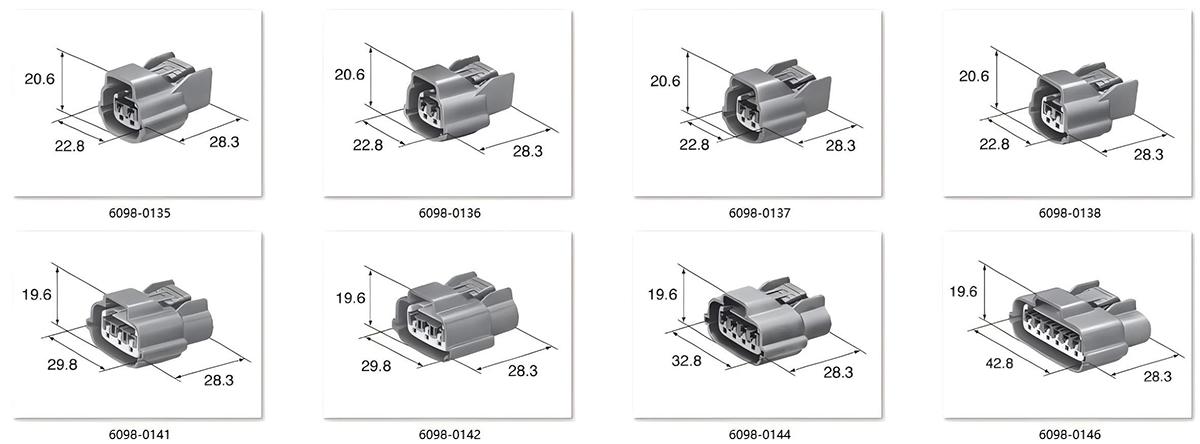

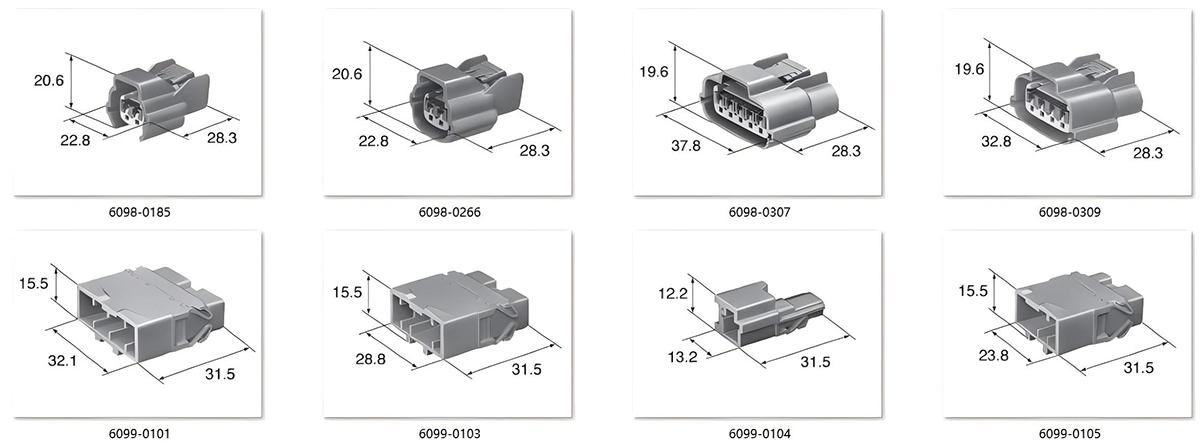

62 Sealed Connector Specifications Chart
Sort by the number of poles.

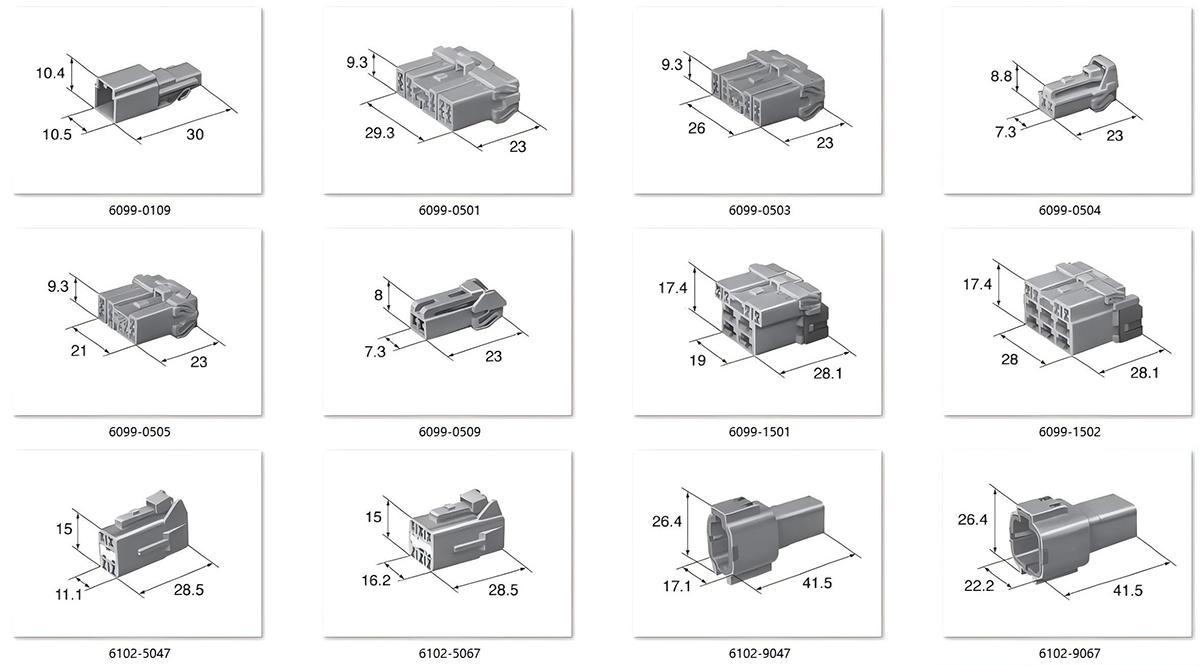

62 Unsealed Connector Specifications Chart
Sort by the number of poles.

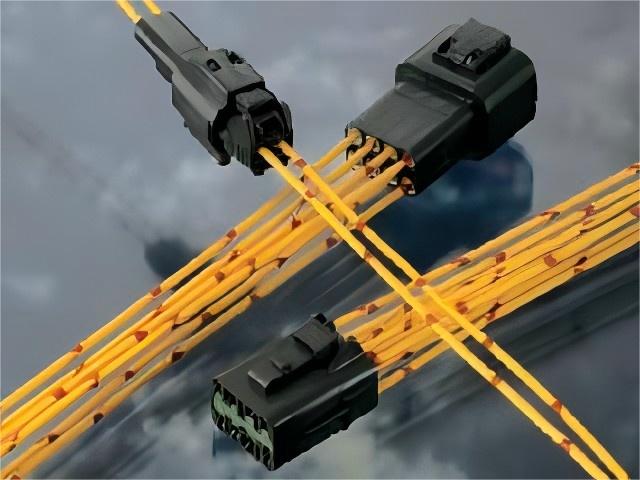

Support Custom Wire Harness Assembly
- Connectors: 2P to 12P.
- Applicable cable option: 0.2 - 2.0mm²
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
