Sumitomo HD Connector

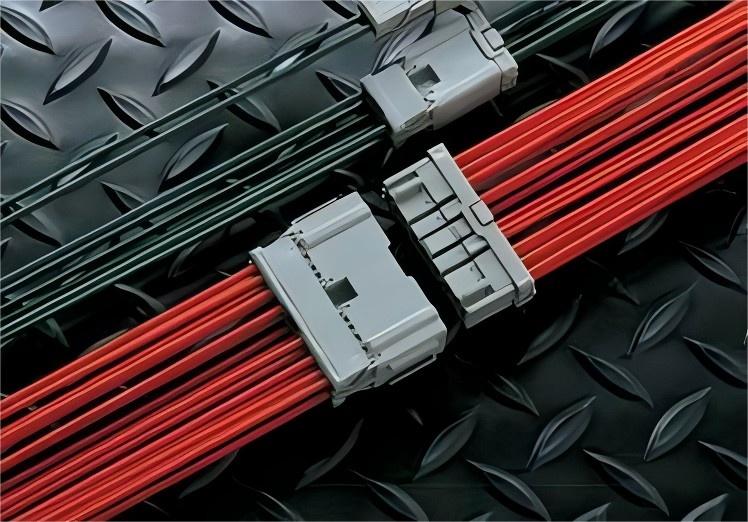

The Sumitomo HD Connector series is an enhanced version of the traditional HM series, designed with a mechanism to minimize the risk of terminal back out and partial engagement of connectors, ensuring secure connections. This series includes 090, 250, and 305 types, and for hybrid models, 090, 187, 250, and 305 types, catering to a wide range of applications from signal transmission to power circuits. A notable feature is the automatic adjustment of improperly inserted terminals, achieved by a built-in retainer that ensures terminals are set correctly. For the 090 type, the retainers are integrated directly into the housing during molding, while the 250 and 305 types have pre-mounted retainers that enhance operability. Additionally, the connector housing can accommodate an extra clip, enabling it to be securely attached to the vehicle body, further improving the reliability and stability of the connection.

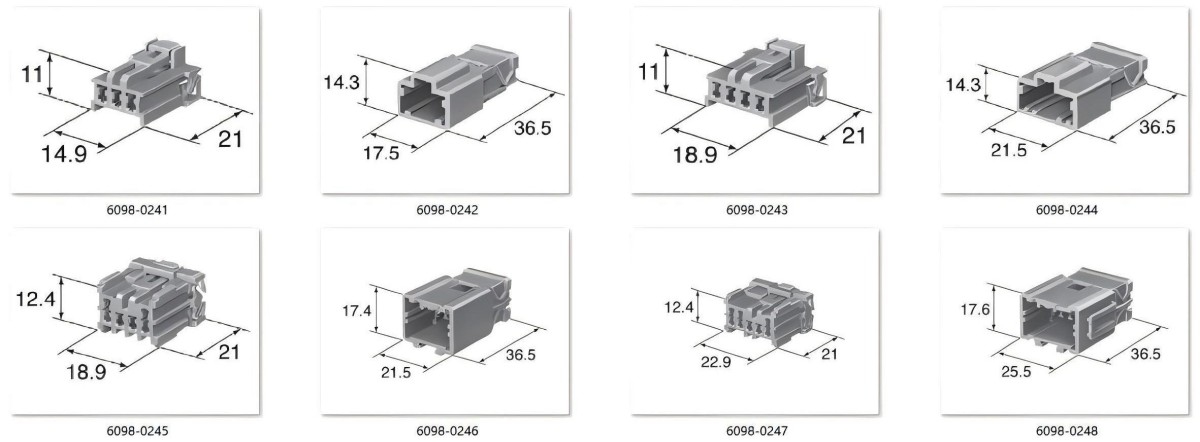

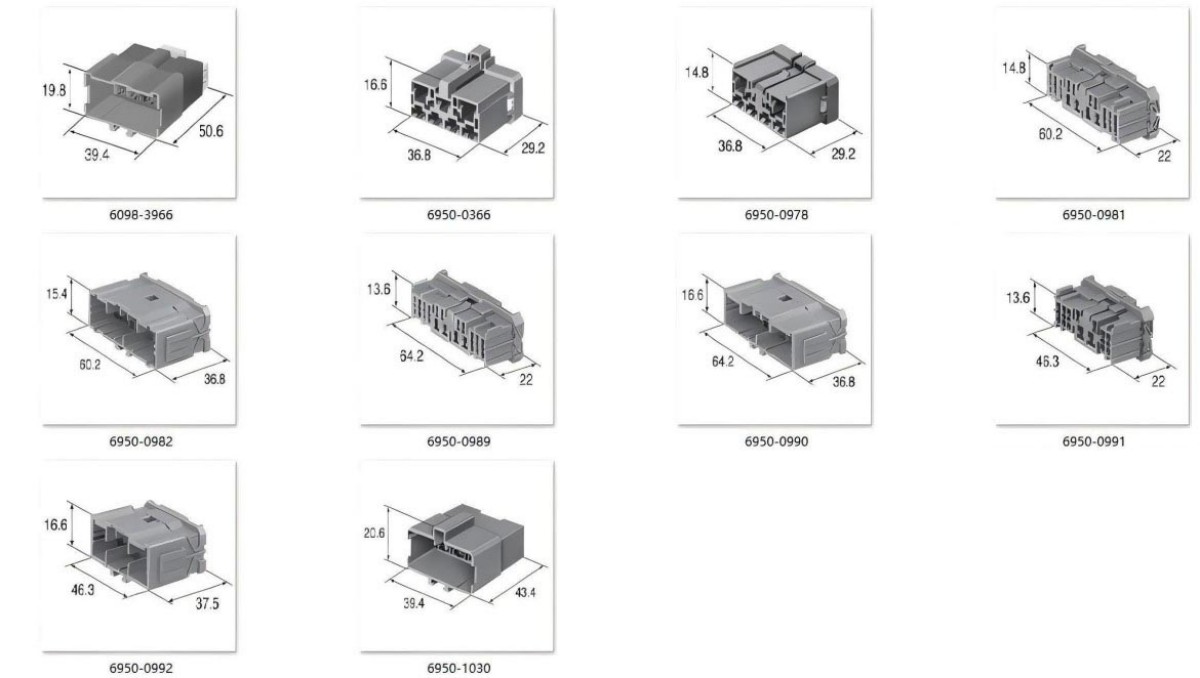

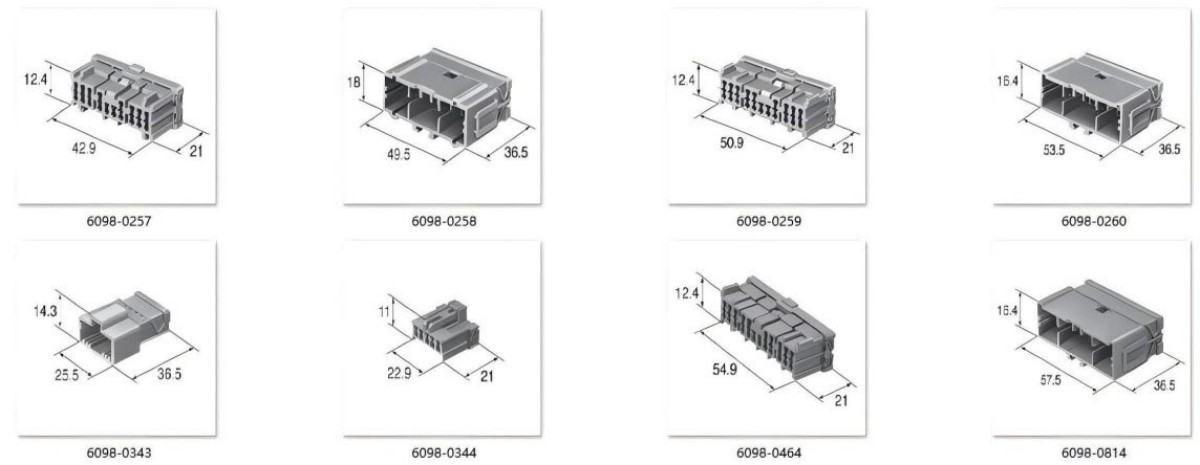

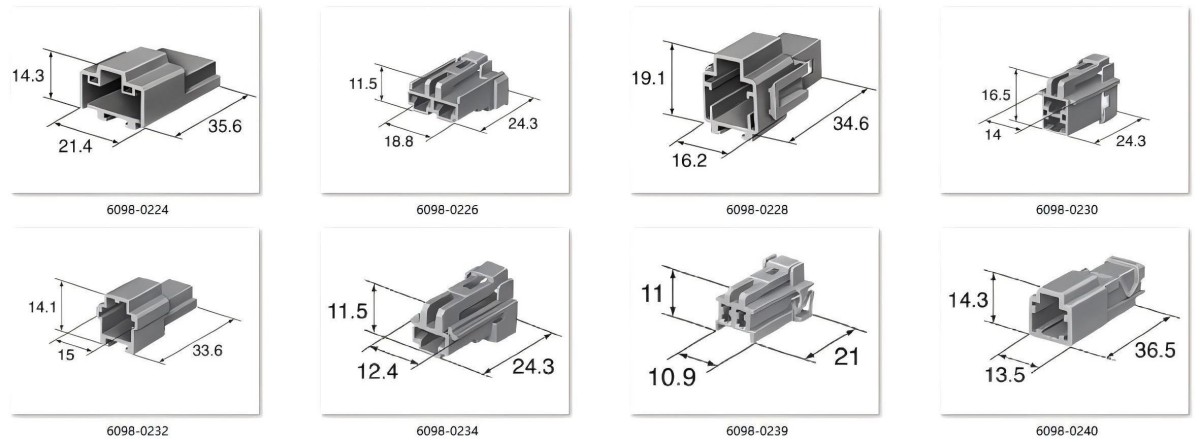

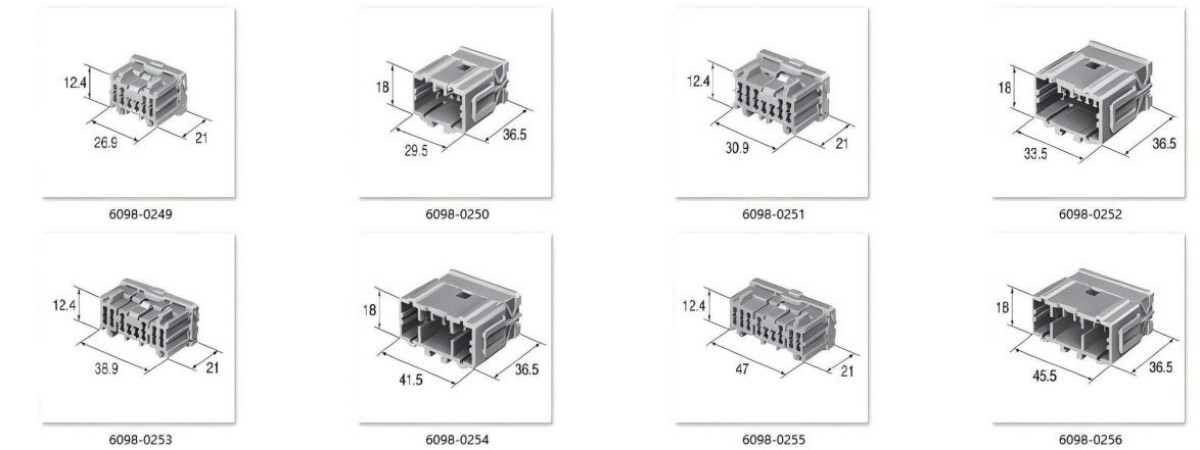

Sumitomo HD Connector Specifications Chart

Sort by the number of poles.

Support Custom Wire Harness Assembly

• Connectors: 1P to 22P.
• Applicable cable option: 0.3 - 5.0mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
