Sumitomo HFC-Ⅳ Connector

The HFC-Ⅳ (High-Frequency Connector) series is highly versatile and finds applications in various fields such as Telematics, Infotainment, Camera, Antenna, and sensor circuits. These connectors are designed to minimize reflection/transmission loss and effectively restrain noise radiation. With their compact size and superior performance, they offer an ideal solution for high-frequency connectivity needs.

One of the key advantages of the HFC-Ⅳ series is its compatibility with hybrid types for both high-frequency coaxial wire and automobile wire (AV). This feature makes it suitable for use in diverse receiving systems. The connectors come preloaded with a retainer for a secondary lock, simplifying the assembly process. By allowing the high-frequency coaxial wire and AV wire to be set up simultaneously with just one operation, these connectors contribute to improved efficiency in assembling operations.

In addition to their practical benefits, the HFC-Ⅳ series also meets stringent quality standards. They undergo rigorous testing procedures to ensure reliable performance even under demanding conditions. Their robust construction ensures durability and longevity.

Overall, the HFC-Ⅳ (High-Frequency Connector) series offers a comprehensive solution for various industries requiring efficient connectivity solutions while maintaining excellent signal integrity. Its compact design coupled with enhanced performance capabilities make it an ideal choice for applications where space constraints are critical without compromising on functionality or reliability.

HFC-Ⅳ Connector Features

• Series: HFC-Ⅳ
• Type
  • 1-way coaxial wire
  • 2-way coaxial wire
  • 2-way coaxial wire + 1-way AV wire
  • 2-way coaxial wire + 2-way AV wire
  • 3-way coaxial wire
  • 4-way coaxial wire
  • 4-way coaxial wire + 2-way AV wire
  • 5-way coaxial wire + 1-way AV wire
• Low voltage current resistance: Coaxial Wire Max. 20mΩ (Initial), AV Wire Max. 8mΩ (Initial)
• Insulation Resistance: Min. 100MΩ
• Working Temperature: -40℃ ~ +105℃

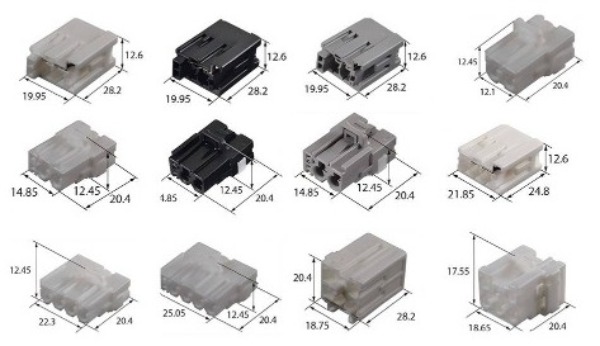

HFC-Ⅳ Connector P/N lists and Specifications

Support Custom Wire Harness Assembly

• Connectors: 1P to 5P.
• Applicable cable option: 1.5C-2V, 1.5C-2W, 1.5D-2V, 2.5D-FV
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 500 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
