Sumitomo HM Sealed Connector

The Sumitomo HM Sealed Connector series is specifically designed for waterproof wiring connections, featuring a 6 mm pitch between terminal poles. It includes a 2.3mm terminal type, which is categorized based on terminal size, making it suitable for a wide range of control and low-power circuits. Engineered to meet the demanding requirements of automotive environments, these connectors deliver reliable performance even under harsh conditions, such as those found in an engine compartment. The robust design ensures a secure, watertight seal, protecting the connections from moisture, dust, and other environmental factors. Additionally, the connectors can be directly mounted onto a bracket on the car body, providing a stable and straightforward installation solution. This makes the HM series a versatile and durable choice for automotive and other applications requiring dependable waterproof connections.

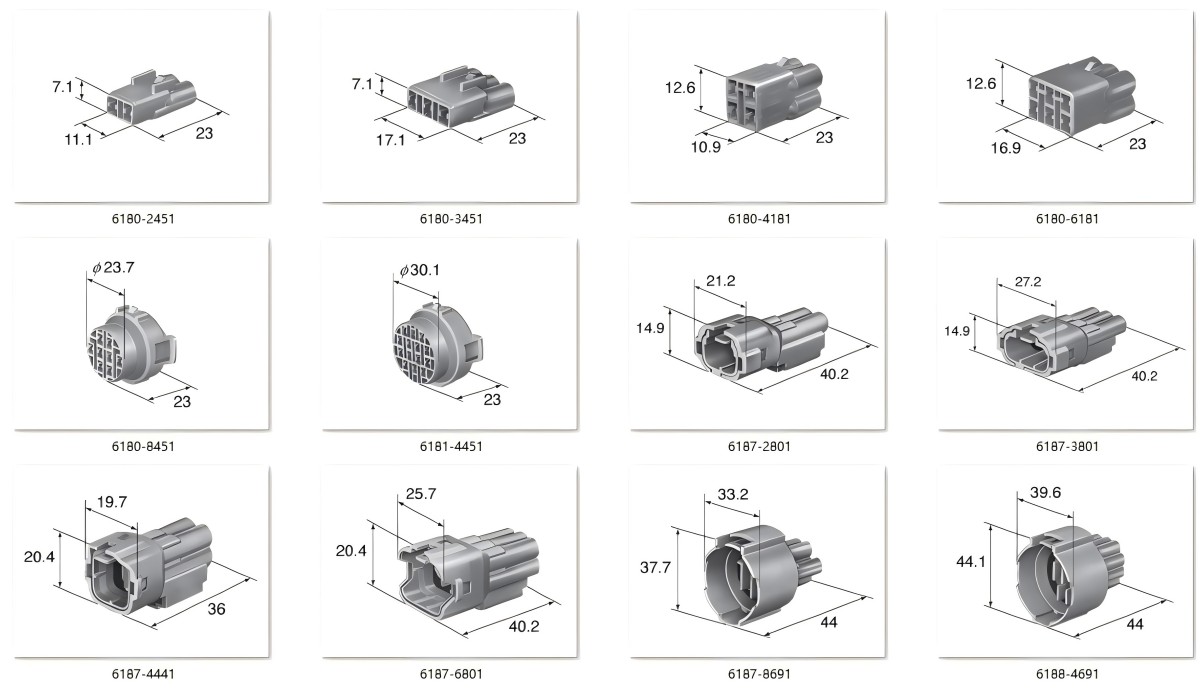

HM Sealed Connector Specifications Chart

Sort by the number of poles.

Support Custom Wire Harness Assembly

• Connectors: 2P to 14P.
• Wire Gauge:0.3 - 1.25mm²
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
