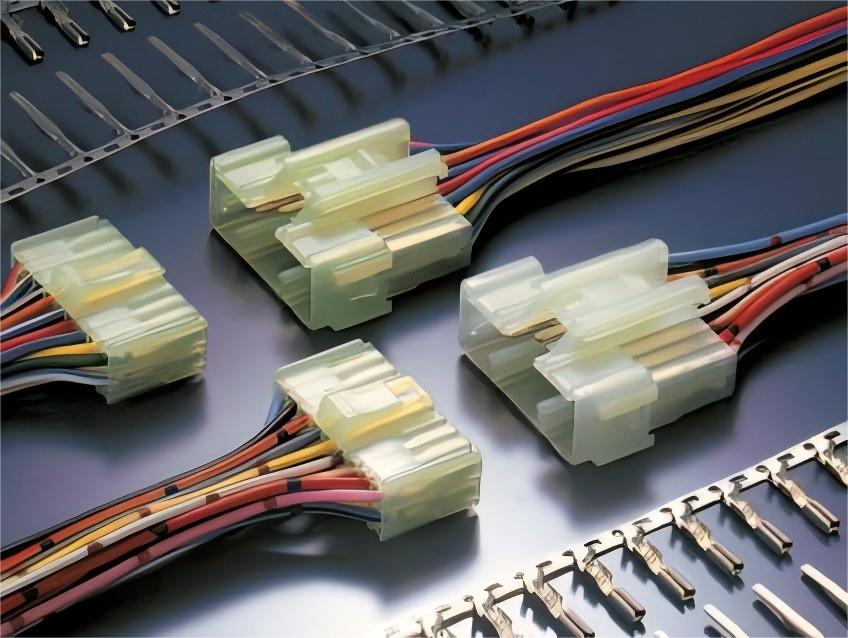

Sumitomo HM Unsealed Connector

The Sumitomo HM Unsealed Connector series features a 4 mm pitch between terminal poles, making it suitable for various automotive and industrial applications. Designed with flexibility in mind, the series includes a 2.3 mm type and a hybrid model that integrates both 2.3 mm and 6.6 mm terminal types. This allows the connectors to accommodate a wide range of control and low-power circuits, offering versatility for different wiring needs. A standout feature of the HM series is its modularity; a joint model enables the integration of multiple connectors, regardless of the number of terminal ways, which simplifies complex wiring setups and enhances connectivity options. Additionally, a splice connector is available, providing efficient and reliable solutions for circuit branching or repairs. The robust design ensures dependable performance, while the unsealed configuration is ideal for environments where sealing is not a strict requirement.

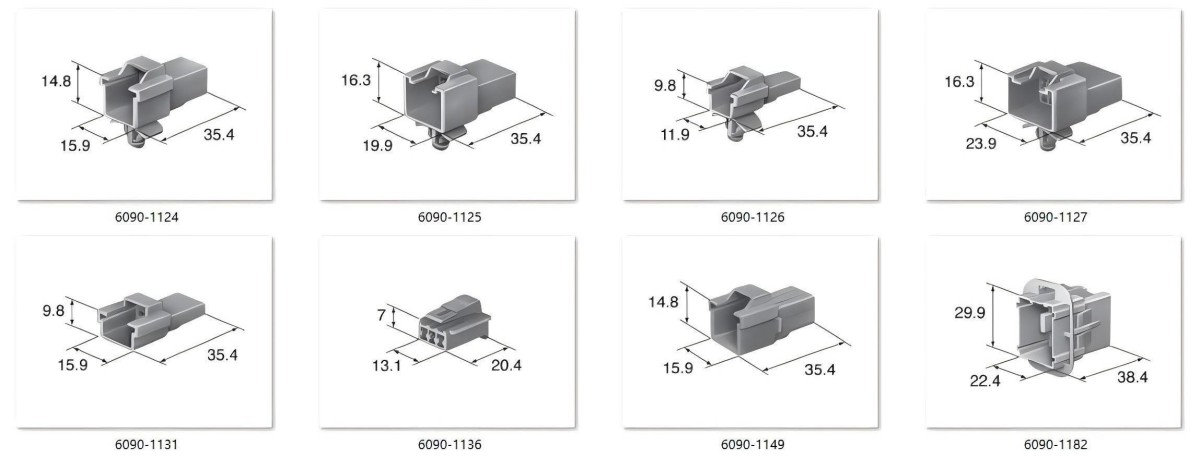

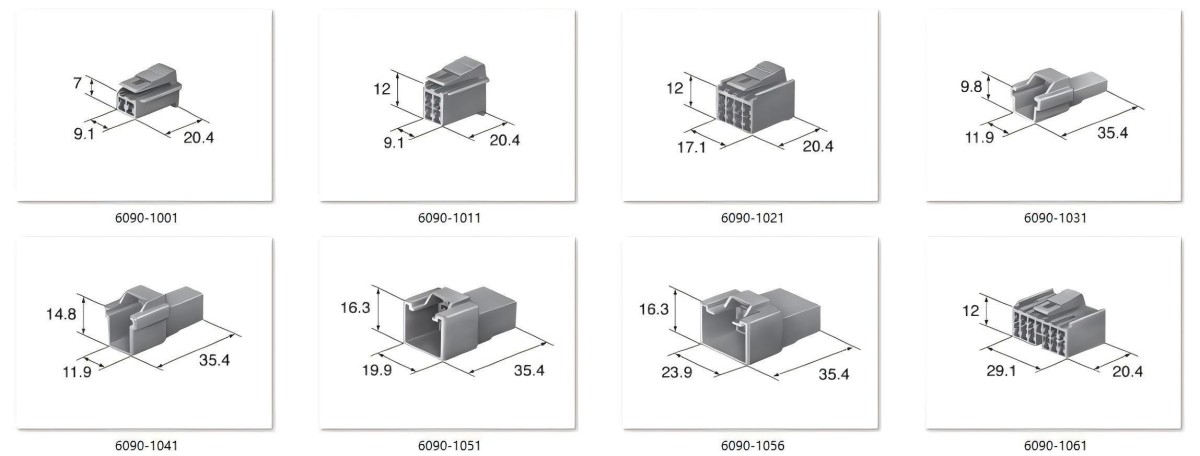

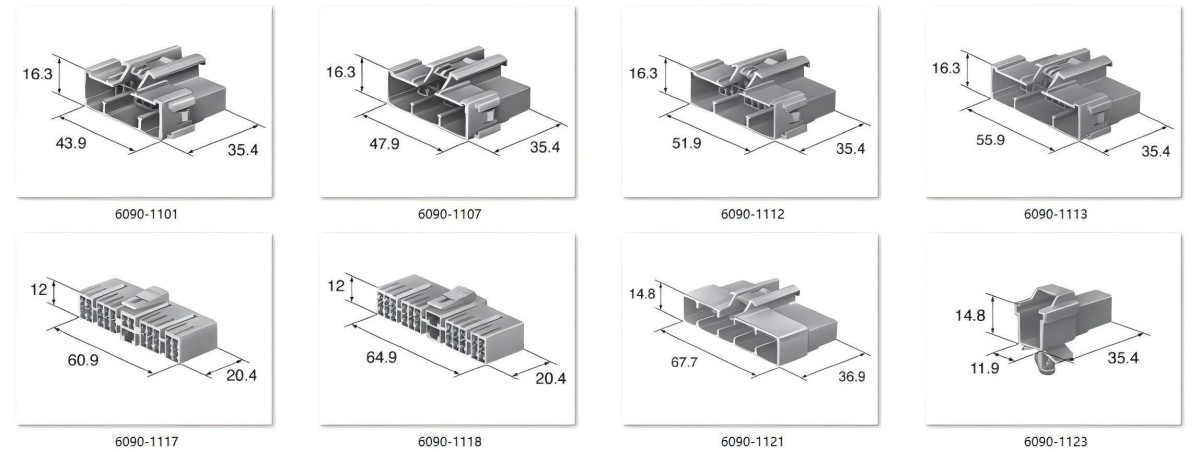

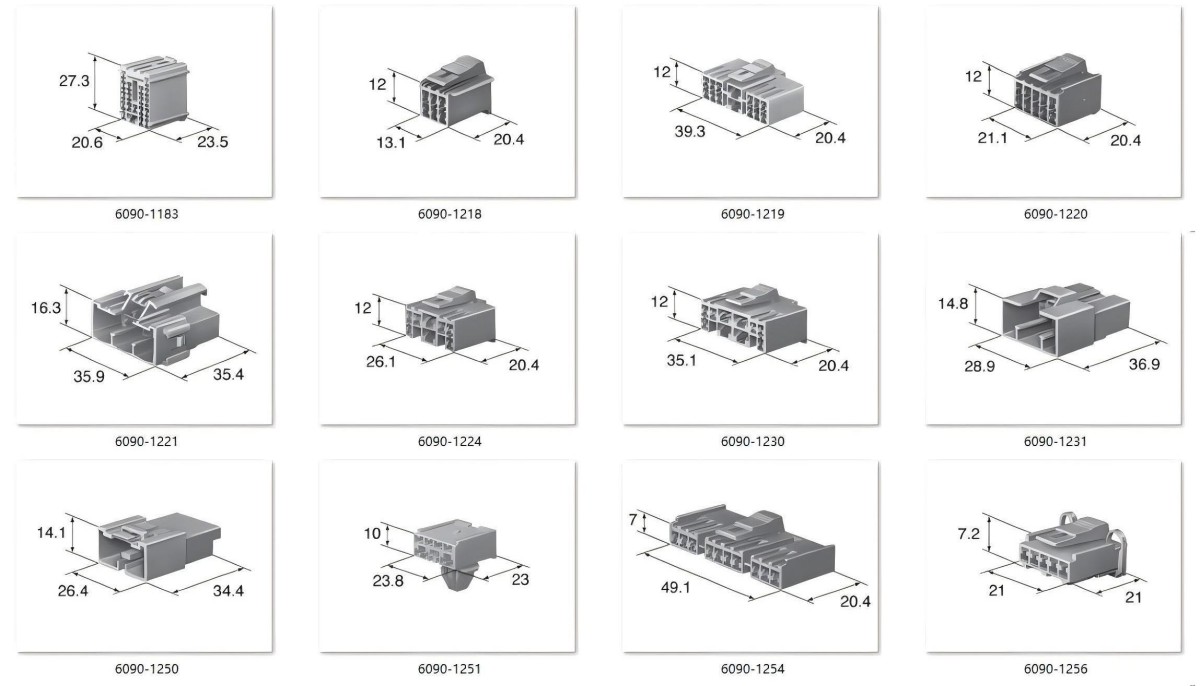

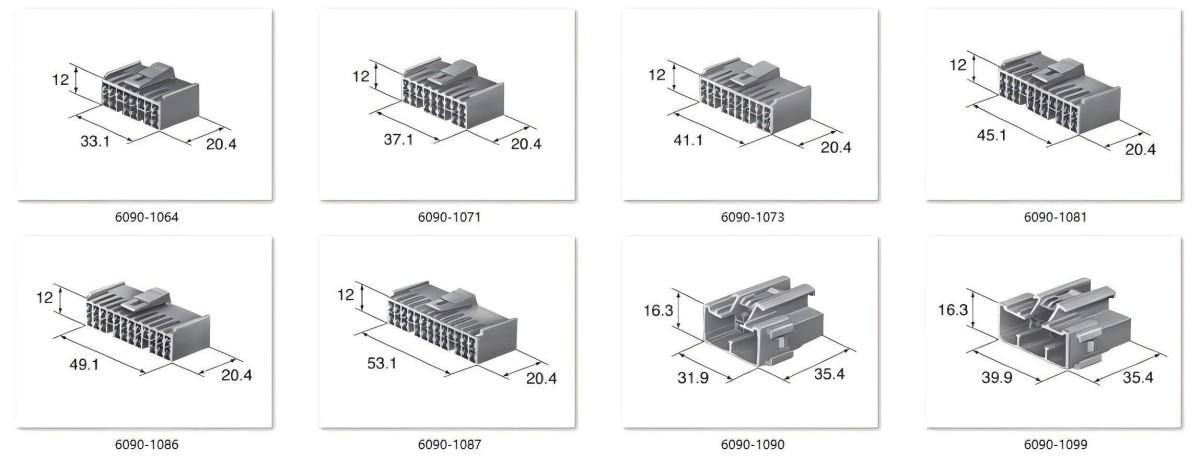

HM Unsealed Connector Specifications Chart

Sort by the number of poles.

Support Custom Wire Harness Assembly

• Connectors: 2P to 24P.
• Applicable cable option: 0.2 - 1.25mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
