Sumitomo HV/HVG Series Connector

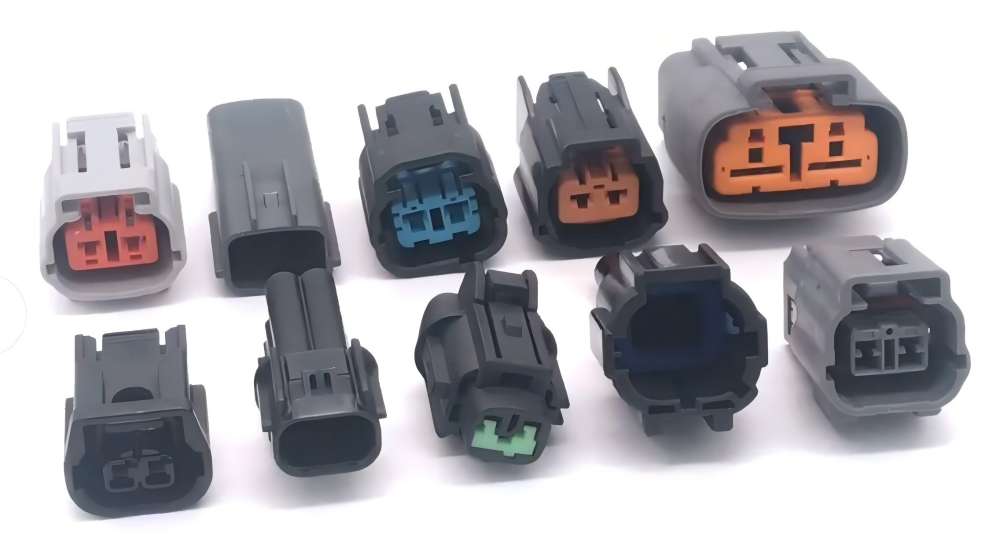

The HV sealed connector series is an enhanced and upgraded version of the existing HX sealed connector series, designed to provide even higher reliability in various applications. With its advanced features and improved performance, this connector series offers a dependable solution for connecting electrical components.

One notable addition to the HV sealed connector series is the HVG sealed series, which incorporates a finger-holding portion on the side wall of the female connector. This innovative design improvement aims to enhance matting performance by giving users a more secure grip during connection and disconnection processes. By ensuring a better fit between connectors, it helps prevent any potential signal loss or disruption.

Furthermore, these connectors have a mechanism that detects terminal incomplete insertion. This means they have built-in safeguards to ensure proper installation and minimize any risks associated with partial or incorrect terminal insertion. The connector mechanism only allows the Terminal Position Assurance (TPA) or Retainer to be set when the terminal is completely inserted, thereby guaranteeing optimal functionality and reducing the chances of malfunction.

In terms of installation convenience, these connectors can be directly secured to stay on the car body. This feature simplifies assembly processes and provides stability for long-term usage in automotive applications. Whether used in vehicle wiring systems or other industrial settings requiring reliable connections, these connectors offer durability and ease of use.

Connector Features

• Tab Size(mm): 1.0
• Applicable wire size: 0.3〜1.25mm²
• Contact resistance: Initial 5mΩMax, after durability tests 10mΩMax.
• Leak current: 100μAMax.
• Insulation resistance: 100MΩMin.
• Seal: Initial 98kPaMin, after durability tests 49kPaMin.
• Materials: Wire Seal Silicone

Connector P/N lists and Specs Chart

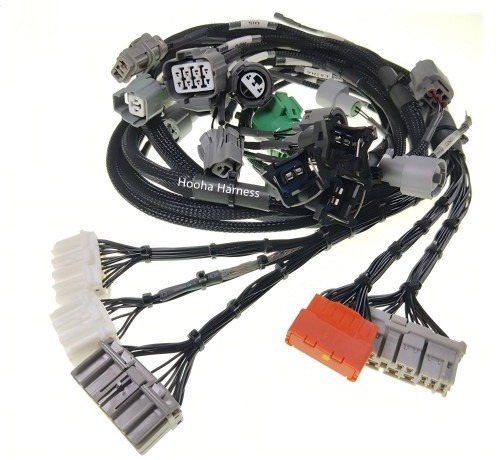

Support Custom Wire Harness Assembly

• Connectors: 2P to 10P.
• Wire Gauge: 0.3mm² - 1.25mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
