Sumitomo MT Sealed Connector, Custom Wire Harness Manufacturer

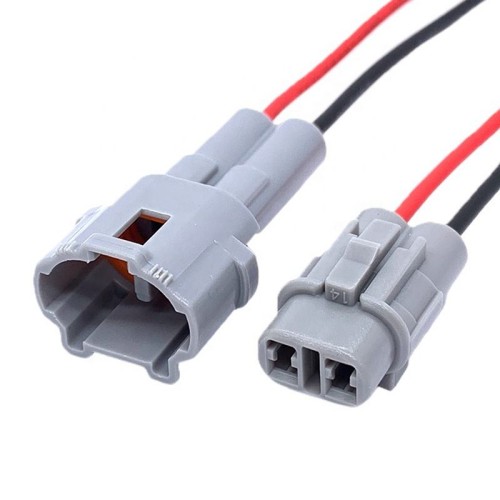

Sumitomo MT Sealed Connector

The Sumitomo MT Sealed Connector Series is designed for reliable, waterproof connections, offering versatility for automotive and industrial applications. With terminal pole pitches of 5 mm and 6 mm, this series provides a compact yet robust solution, accommodating 2.3 mm terminal types classified by size. It is ideal for a range of control and low-power circuits, ensuring high performance and safety. Engineered for durability, the MT series delivers consistent functionality even in challenging environments, such as an automobile's engine compartment. Additionally, specific models are designed to be directly mounted onto a vehicle's body bracket, enhancing installation stability and reducing the need for extra mounting components.

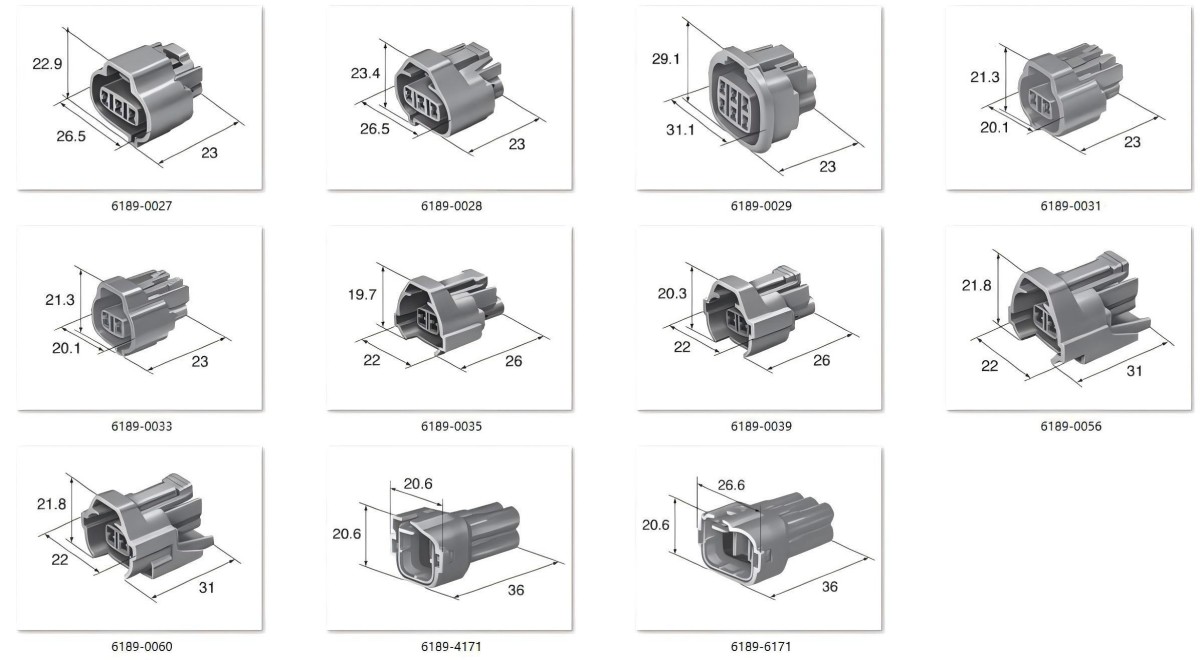

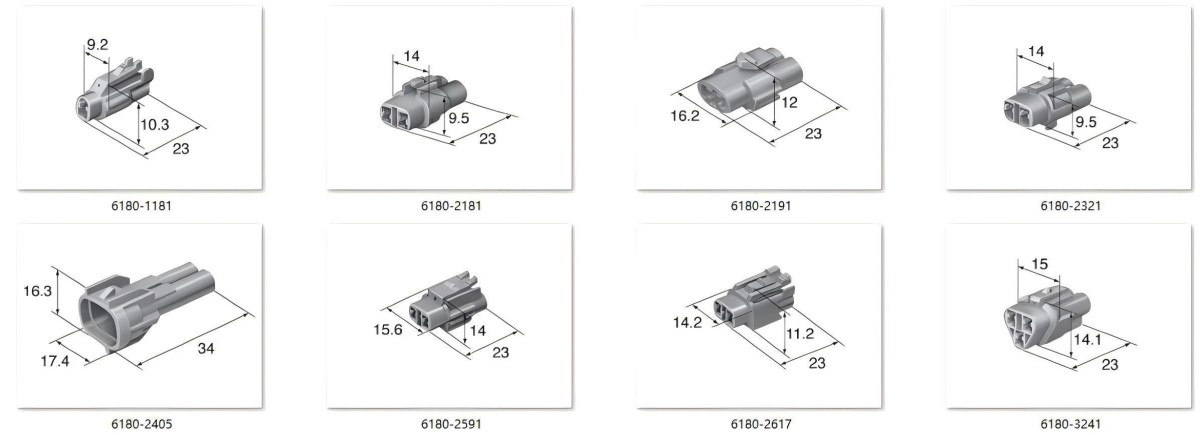

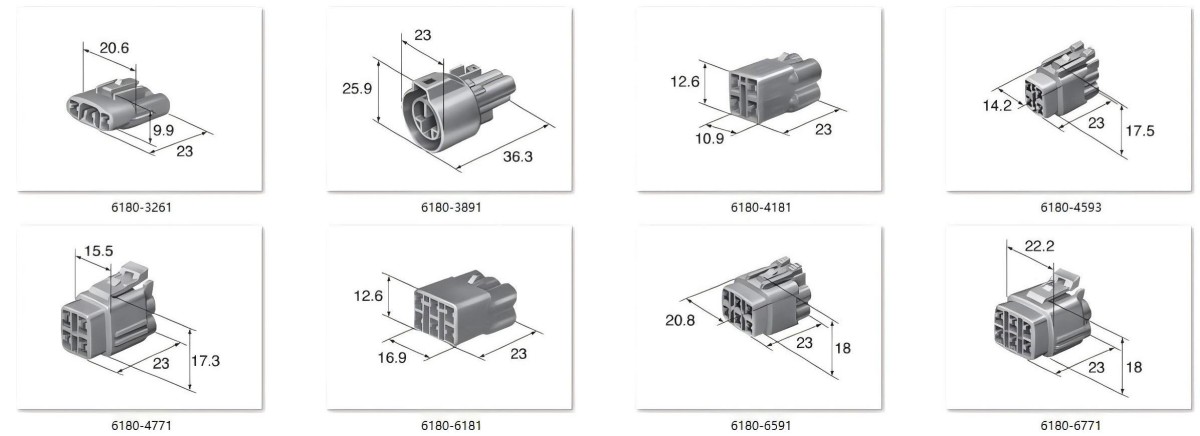

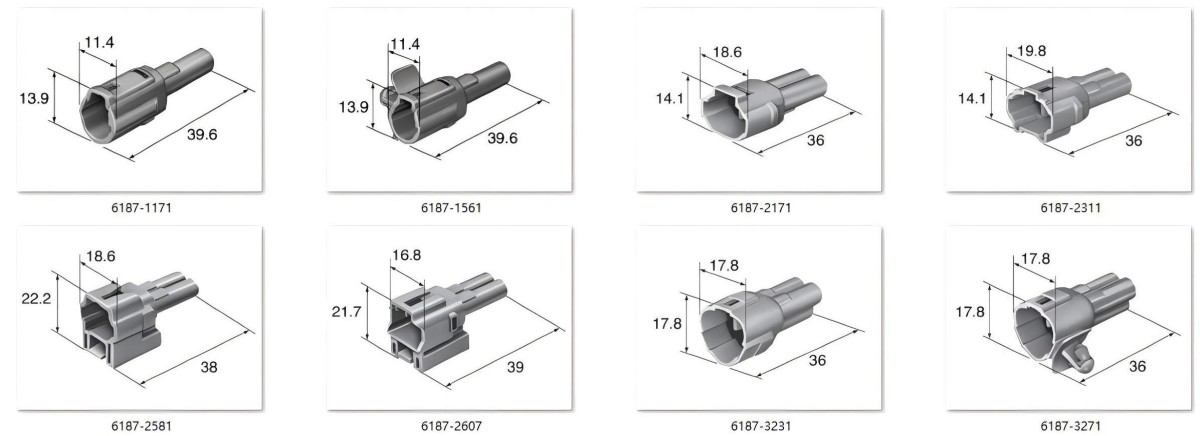

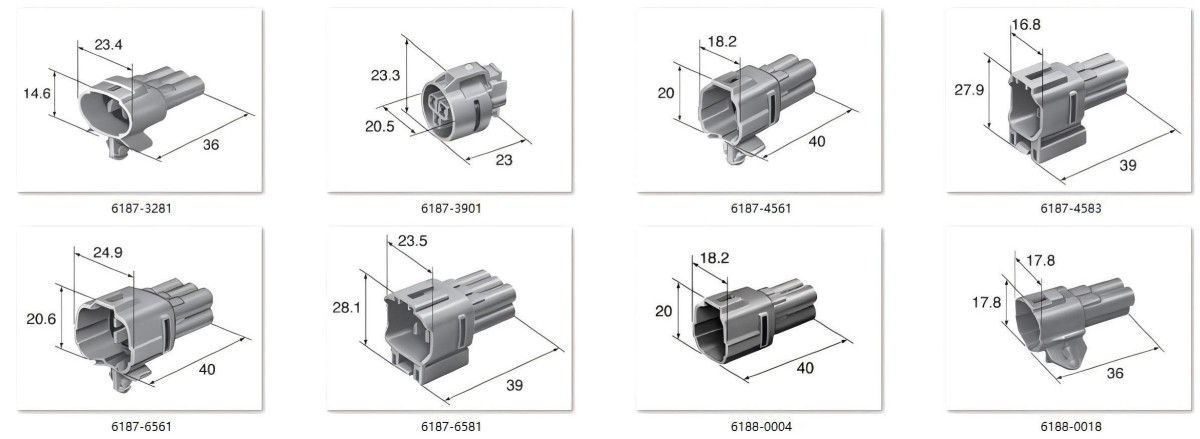

MT Sealed Connector Specifications Chart

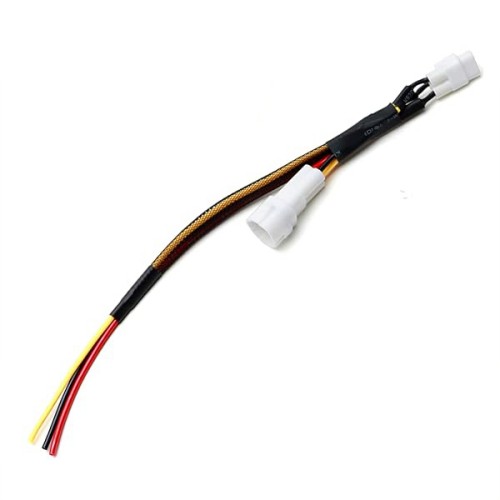

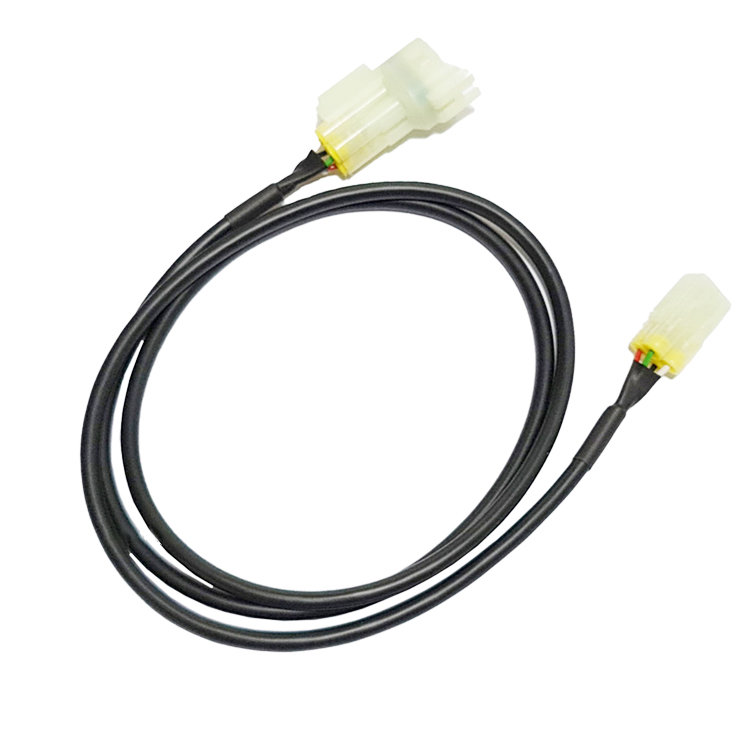

Support Custom Wire Harness Assembly

• Connectors: 1P to 6P.
• Wire Gauge: 0.3 - 2.0mm²
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
