The Sumitomo NH Series Connector is designed to deliver exceptional reliability for secure connector mating and precise terminal insertion. It features a front mask on the female connector that guides and aligns the male terminal, ensuring a smooth and accurate connection. The integration of a Terminal Position Assurance (TPA) mechanism adjusts and corrects any incompletely inserted terminals, promoting stability and preventing potential electrical issues. Additionally, the NH Series offers the option to attach an extra clip to the connector housing, which enhances its attachment to the vehicle body or equipment, providing further security and reducing the risk of disconnection. This makes the NH Series suitable for applications that require robust and dependable connectivity in automotive and other demanding environments.

Sumitomo NH connector

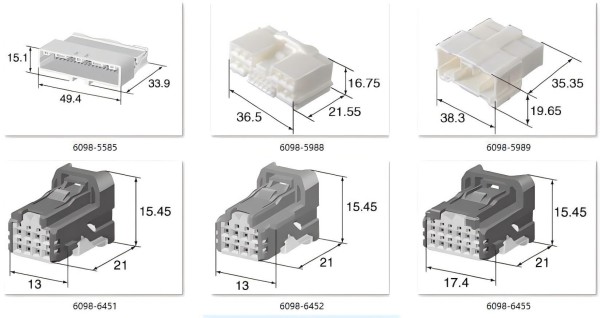

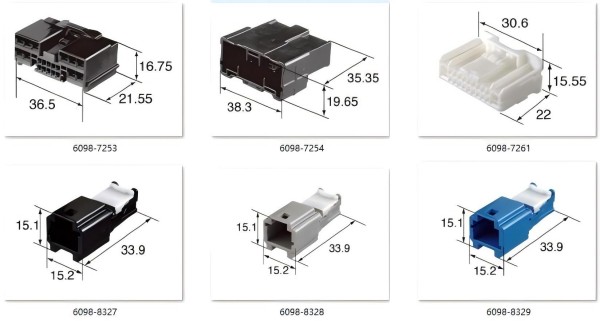

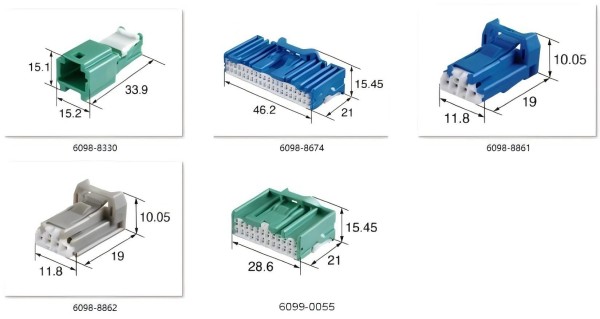

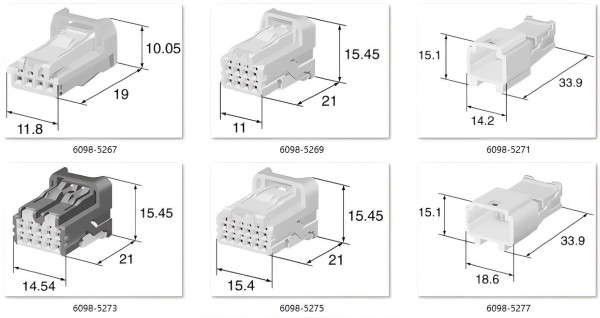

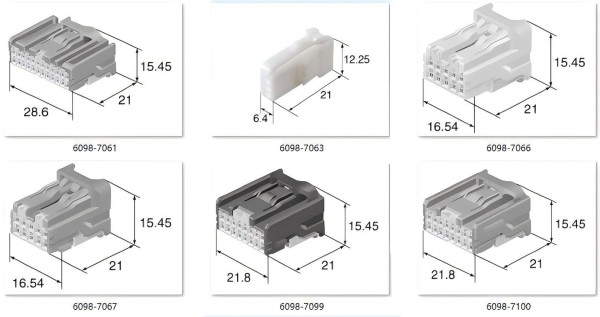

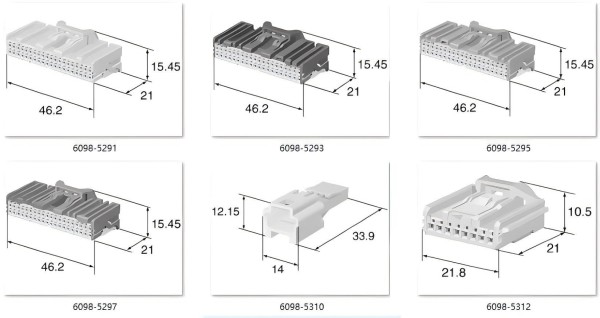

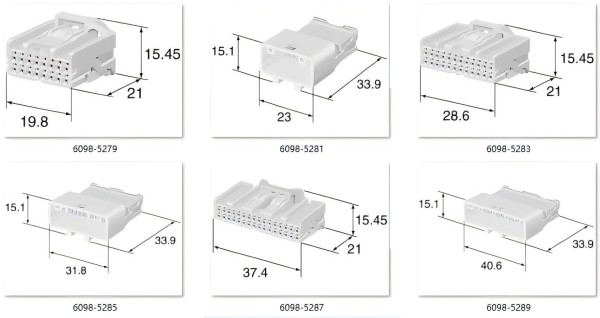

Sumitomo NH connector Specifications Chart

Sort by the number of poles.

P/N	No. of Pole	Gender	Type	terminal Tab Size	Datasheet
6098-7063	3	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987063
6098-5310	4	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985310
6098-5267	4	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985267
6098-8861	4	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988861
6098-8862	4	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988862
6098-5271	8	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985271
6098-8327	8	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988327
6098-8328	8	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988328
6098-8329	8	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988329
6098-8330	8	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988330
6098-5269	8	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985269
6098-5312	8	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985312
6098-6451	8	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986451
6098-6452	8	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986452
6098-6522	8	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986522
6098-6523	8	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986523
6098-5273	10	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985273
6098-7066	10	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987066
6098-7067	10	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987067
6098-5277	12	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985277
6098-5275	12	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985275
6098-6455	12	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986455
6098-6456	12	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986456
6098-6457	12	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986457
6098-6524	12	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60986524
6098-5281	16	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985281
6098-5279	16	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985279
6098-7099	16	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987099
6098-7100	16	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987100
6098-5989	20	Male	Housing	0.64/2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985989
6098-7254	20	Male	Housing	0.64/2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987254
6098-5988	20	Female	Housing	0.64/2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985988
6098-7253	20	Female	Housing	0.64/2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987253
6098-7261	20	Female	Housing	0.64/2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987261
6098-5285	24	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985285
6098-5283	24	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985283
6098-7060	24	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987060
6098-7061	24	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60987061
6099-0055	24	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60990055
6098-5289	32	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985289
6098-5287	32	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985287
6098-5585	40	Male	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985585
6098-5291	40	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985291
6098-5293	40	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985293
6098-5295	40	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985295
6098-5297	40	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60985297
6098-8674	40	Female	Housing	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=60988674
8230-5379		Male	Terminal	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305379
8230-5380		Male	Terminal	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305380
8240-0523		Female	Terminal	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400523
8240-0552		Female	Terminal	0.64mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400552
8230-5168		Male	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305168
8230-5169		Male	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305169
8230-5170		Male	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305170
8230-5171		Male	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305171
8230-5172		Male	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82305172
8240-0367		Female	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400367
8240-0368		Female	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400368
8240-0369		Female	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400369
8240-0370		Female	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400370
8240-0371		Female	Terminal	2.3mm	https://prd.sws.co.jp/components/en/detail.php?number_s=82400371

Support Custom Wire Harness Assembly

Connectors: 3P to 40P.
Wire Gauge: 0.22mm² - 0.75mm²
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 50 pieces per order.

Sumitomo NH Connector wire harness

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
