Sumitomo RS connector

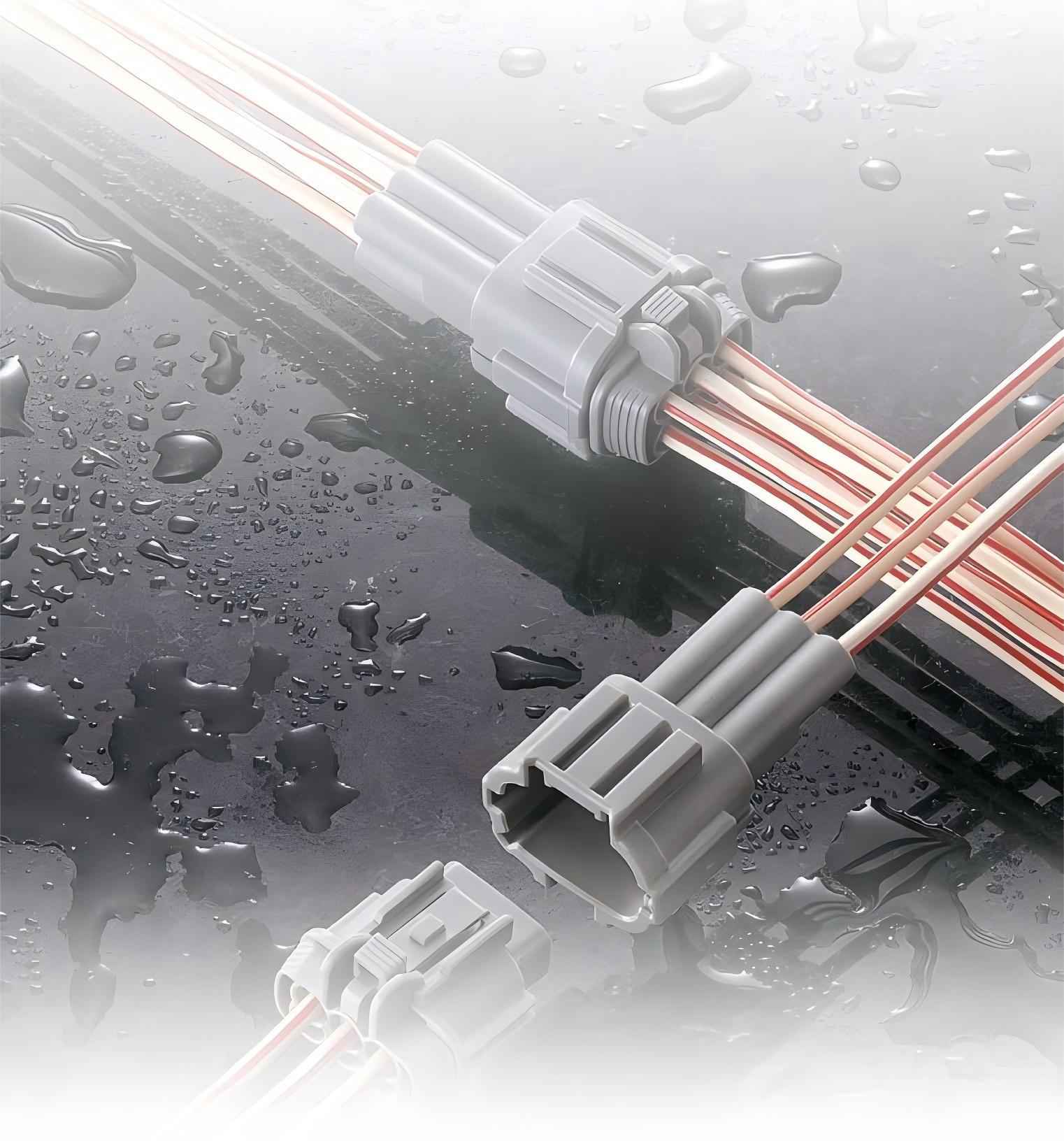

The Sumitomo RS Series Connectors are designed as versatile, 2.3mm type connectors categorized by terminal size, making them suitable for a range of control and low-power circuit applications. They are engineered to deliver reliable electrical connections, ensuring stable performance across various conditions. The RS Series features an inertia locking system, which helps prevent issues such as semiengagement by securely locking the connector in place. This design reduces the risk of incomplete connections, enhancing safety and operational reliability. However, it's worth noting that the inertia locking system is not incorporated in all RS Series connectors, as some variations are designed for specific use cases that may not require this feature. These connectors are an excellent choice for applications that demand consistent and robust connectivity, combining Sumitomo’s engineering precision with ease of use and installation flexibility.

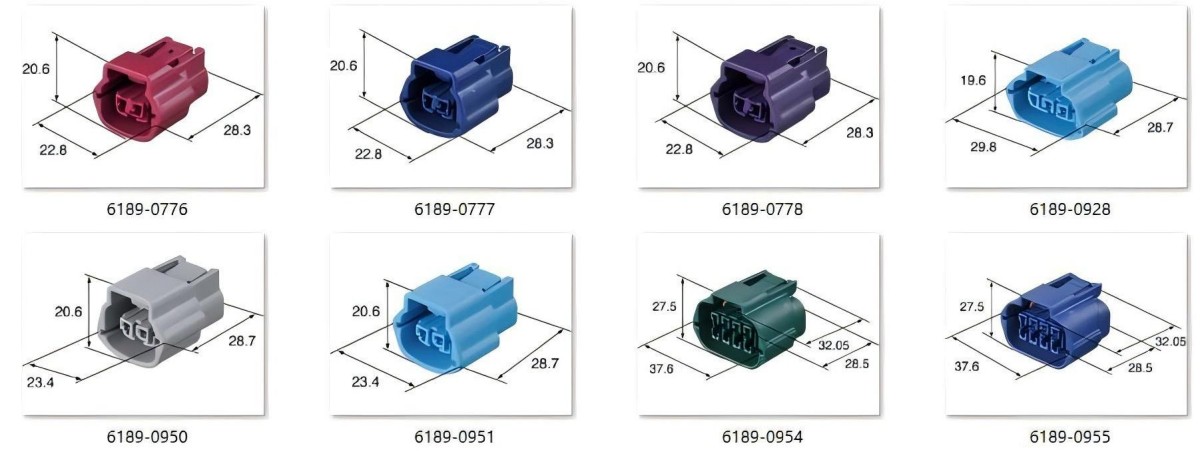

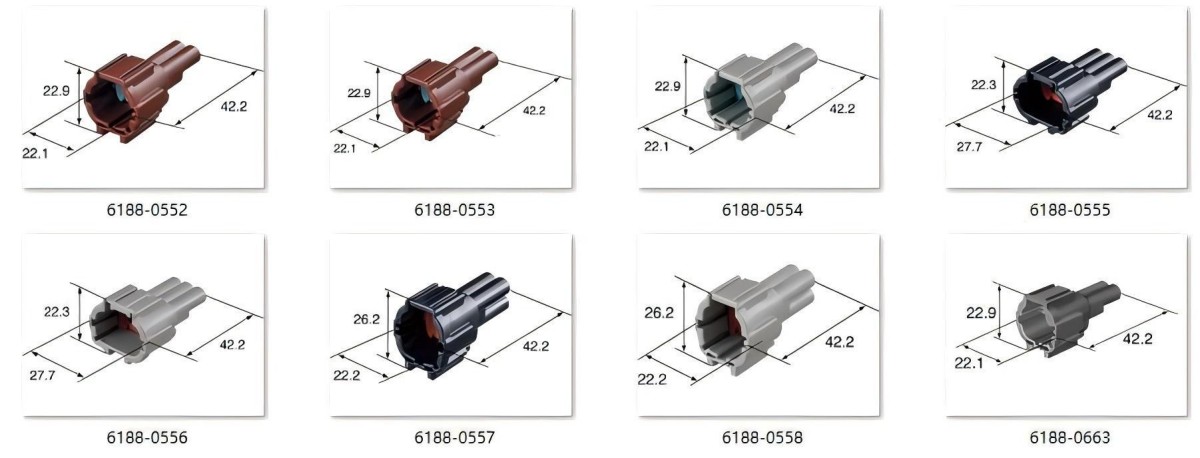

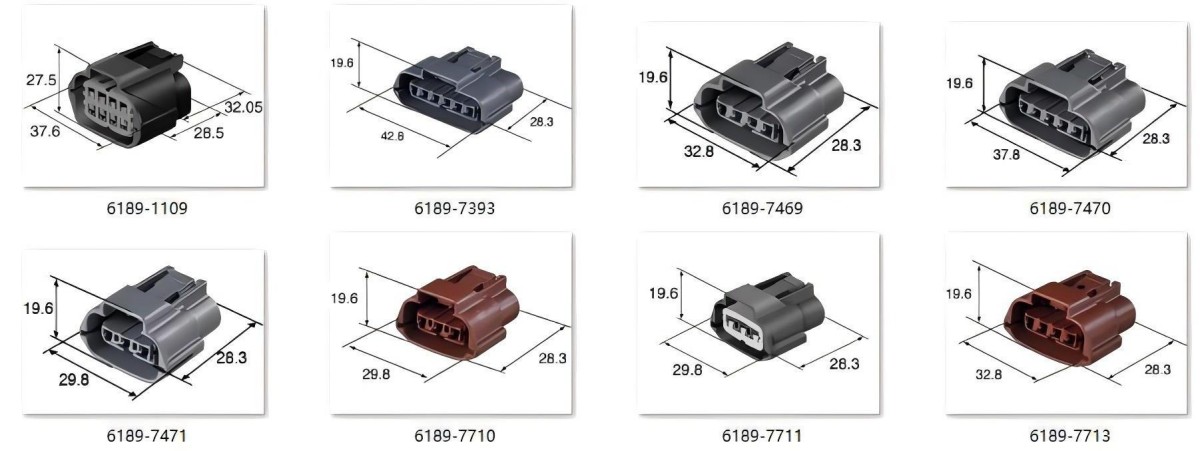

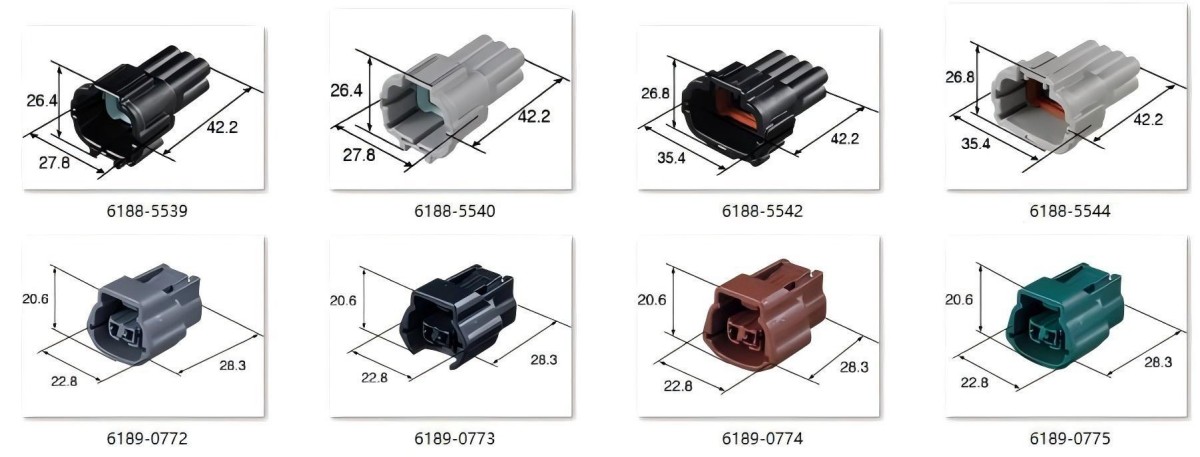

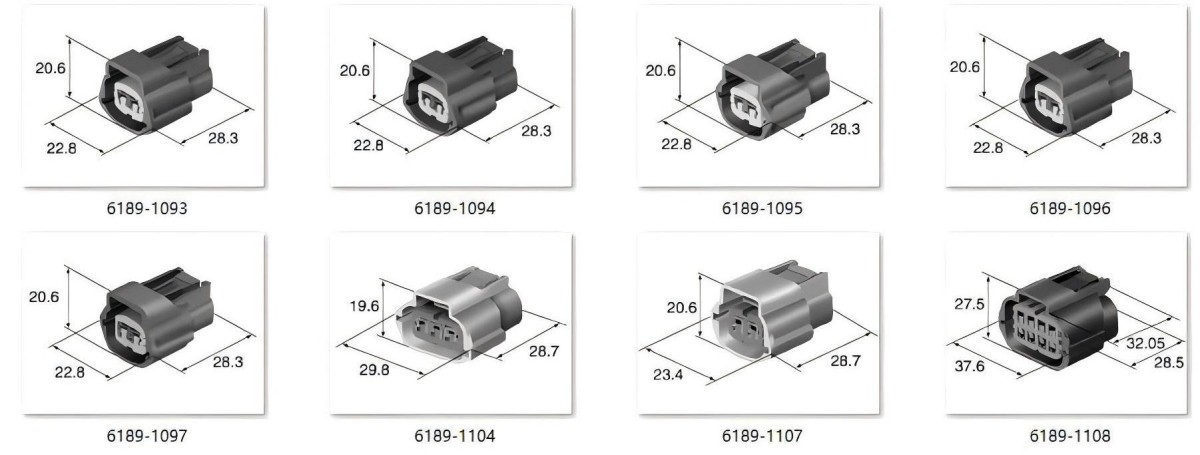

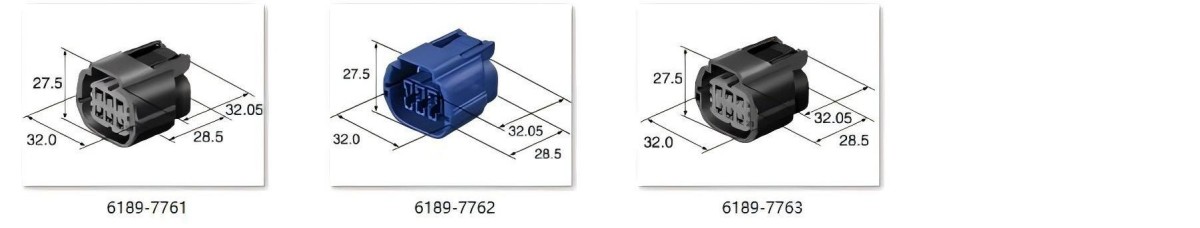

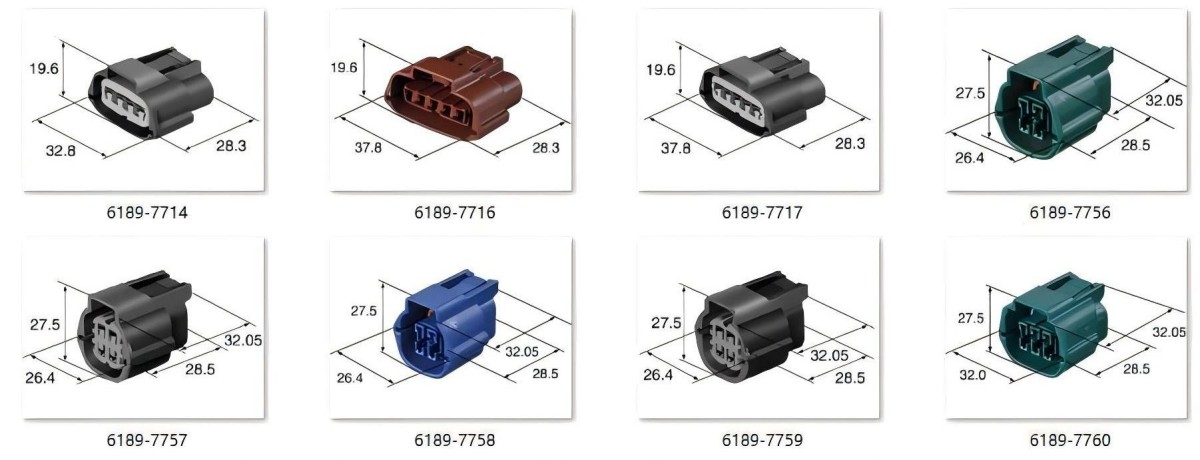

Sumitomo RS Connector Specifications Chart

Sort by the number of poles

Support Custom Wire Harness Assembly

• Connectors: 1P to 8P.
• Wire Gauge: 0.3mm² - 2.0mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
