Sumitomo SL Sealed connector

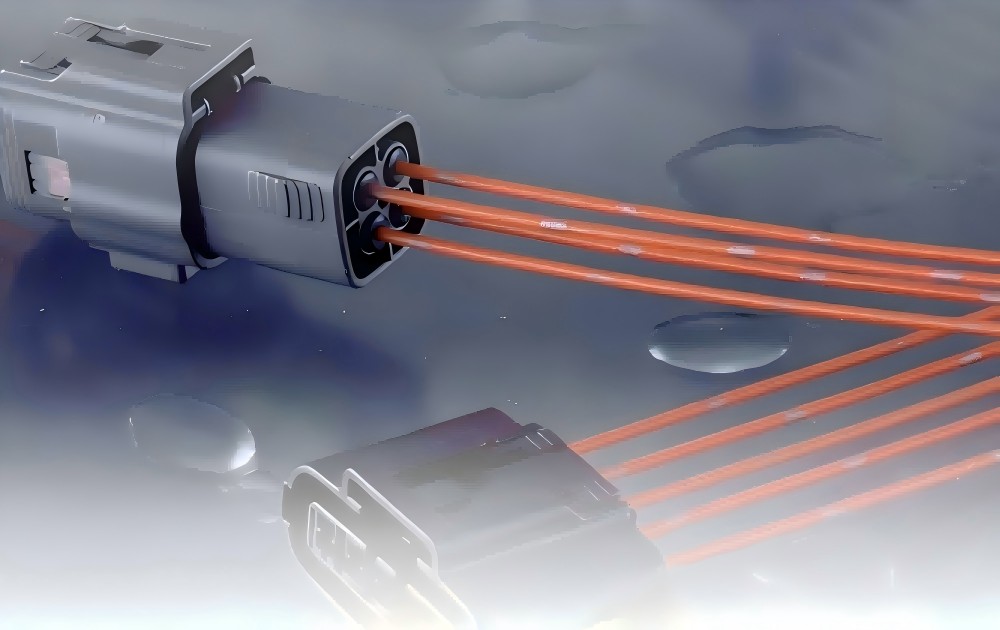

The Sumitomo SL Sealed Connector Series is designed with an innovative mechanism that helps detect incomplete terminal insertion, ensuring reliable performance during assembly. This feature is achieved by using a dedicated jig, which simplifies the inspection process and reduces the risk of faulty connections. These connectors are built to withstand harsh automotive environments, offering robust sealing capabilities that protect against moisture, dust, and other contaminants. Additionally, the SL series connectors can be directly secured to stay on the vehicle’s body, providing a stable and secure attachment point. For further flexibility, an extra clip can be integrated, allowing the connector to be fixed to different parts of the car body as needed. This adaptability makes the SL Sealed Connectors suitable for a variety of automotive applications, enhancing durability and ease of installation.

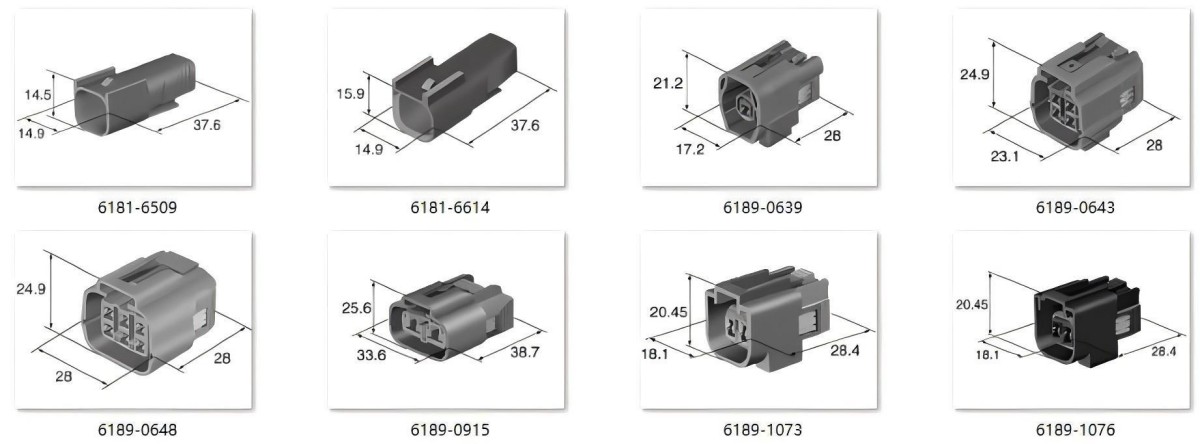

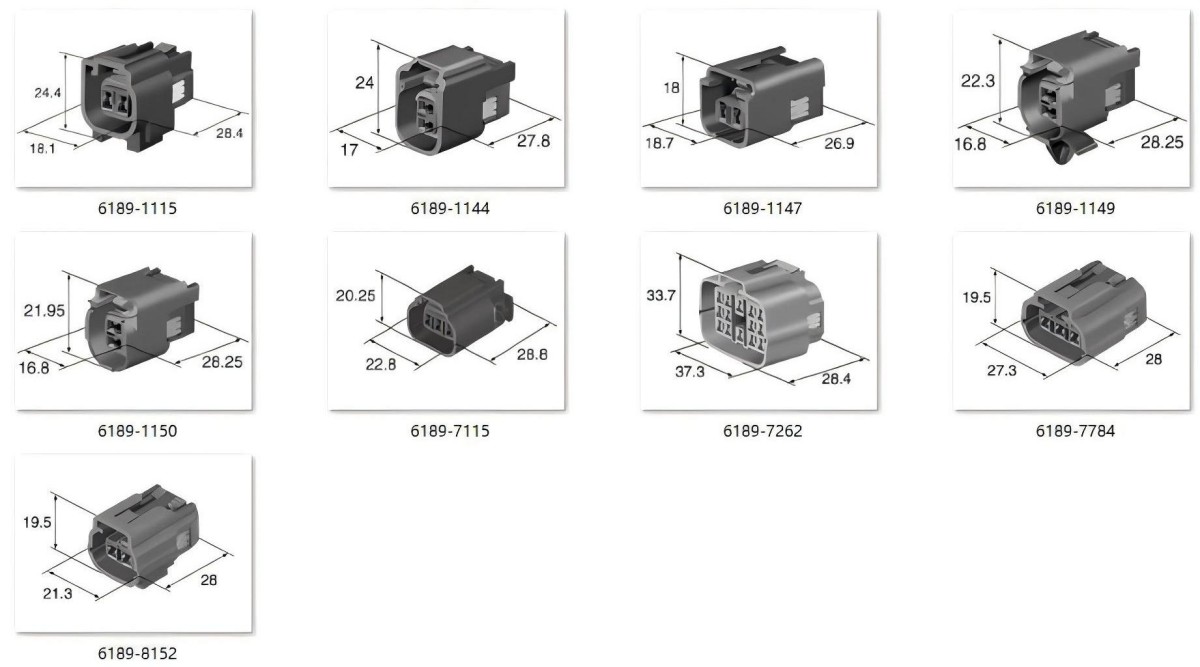

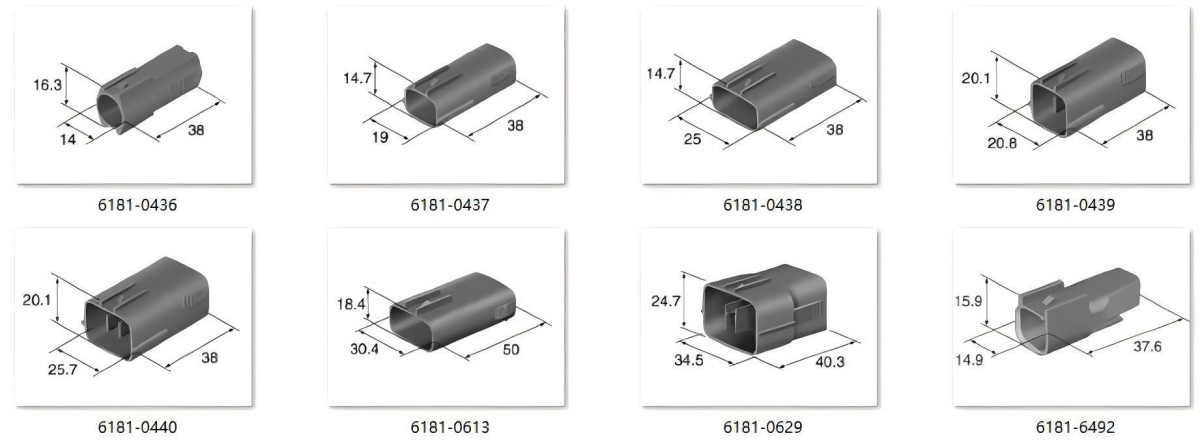

Sumitomo SL sealed Connector Specifications Chart

Support Custom Wire Harness Assembly

• Connectors: 1P to 14P.
• Wire Gauge: 0.3mm² - 2.0mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
