Sumitomo TS Unsealed Connector

The Sumitomo TS Unsealed Connector series is designed with a robust Terminal Position Assurance (TPA) mechanism, ensuring reliable and secure connections. The TPA retainers are pre-mounted on the connector housing, and the mechanism is engineered to allow the TPA to engage only when the terminal is fully and correctly inserted. This feature reduces the risk of incomplete connections, enhancing overall system reliability. Additionally, the TS connectors can be directly secured to a stay or support structure on the vehicle body, making them versatile and adaptable for various automotive applications. For added flexibility, the series also includes PCB models, allowing seamless integration with printed circuit boards, ideal for electronic modules. The combination of TPA assurance, mounting adaptability, and PCB options makes the Sumitomo TS Unsealed Connectors a practical choice for modern automotive electrical systems.

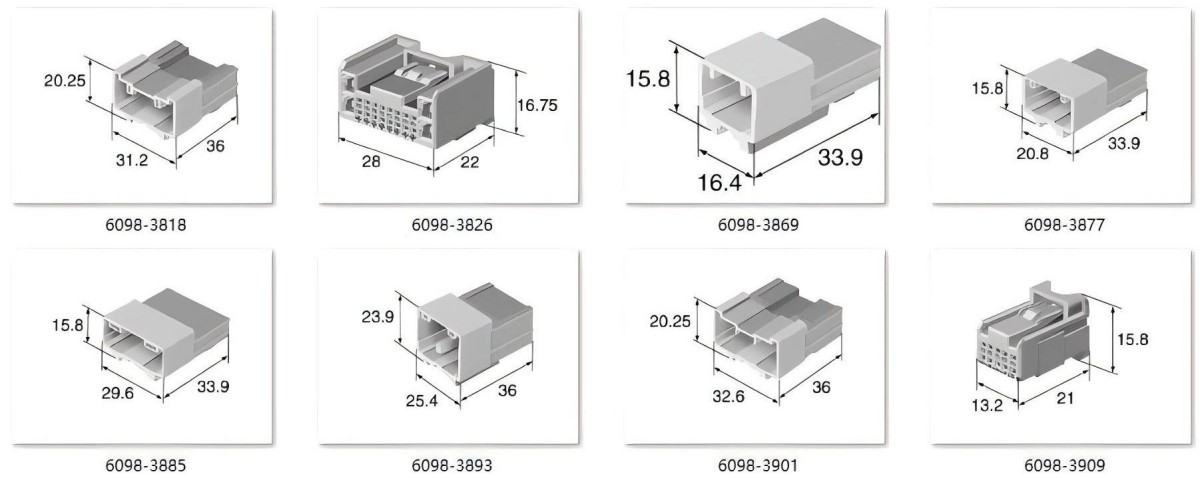

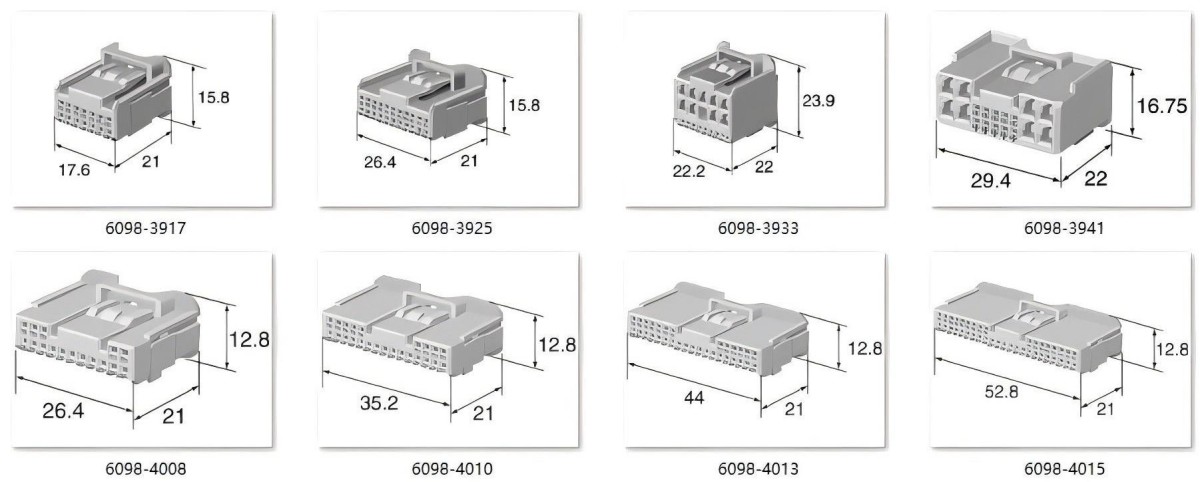

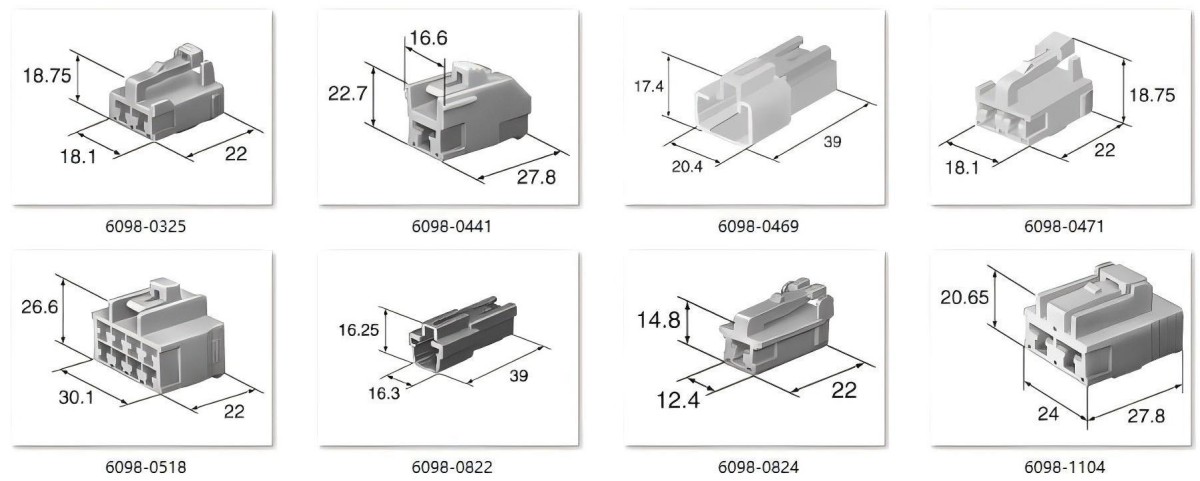

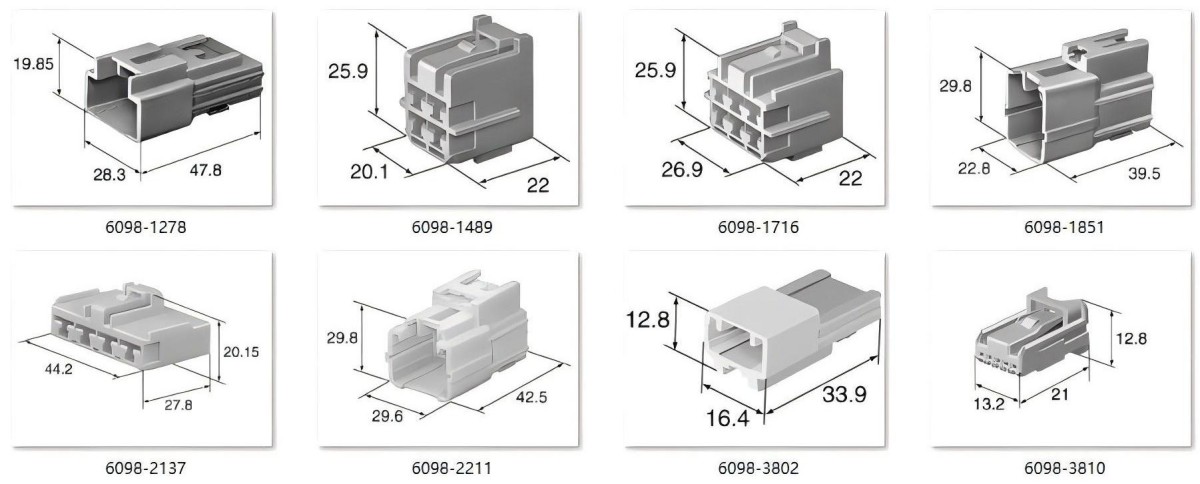

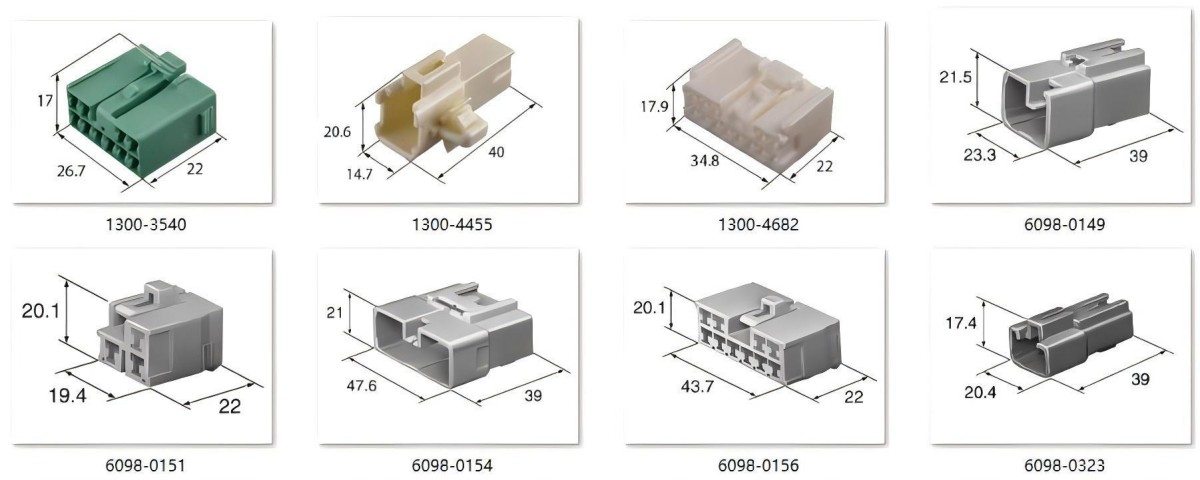

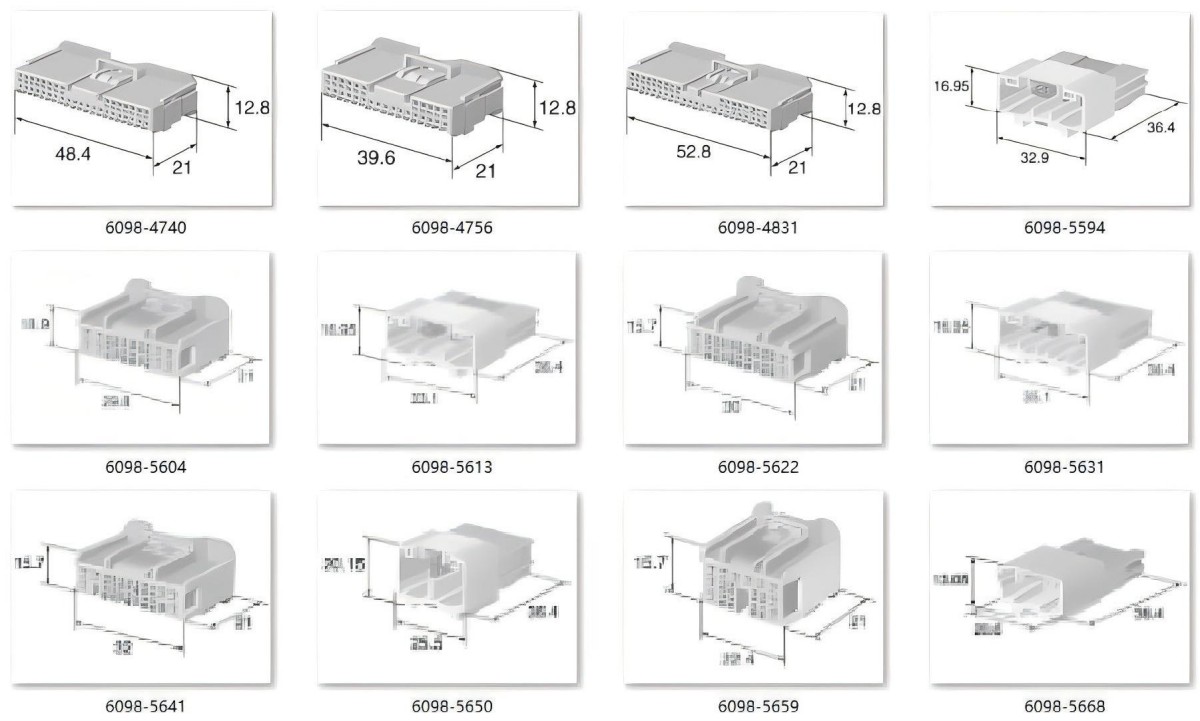

Sumitomo TS Unsealed Connector Specifications Chart

Sort by the number of poles.

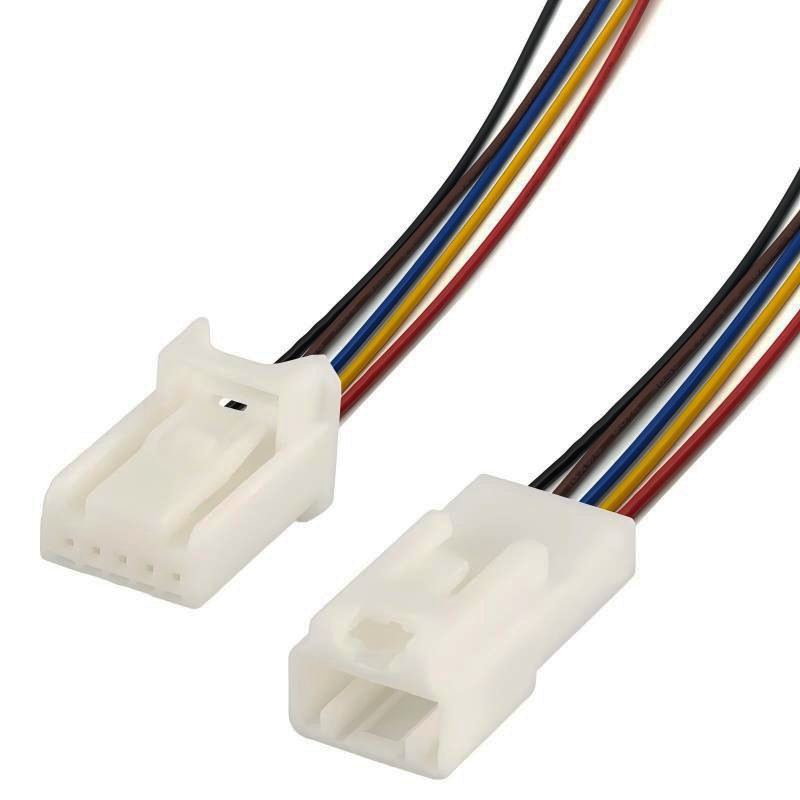

Support Custom Wire Harness Assembly

• Connectors: 1P to 68P.
• Wire Gauge: 0.13mm² - 8.0mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
