Sumitomo US Sealed Connector
The Sumitomo US Sealed Connectors are designed to meet SAE/USCAR-2 standards, ensuring reliable performance across various automotive applications. This series includes connectors with terminal sizes of 0.64mm, 1.5mm, 2.8mm, and 6.3mm, catering to a wide range of circuits from signal to power. The design emphasizes secure and precise terminal positioning, with a Terminal Position Assurance (TPA) mechanism that only allows the TPA to be set once the terminal is fully inserted. This feature reduces the risk of incomplete connections and ensures long-term stability. Additionally, the connectors come with pre-mounted TPAs on the housings, which can be easily set using a uniform operation across all configurations, regardless of the number of ways. This design simplifies the assembly process and enhances efficiency, making the Sumitomo US Sealed series an ideal choice for demanding automotive environments.

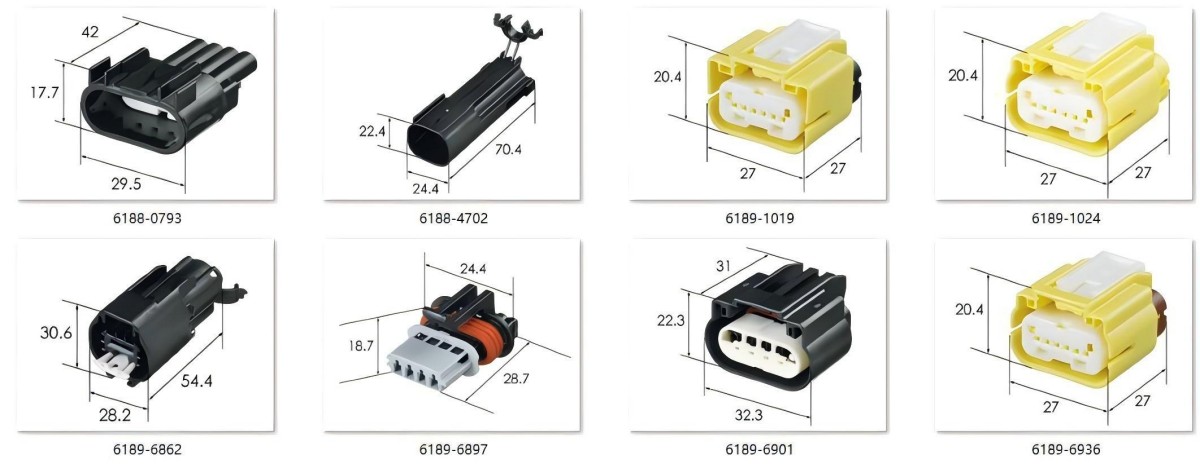

Sumitomo TL Sealed Connector Specifications Chart
Sort by the number of poles.
Support Custom Wire Harness Assembly
- Connectors: 1P to 5P.
- Wire Gauge: 0.22mm² - 20.0mm²
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.

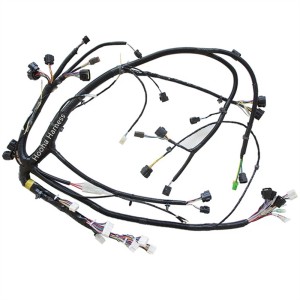

auto electrical wiring harness

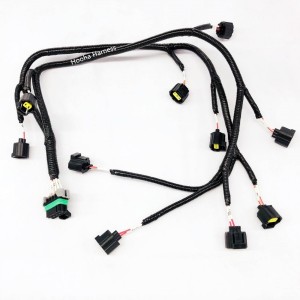

car electrical wiring
Custom wiring loom
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
