Sumitomo US Unsealed Connector

The Sumitomo US Unsealed Series Connectors are designed to meet the rigorous standards of SAE/USCAR-2, ensuring reliable performance across various automotive applications. This versatile series includes connectors with terminal sizes of 0.64mm, 1.5mm, 2.8mm, and 6.3mm, catering to a wide range of needs from low-power signal transmission to high-power circuits. The series features a robust design that ensures secure terminal engagement, with Terminal Position Assurance (TPA) mechanisms that only allow the TPA to be set when the terminal is fully inserted, preventing incomplete or loose connections. The TPAs come pre-mounted on the housings, simplifying the assembly process. Additionally, their design allows for consistent and straightforward setting operations, regardless of the connector’s cavity count, which improves overall assembly efficiency. These features make the US Unsealed Series ideal for applications where reliable and consistent electrical connectivity is critical, without the need for waterproofing.

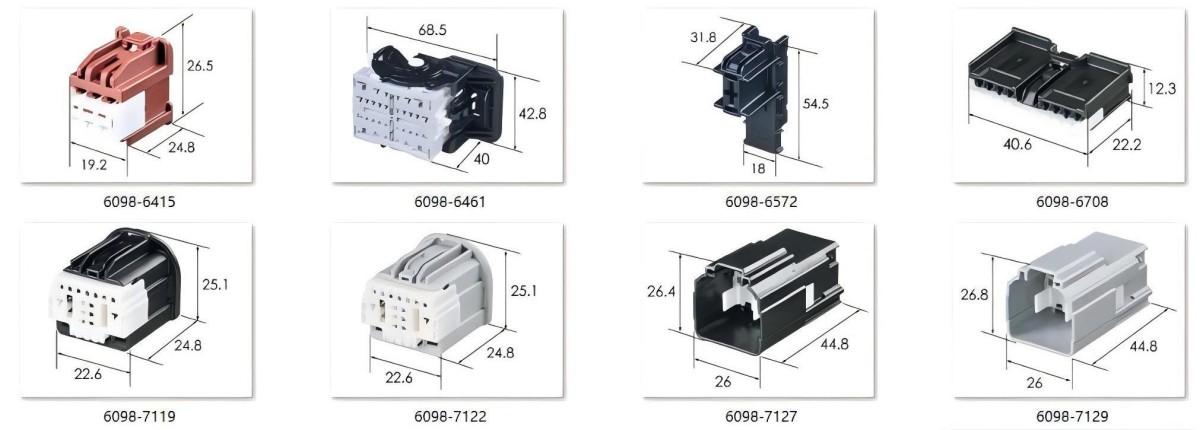

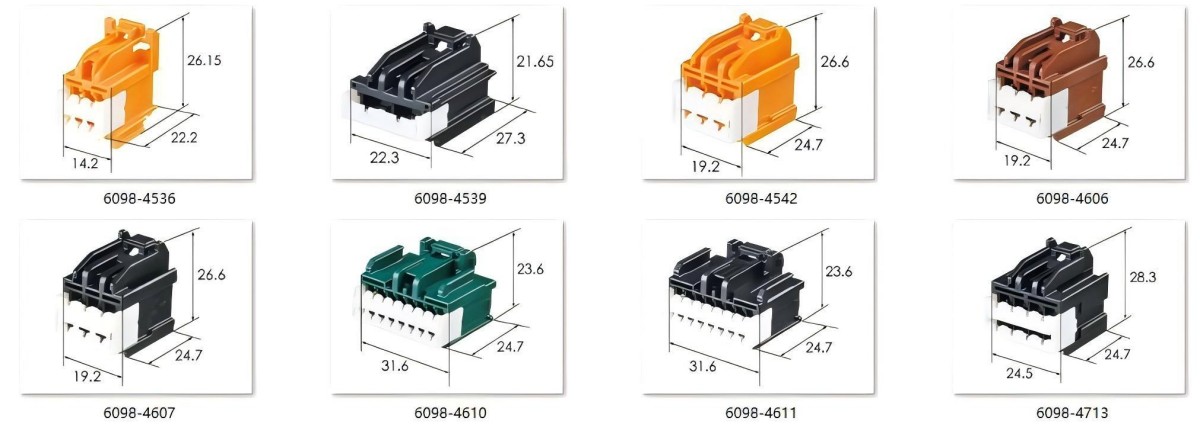

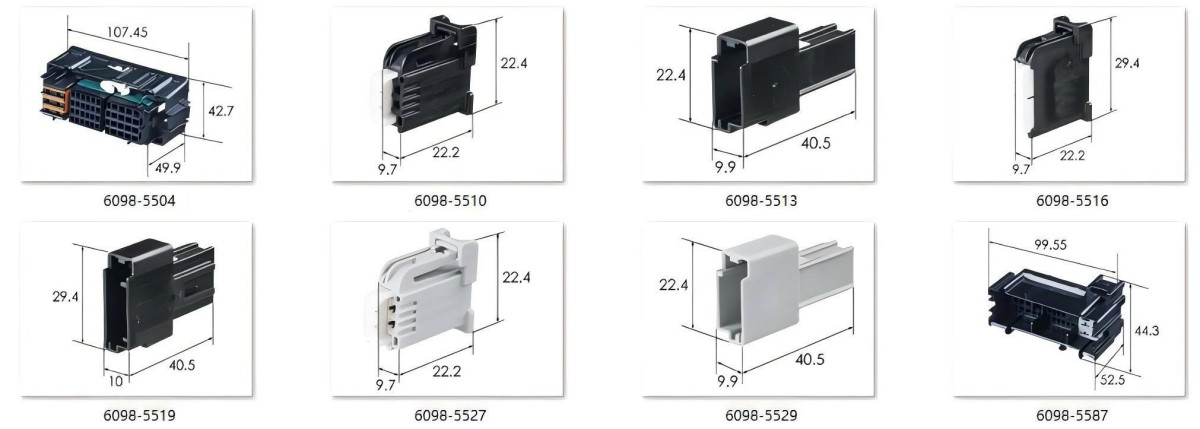

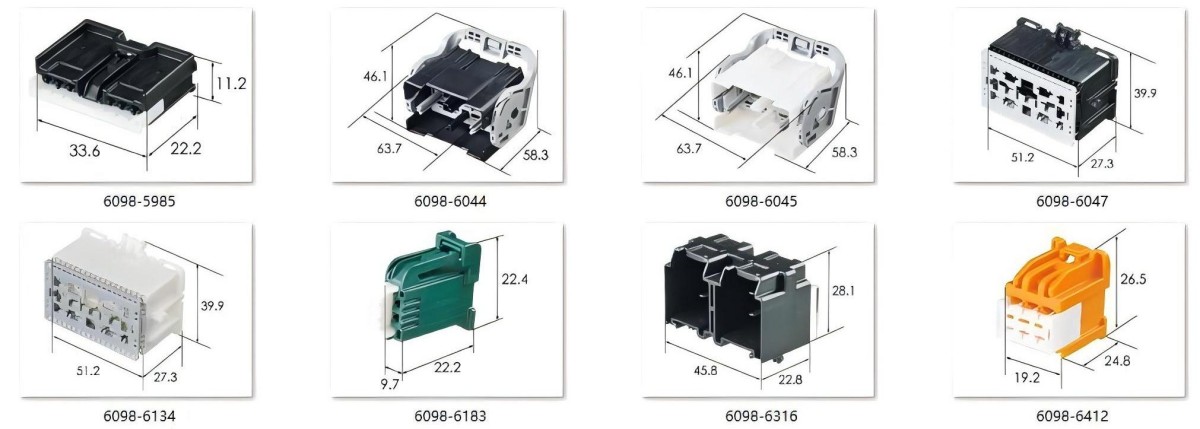

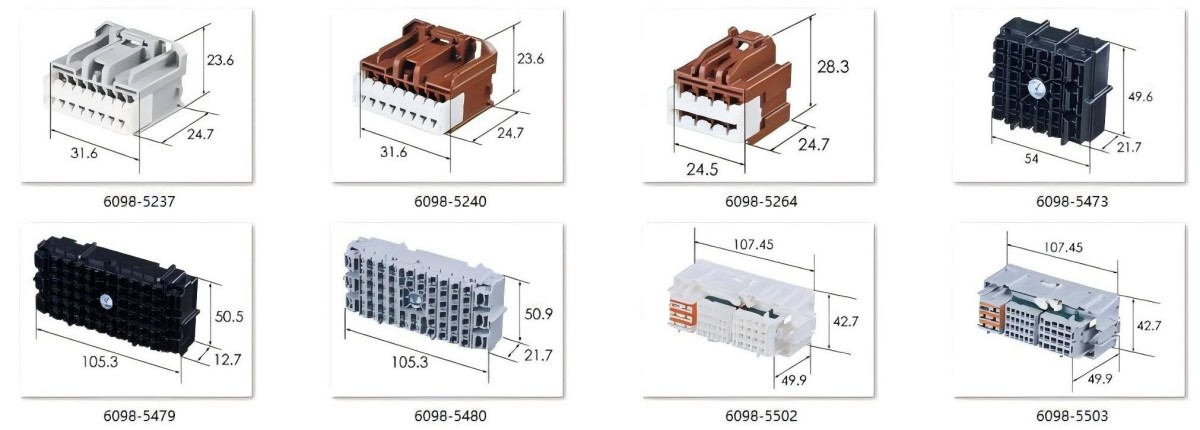

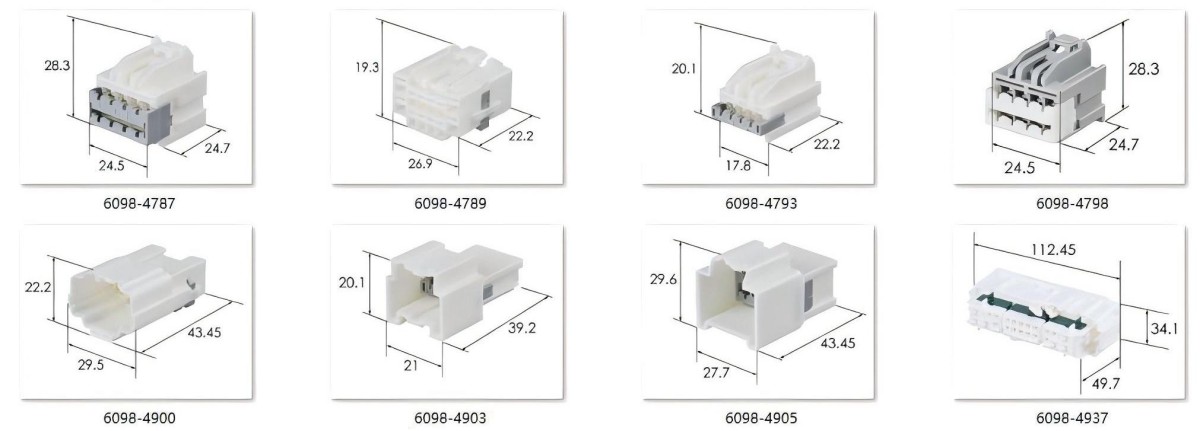

Sumitomo US Unsealed Connector Specifications Chart

Sort by the number of poles.

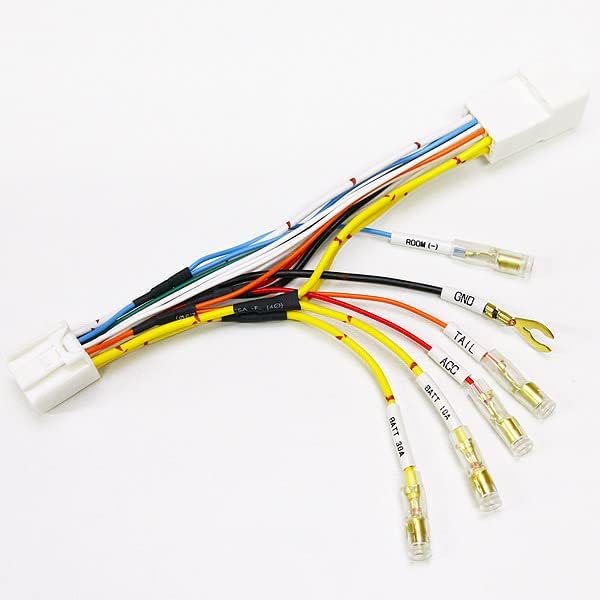

Support Custom Wire Harness Assembly

• Connectors: 1P to 62P.
• Wire Gauge: 0.35mm² - 5.0mm²
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
