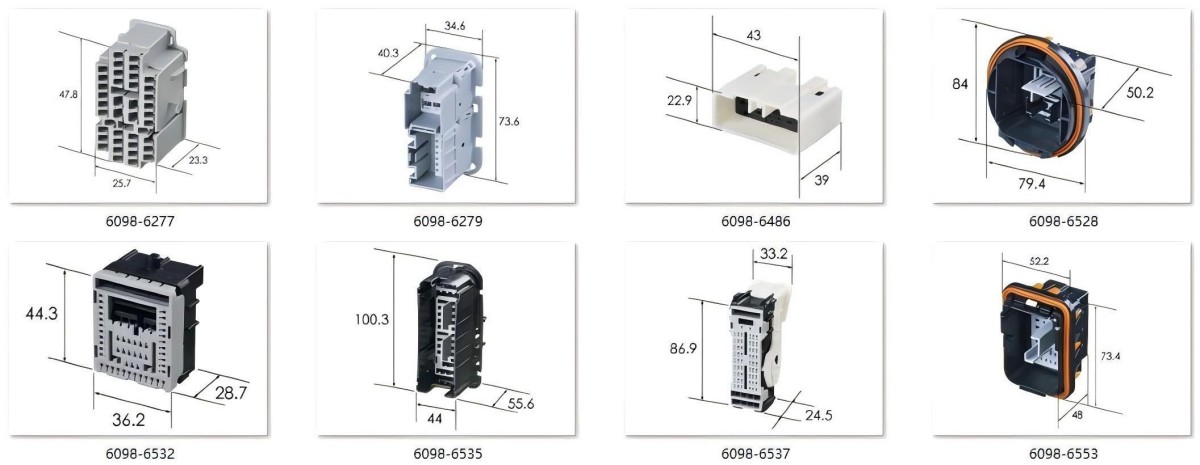

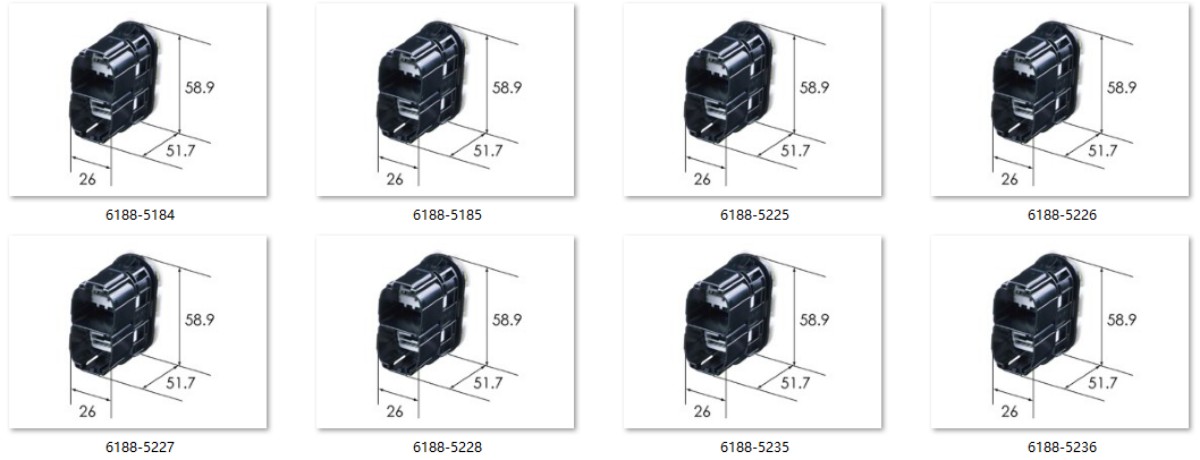

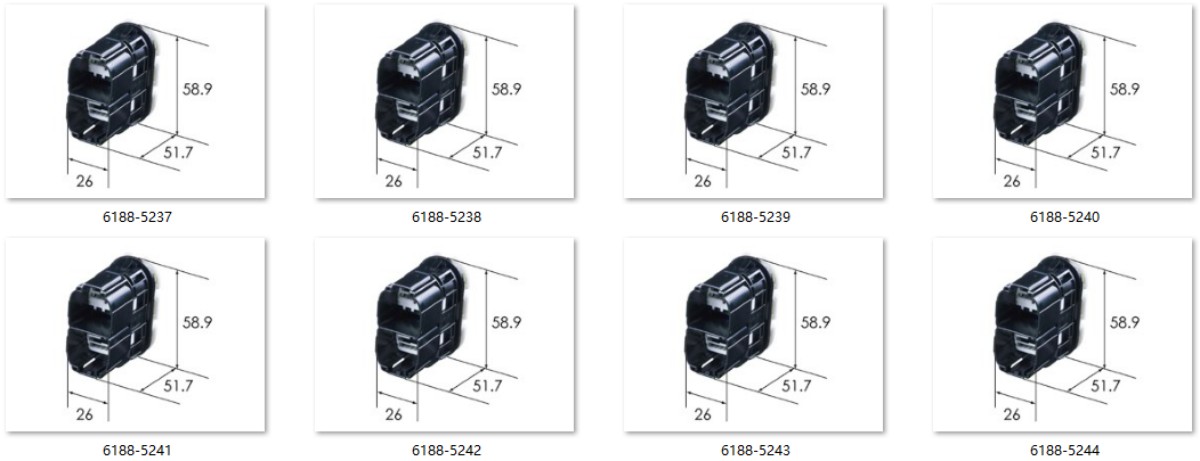

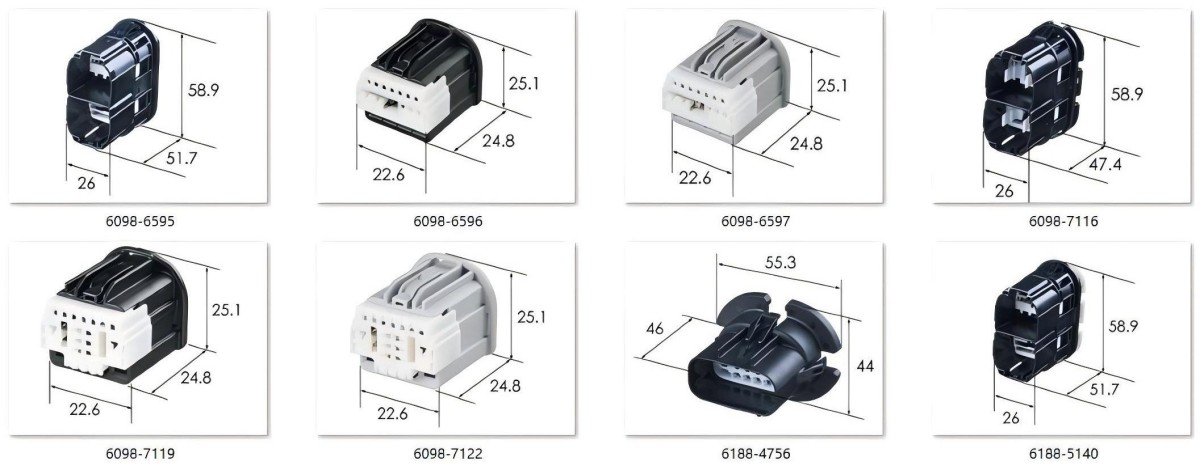

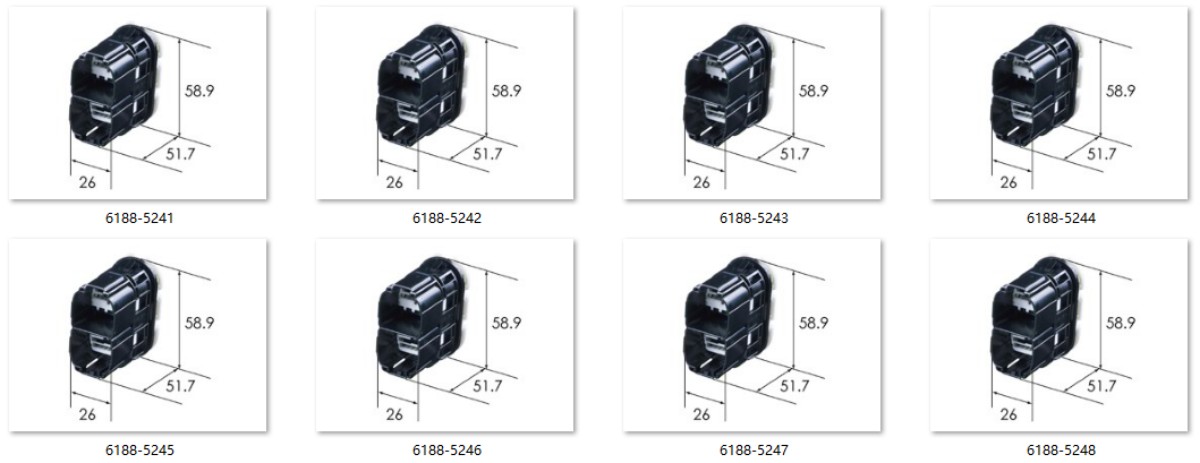

Sumitomo USdoor Unsealed Connector



Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

Sumitomo USdoor Unsealed Connector

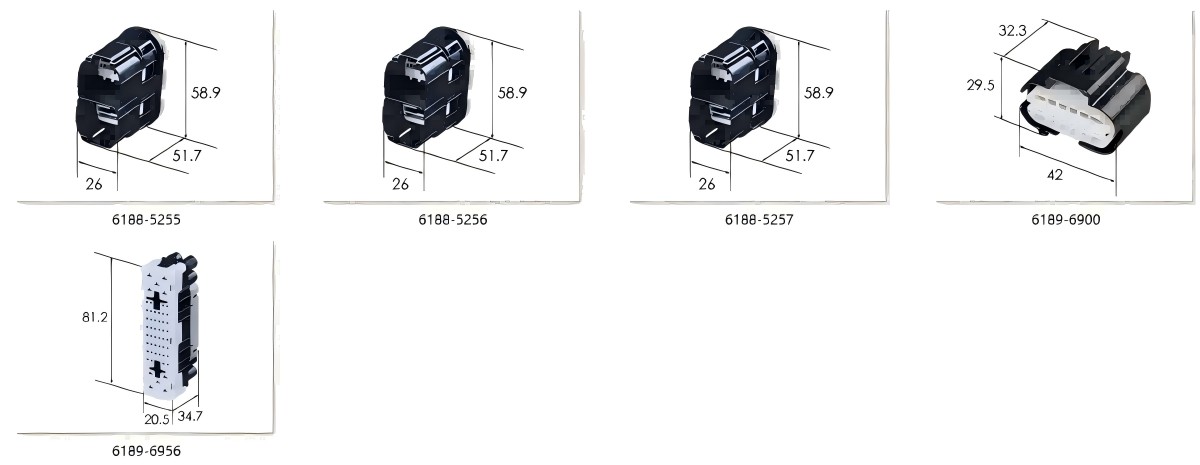

US door Unsealed Connector





USdoor Unsealed Connector Specifications Chart



Sort by the number of poles.

P/N No. of Pole Gender Type Terminal Tab Size Datasheet
6098-4607 6 Female Housing 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60984607
6188-4756 12 Male Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61884756
6189-6900 12 Female Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61896900
6098-3979 14 Male Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60983979
6098-6486 14 Male Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986486
6098-3981 14 Female Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60983981
6098-4611 16 Female Housing 1.5mm/1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=60984611
6098-5141 19 Male Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60985141
6098-5144 19 Female Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60985144
6098-7119 21 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60987119
6098-7122 21 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60987122
6098-6279 22 Male Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986279
6098-4932 30 Male Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60984932
6098-4626 30 Female Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60984626
6098-6595 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986595
6188-5140 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885140
6188-5156 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885156
6188-5157 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885157
6188-5158 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885158
6188-5159 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885159
6188-5160 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885160
6188-5161 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885161
6188-5162 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885162
6188-5163 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885163
6188-5164 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885164
6188-5165 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885165
6188-5166 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885166
6188-5167 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885167
6188-5168 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885168
6188-5169 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885169
6188-5170 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885170
6188-5171 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885171
6188-5172 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885172
6188-5173 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885173
6188-5174 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885174
6188-5175 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885175
6188-5176 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885176
6188-5177 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885177
6188-5178 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885178
6188-5179 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885179
6188-5180 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885180
6188-5181 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885181
6188-5182 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885182
6188-5183 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885183
6188-5184 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885184
6188-5185 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885185
6188-5225 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885225
6188-5226 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885226
6188-5227 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885227
6188-5228 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885228
6188-5235 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885235
6188-5236 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885236
6188-5237 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885237
6188-5238 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885238
6188-5239 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885239
6188-5240 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885240
6188-5241 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885241
6188-5242 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885242
6188-5243 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885243
6188-5244 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885244
6188-5245 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885245
6188-5246 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885246
6188-5247 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885247
6188-5248 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885248
6188-5249 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885249
6188-5252 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885252
6188-5253 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885253
6188-5254 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885254
6188-5255 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885255
6188-5256 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885256
6188-5257 34 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61885257
6098-6596 34 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986596
6098-6597 34 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986597
6098-6273 40 Male Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986273
6098-6553 40 Male Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986553
6098-5138 40 Female Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60985138
6098-6277 40 Female Housing 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986277
6098-7116 42 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60987116
6098-6130 50 Male Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986130
6098-3977 50 Female Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60983977
6098-6150 54 Male Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986150
6189-6956 54 Female Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=61896956
6098-6044 59 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986044
6098-6045 59 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986045
6098-6047 59 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986047
6098-6134 59 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986134
6098-6528 64 Male Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986528
6098-6532 64 Female Housing 0.64/1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986532
6098-6535 70 Male Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986535
6098-6537 70 Female Housing 0.64/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986537
8230-5221   Male Terminal 0.64mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305221
8230-5222   Male Terminal 0.64mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305222
8230-5223   Male Terminal 0.64mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305223
8100-4403   Male Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004403
8100-4405   Male Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004405
8240-0123   Female Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400123
8240-0124   Female Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400124
8240-0127   Female Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400127
8240-0128   Female Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400128
8100-4412   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004412
8100-4413   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004413
8100-4414   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004414
8230-5257   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305257
8230-5258   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305258
8230-5259   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305259
8230-5260   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305260
8230-5303   Male Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82305303
8100-4407   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004407
8100-4408   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004408
8100-4409   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004409
8100-4443   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004443
8100-4444   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004444
8100-4445   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004445
8240-0423   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400423
8240-0424   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400424
8240-0425   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400425
8240-0426   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400426
8240-0427   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400427
8240-0477   Female Terminal 2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=82400477
8100-4366   Male Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004366
8100-4373   Male Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004373
8100-4375   Female Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004375
8100-4381   Female Terminal 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=81004381
7165-1194   Common Wire Wire 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=71651194
7165-1195   Common Wire Wire 1.5mm https://prd.sws.co.jp/components/en/detail.php?number_s=71651195
6911-4747   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114747
6911-4852   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114852
6911-5315   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69115315
6911-4748   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114748
6098-6278   Female Cover 1.5/2.8mm https://prd.sws.co.jp/components/en/detail.php?number_s=60986278
6910-5478   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69105478
6911-4376   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114376
6911-5137   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69115137
6920-2623   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69202623
6920-2624   Male Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69202624
6911-3969   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69113969
6911-4228   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114228
6911-4230   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114230
6911-4312   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114312
6911-4401   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69114401
6911-5139   Female Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69115139
6911-5238     Cover   https://prd.sws.co.jp/components/en/detail.php?number_s=69115238
7105-2287   Male Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71052287
7105-3533   Male Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71053533
7105-3534   Male Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71053534
7180-0187   Male Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71800187
7180-0188   Male Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71800188
7105-2781   Female Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71052781
7105-3342   Female Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71053342
7105-3644   Female Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71053644
7105-3747   Female Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71053747
7105-3781   Female Grommet   https://prd.sws.co.jp/components/en/detail.php?number_s=71053781
6911-5293   Male Shipping Cap   https://prd.sws.co.jp/components/en/detail.php?number_s=69115293
6911-5294   Male Shipping Cap   https://prd.sws.co.jp/components/en/detail.php?number_s=69115294





Support Custom Wire Harness Assembly



  • Connectors: 6P to 70P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 50 pieces per order.





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE Connector
Molex Connector
JST Connector
Aptive Connector
Amphenol Connector
Deutsch Connector
Yazaki Connector
Sumitomo Connector
Lear Connector
KET Connector
Neutrik Connector
Switchcraft Connector
Julet Connector
Higo Connector
XT Connector
Hirose Connector
Yeonho Connector
Anderson Connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
