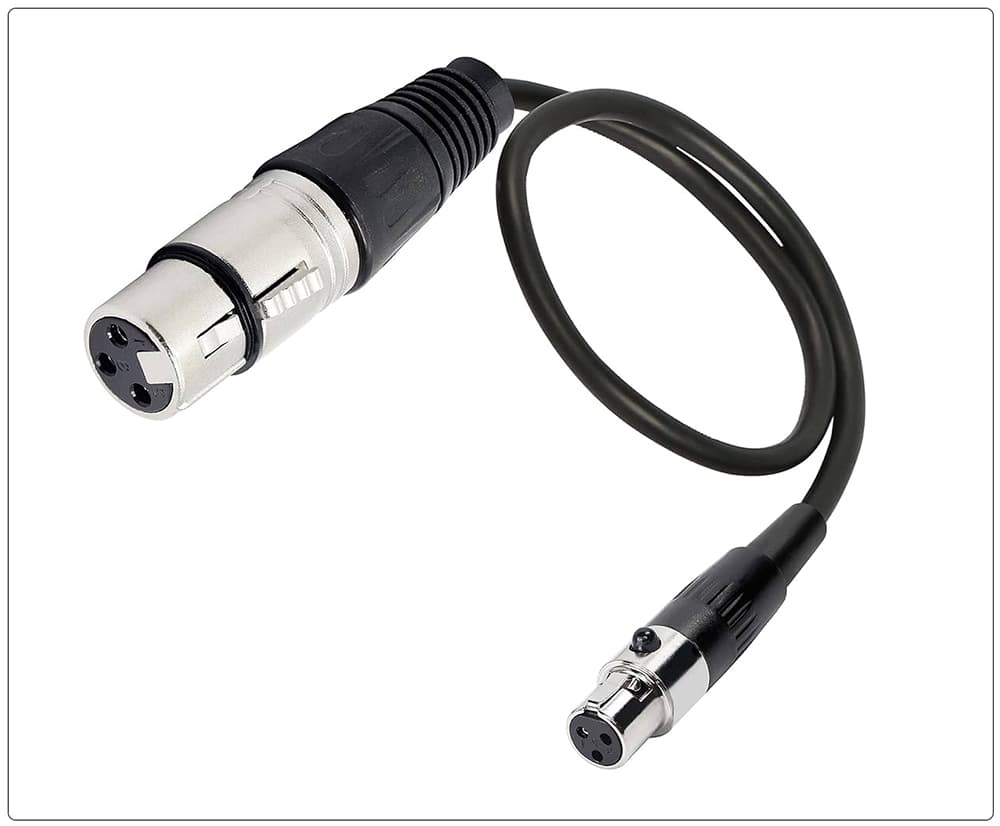

Sealed Tini-QG Mini-XLR Connector



The Switchcraft Sealed Tini-QG® Mini-XLR Connectors represent a robust interconnect solution engineered for reliability in demanding conditions. These circular connectors provide a high degree of water resistance, achieving an IP66 rating when mated to protect against powerful water jets and an IP65 rating when unmated for panel-mount versions, ensuring resilience against dust and low-pressure water ingress. A key feature is their durable push-button latching mechanism, which facilitates secure, easy coupling. Built for longevity, they are rated to withstand at least 5,000 insertion/withdrawal cycles, demonstrating exceptional mechanical durability. While compatible with the entire unsealed Tini-QG series, these connectors are crafted with high-quality materials, including nickel-plated copper alloy bodies. They are manufactured in the USA to meet stringent quality standards, making them suitable for critical applications in professional audio, broadcasting, and outdoor instrumentation.



Sealed Tini-QG® Mini-XLR Connectors





Features



  • Waterproof to IP66 when mated and IP65 when unmated (panel only)
  • Front-mount panel sits flush to protect the connector from physical impact
  • Available in 3 to 8 contacts as cable end, cable to cable, and panel mount
  • Intuitive push-button latching mechanism
  • Withstands at least 5000 mating cycles for 3-5 pin versions, 2000 cycles for 6-8 pins
  • Can be mated with an unsealed Mini XLR (IP rating does not apply)

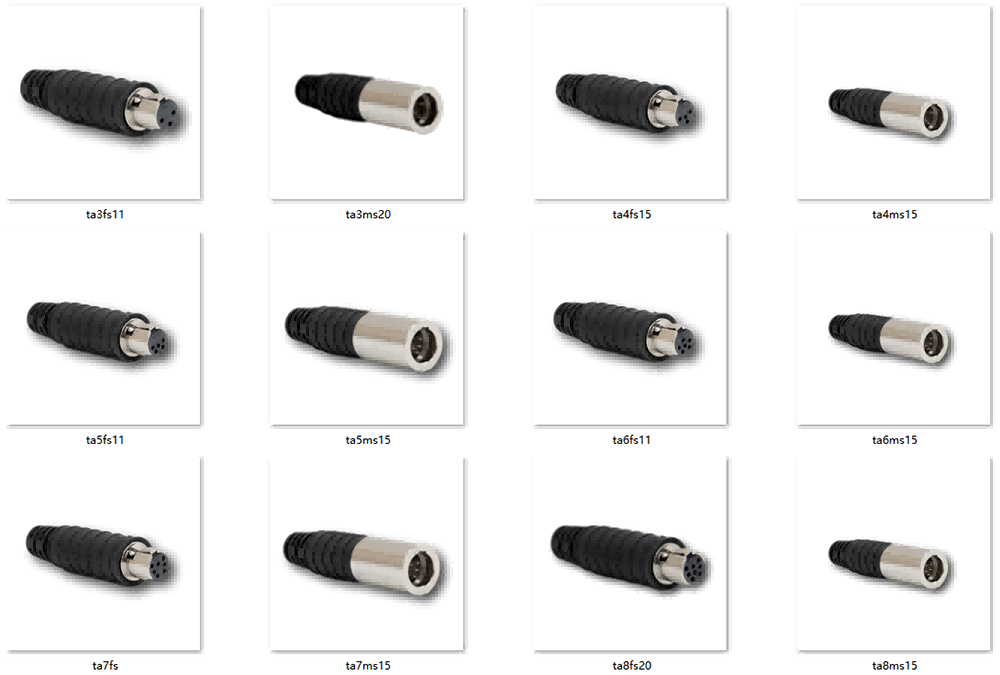

Connector Lists



P/N Descriptions Links
TA8MS20 Sealed Mini-XLR, Cable-to-Cable/In-Line, 8-Pin Male, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-8-pin-male-0-190-4-8mm-0-210-5-3mm-cable-size/ta8ms20/
TA8FS20 Sealed Mini-XLR, Cable End, 8-Pin Female, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-8-pin-female-0-190-4-8mm-0-210-5-3mm-cable-size/ta8fs20/
TA7FS20 Sealed Mini-XLR, Cable End, 7-Pin Female, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-7-pin-female-0-190-4-8mm-0-210-5-3mm-cable-size/ta7fs20/
TA6MS25 Sealed Mini-XLR, Cable-to-Cable/In-Line, 6-Pin Male, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-6-pin-male-0-230-5-8mm-0-260-6-6mm-cable-size/ta6ms25/
TA6MS20 Sealed Mini-XLR, Cable-to-Cable/In-Line, 6-Pin Male, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-6-pin-male-0-190-4-8mm-0-210-5-3mm-cable-size/ta6ms20/
TA6MS15 Sealed Mini-XLR, Cable-to-Cable/In-Line, 6-Pin Male, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-6-pin-male-0-140-3-6mm-0-160-4-1mm-cable-size/ta6ms15/
TA6MS11 Sealed Mini-XLR, Cable-to-Cable/In-Line, 6-Pin Male, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-6-pin-male-0-100-2-5mm-0-120-3-0mm-cable-size/ta6ms11/
TA6FS25 Sealed Mini-XLR, Cable End, 6-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-6-pin-female-0-230-5-8mm-0-260-6-6mm-cable-size/ta6fs25/
TA6FS20 Sealed Mini-XLR, Cable End, 6-Pin Female, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-6-pin-female-0-190-4-8mm-0-210-5-3mm-cable-size/ta6fs20/
TA6FS15 Sealed Mini-XLR, Cable End, 6-Pin Female, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-6-pin-female-0-140-3-6mm-0-160-4-1mm-cable-size/ta6fs15/
TA5MS20 Sealed Mini-XLR, Cable-to-Cable/In-Line, 5-Pin Male, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-5-pin-male-0-190-4-8mm-0-210-5-3mm-cable-size/ta5ms20/
TA5MS15 Sealed Mini-XLR, Cable-to-Cable/In-Line, 5-Pin Male, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-5-pin-male-0-140-3-6mm-0-160-4-1mm-cable-size/ta5ms15/
TA5MS11 Sealed Mini-XLR, Cable-to-Cable/In-Line, 5-Pin Male, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-5-pin-male-0-100-2-5mm-0-120-3-0mm-cable-size/ta5ms11/
TA5FS20 Sealed Mini-XLR, Cable End, 5-Pin Female, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-5-pin-female-0-190-4-8mm-0-210-5-3mm-cable-size/ta5fs20/
TA5FS15 Sealed Mini-XLR, Cable End, 5-Pin Female, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-5-pin-female-0-140-3-6mm-0-160-4-1mm-cable-size/ta5fs15/
TA5FS11 Sealed Mini-XLR, Cable End, 5-Pin Female, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-5-pin-female-0-100-2-5mm-0-120-3-0mm-cable-size/ta5fs11/
TA4MS25 Sealed Mini-XLR, Cable-to-Cable/In-Line, 4-Pin Male, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-4-pin-male-0-230-5-8mm-0-260-6-6mm-cable-size/ta4ms25/
TA4MS20 Sealed Mini-XLR, Cable-to-Cable/In-Line, 4-Pin Male, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-4-pin-male-0-190-4-8mm-0-210-5-3mm-cable-size/ta4ms20/
TA4MS11 Sealed Mini-XLR, Cable-to-Cable/In-Line, 4-Pin Male, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-4-pin-male-0-100-2-5mm-0-120-3-0mm-cable-size/ta4ms11/
TA4FS15 Sealed Mini-XLR, Cable End, 4-Pin Female, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-4-pin-female-0-140-3-6mm-0-160-4-1mm-cable-size/ta4fs15/
TA4FS11 Sealed Mini-XLR, Cable End, 4-Pin Female, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-4-pin-female-0-100-2-5mm-0-120-3-0mm-cable-size/ta4fs11/
TA3MS25 Sealed Mini-XLR, Cable-to-Cable/In-Line, 3-Pin Male, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-3-pin-male-0-230-5-8mm-0-260-6-6mm-cable-size/ta3ms25/
TA3MS20 Sealed Mini-XLR, Cable-to-Cable/In-Line, 3-Pin Male, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-3-pin-male-0-190-4-8mm-0-210-5-3mm-cable-size/ta3ms20/
TA3MS15 Sealed Mini-XLR, Cable-to-Cable/In-Line, 3-Pin Male, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-3-pin-male-0-140-3-6mm-0-160-4-1mm-cable-size/ta3ms15/
TA3MS11 Sealed Mini-XLR, Cable-to-Cable/In-Line, 3-Pin Male, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-3-pin-male-0-100-2-5mm-0-120-3-0mm-cable-size/ta3ms11/
TA3FS25 Sealed Mini-XLR, Cable End, 3-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-3-pin-female-0-230-5-8mm-0-260-6-6mm-cable-size/ta3fs25/
TA3FS20 Sealed Mini-XLR, Cable End, 3-Pin Female, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-3-pin-female-0-190-4-8mm-0-210-5-3mm-cable-size/ta3fs20/
TA3FS15 Sealed Mini-XLR, Cable End, 3-Pin Female, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-3-pin-female-0-140-3-6mm-0-160-4-1mm-cable-size/ta3fs15/
TA3FS11 Sealed Mini-XLR, Cable End, 3-Pin Female, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-3-pin-female-0-100-2-5mm-0-120-3-0mm-cable-size/ta3fs11/
TB8MS Sealed Mini-XLR, Panel Mount, 8-Pin Male https://www.switchcraft.com/sealed-mini-xlr-panel-mount-8-pin-male/tb8ms/
TB7MS Sealed Mini-XLR, Panel Mount, 7-Pin Male https://www.switchcraft.com/sealed-mini-xlr-panel-mount-7-pin-male/tb7ms/
TB6MS Sealed Mini-XLR, Panel Mount, 6-Pin Male https://www.switchcraft.com/sealed-mini-xlr-panel-mount-6-pin-male/tb6ms/
TB5MS Sealed Mini-XLR, Panel Mount, 5-Pin Male https://www.switchcraft.com/sealed-mini-xlr-panel-mount-5-pin-male/tb5ms/
TB4MS Sealed Mini-XLR, Panel Mount, 4-Pin Male https://www.switchcraft.com/sealed-mini-xlr-panel-mount-4-pin-male/tb4ms/
TB3MS Sealed Mini-XLR, Panel Mount, 3-Pin Male https://www.switchcraft.com/sealed-mini-xlr-panel-mount-3-pin-male/tb3ms/
TA8MS25 Sealed Mini-XLR, Cable-to-Cable/In-Line, 8-Pin Male, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-8-pin-male-0-230-5-8mm-0-260-6-6mm-cable-size/ta8ms25/
TA8MS15 Sealed Mini-XLR, Cable-to-Cable/In-Line, 8-Pin Male, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-8-pin-male-0-140-3-6mm-0-160-4-1mm-cable-size/ta8ms15/
TA8MS11 Sealed Mini-XLR, Cable-to-Cable/In-Line, 8-Pin Male, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-8-pin-male-0-100-2-5mm-0-120-3-0mm-cable-size/ta8ms11/
TA8FS25 Sealed Mini-XLR, Cable End, 8-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-8-pin-female-0-230-5-8mm-0-260-6-6mm-cable-size/ta8fs25/
TA8FS15 Sealed Mini-XLR, Cable End, 8-Pin Female, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-8-pin-female-0-140-3-6mm-0-160-4-1mm-cable-size/ta8fs15/
TA8FS11 Sealed Mini-XLR, Cable End, 8-Pin Female, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-8-pin-female-0-100-2-5mm-0-120-3-0mm-cable-size/ta8fs11/
TA7MS25 Sealed Mini-XLR, Cable-to-Cable/In-Line, 7-Pin Male, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-7-pin-male-0-230-5-8mm-0-260-6-6mm-cable-size/ta7ms25/
TA7MS20 Sealed Mini-XLR, Cable-to-Cable/In-Line, 7-Pin Male, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-7-pin-male-0-190-4-8mm-0-210-5-3mm-cable-size/ta7ms20/
TA7MS15 Sealed Mini-XLR, Cable-to-Cable/In-Line, 7-Pin Male, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-7-pin-male-0-140-3-6mm-0-160-4-1mm-cable-size/ta7ms15/
TA7MS11 Sealed Mini-XLR, Cable-to-Cable/In-Line, 7-Pin Male, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-7-pin-male-0-100-2-5mm-0-120-3-0mm-cable-size/ta7ms11/
TA7FS25 Sealed Mini-XLR, Cable End, 7-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-7-pin-female-0-230-5-8mm-0-260-6-6mm-cable-size/ta7fs25/
TA7FS15 Sealed Mini-XLR, Cable End, 7-Pin Female, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-7-pin-female-0-140-3-6mm-0-160-4-1mm-cable-size/ta7fs15/
TA7FS11 Sealed Mini-XLR, Cable End, 7-Pin Female, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-7-pin-female-0-100-2-5mm-0-120-3-0mm-cable-size/ta7fs11/
TA6FS11 Sealed Mini-XLR, Cable End, 6-Pin Female, 0.100" [2.5mm] - 0.120" [3.0mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-6-pin-female-0-100-2-5mm-0-120-3-0mm-cable-size/ta6fs11/
TA5MS25 Sealed Mini-XLR, Cable-to-Cable/In-Line, 5-Pin Male, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-5-pin-male-0-230-5-8mm-0-260-6-6mm-cable-size/ta5ms25/
TA5FS25 Sealed Mini-XLR, Cable End, 5-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-5-pin-female-0-230-5-8mm-0-260-6-6mm-cable-size/ta5fs25/
TA4MS15 Sealed Mini-XLR, Cable-to-Cable/In-Line, 4-Pin Male, 0.140" [3.6mm] - 0.160" [4.1mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-to-cable-in-line-4-pin-male-0-140-3-6mm-0-160-4-1mm-cable-size/ta4ms15/
TA4FS25 Sealed Mini-XLR, Cable End, 4-Pin Female, 0.230" [5.8mm] - 0.260" [6.6mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-4-pin-female-0-230-5-8mm-0-260-6-6mm-cable-size/ta4fs25/
TA4FS20 Sealed Mini-XLR, Cable End, 4-Pin Female, 0.190" [4.8mm] - 0.210" [5.3mm] Cable Size https://www.switchcraft.com/sealed-mini-xlr-cable-end-4-pin-female-0-190-4-8mm-0-210-5-3mm-cable-size/ta4fs20/





Support Custom Cable Harness Assembly



  • Connectors: All Sealed Tini-QG Mini-XLR Connector.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 100 pieces per order.

Sealed Tini-QG Mini-XLR Connector Cable





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
