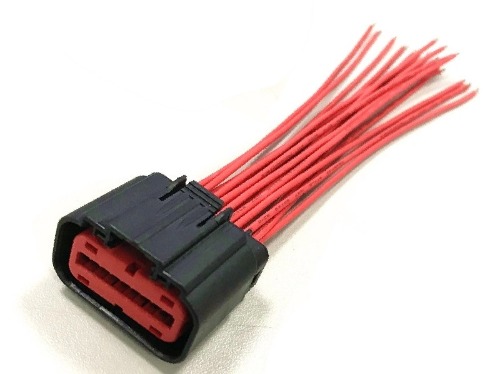

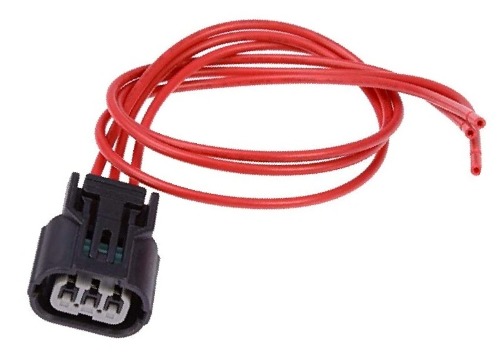

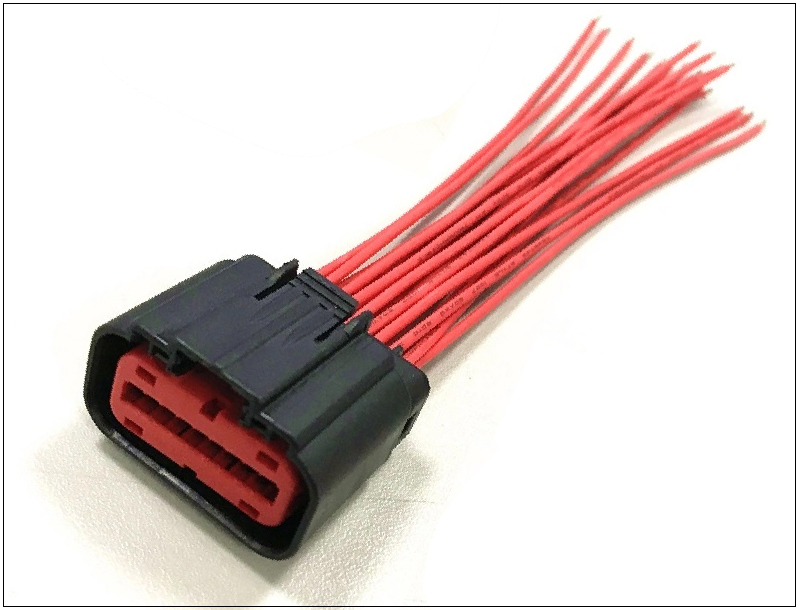

TE GET .64 Connector Custom Wire Harness
TE GET .64 Connector Introduction
The TE Connectivity GET .64 Interconnection System is a highly versatile and widely used solution for automotive interconnections across the globe. It has found its application in various areas, including passenger compartments and engine compartments, where it meets all the requirements.
One of the key advantages of this system is its ability to achieve high packaging density in sealed applications, thanks to its mat seal capability. This feature ensures that the connectors remain tightly sealed, even in demanding environments.
The product offering includes wire-to-wire, wire-to-board, and wire-to-device configurations, providing flexibility for different interconnection needs. Moreover, a wide range of pin count variants are available to accommodate diverse requirements.
To ensure reliable electrical connections, this system offers tangle-free contacts with options for tin, silver, or gold plating. The female terminal can accept blades ranging from 0.64 x 0.64 mm up to 1.2 x 0.64 mm.
In terms of connector housings, both sealed and unsealed options are available with straight mate or lever-actuated designs. This allows users to choose the most suitable housing based on their specific application needs.
Furthermore, including mat seals enables high packaging density without compromising performance or reliability. This design feature eliminates blind plugs in sealed applications while maintaining optimal functionality.
Features
- Product offering includes wire-to-wire, wire-to-board and wire-to-device configurations
- High range of pin count variants
- Tangle-free contact is offered as tin, silver, and gold plating
- Female terminal accepts blades from 0.64 x 0.64 mm up to 1.2 x 0.64 mm
- Sealed and unsealed connector housings available (straight mate or lever-actuated)
- Mat seals allow high packaging density
- The design allows for specific pinout versions, no blind plugs necessary in sealed applications
Connector Specs
| P/N | Number of Positions | Sealable | Mating Tab Width | No. of Rows | Color | Contact Current Rating (Max)(A) | Operatiing Temp Range | Datasheet |
| 1452601-1 | 2 | No | 1 | Black | 7.5 A | -40 – 120 °C | https://www.te.com/en/product-1452601-1.html | |
| 1452598-1 | 2 | No | .64 mm | 1 | Black | 7.5 A | -40 – 120 °C | https://www.te.com/en/product-1452598-1.html |
| 6-1419166-1 | 4 | No | .64 mm | 1 | Black | 7.5 A | -40 – 100 °C | https://www.te.com/en/product-6-1419166-1.html |
| 1-1419168-2 | 6 | Yes | .64 mm | 1 | Black | -40 – 125 °C | https://www.te.com/en/product-1-1419168-2.html | |
| 1419158-5 | 6 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-1419158-5.html |
| 1355922-1 | 6 | No | .64 mm | 1 | Yellow | 7.5 A | -40 – 100 °C | https://www.te.com/en/product-1355922-1.html |
| 1419158-6 | 6 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-1419158-6.html |
| 9-1411325-1 | 6 | No | .64 mm | 2 | Black | 7.5 A | -40 – 100 °C | https://www.te.com/en/product-9-1411325-1.html |
| 1411169-1 | 8 | No | 2 | Gray | 7.5 A | -40 – 100 °C | https://www.te.com/en/product-1411169-1.html | |
| 9-1419157-6 | 10 | No | .64 mm | 2 | Black | 7.5 A | -40 – 100 °C | https://www.te.com/en/product-9-1419157-6.html |
| 1-1419158-4 | 10 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-1-1419158-4.html |
| 1452015-8 | 12 | No | .64 mm | 2 | Black | 7.5 A | -40 – 120 °C | https://www.te.com/en/product-1452015-8.html |
| 1452015-2 | 12 | No | .64 mm | 2 | Black | 7.5 A | -40 – 120 °C | https://www.te.com/en/product-1452015-2.html |
| 2-1419158-6 | 22 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-2-1419158-6.html |
| 2-1419158-8 | 22 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-2-1419158-8.html |
| 3-1419158-0 | 22 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-3-1419158-0.html |
| 2-1419158-7 | 22 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-2-1419158-7.html |
| 1-1419158-7 | 22 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-1-1419158-7.html |
| 1420011-1 | 22 | No | .64 mm | 2 | Gray | 7.5 A | -40 – 100 °C | https://www.te.com/en/product-1420011-1.html |
| 2-1419158-9 | 22 | No | .64 mm | 2 | Black | 7.5 A | -40 – 125 °C | https://www.te.com/en/product-2-1419158-9.html |
Support Custom Wire Harness Assembly
- Connectors: 2P to 22P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
