TE MCON 1.2mm Connector, Custom Wire Harness Assembly

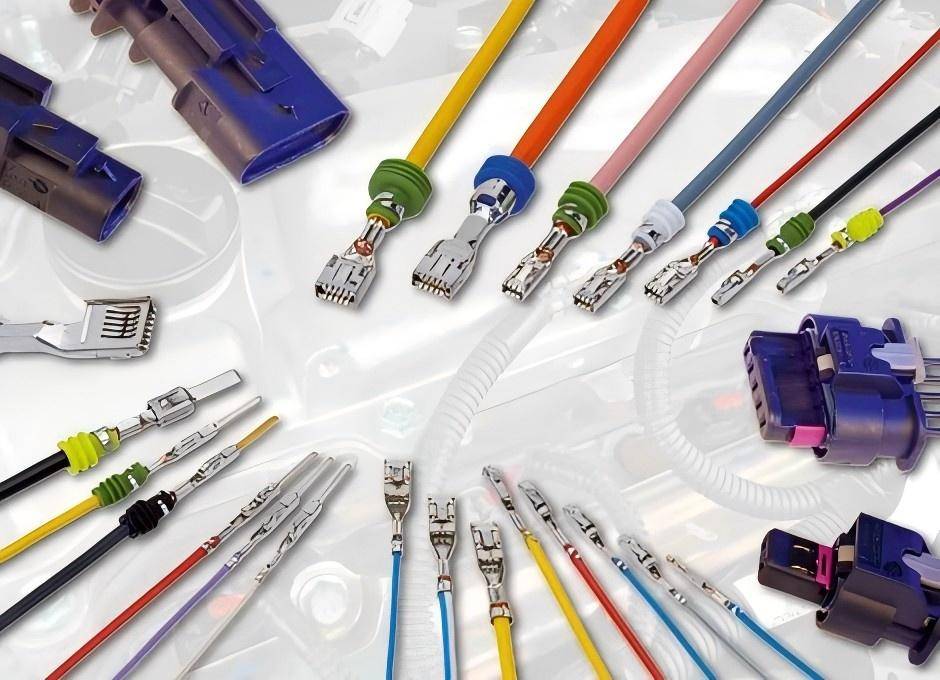

MCON 1.2mm Connector
The MCON 1.2mm Connector is a high-performance automotive solution engineered for extreme conditions, supporting up to 17A current and 150°C operation (180°C with advanced plating). Its durable two-piece terminal design meets SG4/USCAR2 standards, ensuring reliability under intense vibration. Features include BluSurf™ plating to reduce mating force by 40%, IPx9K waterproofing for harsh environments, and sustainable NextGen Plus variants cutting CO₂ emissions by 40%. Compact yet versatile, it supports 2–26 positions, integrates with automation, and complies with LV214/USCAR2 for safety-critical applications like electrification, transmission, and suspension systems. Ideal for modern vehicles, it combines longevity, efficiency, and lightweight design to meet evolving industry demands.
Features
- Robust Design
- Two-piece terminal design for high vibration resistance (up to SG4/USCAR2 or SG6 for HPF 1.2).
- Sealed receptacle and tab housings with IPx9K waterproofing for extreme environments.
- Performance
- Supports currents up to 17A (80°C ambient) and temperatures from -40°C to +150°C (or 180°C with advanced plating).
- Compliant with LV214/USCAR2 automotive standards for safety-critical systems.
- Advanced Technologies
- BluSurf Plating: Reduces mating force by 40%, enhances durability, and lowers insertion cycles.
- GreenSilver Contact Technology (HPF 1.2): Improves sustainability and conductivity.
- Flexibility
- 2–26 positions (inline and 2-row configurations) to suit diverse applications.
- Wide wire range (0.13–1.5mm²) and terminal options (sealed/unsealed, mono/clean body).
- Integration & Automation
- QR codes and CPA (Connector Position Assurance) for traceability and error-proofing.
- Compatible with TE’s application tooling for efficient assembly.
- Sustainability
- NextGen/NextGen Plus variants reduce CO₂ emissions by 20–40%.
- Accessories
- Single wire seals, cavity plugs, and backshells for enhanced sealing and protection.
Connector Specifications Chart
Sort by the No. of positions.
| P/N | No. of Position | Color | Descriptions | Type | Sealable | Connection | Links |
| 2098641-4 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2098641-4.html |
| 2098641-4 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2098641-4.html |
| 4-2098641-2 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-4-2098641-2.html |
| 2-2236896-5 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2236896-5.html |
| 2138873-4 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | No | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2138873-4.html |
| 1-2304514-1 | 2 | Blue | 2POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2304514-1.html |
| 2-1718643-1 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718643-1.html |
| 4-1924067-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-4-1924067-1.html |
| 2-1924067-0 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1924067-0.html |
| 2-1718643-4 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718643-4.html |
| 4-2098557-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-2098557-1.html |
| 2203701-2 | 2 | Blue | 2POS, MCON 1.2 CB TAB 2p TL UNSEALED | Housing for Male Terminals | No | https://www.te.com/en/product-2203701-2.html | |
| 3-1718643-1 | 2 | Blue | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-3-1718643-1.html |
| 2098557-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2098557-1.html |
| 4-2236896-1 | 2 | Violet | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-4-2236896-1.html |
| 2356394-2 | 2 | Blue | 2POS, MCON 1.2 CB REC 2p TL UNSEALED | Housing for Female Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2356394-2.html |
| 2304514-1 | 2 | Blue | 2POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2304514-1.html |
| 2312132-1 | 2 | Gray | 2POS, MCON 1.2, REC HSG | Housing for Female Terminals | No | Wire-to-Board | https://www.te.com/en/product-2312132-1.html |
| 2-2236896-1 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2236896-1.html |
| 2098641-5 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2098641-5.html |
| 2203701-3 | 2 | Green | 2POS, MCON 1.2 CB TAB 2p TL UNSEALED | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2203701-3.html |
| 1-1670916-1 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670916-1.html |
| 1-2236952-5 | 2 | Black | 2POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2236952-5.html |
| 3-2355506-5 | 2 | Blue | 2POS, MCON 1.2, REC HSG ASSY, SLD, COD C | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-3-2355506-5.html |
| 2-1718643-4 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718643-4.html |
| 4-2098557-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-2098557-1.html |
| 4-2236896-1 | 2 | Violet | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-4-2236896-1.html |
| 5-2236896-5 | 2 | Green | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-5-2236896-5.html |
| 3-1718888-1 | 2 | Blue | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-3-1718888-1.html |
| 4-2098641-2 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-4-2098641-2.html |
| 2-2236896-5 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2236896-5.html |
| 1-1670916-1 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670916-1.html |
| 2203701-3 | 2 | Green | 2POS, MCON 1.2 CB TAB 2p TL UNSEALED | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2203701-3.html |
| 2098641-2 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2098641-2.html |
| 1-1718643-8 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1718643-8.html |
| 3-2236896-1 | 2 | Blue | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-3-2236896-1.html |
| 1-1718888-1 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1718888-1.html |
| 1-1670915-1 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670915-1.html |
| 1-2203769-3 | 2 | Gray | 2POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203769-3.html |
| 1-1924067-6 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1924067-6.html |
| 2098641-6 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2098641-6.html |
| 2098641-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2098641-1.html |
| 1-2203769-1 | 2 | Blue | 2POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203769-1.html |
| 1-1924067-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1924067-1.html |
| 1-1718643-4 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1718643-4.html |
| 2203770-2 | 2 | Black | 2POS, MCON 1.2 CB TAB 1p TL SEALED | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2203770-2.html |
| 2356394-2 | 2 | Blue | 2POS, MCON 1.2 CB REC 2p TL UNSEALED | Housing for Female Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2356394-2.html |
| 2304514-1 | 2 | Blue | 2POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2304514-1.html |
| 2312132-1 | 2 | Gray | 2POS, MCON 1.2, REC HSG | Housing for Female Terminals | No | Wire-to-Board | https://www.te.com/en/product-2312132-1.html |
| 2-2236896-1 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2236896-1.html |
| 4-2098641-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-4-2098641-1.html |
| 1-2304514-2 | 2 | Light Gray | 2POS, MCON 1.2, REC HSG ASSY, SLD, COD B | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2304514-2.html |
| 4-2355506-1 | 2 | 20 A | 2POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2355506-1.html |
| 1-2299071-1 | 2 | Black | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-2299071-1.html |
| 2138873-4 | 2 | Black | 2POS, MCON 1.2 CB REC 2p SL SEALED | Housing for Female Terminals | No | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2138873-4.html |
| 1-2304514-1 | 2 | Blue | 2POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2304514-1.html |
| 2-1718643-1 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718643-1.html |
| 4-1924067-1 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-4-1924067-1.html |
| 2-1924067-0 | 2 | Black | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1924067-0.html |
| 2-1718643-4 | 2 | Natural | 2POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718643-4.html |
| 2356394-1 | 2 | Natural | 2POS, MCON 1.2 CB REC 2p TL UNSEALED | Housing for Female Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2356394-1.html |
| 4-1924067-2 | 2 | Natural | 2POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-4-1924067-2.html |
| 2328919-2 | 3 | Black | 3POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-2328919-2.html | |
| 2328919-2 | 3 | Black | 3POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-2328919-2.html | |
| 1-1718644-6 | 3 | Black | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | https://www.te.com/en/product-1-1718644-6.html | |
| 2-2355507-5 | 3 | Natural | 3POS, MCON 1.2, REC HSG ASSY, SLD, COD B | Housing for Female Terminals | Yes | https://www.te.com/en/product-2-2355507-5.html | |
| 1-2203771-1 | 3 | Blue | 3POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203771-1.html |
| 1-2203771-3 | 3 | Dark Gray | 3POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203771-3.html |
| 1488991-2 | 3 | Black | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1488991-2.html |
| 2-1718644-1 | 3 | Natural | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718644-1.html |
| 4-2098541-1 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-2098541-1.html |
| 2098541-5 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2098541-5.html |
| 3-1718644-1 | 3 | Blue | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-3-1718644-1.html |
| 2328919-3 | 3 | Black | 3POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-2328919-3.html | |
| 4-1718644-1 | 3 | Violet | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-1718644-1.html |
| 3-2236343-1 | 3 | Blue | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-3-2236343-1.html |
| 4-2098541-1 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-2098541-1.html |
| 2203772-1 | 3 | Black | 3POS, MCON 1.2 CB TAB 1p TL SEALED | Housing for Male Terminals | Yes | https://www.te.com/en/product-2203772-1.html | |
| 3-2236343-5 | 3 | Blue | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-3-2236343-5.html |
| 2-2236343-1 | 3 | Natural | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2236343-1.html |
| 2098541-1 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2098541-1.html |
| 2098541-2 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2098541-2.html |
| 1-1718644-6 | 3 | Black | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | https://www.te.com/en/product-1-1718644-6.html | |
| 2-2355507-5 | 3 | Natural | 3POS, MCON 1.2, REC HSG ASSY, SLD, COD B | Housing for Female Terminals | Yes | https://www.te.com/en/product-2-2355507-5.html | |
| 1-2236953-5 | 3 | Black | 3POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2236953-5.html |
| 1488991-1 | 3 | Black | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1488991-1.html |
| 2-1670917-1 | 3 | Natural | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-1670917-1.html |
| 1488991-6 | 3 | Black | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1488991-6.html |
| 1-1670917-1 | 3 | Black | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670917-1.html |
| 1-1703494-4 | 3 | Yellow | 3POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1703494-4.html |
| 4-1488991-1 | 3 | Black | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-1488991-1.html |
| 1-2272975-3 | 3 | Black | 6 Pos. Sealed MCON 1.2 Connect | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2272975-3.html |
| 3-1718644-1 | 3 | Blue | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-3-1718644-1.html |
| 2098541-2 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2098541-2.html |
| 2-2236343-5 | 3 | Natural | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2236343-5.html |
| 4-2098541-2 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-2098541-2.html |
| 1-2203771-1 | 3 | Blue | 3POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203771-1.html |
| 1-2203771-3 | 3 | Dark Gray | 3POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203771-3.html |
| 1488991-2 | 3 | Black | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1488991-2.html |
| 2-1718644-1 | 3 | Natural | 3POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718644-1.html |
| 4-2098541-1 | 3 | Brown | 3POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-4-2098541-1.html |
| 2203771-1 | 3 | Blue | 3POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2203771-1.html |
| 1-2286471-1 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2286471-1.html |
| 1-2286471-1 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2286471-1.html |
| 1-2294256-5 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2294256-5.html |
| 2-2294256-5 | 4 | Natural | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-2294256-5.html |
| 2342926-1 | 4 | Brown | 4POS, MCON 1.2, TAB HSG ASSY, SLD | Housing for Male Terminals | Yes | https://www.te.com/en/product-2342926-1.html | |
| 1-1718645-3 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1718645-3.html |
| 2289524-1 | 4 | Natural | 4POS, MCON 1.2 CB REC 2p TL UNSEALED | Housing for Female Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2289524-1.html |
| 2203773-2 | 4 | Yellow | 4POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2203773-2.html |
| 4-1456426-1 | 4 | Black | 4POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-1456426-1.html |
| 2312132-3 | 4 | Red | 4POS, MCON 1.2, REC HSG | Housing for Female Terminals | No | Wire-to-Board | https://www.te.com/en/product-2312132-3.html |
| 1-2349077-1 | 4 | Black | 4POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | https://www.te.com/en/product-1-2349077-1.html | |
| 2-2294256-5 | 4 | Natural | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-2294256-5.html |
| 1-2378604-1 | 4 | Black | 4POS, NEXTGEN, MCON 1.2 LL REC, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-2378604-1.html |
| 1-1718645-1 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1718645-1.html |
| 2203773-1 | 4 | Blue | 4POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2203773-1.html |
| 1-2301519-5 | 4 | Black | 4POS, MCON 1.2 LL TAB SEALED 2ROW | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2301519-5.html |
| 2203774-1 | 4 | Black | 4POS, MCON 1.2 CB TAB 1p TL SEALED | Housing for Male Terminals | Yes | https://www.te.com/en/product-2203774-1.html | |
| 2362546-1 | 4 | Black | 4POS, MCON 1.2, REC HSG | Housing for Female Terminals | No | https://www.te.com/en/product-2362546-1.html | |
| 1-1456426-2 | 4 | Brown | 4POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-1456426-2.html |
| 1-2294256-5 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2294256-5.html |
| 2-2294256-5 | 4 | Natural | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-2294256-5.html |
| 1-2378604-1 | 4 | Black | 4POS, NEXTGEN, MCON 1.2 LL REC, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-2378604-1.html |
| 3-2294256-1 | 4 | Blue | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-3-2294256-1.html |
| 1-1670918-1 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670918-1.html |
| 1-2203773-1 | 4 | Blue | 4POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203773-1.html |
| 2-1564559-4 | 4 | Yellow | 4POS, MCON 1.2 LL TAB SEALED COD B | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-1564559-4.html |
| 2-1718645-1 | 4 | Natural | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2-1718645-1.html |
| 1-2355514-5 | 4 | Black | 4POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | https://www.te.com/en/product-1-2355514-5.html | |
| 2312132-3 | 4 | Red | 4POS, MCON 1.2, REC HSG | Housing for Female Terminals | No | Wire-to-Board | https://www.te.com/en/product-2312132-3.html |
| 1-2349077-1 | 4 | Black | 4POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | https://www.te.com/en/product-1-2349077-1.html | |
| 1-2289107-1 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2289107-1.html |
| 1-2294256-1 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2294256-1.html |
| 1-1456426-1 | 4 | Black | 4POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-1456426-1.html |
| 2342926-1 | 4 | Brown | 4POS, MCON 1.2, TAB HSG ASSY, SLD | Housing for Male Terminals | Yes | https://www.te.com/en/product-2342926-1.html | |
| 1-1718645-3 | 4 | Black | 4POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1718645-3.html |
| 1-2236954-5 | 5 | Black | 5POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2236954-5.html |
| 1-2236954-5 | 5 | Black | 5POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2236954-5.html |
| 1-1718806-1 | 5 | Black | 5POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1718806-1.html |
| 2-2236954-5 | 5 | Black | 5POS, MCON 1.2 LL TAB SEALED COD B | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2-2236954-5.html |
| 3-1718806-1 | 5 | Blue | 5POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-3-1718806-1.html |
| 2203776-1 | 5 | Black | 5POS, MCON 1.2 CB TAB 1p TL SEALED | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2203776-1.html |
| 2-2236954-5 | 5 | Black | 5POS, MCON 1.2 LL TAB SEALED COD B | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2-2236954-5.html |
| 1-2355515-5 | 5 | Black | 5POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | https://www.te.com/en/product-1-2355515-5.html | |
| 1-2141520-4 | 5 | Yellow | 5POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2141520-4.html |
| 1-1670921-1 | 5 | Black | 5POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670921-1.html |
| 1-1718806-1 | 5 | Black | 5POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1718806-1.html |
| 2-2236954-5 | 5 | Black | 5POS, MCON 1.2 LL TAB SEALED COD B | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2-2236954-5.html |
| 2203776-1 | 5 | Black | 5POS, MCON 1.2 CB TAB 1p TL SEALED | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2203776-1.html |
| 1-2203775-1 | 5 | Blue | 5POS, MCON 1.2 CB REC 1p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2203775-1.html |
| 4-2005375-2 | 5 | Black | MCON 1.2MM SLD 5P PLUG ASSY B BLK | Housing for Female Terminals | Yes | https://www.te.com/en/product-4-2005375-2.html | |
| 1-2236898-5 | 5 | Black | 5POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2236898-5.html |
| 2-1718806-1 | 5 | Natural | 5POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-1718806-1.html |
| 2005375-2 | 5 | Black | MCON 1.2MM SLD 5P PLUG ASSY A BLK | Housing for Female Terminals | Yes | https://www.te.com/en/product-2005375-2.html | |
| 4-1924292-1 | 6 | Black | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-1924292-1.html |
| 4-1924292-1 | 6 | Black | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-1924292-1.html |
| 1-1670919-3 | 6 | Black | 6POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1670919-3.html |
| 2098559-6 | 6 | Brown | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2098559-6.html |
| 1924292-1 | 6 | Black | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1924292-1.html |
| 2272975-5 | 6 | Black | 6 Pos. Sealed MCON 1.2 Connect | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2272975-5.html |
| 2098559-5 | 6 | Brown | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2098559-5.html |
| 2272975-2 | 6 | Black | 6 Pos. Sealed MCON 1.2 Connect | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2272975-2.html |
| 1-2312022-1 | 6 | Black | 6POS, MCON 1.2, REC HSG, ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2312022-1.html |
| 1-1670919-1 | 6 | Black | 6POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670919-1.html |
| 2-2287965-5 | 6 | Black | 6POS, MCON 1.2, REC HSG, ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2-2287965-5.html |
| 1-1670919-3 | 6 | Black | 6POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-1670919-3.html |
| 2098559-6 | 6 | Brown | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2098559-6.html |
| 2272975-9 | 6 | Black | 6 Pos. Sealed MCON 1.2 Connect | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2272975-9.html |
| 2272975-1 | 6 | Black | 6 Pos. Sealed MCON 1.2 Connect | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2272975-1.html |
| 1-2141324-5 | 6 | Yellow | 6POS, MCON 1.2 LL TAB SEALED COD A | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2141324-5.html |
| 1-1718646-1 | 6 | Black | 6POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1718646-1.html |
| 1924292-1 | 6 | Black | 6POS, MCON 1.2 CB REC 2p TL SEALED | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1924292-1.html |
| 2272975-5 | 6 | Black | 6 Pos. Sealed MCON 1.2 Connect | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2272975-5.html |
| 1-1670920-1 | 8 | Black | 8POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670920-1.html |
| 2362546-2 | 8 | Black | 4POS, MCON 1.2, REC HSG | Housing for Female Terminals | No | https://www.te.com/en/product-2362546-2.html | |
| 1-1670920-1 | 8 | Black | 8POS, MCON 1.2 LL REC SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-1670920-1.html |
| 1801600-5 | 10 | Red | RECEPTACLE HOUSING, MCON, 10 W, SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801600-5.html |
| 1801600-4 | 10 | Green | RECEPTACLE HOUSING, MCON, 10 W, SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801600-4.html |
| 1801600-5 | 10 | Red | RECEPTACLE HOUSING, MCON, 10 W, SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801600-5.html |
| 1801600-4 | 10 | Green | RECEPTACLE HOUSING, MCON, 10 W, SEALED | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801600-4.html |
| 1-1801607-6 | 10 | Black | TAB MAIN HOUSING, MCON, 10 W, SEALED | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-1-1801607-6.html |
| 1-1801607-6 | 10 | Black | TAB MAIN HOUSING, MCON, 10 W, SEALED | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-1-1801607-6.html |
| 1801610-2 | 10 | Gray | BULK HEAD, MCON, 10W, CLIPPED | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801610-2.html |
| 1801606-5 | 10 | Red | TAB HOUSING, MCON, 10 W, SEALED | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801606-5.html |
| 1801610-2 | 10 | Gray | BULK HEAD, MCON, 10W, CLIPPED | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1801610-2.html |
| 1-2301521-5 | 10 | Black | 10POS, MCON 1.2 LL TAB SEALED 2ROW | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2301521-5.html |
| 2307072-2 | 12 | Black | 24POS, MCON 1.2, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | Yes | https://www.te.com/en/product-2307072-2.html | |
| 2-2316338-5 | 12 | Black | 12POS, MCON 1.2 LL TAB SEALED 2ROW | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2316338-5.html |
| 1-2323170-5 | 12 | Black | 12POS, MCON 1.2 LL REC SEALED 2ROW | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2323170-5.html |
| 2-2323170-5 | 12 | Natural | 12POS, MCON 1.2 LL REC SEALED 2ROW | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2323170-5.html |
| 1-2323170-5 | 12 | Black | 12POS, MCON 1.2 LL REC SEALED 2ROW | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2323170-5.html |
| 2-2316338-5 | 12 | Black | 12POS, MCON 1.2 LL TAB SEALED 2ROW | Housing for Male Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2316338-5.html |
| 1-2323170-5 | 12 | Black | 12POS, MCON 1.2 LL REC SEALED 2ROW | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2323170-5.html |
| 1-1563864-1 | 12 | Gray | 12POS, MCON-1.2, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-1-1563864-1.html |
| 2-2323170-5 | 12 | Natural | 12POS, MCON 1.2 LL REC SEALED 2ROW | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2-2323170-5.html |
| 2203990-2 | 13 | Blue | 13P UNSEALED PLUG, ASSY, KEY B | Housing for Female Terminals | No | Wire-to-Device | https://www.te.com/en/product-2203990-2.html |
| 2203990-2 | 13 | Blue | 13P UNSEALED PLUG, ASSY, KEY B | Housing for Female Terminals | No | Wire-to-Device | https://www.te.com/en/product-2203990-2.html |
| 2203990-1 | 13 | Natural | 13P UNSEALED PLUG, ASSY, KEY A | Housing for Female Terminals | No | Wire-to-Device | https://www.te.com/en/product-2203990-1.html |
| 2203464-2 | 14 | Natural | 14P Unsealed MCON 1.2 Plug, Key B | Housing for Female Terminals | No | https://www.te.com/en/product-2203464-2.html | |
| 2203464-2 | 14 | Natural | 14P Unsealed MCON 1.2 Plug, Key B | Housing for Female Terminals | No | https://www.te.com/en/product-2203464-2.html | |
| 1924393-1 | 14 | Yellow | 14P MCON 1.2 SCCM Outer Housing | Housing for Female Terminals | No | https://www.te.com/en/product-1924393-1.html | |
| 2307072-6 | 14 | Black | 24POS, MCON 1.2, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | Yes | https://www.te.com/en/product-2307072-6.html | |
| 1924396-1 | 14 | Black | 14P MCON 1.2 SCCM Inner Housing | Housing for Female Terminals | No | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-1924396-1.html |
| 1924393-1 | 14 | Yellow | 14P MCON 1.2 SCCM Outer Housing | Housing for Female Terminals | No | https://www.te.com/en/product-1924393-1.html | |
| 2307072-3 | 15 | Black | 24POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-2307072-3.html | |
| 1801739-4 | 18 | Brown | 18W HYBRID UNSEALED TAB HOUSING BROWN | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-1801739-4.html |
| 1801739-4 | 18 | Brown | 18W HYBRID UNSEALED TAB HOUSING BROWN | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-1801739-4.html |
| 1-2305386-1 | 24 | Black | 24POS, MCON 1.2, REC INNER HSG ASSY, UNSLD | Housing for Female Terminals | No | https://www.te.com/en/product-1-2305386-1.html | |
| 2307072-1 | 24 | Black | 24POS, MCON 1.2, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2307072-1.html |
| 1-2298166-2 | 24 | Black | 24POS, MCON 1.2, REC HSG ASSY | Housing for Female Terminals | No | Wire-to-Board | https://www.te.com/en/product-1-2298166-2.html |
| 1-2305386-1 | 24 | Black | 24POS, MCON 1.2, REC INNER HSG ASSY, UNSLD | Housing for Female Terminals | No | https://www.te.com/en/product-1-2305386-1.html | |
| 1-2298166-1 | 24 | Black | 24POS, MCON 1.2, REC HSG ASSY | Housing for Female Terminals | No | Wire-to-Board | https://www.te.com/en/product-1-2298166-1.html |
| 2307072-1 | 24 | Black | 24POS, MCON 1.2, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2307072-1.html |
| 2317001-1 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2317001-1.html |
| 1-2203973-2 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2203973-2.html |
| 2203973-5 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2203973-5.html |
| 2316988-1 | 26 | Black | 26POS, MCON 1.2, TAB HSG ASSY, SLD | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2316988-1.html |
| 1-2203973-0 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2203973-0.html |
| 2203973-8 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2203973-8.html |
| 2317001-2 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD 1 | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2317001-2.html |
| 1-2203973-5 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2203973-5.html |
| 2203973-5 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2203973-5.html |
| 1-2203973-6 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2203973-6.html |
| 2317001-1 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-2317001-1.html |
| 1-2203973-2 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2203973-2.html |
| 1-2203973-1 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2203973-1.html |
| 2316988-1 | 26 | Black | 26POS, MCON 1.2, TAB HSG ASSY, SLD | Housing for Male Terminals | No | Wire-to-Wire | https://www.te.com/en/product-2316988-1.html |
| 2327375-2 | 26 | Black | 26POS, MCON 1.2, REC HSG ASSY, SLD, COD B | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2327375-2.html |
| 5-2362674-5 | 28 | Black | 28POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-5-2362674-5.html |
| 5-2362674-5 | 28 | Black | 28POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-5-2362674-5.html |
| 4-2209520-7 | 28 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-4-2209520-7.html | |
| 2362674-9 | 28 | Black | 28POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2362674-9.html |
| 1-2362674-0 | 28 | Black | 28POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2362674-0.html |
| 2362674-1 | 28 | Black | 28POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2362674-1.html |
| 4-2209520-7 | 28 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-4-2209520-7.html | |
| 2362674-9 | 28 | Black | 28POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2362674-9.html |
| 2344391-1 | 43 | Black | 43POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-2344391-1.html | |
| 2344391-1 | 43 | Black | 43POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | https://www.te.com/en/product-2344391-1.html | |
| 2141628-3 | 43 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2141628-3.html |
| 2141628-3 | 43 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2141628-3.html |
| 2-2209520-9 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-9.html |
| 4-2209520-8 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2209520-8.html |
| 2-2209520-6 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-6.html |
| 5-2209520-1 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-5-2209520-1.html |
| 2-2209520-9 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-9.html |
| 4-2209520-8 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2209520-8.html |
| 2-2209520-6 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-6.html |
| 5-2209520-1 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-5-2209520-1.html |
| 3-2209520-1 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-3-2209520-1.html |
| 2-2209520-2 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-2.html |
| 2-2209520-0 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-0.html |
| 4-2209520-1 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2209520-1.html |
| 3-2209520-9 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-3-2209520-9.html |
| 4-2209520-9 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2209520-9.html |
| 3-2209520-1 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-3-2209520-1.html |
| 2-2209520-2 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2-2209520-2.html |
| 4-2209520-5 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2209520-5.html |
| 5-2209520-2 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-5-2209520-2.html |
| 3-2209520-3 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-3-2209520-3.html |
| 6-2209520-1 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-6-2209520-1.html |
| 4-2209520-3 | 46 | Black | 46POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-4-2209520-3.html |
| 1-2381216-3 | 48 | Black | 48POS, MCON 1.2, TAB HSG ASSY, SLD, COD J | Housing for Male Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-1-2381216-3.html |
| 2385803-5 | 48 | Black | 48POS, MCON 1.2, REC HSG ASSY, SLD, COD J | Housing for Female Terminals | Yes | https://www.te.com/en/product-2385803-5.html | |
| 1-2208656-0 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2208656-0.html |
| 2208656-3 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-3.html |
| 2208656-2 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-2.html |
| 2208656-1 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-1.html |
| 9-2208656-9 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-9-2208656-9.html |
| 2354883-1 | 58 | Blue | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | https://www.te.com/en/product-2354883-1.html | |
| 2208656-9 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-9.html |
| 2208656-3 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-3.html |
| 2354883-1 | 58 | Blue | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | https://www.te.com/en/product-2354883-1.html | |
| 2316219-1 | 58 | Black | 58POS, MCON 1.2, REC HSG ASSY, SLD, COD A | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-2316219-1.html |
| 2208656-7 | 58 | Black | 58POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-7.html |
| 1-2208656-0 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-1-2208656-0.html |
| 2208656-9 | 58 | Black | 58POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-9.html |
| 2208656-7 | 58 | Black | 58POS, MCON 1.2, REC HSG ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208656-7.html |
| 2359941-6 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-6.html |
| 2359941-3 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-3.html |
| 8-1564284-5 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-5.html |
| 2359941-4 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-4.html |
| 2359941-6 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-6.html |
| 2359941-3 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-3.html |
| 8-1564284-5 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-5.html |
| 2359941-4 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-4.html |
| 2359943-1 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359943-1.html |
| 8-1564284-7 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-7.html |
| 9-1563173-9 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-9-1563173-9.html |
| 8-1564284-1 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-1.html |
| 8-1564284-1 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-1.html |
| 2359941-5 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-5.html |
| 2359941-1 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359941-1.html |
| 8-1564284-9 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-9.html |
| 1-2294803-1 | 96 | Black | 96POS, MCON 1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2294803-1.html |
| 9-2359941-9 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-9-2359941-9.html |
| 2359943-2 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359943-2.html |
| 2359943-1 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359943-1.html |
| 2359943-2 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2359943-2.html |
| 8-1452423-7 | 96 | Black | 96 POS. PCM CPNNECTOR | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-8-1452423-7.html |
| 8-1564284-7 | 96 | Black | 96POS, MCON-1.2 CB, REC HSG, ASSY | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-8-1564284-7.html |
| 1-2208720-1 | 105 | Black | 105POS, MCON 1.2 CB, REC HSG, ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board, Wire-to-Wire | https://www.te.com/en/product-1-2208720-1.html |
| 2208720-1 | 105 | Black | 105POS, MCON 1.2 CB, REC HSG, ASSY, SLD | Housing for Female Terminals | Yes | Wire-to-Board | https://www.te.com/en/product-2208720-1.html |
Applications
Powertrain and Drivetrain Systems
The MCON 1.2 connector series is critical in automotive powertrain applications, including suspension control, transmission systems, and electric drivetrain components. Its robust design handles high-vibration environments (up to SG6 vibration resistance for HPF 1.2 connectors) and extreme temperatures (-40°C to +180°C), ensuring reliable signal and power transmission in harsh conditions. Sealed receptacles and tabs (IPx9K-rated) protect against moisture, dust, and debris, making them ideal for under-hood and chassis-mounted systems. These connectors support critical functions like throttle control, hybrid/electric motor integration, and gearbox sensing, delivering stable performance even in demanding scenarios.
Electrification and 48V Systems
As vehicles adopt 48V architectures for energy efficiency, the MCON 1.2 connector plays a vital role in battery management, e-motors, starter/generators, and active stabilization systems. Its compact design accommodates high-current applications (up to 17A) while maintaining thermal stability. The series supports advanced functionalities like regenerative braking, electric power steering, and hybrid system integration. With options for BluSurf plating (reducing mating force by 40%) and sustainable NextGen materials, these connectors meet both performance and environmental standards, enabling seamless connectivity in next-generation electrified powertrains.
Safety and Sensing Systems
Reliability is paramount in safety-critical applications such as ABS sensors, airbag deployment, stability control, and parking assist systems. The MCON 1.2 connector’s redundant contact design and vibration-resistant terminals (SG4/USCAR2-certified) ensure consistent signal integrity under extreme conditions. Sealed housings (IPx9K) safeguard against water ingress, while polarization and keying prevent misconnections. These connectors are also used in wheel speed sensing, engine bay diagnostics, and ADAS-related wiring, providing fail-safe connectivity for mission-critical systems that enhance vehicle safety and responsiveness.
Body and Chassis Electronics
In body electronics, the MCON 1.2 series connects lighting systems (LED headlights, taillights), HVAC controls, window/roof motors, and chassis sensors. Its modular design supports 2–26 positions, accommodating everything from simple circuits to complex multi-wire harnesses. The clean body terminal variant ensures low insertion force and durability for frequent plug/unplug scenarios, while NextGen Plus connectors reduce CO₂ emissions by up to 40% through sustainable materials. These connectors streamline assembly with QR codes and CPA (Connector Position Assurance), making them ideal for door modules, seat controls, and exterior lighting systems requiring both functionality and aesthetics.
Chassis and Exterior Systems
The MCON 1.2 connector’s ruggedized design excels in chassis and exterior applications, including suspension sensors, underbody wiring, roof rail systems, and wheel well electronics. Engineered to resist vibration (SG4/SG6), corrosion, and temperature extremes, it ensures uninterrupted connectivity in exposed environments. Applications range from ABS wiring harnesses and traction control systems to autonomous driving sensors (e.g., lidar, radar). The series also supports wireless charging modules and high-voltage battery enclosures, combining IPx9K sealing with advanced plating technologies for long-term reliability in safety- and performance-driven automotive subsystems.
Support Custom Wire Harness Assembly
- Connectors: 2P and 105P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
