TE Micro Timer II Connector, Custom Wire Harness Assembly

TE Micro Timer II Connector



Micro Timer II Series Connector is a compact, automotive-grade connector system offering 1–70 positions for signal and power transmission. Features sealed/unsealed housings (IP54K-IP69K), nylon/PBT materials, and temperature resilience (-40°C to +140°C). Supports wire-to-board, wire-to-wire, and wire-to-device connections with pitch options (2–14mm). RoHS/ELV compliant, ideal for harsh environments in automotive (ECUs, sensors) and industrial applications. Key variants include 36-position power housings (4mm pitch) and 2-position plugs (5mm pitch). Combines durability, high-density design, and secure locking (integrated or terminal-based).



TE Micro Timer II Connector





Features



  • ​Connector Types
    • Housing for Female/Male Terminals, Plugs.
    • Sealed and unsealed options for diverse environmental needs (IP54K, IP67, IP69K ratings available).
  • ​Configuration
    • Positions: 1–70 positions (common options: 2, 16, 36 positions).
    • ​Rows: 1–6 rows (e.g., 5 rows for high-density 36-position housings).
    • ​Pitch: 2–14mm centerline spacing (common: 4mm, 5mm).
  • ​Electrical & Mechanical
    • ​Voltage: Supports 12–260V DC/AC (e.g., 12V/24V automotive systems).
    • ​Current Rating: Up to 78A (typical range: 10–30A for power applications).
    • ​Temperature Range: -40°C to +140°C (operating), compliant with automotive extremes.
  • ​Materials & Durability
    • ​Housing: High-temperature-resistant nylon, PA 6.6, PBT.
    • ​Sealing: Integrated seals for moisture/dust resistance.
    • ​Locking: Secure primary locking (Integrated, Locking Lance, or Terminal-based).
  • ​Applications
    • ​Signal & Power Circuits: Wire-to-Board, Wire-to-Wire, Wire-to-Device.
    • ​Automotive: ECU, sensors, lighting, infotainment.
  • ​Compliance
    • ​RoHS/ELV: Compliant with EU directives (no hazardous substances).
    • ​Standards: IEC 529, LV214.

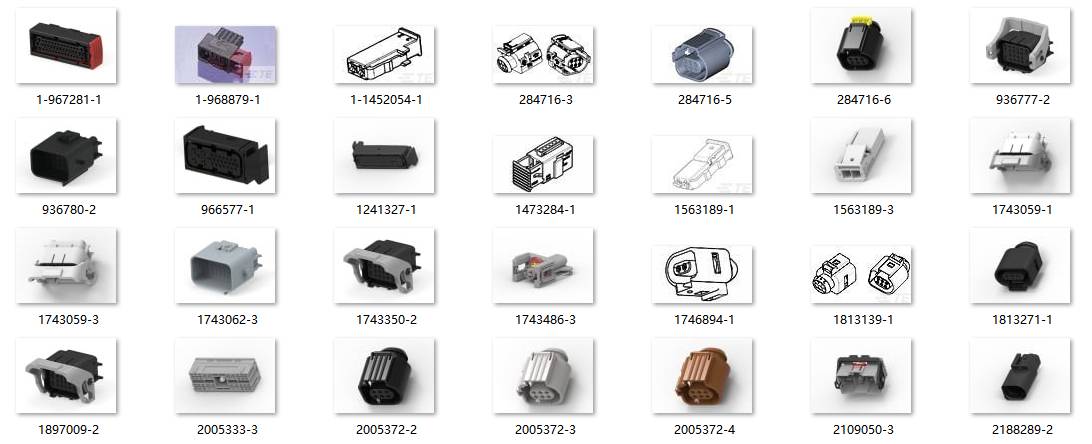

Connector Specifications Chart

Sort by the number of positions.

P/N No. of Position Color Type Sealable Application Connection Links
1743486-3 2 Gray Housing for Female Terminals Yes Signal   https://www.te.com/en/product-1743486-3.html
1-1452054-1 2 Black Housing for Female Terminals No Signal Wire-to-Board, Wire-to-Wire https://www.te.com/en/product-1-1452054-1.html
1563189-3 2 Natural Housing for Female Terminals No Signal Wire-to-Board, Wire-to-Wire https://www.te.com/en/product-1563189-3.html
1746894-1 2 Black Plug Yes Signal Wire-to-Board, Wire-to-Device, Wire-to-Wire https://www.te.com/en/product-1746894-1.html
1563189-1 2 Black Housing for Female Terminals No Signal Wire-to-Board, Wire-to-Wire https://www.te.com/en/product-1563189-1.html
1813271-1 3 Black Plug Yes Signal Wire-to-Board, Wire-to-Device, Wire-to-Wire https://www.te.com/en/product-1813271-1.html
2005372-4 6 Brown Housing for Female Terminals Yes Power Wire-to-Wire https://www.te.com/en/product-2005372-4.html
2188289-2 6 Black Housing for Male Terminals Yes Signal Wire-to-Wire https://www.te.com/en/product-2188289-2.html
284716-3 6 Brown Housing for Female Terminals Yes Signal Wire-to-Board, Wire-to-Wire https://www.te.com/en/product-284716-3.html
2005372-2 6 Black Housing for Female Terminals Yes Power Wire-to-Wire https://www.te.com/en/product-2005372-2.html
284716-5 6 Gray Housing for Female Terminals Yes Signal Wire-to-Board, Wire-to-Wire https://www.te.com/en/product-284716-5.html
1813139-1 6 Black Plug Yes Signal Wire-to-Board, Wire-to-Device, Wire-to-Wire https://www.te.com/en/product-1813139-1.html
1473284-1 6 Black Housing for Female Terminals Yes Signal Wire-to-Board, Wire-to-Device https://www.te.com/en/product-1473284-1.html
284716-6 6 Black Housing for Female Terminals Yes Signal Wire-to-Board, Wire-to-Wire https://www.te.com/en/product-284716-6.html
2005372-3 6 Gray Housing for Female Terminals Yes Power Wire-to-Wire https://www.te.com/en/product-2005372-3.html
1743350-2 16 Black Housing for Female Terminals Yes Signal Wire-to-Wire https://www.te.com/en/product-1743350-2.html
936780-2 20 Black Housing for Male Terminals Yes   Wire-to-Wire https://www.te.com/en/product-936780-2.html
966577-1 25 Black Housing for Female Terminals No   Wire-to-Board https://www.te.com/en/product-966577-1.html
1897009-2 26 Black Housing for Female Terminals Yes   Wire-to-Wire https://www.te.com/en/product-1897009-2.html
2005333-3 32 Gray Housing for Female Terminals No Power   https://www.te.com/en/product-2005333-3.html
1743059-3 36 Dark Gray Housing for Female Terminals Yes Power Wire-to-Wire https://www.te.com/en/product-1743059-3.html
1743062-3 36 Gray Housing for Male Terminals Yes Power Wire-to-Wire https://www.te.com/en/product-1743062-3.html
1743059-1 36 Natural Housing for Female Terminals Yes Power Wire-to-Wire https://www.te.com/en/product-1743059-1.html
1241327-1 47 Black Housing for Female Terminals Yes   Wire-to-Board https://www.te.com/en/product-1241327-1.html
2109050-3 58 Gray Housing for Male Terminals No Signal Wire-to-Wire https://www.te.com/en/product-2109050-3.html
1-968879-1 70 Black Housing for Female Terminals No Power & Signal Wire-to-Board https://www.te.com/en/product-1-968879-1.html





Applications



The Micro Timer II Series connectors are widely utilized in automotive, industrial automation, transportation, and energy sectors for robust, space-efficient connectivity. In automotive systems, they ensure reliable signal and power transmission in ECUs, sensors, lighting, and EV/ADAS components, with sealed variants (IP67/IP69K) enduring harsh underhood conditions. Industrial automation leverages their compact, high-density design for machinery, robotics, and control panels, while ruggedized versions withstand extreme temperatures in oil/gas equipment. Transportation applications include rail, aerospace, and marine systems for durable interconnects in navigation and power distribution. Energy sector uses span solar/wind installations and EV charging stations, supported by corrosion-resistant materials and compliance with ISO/automotive standards for harsh environments.





Support Custom Wire Harness Assembly



  • Connectors: 2P to 70P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 50 pieces per order.





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
