TE Multilock Connectors, Wiring Harness Assembly
Multilock Series Connectors
TE Multilock Connectors are modular, high-density interconnect solutions designed for automotive and industrial applications. Supporting wire-to-wire, wire-to-board, and mixed signal/power connections, they offer positions from 2 to 76 with pitches (2–8.5mm) and color-coded housings. Built from durable PA/PBT materials, they operate in -40°C to 130°C, handle up to 48V/35A, and comply with RoHS/ELV standards. Ideal for harsh environments, they ensure reliable, customizable connectivity for automotive electronics, power systems, and industrial controls.
Features
- Modular Design
- Supports diverse terminal types (Housings for Female/Male Terminals), connection methods (Wire-to-Wire, Wire-to-Board, Wire-to-Panel), and applications (Power, Signal, or Power & Signal).
- Scalable configurations with 2 to 76 positions, accommodating varying density requirements.
- High Reliability
- Primary Locking Mechanisms: Integrated in housing or via locking lances/terminals.
- Temperature Range: -40°C to +130°C (select models up to +266°C).
- Voltage/Current: Rated for 12V/24V/36V/48V systems, with current handling up to 35A.
- Versatile Configurations
- Pitch Options: 2.0mm to 8.5mm (e.g., 2.5mm, 3.5mm, 4.0mm).
- Color Coding: Black, Natural, Gray, Blue, Green, etc., for easy identification.
- Sealing: Select models are sealable for dust/water resistance.
- Material & Compliance
- Housing Materials: PA (Nylon), PBT (Polybutylene Terephthalate), and glass-filled variants for durability.
- Compliant with EU RoHS and ELV Directives, free from hazardous substances (Pb, Hg, Cd, etc.).
Applications
- Automotive: Wiring harnesses, sensors, ECUs, power distribution.
- Industrial: Control panels, machinery, power/signal transmission.
- Consumer Electronics: High-density interconnects.
Connector Specifications Chart

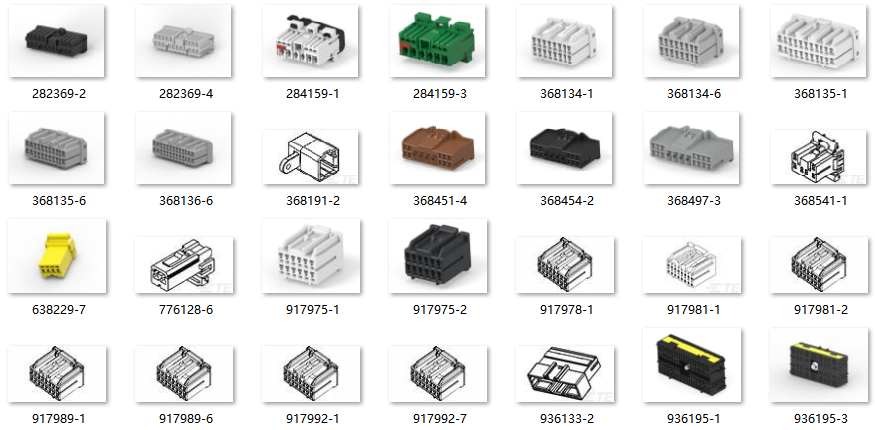

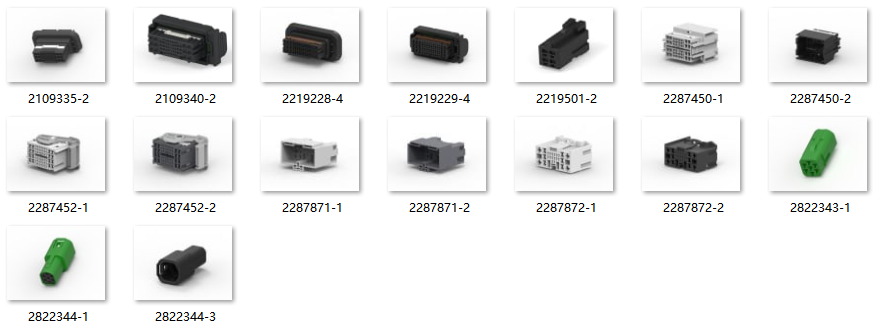

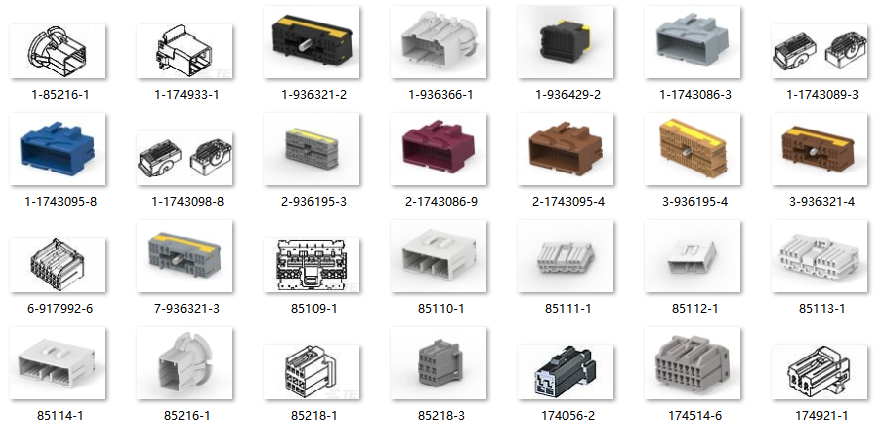

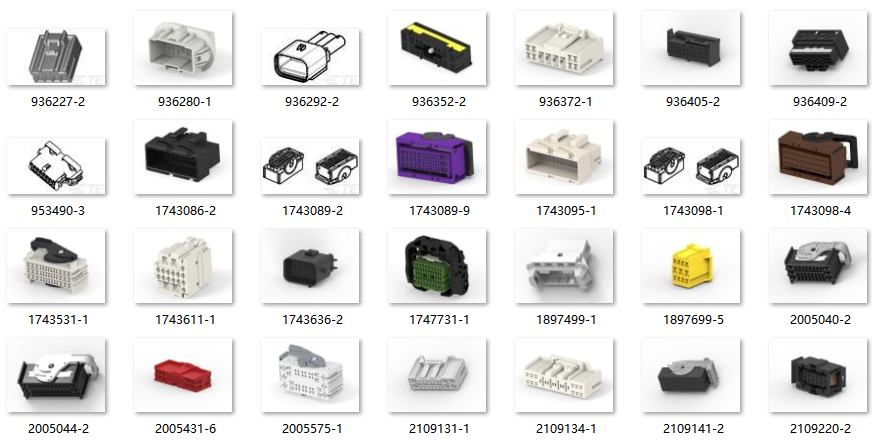

| P/N | No. of Position | Color | Type | Sealable | Connection | Pitch | Application | Mounting Type | Links |
| 174056-2 | 2 | Black | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174056-2.html |
| 174463-1 | 2 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174463-1.html |
| 174463-5 | 2 | Blue | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174463-5.html |
| 776128-6 | 2 | Gray | No | Wire-to-Wire | 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-776128-6.html | |
| 174921-1 | 3 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174921-1.html |
| 174921-2 | 3 | Black | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174921-2.html |
| 936292-2 | 3 | Black | Housing for Male Terminals | Yes | Wire-to-Wire | 5.6 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936292-2.html |
| 638229-7 | 4 | Yellow | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-638229-7.html |
| 2219501-2 | 4 | Black | Housing for Female Terminals | No | Wire-to-Board | 3.2 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2219501-2.html |
| 936227-2 | 4 | Black | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936227-2.html |
| 174922-1 | 4 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174922-1.html |
| 2822344-1 | 7 | Green | Housing for Male Terminals | Yes | Wire-to-Wire | 2 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2822344-1.html |
| 2822343-1 | 7 | Green | Housing for Female Terminals | Yes | Wire-to-Wire | 2 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2822343-1.html |
| 2822344-3 | 7 | Black | Housing for Male Terminals | Yes | Wire-to-Wire | 2 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2822344-3.html |
| 174044-1 | 8 | Natural | Housing for Female Terminals | No | Wire-to-Board, Wire-to-Device | 2.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174044-1.html |
| 368191-2 | 8 | Black | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm | Signal | Panel Mount | https://www.te.com/en/product-368191-2.html |
| 368541-1 | 10 | White | No | Wire-to-Wire | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368541-1.html | ||
| 936363-1 | 10 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 4 mm, 5 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936363-1.html | |
| 1897699-5 | 11 | Yellow | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 5.25 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1897699-5.html | |
| 1-85216-1 | 11 | Natural | Housing for Male Terminals | No | Wire-to-Wire | 3.5 mm, 5.25 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-85216-1.html |
| 85218-3 | 11 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 5.25 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85218-3.html |
| 85110-1 | 11 | White | Housing for Male Terminals | No | Wire-to-Wire | 3.5 mm, 8.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85110-1.html |
| 85218-1 | 11 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 5.25 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85218-1.html |
| 85109-1 | 11 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 8.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85109-1.html |
| 85216-1 | 11 | Natural | Housing for Male Terminals | No | Wire-to-Wire | 3.5 mm, 5.25 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85216-1.html |
| 284159-3 | 12 | Green | Housing for Female Terminals | No | Wire-to-Board | 3.5 mm, 5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-284159-3.html |
| 2109220-2 | 12 | Black | Housing for Female Terminals | Yes | Wire-to-Board | 4.2 mm, 6 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2109220-2.html |
| 917975-2 | 12 | Black | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917975-2.html |
| 175442-1 | 12 | Natural | Housing for Female Terminals | No | Wire-to-Board, Wire-to-Device | 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-175442-1.html |
| 1-174933-1 | 12 | White | Housing for Female Terminals | No | Wire-to-Wire | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-174933-1.html | |
| 282993-4 | 12 | Gray | Housing for Male Terminals | No | Wire-to-Wire | 3.5 mm, 5.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-282993-4.html |
| 284159-1 | 12 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3.5 mm, 5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-284159-1.html |
| 936372-1 | 12 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 4 mm, 5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936372-1.html |
| 917975-1 | 12 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917975-1.html |
| 917978-1 | 12 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917978-1.html |
| 85112-1 | 13 | White | Housing for Male Terminals | No | Wire-to-Wire | 3.5 mm, 8.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85112-1.html |
| 85111-1 | 13 | White | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 8.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85111-1.html |
| 368451-4 | 14 | Brown | Housing for Female Terminals | No | 4 mm, 5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368451-4.html | |
| 174927-1 | 15 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 8.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174927-1.html |
| 85113-1 | 15 | White | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 8.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85113-1.html |
| 85114-1 | 15 | White | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-85114-1.html |
| 174514-6 | 16 | Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174514-6.html |
| 368454-2 | 16 | Black | Housing for Female Terminals | No | Wire-to-Wire | 4 mm, 5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368454-2.html |
| 2109134-1 | 16 | Natural | Housing for Female Terminals | No | 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2109134-1.html | |
| 368134-6 | 16 | Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368134-6.html |
| 368134-1 | 16 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368134-1.html |
| 917981-1 | 16 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917981-1.html |
| 174514-1 | 16 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174514-1.html |
| 1123371-1 | 16 | Natural | Housing for Female Terminals | No | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 2.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1123371-1.html |
| 953490-3 | 16 | Green | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-953490-3.html |
| 917981-2 | 16 | Black | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917981-2.html |
| 1743611-1 | 18 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.4 mm, 6.3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743611-1.html |
| 2109131-1 | 18 | White | Housing for Female Terminals | No | 3.5 mm, 6.7 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2109131-1.html | |
| 1897499-1 | 18 | White | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Panel Mount | https://www.te.com/en/product-1897499-1.html |
| 368497-3 | 18 | Gray | Housing for Female Terminals | No | Wire-to-Board | 4 mm, 5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368497-3.html |
| 1-1743611-2 | 18 | Black | Housing for Female Terminals | No | Wire-to-Wire | 3.4 mm, 6.3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-1743611-2.html |
| 282369-4 | 20 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-282369-4.html |
| 282369-2 | 20 | Black | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-282369-2.html |
| 282369-1 | 20 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 3.5 mm, 5.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-282369-1.html |
| 917989-1 | 22 | White | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917989-1.html |
| 368135-6 | 22 | Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368135-6.html |
| 917989-6 | 22 | Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917989-6.html |
| 174515-1 | 22 | White | Housing for Female Terminals | No | Wire-to-Wire | 3 mm, 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174515-1.html |
| 174515-6 | 22 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 3 mm, 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-174515-6.html |
| 1438759-1 | 22 | White | Housing for Female Terminals | No | Wire-to-Board | 2.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1438759-1.html |
| 368135-1 | 22 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368135-1.html |
| 175110-6 | 22 | Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-175110-6.html |
| 2287871-2 | 24 | Black | Housing for Male Terminals | No | Wire-to-Wire | 2.2 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287871-2.html |
| 2287872-2 | 24 | Black | Housing for Female Terminals | No | Wire-to-Wire | 2.2 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287872-2.html |
| 2287872-1 | 24 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 2.2 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287872-1.html |
| 2287871-1 | 24 | Natural | Housing for Male Terminals | No | Wire-to-Wire | 2.2 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287871-1.html |
| 1-936366-1 | 25 | White | No | Wire-to-Panel | 4 mm, 4.55 mm | Signal | Panel Mount | https://www.te.com/en/product-1-936366-1.html | |
| 368136-6 | 26 | Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368136-6.html |
| 1612683-1 | 26 | Black | Housing for Female Terminals | Yes | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1612683-1.html | |
| 368136-1 | 26 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-368136-1.html |
| 917992-1 | 26 | White | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917992-1.html |
| 6-917992-6 | 26 | Light Gray | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-6-917992-6.html |
| 936133-2 | 26 | Black | Housing for Male Terminals | No | Wire-to-Wire | 4 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936133-2.html |
| 917992-7 | 26 | Yellow | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-917992-7.html |
| 175567-1 | 26 | Natural | Housing for Female Terminals | No | Wire-to-Board | 3 mm, 3.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-175567-1.html |
| 2005040-2 | 30 | Black | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2005040-2.html |
| 7-936321-3 | 32 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-7-936321-3.html |
| 1-936321-2 | 32 | Black | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-936321-2.html |
| 2-936321-3 | 32 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2-936321-3.html |
| 3-936321-4 | 32 | Brown | Housing for Female Terminals | No | Wire-to-Wire | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-3-936321-4.html |
| 936280-1 | 33 | White | Housing for Male Terminals | No | Wire-to-Panel | Signal | Panel Mount | https://www.te.com/en/product-936280-1.html | |
| 2005431-6 | 34 | Red | Housing for Female Terminals | No | Wire-to-Wire | 2.2 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2005431-6.html |
| 1743636-2 | 36 | Black | Housing for Female Terminals | Yes | Wire-to-Wire | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743636-2.html |
| 1743632-2 | 36 | Black | Housing for Female Terminals | Yes | Wire-to-Wire | 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743632-2.html | |
| 2005575-1 | 38 | White | Housing for Female Terminals | No | 3.4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2005575-1.html | |
| 1743086-2 | 39 | Black | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743086-2.html |
| 1743531-1 | 39 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743531-1.html |
| 1743089-2 | 39 | Black | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743089-2.html |
| 2-1743086-9 | 39 | Purple | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2-1743086-9.html |
| 936405-2 | 39 | Black | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936405-2.html | |
| 1743089-9 | 39 | Purple | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743089-9.html |
| 1-1743086-3 | 39 | Gray | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-1743086-3.html |
| 1-1743089-3 | 39 | Gray | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Power | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-1743089-3.html |
| 2005044-2 | 39 | Black | Housing for Female Terminals | No | 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2005044-2.html | |
| 936409-2 | 39 | Black | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936409-2.html | |
| 936352-2 | 40 | Black | Housing for Female Terminals | No | Wire-to-Wire | 4 mm, 6 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936352-2.html | |
| 1743095-1 | 42 | Natural | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743095-1.html |
| 1743098-4 | 42 | Brown | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Power & Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743098-4.html |
| 1-1743095-8 | 42 | Blue | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-1743095-8.html |
| 1-1743098-8 | 42 | Blue | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1-1743098-8.html |
| 2-1743095-4 | 42 | Brown | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2-1743095-4.html | |
| 1743098-1 | 42 | White | Housing for Female Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1743098-1.html |
| 1-936429-2 | 42 | Black | Housing for Male Terminals | Yes | Wire-to-Wire | 4 mm, 5 mm | Signal | Panel Mount | https://www.te.com/en/product-1-936429-2.html |
| 2219229-4 | 45 | Black | Housing for Female Terminals | Yes | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2219229-4.html |
| 2219228-4 | 45 | Brown | Housing for Male Terminals | No | Wire-to-Wire | 2.5 mm, 4 mm | Signal | Panel Mount | https://www.te.com/en/product-2219228-4.html |
| 1747731-1 | 49 | Green | Housing for Female Terminals | Yes | Wire-to-Board | 2.5 mm, 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1747731-1.html |
| 1747731-2 | 49 | Gray | Housing for Female Terminals | Yes | Wire-to-Board | 2.5 mm, 3 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-1747731-2.html |
| 2109335-2 | 50 | Black | Housing for Male Terminals | No | Wire-to-Wire | 2.3 mm | Signal | Panel Mount | https://www.te.com/en/product-2109335-2.html |
| 2109340-2 | 50 | Black | Housing for Female Terminals | Yes | Wire-to-Wire | 2.3 mm, 5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2109340-2.html |
| 2109141-2 | 51 | Black | Housing for Female Terminals | No | Wire-to-Board | 2.54 mm, 3.8 mm, 6.5 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2109141-2.html |
| 2287450-2 | 56 | Black | Housing for Male Terminals | No | Wire-to-Wire | 2.2 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287450-2.html |
| 2287450-1 | 56 | Natural | Housing for Male Terminals | No | Wire-to-Wire | 2.2 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287450-1.html |
| 2287452-1 | 56 | Natural | Housing for Female Terminals | No | Wire-to-Wire | 2.2 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287452-1.html |
| 2287452-2 | 56 | Black | Housing for Female Terminals | No | Wire-to-Wire | 2.2 mm, 4 mm | Signal | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2287452-2.html |
| 936195-3 | 76 | Gray | Housing for Female Terminals | No | 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936195-3.html | ||
| 2-936195-3 | 76 | Gray | Housing for Female Terminals | No | 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2-936195-3.html | ||
| 3-936195-4 | 76 | Brown | Housing for Female Terminals | No | 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-3-936195-4.html | ||
| 936195-1 | 76 | Black | Housing for Female Terminals | No | 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-936195-1.html | ||
| 2-936195-1 | 76 | Black | Housing for Female Terminals | No | 4 mm | Cable Mount (Free-Hanging) | https://www.te.com/en/product-2-936195-1.html |
Support Custom Wire Harness Assembly
- Connectors: 2P to 76P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
