TE Sealed Sensor Connector
The TE Sealed Sensor Connector (SSC) system delivers robust electrical connectivity in extreme environments. Designed for automotive, industrial, and sensor applications, it combines IP-rated sealing (dust/moisture resistance) with high-temperature resilience (-40°C to +150°C). The SSC supports 1P to 6P configurations for wire-to-board, wire-to-device, or wire-to-wire connections, featuring durable, corrosion-resistant housings and keyed designs to prevent mismating. Ideal for under-hood automotive sensors, industrial automation, and harsh outdoor settings, it ensures reliable data/power transmission in demanding conditions. With options for CPA (Connector Position Assurance) and versatile terminal compatibility, the SSC balances flexibility, durability, and performance. Engineered for reliability, it addresses challenges in thermal stress, contamination, and mechanical wear.
Technical Specifications
- Poles: 1P, 2P, 3P, 4P, 6P
- Temperature: -40°C to +125°C (standard), up to +150°C (high-temp variants)
- Color: Predominantly black; select models in natural
- Connection: Wire-to-Board, Wire-to-Device, Wire-to-Wire
- Sealing: IP-rated sealing on most models
Applications
- Automotive sensor systems (e.g., pressure, temperature, or position sensors).
- Industrial automation and machinery requiring dust/moisture resistance.
- Data and power transmission in harsh outdoor environments.

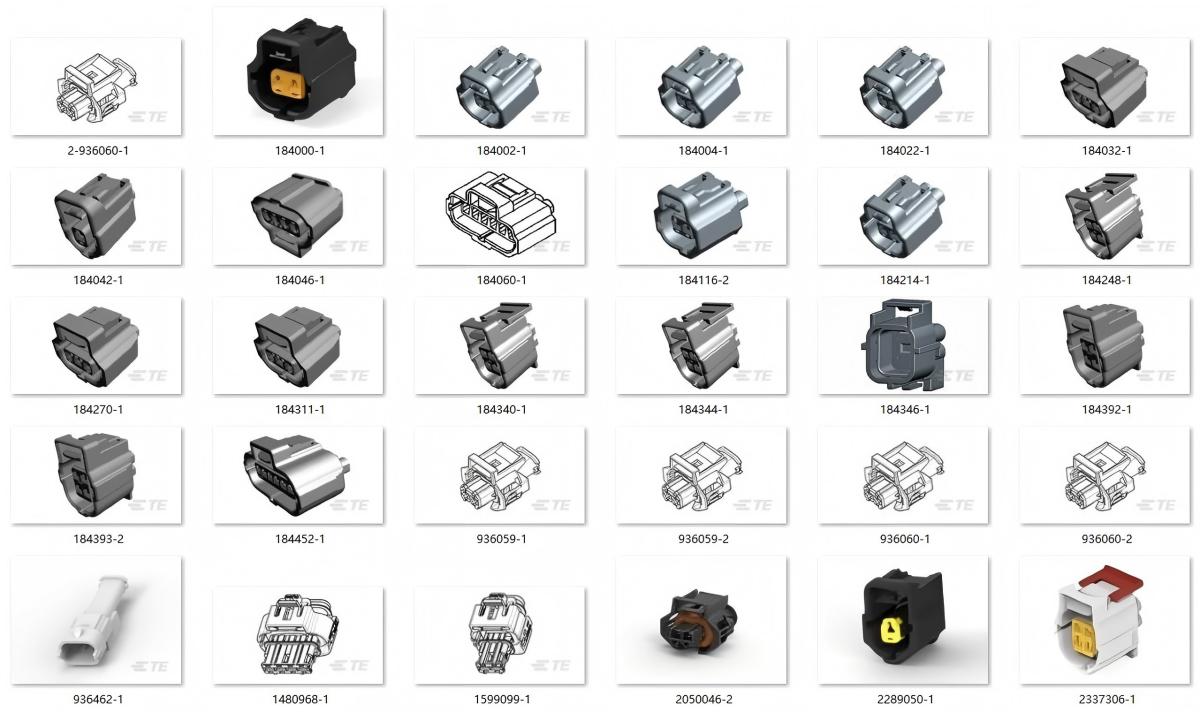

Connector Specifications Chart
| P/N | Poles | Color | Descriptions | Type | Sealable | Temp Range | Connection | Links |
| 2289050-1 | 1 | Black | 1 POS. PLUG ASSY, KEY A, HIGH TEMP 150C | Housing for Female Terminals | Yes | https://www.te.com/en/product-184116-2.html | ||
| 2289050-1 | 1 | Black | 1 POS. PLUG ASSY, KEY A, HIGH TEMP 150C | Housing for Female Terminals | Yes | https://www.te.com/en/product-2289050-1.html | ||
| 184116-2 | 2 | Black | 2 POS. PLUG ASSY, KEY H 1/2 | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184340-1.html |
| 936059-1 | 2 | Black | 2.8MM SLD 2P PLUG ASSY | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-184346-1.html | |
| 184022-1 | 2 | Black | 2 POS. PLUG ASSY, KEY M, BLACK | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184248-1.html |
| 184214-1 | 2 | Black | 2 POS. PLUG ASSY., KEY B | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-936059-1.html |
| 1-936059-1 | 2 | Black | 2.8MM SLD 2P PLUG ASSY | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-936060-1.html | |
| 184004-1 | 2 | Black | 2 POS. PLUG ASSY, KEY C, BLACK | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184452-1.html |
| 2337306-1 | 2 | Natural | 2X2 PLG ASY KEY G C3 W/CPA | Housing for Female Terminals | Yes | https://www.te.com/en/product-184022-1.html | ||
| 1599099-1 | 2 | Black | HSG ASSY 2 POSN, 2.8mm REC | Housing for Female Terminals | Yes | -40 – 130 °C | Wire-to-Wire | https://www.te.com/en/product-184214-1.html |
| 184000-1 | 2 | Black | 2 POS. PLUG ASSY, KEY A, BLACK | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184344-1.html |
| 184000-1 | 2 | Black | 2 POS. PLUG ASSY, KEY A, BLACK | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1-936059-1.html |
| 184116-2 | 2 | Black | 2 POS. PLUG ASSY, KEY H 1/2 | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184004-1.html |
| 936059-1 | 2 | Black | 2.8MM SLD 2P PLUG ASSY | Housing for Female Terminals | Yes | Wire-to-Wire | https://www.te.com/en/product-184032-1.html | |
| 2050046-2 | 2 | Black | 2POS 2.8MM SENSOR PLUG ASSY. | Plug | Yes | https://www.te.com/en/product-1480968-1.html | ||
| 936060-1 | 3 | Black | 2.8MM SLD 3P PLUG ASSY-TDC | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2337306-1.html | ||
| 184032-1 | 3 | Black | 3 POS. PLUG ASSY, KEY A | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-1599099-1.html |
| 936060-2 | 3 | Black | 2.8MM SLD 3P PLUG ASSY-TDC | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-184000-1.html | ||
| 936060-1 | 3 | Black | 2.8MM SLD 3P PLUG ASSY-TDC | Yes | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-184046-1.html | ||
| 184340-1 | 4 | Black | PLUG ASSY, 2X2, CPA, W/O SLOT, CKT4 BLKD | Housing for Female Terminals | Yes | -40 – 150 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184000-1.html |
| 184346-1 | 4 | Black | 2X2 CAP ASY KEY A C3 | Housing for Male Terminals | No | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184046-1.html |
| 184248-1 | 4 | Black | 2X2 PLG ASY KEY A C4 | Housing for Female Terminals | Yes | -40 – 150 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-936060-2.html |
| 184344-1 | 4 | Black | 2X2 PLG ASY KEY A C3 | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184116-2.html |
| 1480968-1 | 4 | Black | ASSY 4 POSN. 2, 8MM REC. | Housing for Female Terminals | Yes | -40 – 130 °C | Wire-to-Board, Wire-to-Device | https://www.te.com/en/product-2289050-1.html |
| 184046-1 | 4 | Black | 4 POS. PLUG ASSY, KEY A | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184340-1.html |
| 184046-1 | 4 | Black | 4 POS. PLUG ASSY, KEY A | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184346-1.html |
| 184340-1 | 4 | Black | PLUG ASSY, 2X2, CPA, W/O SLOT, CKT4 BLKD | Housing for Female Terminals | Yes | -40 – 150 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-184248-1.html |
| 184346-1 | 4 | Black | 2X2 CAP ASY KEY A C3 | Housing for Male Terminals | No | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-936059-1.html |
| 184248-1 | 4 | Black | 2X2 PLG ASY KEY A C4 | Housing for Female Terminals | Yes | -40 – 150 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-936060-1.html |
| 184452-1 | 6 | Black | 6 POS SSC PLUG ASSY, BLKD CKTS | Housing for Female Terminals | Yes | -40 – 125 °C | Wire-to-Board, Wire-to-Device, Wire-to-Wire | https://www.te.com/en/product-2050046-2.html |
Support Custom Wire Harness Assembly
- Connectors: 1P to 6P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
