TE Sensor Flat Connector, Custom Wire Harness Assembly
TE Sensor Flat Connector
TE Sensor Flat Connectors are high-reliability solutions for harsh environments like engine sensors. Designed to prevent fretting corrosion caused by vibrations, they feature a stainless steel spring for stable connections. Built with CuNiSi contacts (tin/silver/gold-plated), they endure -40°C to +150°C. Compliant with ISO 16750-3 vibration standards and IP67/IP6K9K sealing (with backshells), they resist dust, water, and pressure. Available in 2-, 3-, and 4-position configurations with CPA and secondary locks for secure mating, they support 0.35–2.5 mm² wires and up to 25A. Ideal for automotive (trucks, buses) and industrial applications, they enable retrofitting via mold kits for corrosion resistance. Compact, durable, and easy to install, they ensure dependable performance in extreme conditions.
Features
- Anti-Fretting Corrosion Design
- Integrated Spring Mechanism
- Compensates for micro-motions (vibrations, thermal expansion) in all three axes, preventing fretting corrosion and ensuring stable electrical contact even at low currents.
- Material Composition:
- Contacts: CuNiSi (copper-nickel-silicon alloy) for high conductivity and mechanical strength.
- Tabs: CuSn4/CuFe2 (tin-bronze or iron-bronze) for durability.
- Spring: Stainless steel for long-term elasticity and corrosion resistance.
- Integrated Spring Mechanism
- High Vibration Resistance
- Compliant with ISO 16750-3 Test I for vibration resistance, making them ideal for automotive and heavy-duty applications (e.g., trucks, agricultural/construction vehicles).
- Environmental Robustness
- Temperature Ranges:
- Tin-plated: -40°C to +130°C
- Silver-plated: -40°C to +140°C
- Gold-plated: -40°C to +150°C
- Sealing Ratings: IP67 and IP6K9K (with backshell) for protection against dust, water, and high-pressure washdowns.
- Temperature Ranges:
- Enhanced Reliability Features
- Connector Position Assurance (CPA)
- Integrated CPA ensures proper mating and prevents accidental disconnection.
- Secondary Locking Mechanisms
- Secures terminals within the housing, achieving high extraction forces.
- Radial Seal Design
- Improved sealing for smoother mating and reduced insertion force.
- Connector Position Assurance (CPA)
- Versatile Configurations
- Terminal Options: Tin-, silver-, or gold-plated contacts for varying current loads and mating cycles:
- Tin: Up to 10 cycles
- Silver: Up to 50 cycles
- Gold: Up to 100 cycles
- Wire Compatibility: Supports single wires (FLR) with insulation diameters from 1.2 mm to 3.0 mm, covering wire sizes 0.35–2.5 mm².
- Terminal Options: Tin-, silver-, or gold-plated contacts for varying current loads and mating cycles:
- Ease of Installation
- Compatible with hand tools, semi-automatic, or fully automatic crimping systems.
- Single-wire sealing systems (e.g., P/N 828904-1, 828905-1) simplify waterproofing.
Applications
- Engine Sensors: Crank/Cam position sensors, oil/pressure sensors, knock sensors.
- Industrial Equipment: Vibration-prone environments requiring dependable signal/power transmission.
- Commercial Vehicles: Trucks, buses, agricultural machinery.

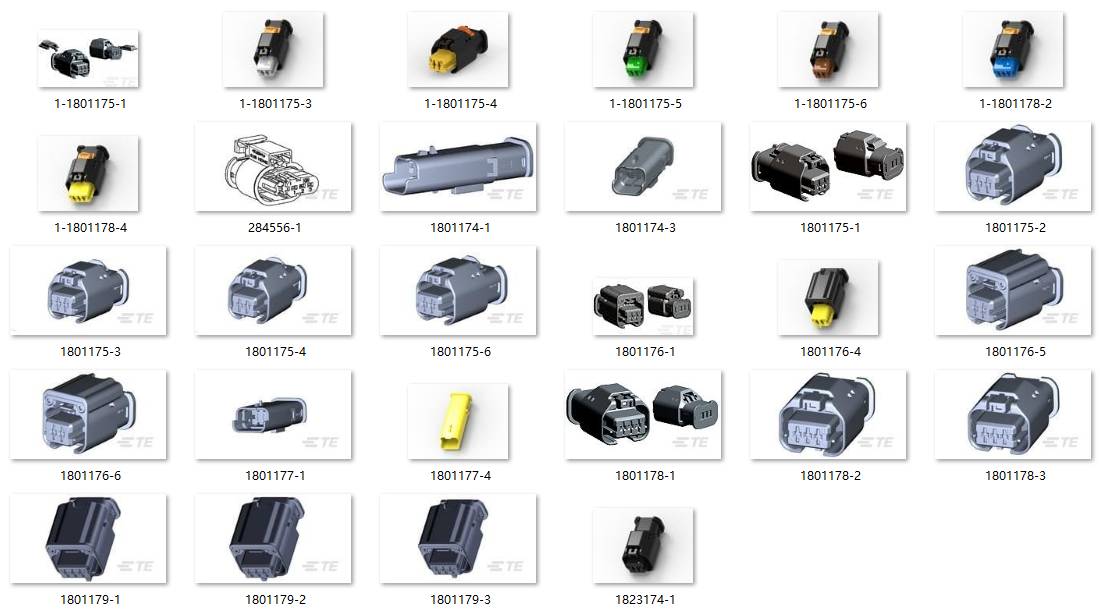

Connector Specification Chart
Sort by the number of positions.
| P/N | Poles | Color | Descriptions | Type | Temp Range | Connector Position Assurance Capable | Pitch | Applications | Links |
| 1801176-4 | 2 | Yellow | 2W RECEPTACLE HPSL CONNECTOR YELLOW | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801176-4.html |
| 284556-1 | 2 | Black | 2 POS. CONN. FOR SPARK COIL | Housing for Female Terminals | -40 – 140 °C | Yes | 4 mm | Signal | https://www.te.com/en/product-284556-1.html |
| 1801175-4 | 2 | Yellow | 2W RECEPTACLE HP CONNECTOR YELLOW | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Signal | https://www.te.com/en/product-1801179-2.html |
| 1801175-2 | 2 | Blue | 2W RECEPTACLE HP CONNECTOR BLUE | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801175-4.html |
| 1-1801175-4 | 2 | Yellow | 2W RECEPTACLE HP CONNECTOR YELLOW | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801175-2.html |
| 1801174-1 | 2 | Black | 2W TAB HP CONNECTOR BLACK | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801175-4.html |
| 1801176-5 | 2 | Green | 2W RECEPTACLE HPSL CONNECTOR GREEN | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801174-1.html |
| 1-1801175-3 | 2 | Gray | 2W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Signal | https://www.te.com/en/product-1801176-5.html |
| 1801175-3 | 2 | Gray | 2W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801175-3.html |
| 1801175-1 | 2 | Black | 2W RECEPTACLE HP CONNECTOR BLACK | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801175-3.html |
| 1801175-7 | 2 | White | 2W RECEPTACLE HP CONNECTOR WHITE | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801175-1.html |
| 1801174-2 | 2 | Blue | 2W TAB HP CONNECTOR BLUE | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801175-7.html |
| 1801176-3 | 2 | Gray | 2W RECEPTACLE HPSL CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Signal | https://www.te.com/en/product-1801179-5.html |
| 1-1801175-3 | 2 | Gray | 2W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801174-2.html |
| 1801175-3 | 2 | Gray | 2W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801177-3.html |
| 1801175-1 | 2 | Black | 2W RECEPTACLE HP CONNECTOR BLACK | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801178-1.html |
| 1801176-6 | 2 | Brown | 2W RECEPTACLE HPSL CONNECTOR BROWN | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801176-3.html |
| 1801174-3 | 2 | Gray | 2W TAB HP CONNECTOR GREY | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801178-3.html |
| 1-1801175-5 | 2 | Green | 2W RECEPTACLE HP CONNECTOR GREEN | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801177-1.html |
| 1801175-7 | 2 | White | 2W RECEPTACLE HP CONNECTOR WHITE | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801178-2.html |
| 1801174-2 | 2 | Blue | 2W TAB HP CONNECTOR BLUE | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801175-3.html |
| 1801176-3 | 2 | Gray | 2W RECEPTACLE HPSL CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801175-3.html |
| 1801179-2 | 3 | Blue | 3W RECEPTACLE HPSL CONNECTOR BLUE | Housing for Female Terminals | -40 – 150 °C | No | 3.3 mm | Power | https://www.te.com/en/product-1801175-1.html |
| 1801179-5 | 3 | Green | 3W RECEPTACLE HPSL CONNECTOR GREEN | Housing for Female Terminals | -40 – 150 °C | No | 3.3 mm | Power | https://www.te.com/en/product-1801177-1.html |
| 1801177-3 | 3 | Gray | 3W TAB CONNECTOR HP GREY | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1801178-2.html |
| 1-1801178-1 | 3 | Black | 3W RECEPTACLE HP CONNECTOR BLACK | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801176-6.html |
| 1-1801178-3 | 3 | Gray | 3W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801174-3.html |
| 1801177-1 | 3 | Black | 3W TAB CONNECTOR HP BLACK | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801175-5.html |
| 1801178-2 | 3 | Blue | 3W RECEPTACLE HP CONNECTOR BLUE | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Signal | https://www.te.com/en/product-1801179-1.html |
| 1801177-1 | 3 | Black | 3W TAB CONNECTOR HP BLACK | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Signal | https://www.te.com/en/product-1801179-3.html |
| 1801178-2 | 3 | Blue | 3W RECEPTACLE HP CONNECTOR BLUE | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801178-3.html |
| 1801179-1 | 3 | Black | 3W RECEPTACLE HPSL CONNECTOR BLACK | Housing for Female Terminals | -40 – 150 °C | No | 3.3 mm | Power | https://www.te.com/en/product-1801175-7.html |
| 1801179-3 | 3 | Gray | 3W RECEPTACLE HPSL CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | No | 3.3 mm | Signal | https://www.te.com/en/product-1801179-5.html |
| 1801178-3 | 3 | Gray | 3W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801174-2.html |
| 1801179-5 | 3 | Green | 3W RECEPTACLE HPSL CONNECTOR GREEN | Housing for Female Terminals | -40 – 150 °C | No | 3.3 mm | Power | https://www.te.com/en/product-1801177-3.html |
| 1801177-3 | 3 | Gray | 3W TAB CONNECTOR HP GREY | Housing for Male Terminals | -40 – 150 °C | No | 3.33 mm | Power | https://www.te.com/en/product-1-1801178-1.html |
| 1-1801178-1 | 3 | Black | 3W RECEPTACLE HP CONNECTOR BLACK | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1801176-3.html |
| 1-1801178-3 | 3 | Gray | 3W RECEPTACLE HP CONNECTOR GREY | Housing for Female Terminals | -40 – 150 °C | Yes | 3.33 mm | Power | https://www.te.com/en/product-1-1801178-3.html |
Support Custom Wire Harness Assembly
- Connectors: 2P and 3P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
