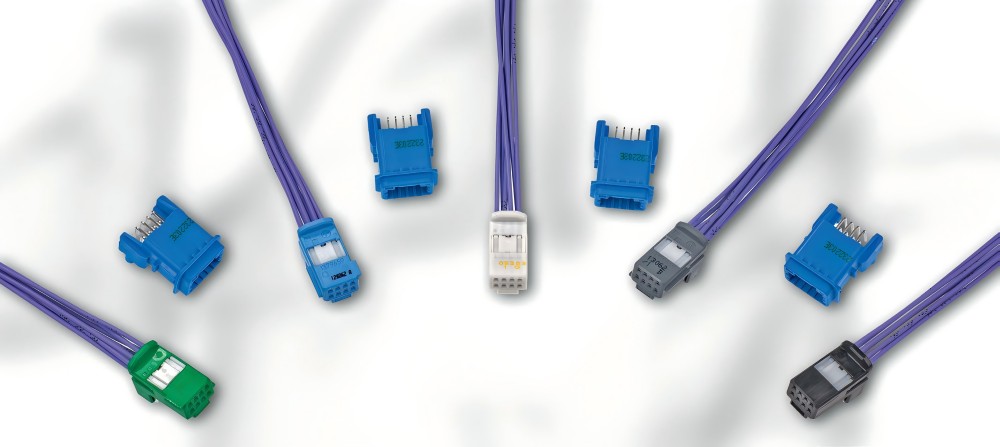

TH 025 connectors, Wiring Harness Assembly
TH 025 connectors Features
TH 025 connectors were designed to provide better connections and performance while securing higher density in limited spaces as required in advanced electronic automotive control systems.
Another feature is a special contact design to resist fretting corrosion effectively while employing a lower contact force. As a result, the low insertion force of TH 025 connectors allows a lower connector mating force while offering high density for easy handling.
This small pitch can help customers to reduce space and weight.
TH 025 connectors feature a pitch of just 2.2mm, compared to the current standard pitch of 2.54mm.
TH 025 connector series was originally designed in Japan. A European version has been implemented, to fulfill the European customer requirements as:
- Mechanical coding
- Color coding
- Reflow lead-free process for headers
TH 025 connectors are available in a full range from 2 to 126 positions.
Connector Applications
Wire-to-Wire, Wire-to-Board, and ECU Applications
- Mirror
- Multimedia applications
- Display screens
- Airbag ECU / Safety applications
- Switches
- Hand-free cellphone
- Immobilizer
- Dashboard
- Safety applications
- Electrically controlled trunk lid latch
- Tyre pressure monitoring system
- Body controller management
TH 025 connectors part number lists
| Number of Positions | Part Number | Connector System | Connector & Housing Type | Sealable | Primary Product Color |
| 2 | 1473143-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 2 | 1473143-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 2 | 1473845-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 3 | 1318670-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 4 | 1-1379658-1 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 4 | 1-1379674-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 4 | 1318620-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Blue |
| 4 | 1318620-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 4 | 1379658-1 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 4 | 1379658-2 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 4 | 1379658-3 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Blue |
| 4 | 1379658-4 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Green |
| 4 | 1379674-1 | Wire-to-Wire | Housing for Male Terminals | No | Black |
| 4 | 1379674-2 | Wire-to-Wire | Housing for Male Terminals | No | Gray |
| 4 | 1379674-3 | Wire-to-Wire | Housing for Male Terminals | No | Blue |
| 4 | 1379674-4 | Wire-to-Wire | Housing for Male Terminals | No | Green |
| 4 | 1473672-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 4 | 1473672-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 4 | 1612035-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 4 | 1612035-2 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 4 | 1717248-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 4 | 1717248-3 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 4 | 1746911-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 4 | 2237126-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 4 | 2237126-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 6 | 1318305-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Blue |
| 6 | 1318305-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 6 | 1473847-1 | Wire-to-Board | Housing for Female Terminals | Yes | Black |
| 7 | 1318801-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 8 | 1318690-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 8 | 1376352-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 8 | 1376352-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 8 | 1376368-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 8 | 1379659-1 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 8 | 1379659-2 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 8 | 1379659-3 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Blue |
| 8 | 1379659-4 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Green |
| 8 | 1379659-5 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 8 | 1379659-6 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Red |
| 8 | 1379659-7 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Purple |
| 8 | 1456471-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 8 | 1456471-4 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 8 | 1473793-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 8 | 1473802-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 8 | 1565804-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 8 | 1565804-2 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 8 | 1717103-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 8 | 1717103-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 8 | 1746875-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 8 | 1746875-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 8 | 1747088-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 8 | 1981471-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 8 | 2237147-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 10 | 1473807-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 10 | 936163-2 | Wire-to-Wire | No | Black | |
| 12 | 1318774-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 12 | 1318774-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 12 | 1376675-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 12 | 1379662-1 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 12 | 1379662-2 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 12 | 1379675-1 | Wire-to-Wire | Housing for Male Terminals | No | Black |
| 12 | 1379675-2 | Wire-to-Wire | Housing for Male Terminals | No | Gray |
| 12 | 1379675-3 | Wire-to-Wire | Housing for Male Terminals | No | Blue |
| 12 | 1379675-4 | Wire-to-Wire | Housing for Male Terminals | No | Green |
| 12 | 1379675-5 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 12 | 1473407-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 12 | 1473407-2 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 12 | 1565894-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 12 | 1717106-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 12 | 1717106-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 12 | 1717106-3 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 12 | 1746872-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 12 | 1746872-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 12 | 1747375-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 12 | 1747375-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 12 | 936348-1 | Wire-to-Wire | No | White | |
| 12 | 936348-2 | Wire-to-Wire | Housing for Female Terminals | No | Black |
| 14 | 2005496-3 | Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 16 | 1318386-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 16 | 1318386-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 16 | 1318694-1 | Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 16 | 1376106-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 16 | 1379665-1 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 16 | 1379665-2 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 16 | 1379678-1 | Wire-to-Wire | Housing for Male Terminals | No | Black |
| 16 | 1473410-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 16 | 1473796-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 16 | 1717109-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 16 | 1717109-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 16 | 2005076-1 | Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 16 | 2237049-1 | Wire-to-Wire | Housing for Female Terminals | No | Black |
| 20 | 1473750-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 20 | 1939605-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 20 | 2040487-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 24 | 1318756-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 24 | 1318756-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 24 | 1318917-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 24 | 1318917-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 24 | 1376103-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 24 | 1379668-1 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 24 | 1379668-2 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 24 | 1379668-5 | Wire-to-Board, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 24 | 1379681-1 | Wire-to-Wire | Housing for Male Terminals | No | Black |
| 24 | 1473413-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 24 | 1473413-2 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 24 | 1612906-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 24 | 1717112-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 24 | 1717112-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 24 | 1746864-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 24 | 1746864-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 24 | 1746864-3 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Gray |
| 24 | 2005082-1 | Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 25 | 2109520-1 | Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 26 | 1318757-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 26 | 1376360-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 26 | 1674932-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 26 | 1674932-3 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 26 | 1746863-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 26 | 1746863-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |

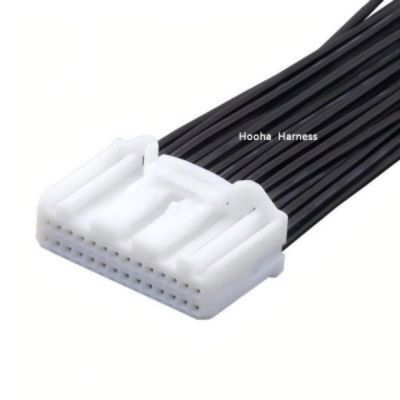

| 28 | 1565377-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 28 | 1565380-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 28 | 1717115-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 28 | 2237069-1 | Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 30 | 1318758-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 30 | 1318758-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 30 | 1746865-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 30 | 2005499-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 30 | 2005499-3 | Wire-to-Wire | Housing for Male Terminals | No | Gray |
| 30 | 2005499-4 | Wire-to-Wire | Housing for Male Terminals | No | Brown |
| 30 | 2005499-8 | Wire-to-Wire | Housing for Male Terminals | No | Blue |
| 30 | 2188394-6 | Wire-to-Wire | Housing for Male Terminals | No | Red |
| 31 | 1123341-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 31 | 1674919-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 32 | 1123339-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 32 | 1318747-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 32 | 1473799-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 32 | 1612268-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 32 | 1674922-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 32 | 1717118-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 32 | 2005088-1 | Wire-to-Wire | No | Natural | |
| 32 | 2005091-1 | Wire-to-Wire | Housing for Male Terminals | No | Natural |
| 33 | 1473651-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 33 | 1827617-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 34 | 1123337-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 34 | 1674925-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 35 | 1123338-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 35 | 1123340-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 35 | 1674558-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 35 | 1674928-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 35 | 1674928-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 40 | 1318389-1 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 40 | 1318389-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | Housing for Female Terminals | No | Black |
| 40 | 1379671-1 | Wire-to-Wire | Housing for Female Terminals | No | Black |
| 40 | 1379671-2 | Wire-to-Wire | Housing for Female Terminals | No | Gray |
| 40 | 1379671-4 | Wire-to-Wire | Housing for Female Terminals | No | Green |
| 40 | 1674312-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 40 | 1674312-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 40 | 2005094-1 | Wire-to-Wire | No | Natural | |
| 41 | 2109193-1 | Wire-to-Wire | Housing for Female Terminals | No | Natural |
| 44 | 1717138-4 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Green |
| 44 | 1717138-5 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Gray |
| 44 | 1717138-6 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | White |
| 44 | 1717138-7 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | White |
| 47 | 9-1355512-3 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 60 | 1747140-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 60 | 2005402-1 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Natural |
| 89 | 1612275-4 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 89 | 1747137-4 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 102 | 2109278-2 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | No | Black |
| 126 | 1612275-3 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
| 126 | 1747137-3 | Wire-to-Board, Wire-to-Device | Housing for Female Terminals | Yes | Black |
To find these connectors' specs, search TE's official website using the correct part number and download the specs. you will get the exact info.
If you want TE TH 025 connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, and wire harness assembly services, contact us for a free quote.
1-1379674-1
Custom Wire Harness
1379658-1 and 1379674-1
Custom Wire Harness
1379659-2
Custom Wire Harness
1318774-1
Custom Wire Harness
1318774-1 1565894-1 1123343-1 1376109-1
Custom Wire Harness
1318917-1
Custom Wire Harness
1318917-1
Custom Wire Harness
Rear View Mirror wire harness for Toyota
Custom Wire Harness
1565377-1
Custom Wire Harness
How to customize your wire harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
