UL10183 Halogen-free XLPE Wire, 1000V 105℃ 32 to 10 AWG
UL10183 Halogen-free XLPE Wire

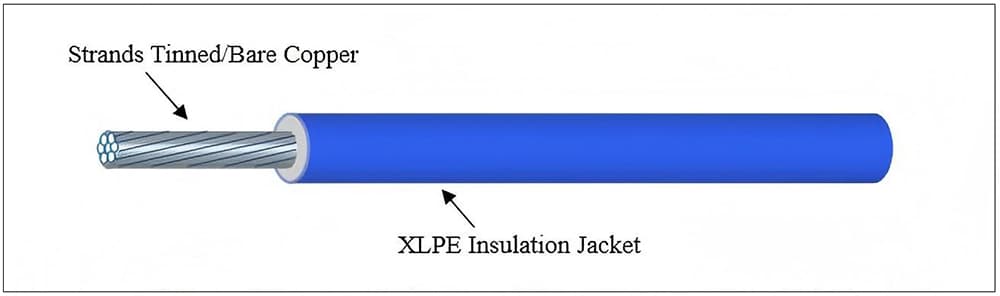

The UL10183 Wire (Style No. 10183) is a high-performance halogen-free XLPE-jacketed cable designed for demanding applications. Rated for 105℃ and 1000V, it ensures reliable operation in high-temperature environments. The conductor options include bare or tinned copper, available in solid or stranded configurations, with wire gauges spanning 32-10 AWG for versatile use. Its halogen-free XLPE insulation enhances safety by minimizing toxic emissions during combustion, complying with UL758 and UL1581 standards. The wire passes stringent UL VW-1 and FT1 flame tests, ensuring superior fire resistance. Uniform insulation thickness simplifies stripping and cutting, while a wide color range (red, orange, yellow, green, etc.) aids identification. Ideal for industrial, automotive, and electrical systems prioritizing safety and durability.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 1000V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32-10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
30 - 18AWG Wire Specifications
| 导体Conductor | 绝缘Insulation | Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.100 | 0.3 | 0.55 | 1.4 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.55 | 1.5 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.55 | 1.6 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.55 | 1.7 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.55 | 1.9 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.55 | 2.1 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.55 | 2.3 | 23.9 | 2000 |
Applications
- Industrial Machinery (motor wiring, control panels) for heat resistance and voltage stability.
- Appliances (ovens, dryers) due to 105℃ tolerance.
- Power Distribution Systems (transformers, switchgear) with 1000V rating.
- HVAC Systems handling heat and vibration.
- Renewable Energy (solar/wind installations) for durability and flame safety.
- Medical Equipment requiring non-toxic, fire-resistant wiring.
- Public Transport (trains, buses) meeting strict fire-safety standards.
- Telecom Infrastructure (server racks, base stations) for heat management.
- Building Automation (smart systems) with color-coded ease.
- Lighting Systems in high-temperature zones.
- Robotics needing flexible, stranded conductors.
- Data Centers prioritizing fire safety and voltage reliability.
- Elevators/Escalators for mechanical stress resistance.
- Fire Alarm Systems complying with VW-1 flame tests.
- Commercial Kitchens (exhaust systems) with halogen-free safety.
