UL10368 Halogen-free XLPE Wire, 300V 105℃ 40 to 10 AWG
UL10368 Halogen-free XLPE Wire

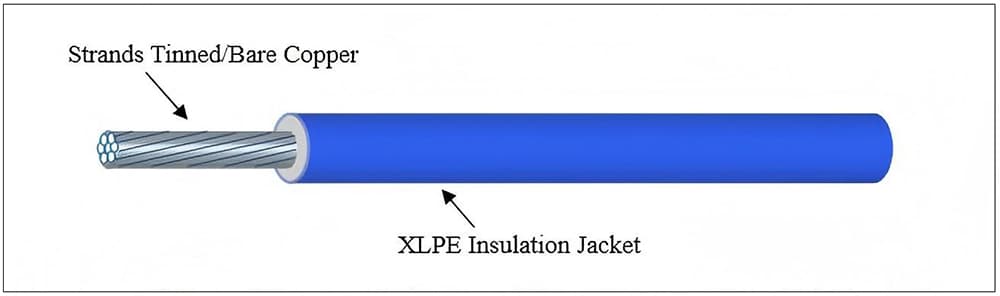

The UL10368 wire is a halogen-free XLPE jacket wire designed for high-performance applications, featuring a temperature rating of 105°C and voltage rating of 300V. It supports both bare and tinned copper conductors (solid or stranded) in gauges ranging from 40 to 10 AWG. The halogen-free XLPE insulation ensures low smoke and toxicity during combustion, complying with UL758 and UL1581 standards. It passes stringent UL VW-1 and FT1 flame tests for enhanced safety. Available in multiple colors, including red, orange, yellow, green, blue, and more, the wire offers uniform insulation thickness for ease of stripping and cutting, making it ideal for industrial, automotive, and electrical installations requiring durability and flame resistance.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 300V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 40-10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
32 - 10AWG Wire Specifications
| 导体Conductor | 绝缘Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 32 | 7/0.080 | 0.24 | 0.23 | 0.75 | 596 | 2000 |
| 30 | 7/0.100 | 0.3 | 0.23 | 0.8 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.23 | 0.9 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.23 | 1 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.23 | 1.1 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.23 | 1.3 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.23 | 1.5 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.23 | 1.8 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.23 | 2.1 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.23 | 2.5 | 9.5 | 2000 |
| 12 | 65/0.254 | 2.36 | 0.23 | 3.1 | 6.3 | 2000 |
| 10 | 105/0.254 | 3.38 | 0.23 | 4.2 | 4.2 | 2000 |
Applications
- Industrial Machinery: Used in high-temperature environments for internal wiring due to its 105°C rating.
- Automotive Systems: Ideal for engine compartments, sensors, and wiring harnesses requiring heat and flame resistance.
- HVAC Equipment: Supports heat-resistant circuits in heating, ventilation, and air conditioning systems.
- Renewable Energy: Connects solar panels and wind turbines, ensuring durability in outdoor conditions.
- Marine Electronics: Resists corrosion and moisture in boat wiring and marine installations.
- Aerospace Wiring: Meets lightweight, flame-resistant requirements for avionics and onboard systems.
- Telecommunications: Used in low-smoke cabling for data and communication infrastructure.
- Data Centers: Ensures fire-safe server and rack wiring to protect critical IT infrastructure.
- Medical Devices: Provides non-toxic, reliable connections for diagnostic and monitoring equipment.
- Public Transport: Complies with safety standards in trains, buses, and metro systems.
- Consumer Electronics: Certified for internal wiring in appliances, TVs, and smart devices.
- LED Lighting: Powers heat-resistant LED drivers and fixtures in commercial/residential setups.
- Power Tools: Delivers durable, flexible connections for drills, saws, and industrial tools.
