UL1095 Elecreic PVC Wire, 300V 80℃ 16 to 30 AWG

UL1095 Elecreic PVC Wire

UL1095 Wire is a UL-certified, versatile electrical wire designed for industrial, commercial, and residential applications. It features stranded or solid copper conductors with durable PVC insulation, offering excellent conductivity, flexibility, and resistance to moisture, abrasion, chemicals, and heat. Rated for 300 volts, it operates in temperatures from -40°C to 80°C (dry) and is flame-retardant (UL VW-1 compliant). Ideal for control panels, machinery, HVAC systems, and power distribution, its color-coded options simplify circuit identification. Compliant with UL 758 and UL 1581 standards, this cost-effective, reliable wire ensures safe performance in both indoor and outdoor environments when UV-resistant variants are used.

Features

• Rated temperature :80℃
• Rated voltage : 300V
• Reference standard :UL758, UL1581

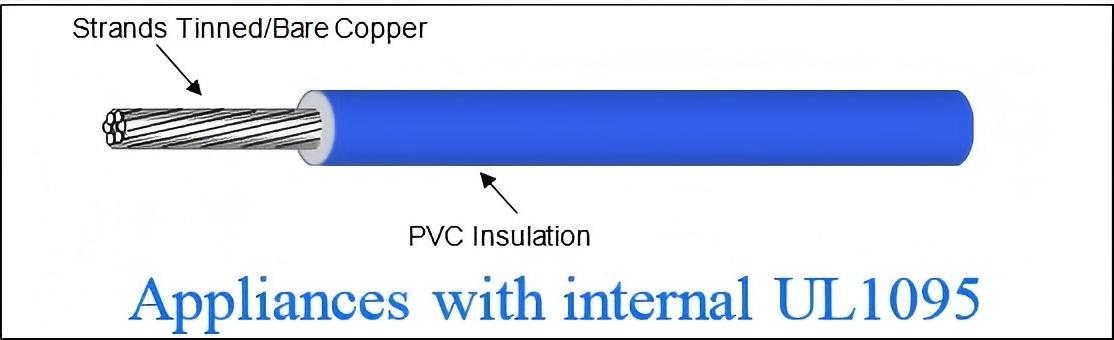

• Solid or stranded, tinned or bare copper conductor 30-16AWG
• Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
• PVC insulation comply with RoHS environmental standard
• Passes UL VW-1 and FT1 flame test
• Uniform insulation thickness to ensure easy stripping and cutting

Applications​​

• Internal wiring of appliances, control panels, and machinery.
• Power distribution in industrial settings.
• Control circuits, HVAC systems, and automation equipment.
• Suitable for both indoor and outdoor use (if UV-resistant PVC is specified).

Specifications
