UL1569 Elecreic PVC Wire, 300V 105℃ 10 to 30 AWG
UL1569 Wire
The UL1569 wire is a versatile, high-performance cable designed for industrial and commercial applications. Rated for 300 VAC with temperature options of 80°C, 90°C, or 105°C, it features bare copper conductors (30 AWG to 10 AWG, solid or stranded) for reliable conductivity. The extruded PVC insulation ensures durability, flexibility, and compliance with RoHS environmental standards. Meeting UL 758 and UL 1581 requirements, it passes stringent UL VW-1 and FT1 vertical and horizontal flame tests, enhancing safety in fire-prone environments. Available in multiple colors (red, orange, yellow, etc.), its uniform insulation thickness simplifies stripping and installation. Ideal for internal wiring, control panels, and appliances, this flame-retardant wire combines mechanical resilience, environmental compliance, and ease of use in demanding settings.
Features
- Rating: 80, 90 or 105 deg C, 300 Vac, Horizontal flame.

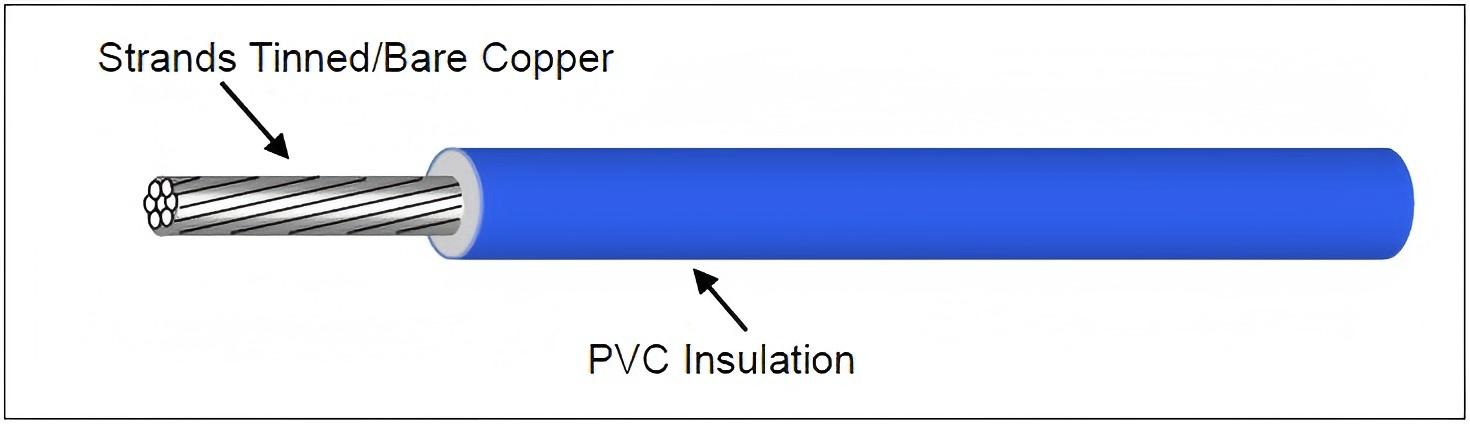

- Conductor: 30 AWG - 10 AWG, solid or stranded, bare copper conductor
- Insulation: Extruded PVC.
- Standard: UL 758, UL1581
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- PVC insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体 Conductor | 绝缘 Insulation | Maxímum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.100 | 0.30 | 0.40 | 1.15 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.40 | 1.20 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.40 | 1.30 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.40 | 1.40 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.40 | 1.60 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.40 | 1.80 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.20 | 0.40 | 2.10 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.40 | 2.45 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.40 | 2.70 | 9.5 | 2000 |
| 12 | 65/0.254 | 2.40 | 0.40 | 3.20 | 5.64 | 2000 |
| 10 | 105/0.254 | 3.05 | 0.40 | 4.30 | 3.54 | 2000 |
Applications
- Industrial Control Panels: Wiring for PLCs, relays, and motor controls requiring flame resistance and high-temperature tolerance.
- Appliances: Internal wiring in ovens, HVAC systems, and other heat-generating equipment.
- Commercial Lighting: Circuits for LED fixtures, track lighting, and emergency lighting systems.
- Telecom Equipment: Low-voltage signal wiring in communication devices and control systems.
- Automotive Wiring: Engine compartments or electrical systems needing heat and abrasion resistance.
- Renewable Energy Systems: Solar panel connections and wind turbine controls in harsh environments.
- Medical Devices: Internal wiring for diagnostic equipment and monitors requiring UL compliance.
- Data Centers: Server racks and power distribution units needing flame-retardant, organized cabling.
- Building Automation: HVAC controls, security systems, and fire alarms in commercial buildings.
- Consumer Electronics: Power supplies, chargers, and small appliances requiring compact, safe wiring.
