UL1571 Elecreic PVC Wire, 30V 80℃ 16 to 32 AWG
UL1571 Wire

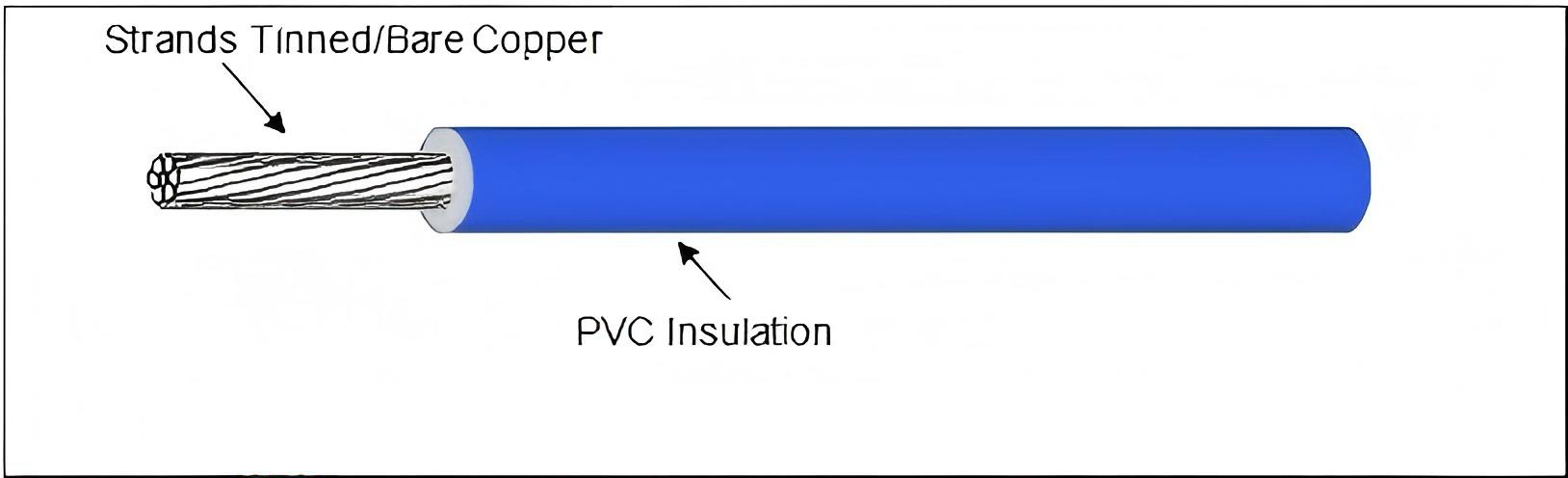

UL 1571 (Style 1571) is a UL 758-compliant appliance wiring material designed for internal electrical applications. Rated for 80°C and 30 VAC, it features a solid or stranded tinned/bare copper conductor (50 AWG minimum) with extruded PVC-based insulation (SRPVC, foamed, XL, etc.), ensuring a minimum thickness of 2 mils. Optional coverings include materials like nylon, ETFE, or polyester for enhanced protection. The wire meets RoHS standards and passes stringent UL VW-1 and FT1 flame tests, supporting horizontal flame resistance. Uniform insulation thickness simplifies stripping and cutting, while color variety (red, green, blue, etc.) aids circuit identification. Ideal for low-voltage control circuits, appliances, and industrial equipment, UL 1571 prioritizes safety, durability, and compliance in demanding environments.
Features
- Rating: 80 deg C, 30 Vac, Horizontal flame.
- Conductor: 50 AWG minimum. Solid or stranded.
- Insulation: Extruded PVC, SRPVC, foamed PVC, foamed SRPVC, XLPVC, XLSRPVC, foamed XLPVC or foamed XLSRPVC, 2 mils minimum thickness at any point, 100 mils maximum thickness.
- Standard Appliance Wiring Material UL 758.
- Solid or stranded, tinned or bare copper conductor 50AWG minimum
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- PVC or SR-PVC insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体 Conductor | 绝缘 Insulation | Maxímum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1mín) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 32 | 7/0.080 | 0.24 | 0.23 | 0.65 | 596 | 500 |
| 30 | 7/0.100 | 0.3 | 0.23 | 0.8 | 381 | 500 |
| 28 | 7/0.127 | 0.38 | 0.23 | 0.9 | 239 | 500 |
| 26 | 7/0.160 | 0.48 | 0.23 | 1 | 150 | 500 |
| 24 | 11/0.160 | 0.61 | 0.23 | 1.1 | 94.2 | 500 |
| 22 | 17/0.160 | 0.76 | 0.23 | 1.3 | 59.4 | 500 |
| 20 | 26/0.160 | 0.94 | 0.23 | 1.5 | 37.6 | 500 |
| 18 | 41/0.160 | 1.18 | 0.23 | 1.8 | 23.9 | 500 |
| 16 | 26/0.254 | 1.49 | 0.23 | 2.1 | 15.1 | 500 |
Applications
- Appliances: Internal wiring for household devices (ovens, microwaves) requiring heat-resistant, flame-retardant cables.
- Industrial Automation: Control panels, sensors, and low-voltage circuits in machinery.
- HVAC Systems: Thermostats, fan controls, and dampers in heating/cooling equipment.
- Automotive Electronics: Non-critical low-voltage circuits (dashboard controls, sensors).
- Telecommunications: Internal wiring for routers, switches, and communication devices.
- Medical Equipment: Diagnostic devices and monitoring systems needing RoHS-compliant, safe wiring.
- Consumer Electronics: Small appliances, power tools, and IoT devices requiring compact, durable wiring.
- Aerospace & Aviation: Non-critical avionics and cabin systems with flame-resistant requirements.
- Renewable Energy: Solar panel junction boxes and low-voltage connections in green energy systems.
- Lighting Systems: LED drivers, fixtures, and low-voltage lighting controls.
