UL20028 Elecreic FRPE Jacket Ribbon Cable, 30V 105℃ 28 to 40 AWG
UL20028 Ribbon Cable

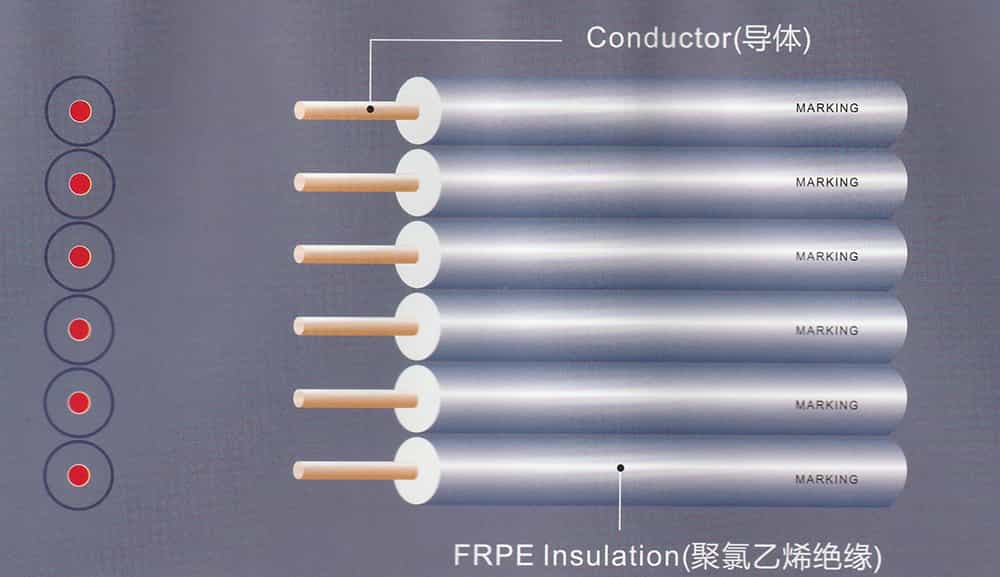

UL20028 Ribbon Cable is a UL-certified flat cable designed for flexible, space-efficient electrical connections. Featuring FRPE insulation, it offers durability, heat resistance (60℃, 80°C, 90℃, 105℃ available), and protection against abrasion, moisture, and chemicals. Ideal for confined spaces, it is commonly used in electronics, appliances, telecommunications, and industrial controls. The cable supports voltages up to 300V and employs tinned copper conductors for enhanced conductivity and corrosion resistance. Available in configurations from 8 to 64 conductors with a 0.050-inch pitch, it ensures reliable signal transmission and easy termination. Its compact design and compliance with RoHS/REACH standards make it a versatile solution for modern wiring needs.
Features
- Temperature Rating: 60℃/80℃/90℃/105℃.
- Voltage Rating: Rated for 30V.
- Conductor: support bare copper or tinned copper, strand
- Insulation: FRPE.
- Wire gauge: 28 to 40AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- FRPE insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 间距 Pitch (mm) |
导体Conductor | 绝缘Insulation | 最大导体电阻 mas Resistance At 20C Ω/km |
Dielectric Strength 耐压强度 (Vac,1min) |
||||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia. (mm) |
芯数 (No.) |
厚度 Thickness (mm) |
外经 O.D (mm) |
|||
| 1.3 | 28 | 7/0.127 | 0.38 | 3 | 0.38 | 1.15*3.9 | 239 | 2000 |
| 4 | 0.38 | 1.15*5.2 | ||||||
| 5 | 0.38 | 1.15*6.5 | ||||||
| 6 | 0.38 | 1.15*7.8 | ||||||
| 7 | 0.38 | 1.15*9.1 | ||||||
| 8 | 0.38 | 1.15*10.4 | ||||||
| 9 | 0.38 | 1.15*11.7 | ||||||
| 10 | 0.38 | 1.15*13.0 | ||||||
| 11 | 0.38 | 1.15*14.3 | ||||||
| 12 | 0.38 | 1.15*15.6 | ||||||
Applications
- Consumer Electronics: Internal wiring for printers, scanners, and copiers due to its flat, space-saving design.
- Appliances: Connections in dishwashers, microwaves, or washing machines where heat resistance and flexibility are critical.
- Telecommunications: Signal transmission in routers, modems, and communication panels for organized cable management.
- Industrial Controls: Wiring for PLCs, motor controls, and automation systems requiring reliable, multi-conductor connections.
- Medical Devices: Integration into diagnostic equipment and monitors where compactness and chemical resistance are essential.
- LED Lighting Systems: Flexible power and signal distribution in LED strips or display panels.
- Automotive Electronics: Non-harsh environment wiring for dashboards, sensors, or infotainment systems.
- Robotics: Interconnections in robotic arms or movable joints needing durable, abrasion-resistant cabling.
- Data Centers: Neat, high-density wiring for server racks and network hardware to optimize airflow.
- Test/Measurement Equipment: Precision signal transmission in oscilloscopes, meters, or lab instruments.
