UL2464 Multi-Core PVC Jacket Power Cable, 300V 80℃ 32-16AWG
UL2464 Power Cable

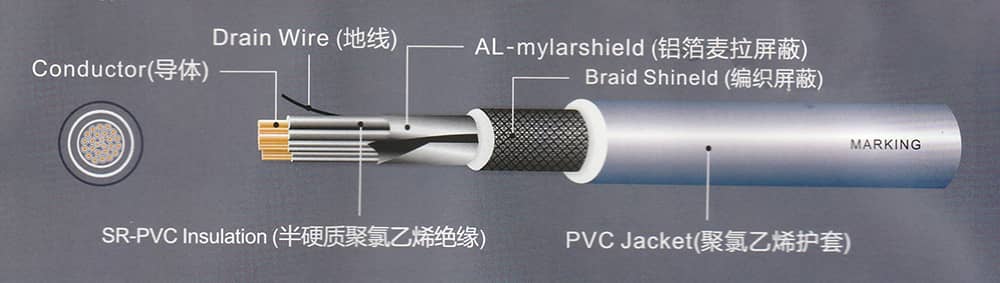

The UL2464 Cable is a versatile electrical cable designed for low-voltage power transmission in various industrial and consumer applications. Rated for 300V and temperatures up to 80°C, it features multiple insulated conductors (ranging from 32 to 16 AWG) encased in a durable PVC jacket, ensuring flexibility, abrasion resistance, and protection against moisture, heat, and mechanical stress. Ideal for internal wiring in appliances, power supplies, control systems, and electronic equipment, this cable complies with UL standards for safety and performance. Its lightweight design and color-coded conductors simplify installation and maintenance, while the PVC insulation provides reliable electrical insulation and flame-retardant properties. Suitable for both fixed installations and dynamic applications requiring repeated bending.
Features
- Temperature Rating: 80℃.
- Voltage Rating: 300V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: SR-PVC.
- Shielding: tinned copper wire braid shield up to 95% coverage
- Wire gauge: 32-16AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
30-18AWG Wire Specifications
| 导体Conductor | 绝缘Insulation | 屏蔽 Shield |
排流线 Drain |
外被Jacket | Maximum Conductor Resistance 最大导体直流电阻 (Ω2/Km,20℃) |
|||||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
芯数 (No) |
厚度 Thickness (mm) |
外经 O.D (mm) |
构造 Construction (No/mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.10 | 0.3 | 2 | 0.25 | 0.80 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
7/0.10 | 0.76 | 3.50 | 381 |
| 3 | 3.60 | |||||||||
| 4 | 3.80 | |||||||||
| 5 | 4.00 | |||||||||
| 6 | 4.20 | |||||||||
| 7 | 4.20 | |||||||||
| 8 | 4.50 | |||||||||
| 9 | 4.80 | |||||||||
| 10 | 5.00 | |||||||||
| 28 | 7/0.127 | 0.38 | 2 | 0.26 | 0.90 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
7/0.127 | 0.76 | 3.60 | 239 |
| 3 | 3.80 | |||||||||
| 4 | 4.00 | |||||||||
| 5 | 4.30 | |||||||||
| 6 | 4.50 | |||||||||
| 7 | 4.50 | |||||||||
| 8 | 4.80 | |||||||||
| 9 | 5.20 | |||||||||
| 10 | 5.40 | |||||||||
| 26 | 7/0.16 | 0.48 | 2 | 0.26 | 1.00 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
7/0.16 | 0.76 | 3.80 | 150 |
| 3 | 4.00 | |||||||||
| 4 | 4.30 | |||||||||
| 5 | 4.50 | |||||||||
| 6 | 4.80 | |||||||||
| 7 | 4.80 | |||||||||
| 8 | 5.20 | |||||||||
| 9 | 5.50 | |||||||||
| 10 | 5.80 | |||||||||
| 24 | 11/0.16 | 0.61 | 2 | 0.25 | 1.10 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
11/0.16 | 0.76 | 4.00 | 94.2 |
| 3 | 4.20 | |||||||||
| 4 | 4.50 | |||||||||
| 5 | 4.80 | |||||||||
| 6 | 5.20 | |||||||||
| 7 | 5.20 | |||||||||
| 8 | 5.50 | |||||||||
| 9 | 6.00 | |||||||||
| 10 | 6.20 | |||||||||
| 22 | 17/0.16 | 0.76 | 2 | 0.26 | 1.30 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
17/0.16 | 0.76 | 4.50 | 59.4 |
| 3 | 4.70 | |||||||||
| 4 | 5.00 | |||||||||
| 5 | 5.40 | |||||||||
| 6 | 5.80 | |||||||||
| 7 | 5.80 | |||||||||
| 8 | 6.20 | |||||||||
| 9 | 6.80 | |||||||||
| 10 | 7.20 | |||||||||
| 20 | 26/0.16 | 0.94 | 2 | 0.27 | 1.50 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
26/0.16 | 0.76 | 4.80 | 37.6 |
| 3 | 5.20 | |||||||||
| 4 | 5.50 | |||||||||
| 5 | 6.00 | |||||||||
| 6 | 6.40 | |||||||||
| 7 | 6.40 | |||||||||
| 8 | 6.80 | |||||||||
| 9 | 7.50 | |||||||||
| 10 | 8.00 | |||||||||
| 18 | 41/0.16 | 1.18 | 2 | 0.30 | 1.80 | 铝箔麦拉 Al-mylar + 铜线编织 Copper Braid |
41/0.16 | 0.76 | 5.50 | 23.9 |
| 3 | 5.80 | |||||||||
| 4 | 6.20 | |||||||||
| 5 | 6.80 | |||||||||
| 6 | 7.50 | |||||||||
| 7 | 7.50 | |||||||||
| 8 | 7.80 | |||||||||
| 9 | 8.60 | |||||||||
| 10 | 9.20 | |||||||||
Applications
- Small household appliances (blenders, coffee makers, toasters).
- Computer peripherals (monitors, external drives, routers).
- Factory automation systems (conveyor belts, motor controllers).
- Audio/Video equipment (speakers, amplifiers, projectors).
- Portable chargers and power banks.
- Decorative lighting (holiday lights, garden LEDs).
- 3D printers and CNC machine wiring.
- Surveillance systems (IP cameras, motion detectors).
- Ventilation fans and air purifiers.
- Lab equipment (microscopes, centrifuges).
- Retail displays (digital kiosks, POS systems).
- Rechargeable battery arrays (UPS systems).
- Solar panel junction boxes and micro-inverters.
- E-bike/E-scooter charging ports.
- Arcade machines and gaming rigs.
- Industrial sensors (temperature, pressure gauges).
- Telecom cabinets and server rack wiring.
- Theatrical equipment (DMX controllers, stage effects).
- Smart home devices (thermostats, doorbells, hubs).
- Handheld power tools (cordless drills, angle grinders).
