UL2468 Elecreic PVC Ribbon Cable, 300V 80℃ 16 to 32 AWG
UL2468 Ribbon Cable
UL Style No. 2468 Electric PVC Ribbon Cable is a flat, multi-conductor cable featuring parallel insulated conductors bonded in a single plane, designed for low-voltage electrical applications. Recognized by Underwriters Laboratories (UL), it meets safety and performance standards, ensuring reliability. The cable uses PVC insulation and jacketing, offering flexibility, durability, and resistance to moisture, abrasion, and chemicals. Ideal for internal wiring in electronics, appliances, automotive systems, and office equipment, its ribbon-like structure simplifies installation in tight spaces and allows quick, organized termination via insulation displacement connectors (IDCs). Rated for 300V and temperatures up to 80°C, it combines space efficiency with dependable electrical connectivity.
Features
- Temperature Rating: 80℃.
- Voltage Rating: Rated for 300V.
- Conductor: support bare copper or tinned copper, solid and strand
- Insulation: PVC.
- Wire gauge: 16 to 32AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- PVC insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting

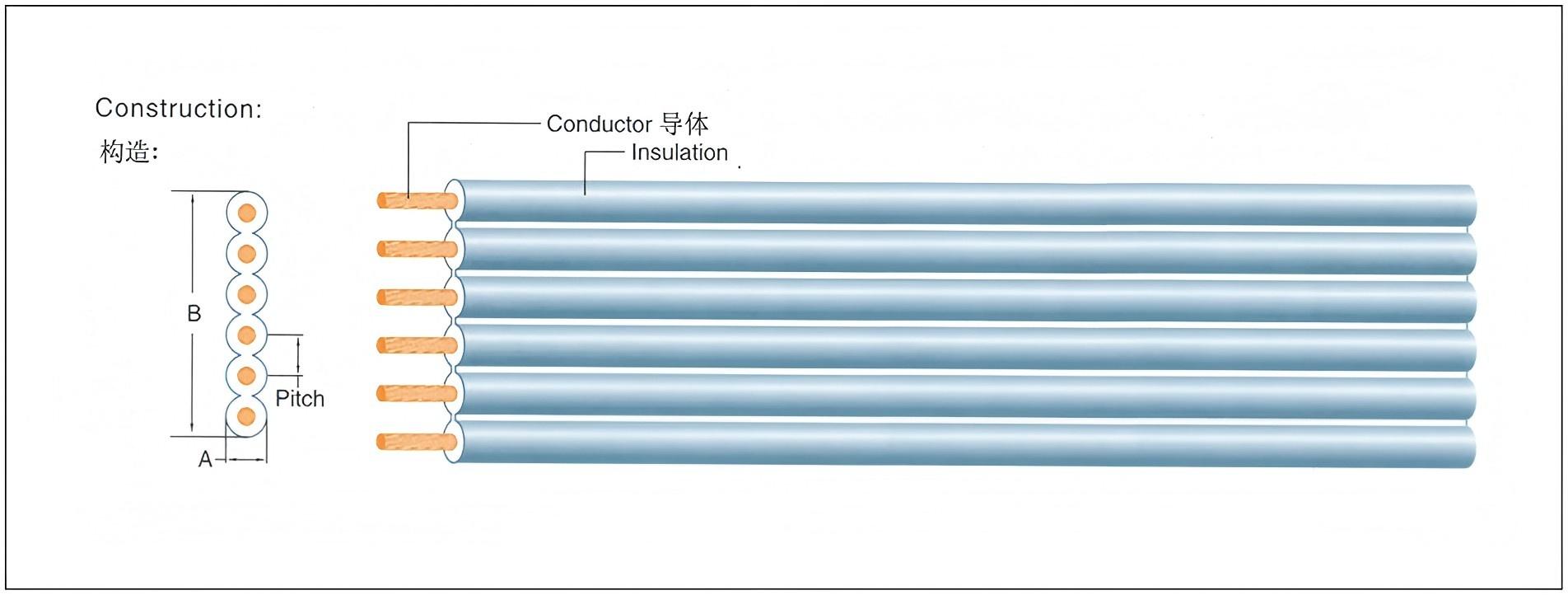

Specifications
|
间距 Pitch |
导体 Conductor | 绝缘 Insulation | 最大导体电阻 mas Resistance At 20C Ω/km |
Dielectric Strength 耐压强度 (Vac,1min) |
||||
|
规格 Size |
构造 Construction |
外经 Dia. |
芯数 (No. of Core) |
厚度 Thickness |
外经 O.D(mm) |
|||
| 1.5 | 26 | 7/0.16 | 0.48 | 2 | 0.43 | 1.4*2.9 | 150 | 2000 |
| 3 | 0.43 | 1.4*4.4 | ||||||
| 4 | 0.43 | 1.4*5.9 | ||||||
| 5 | 0.43 | 1.4*7.4 | ||||||
| 6 | 0.43 | 1.4*8.9 | ||||||
| 7 | 0.43 | 1.4*10.4 | ||||||
| 8 | 0.43 | 1.4*11.9 | ||||||
| 9 | 0.43 | 1.4*13.4 | ||||||
| 10 | 0.43 | 1.4*14.9 | ||||||
| 11 | 0.43 | 1.4*16.4 | ||||||
| 12 | 0.43 | 1.4*17.9 | ||||||
| 1.6 | 24 | 11/0.16 | 0.61 | 2 | 0.43 | 1.5*3.1 | 94.2 | 2000 |
| 3 | 0.43 | 1.5*4.7 | ||||||
| 4 | 0.43 | 1.5*6.3 | ||||||
| 5 | 0.43 | 1.5*7.9 | ||||||
| 6 | 0.43 | 1.5*9.5 | ||||||
| 7 | 0.43 | 1.5*11.1 | ||||||
| 8 | 0.43 | 1.5*12.7 | ||||||
| 9 | 0.43 | 1.5*14.3 | ||||||
| 10 | 0.43 | 1.5*15.9 | ||||||
| 11 | 0.43 | 1.5*17.5 | ||||||
| 12 | 0.43 | 1.5*19.1 | ||||||
| 1.7 | 22 | 17/0.16 | 0.76 | 2 | 0.43 | 1.62*3.3 | 59.4 | 2000 |
| 3 | 0.43 | 1.62*5.0 | ||||||
| 4 | 0.43 | 1.62*6.7 | ||||||
| 5 | 0.43 | 1.62*8.4 | ||||||
| 6 | 0.43 | 1.62*10.1 | ||||||
| 7 | 0.43 | 1.62*11.8 | ||||||
| 8 | 0.43 | 1.62*13.5 | ||||||
| 9 | 0.43 | 16.2*15.2 | ||||||
| 10 | 0.43 | 1.62*16.9 | ||||||
| 11 | 0.43 | 1.62*18.6 | ||||||
| 12 | 0.43 | 1.62*20.3 | ||||||
| 1.9 | 20 | 26/0.16 | 0.94 | 2 | 0.43 | 1.8*3.7 | 37.6 | 2000 |
| 2.2 | 18 | 41/0.16 | 1.18 | 2 | 0.43 | 2.1*4.3 | 23.9 | 2000 |
Applications
- Internal Electronics Wiring: Connects circuit boards, switches, and components in printers, scanners, and consumer electronics.
- Appliances: Used in microwaves, refrigerators, and washing machines for control panel wiring.
- Automotive Systems: Integrates into dashboards, sensors, and infotainment systems due to its compact, flat design.
- Office Equipment: Links components in copiers, fax machines, and monitors for organized cable management.
- Medical Devices: Provides reliable connections in diagnostic equipment and patient monitors requiring moisture resistance.
- LED Lighting Systems: Powers LED strips and signage where space-efficient, flexible wiring is critical.
- Industrial Control Panels: Facilitates low-voltage signal transmission in machinery and automation systems.
- Telecom Hardware: Connects terminals in routers, modems, and communication devices using IDC connectors.
- Audio/Video Equipment: Routes signals in amplifiers, mixers, and AV receivers with minimal interference.
- Security Systems: Integrates into alarms, CCTV cameras, and access control panels for durable, space-saving wiring.
