UL2547 Shielding Cable, 300V 80℃ 30 to 16 AWG

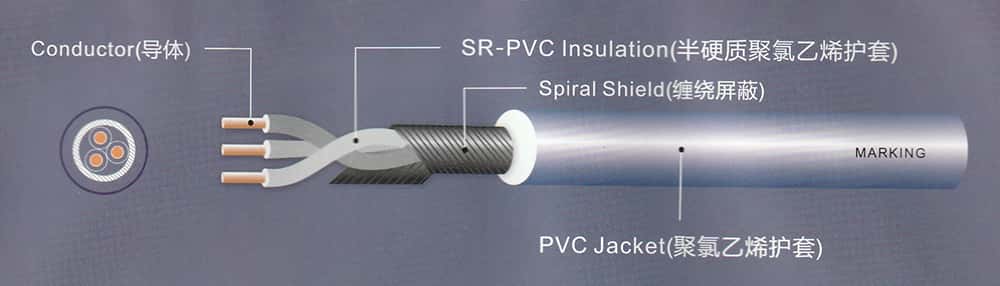

UL2547 Shielding Cable
The UL2547 Cable is a versatile, high-performance solution engineered for applications demanding reliable electrical performance and interference protection. Compatible with 2-core and 3-core configurations, it is rated for 300V and operates at temperatures up to 80°C, making it ideal for industrial, automotive, and automation settings. Available in 30 to 16 AWG, it supports diverse current requirements while its shielded design effectively minimizes EMI/RFI interference, ensuring signal integrity in sensitive electronic systems. Combining flexibility, durability, and compliance with safety standards, this cable excels in control systems, power distribution, and communication networks, delivering a robust blend of reliability and performance for demanding environments. (100 words)
Features
- Temperature Rating: 80℃.
- Voltage Rating: 300V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: SR-PVC.
- Wire gauge: 30-16AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
2 and 3 Core Cable Specifications
| Cores 芯数 |
导体 Conductor | 绝缘 Insulation | 缠绕屏蔽 Spiral Shield |
外被 Jacket | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
||||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
线数/线径 (No/mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 2 core jacket cable | 30 | 7/0.100 | 0.30 | 0.23 | 0.80 | 45/0.1 | 0.40 | 2.60 | 381 |
| 28 | 7/0.127 | 0.38 | 0.23 | 0.90 | 50/0.1 | 0.40 | 2.80 | 239 | |
| 26 | 7/0.160 | 0.48 | 0.23 | 1.00 | 54/0.1 | 0.40 | 3.00 | 150 | |
| 24 | 11/0.160 | 0.61 | 0.23 | 1.10 | 62/0.1 | 0.40 | 3.20 | 94.2 | |
| 22 | 17/0.160 | 0.76 | 0.23 | 1.30 | 60/0.12 | 0.40 | 3.70 | 59.4 | |
| 20 | 26/0.160 | 0.94 | 0.23 | 1.50 | 70/0.12 | 0.40 | 4.10 | 37.6 | |
| 18 | 41/0.160 | 1.18 | 0.23 | 1.80 | 82/0.12 | 0.40 | 4.80 | 23.9 | |
| 3 core jacket cable | 30 | 7/0.100 | 0.30 | 0.23 | 0.8 | 48/0.1 | 0.40 | 2.80 | 381 |
| 28 | 7/0.127 | 0.38 | 0.23 | 0.9 | 56/0.1 | 0.40 | 3.00 | 239 | |
| 26 | 7/0.160 | 0.48 | 0.23 | 1 | 60/0.1 | 0.40 | 3.20 | 150 | |
| 24 | 11/0.160 | 0.61 | 0.23 | 1.1 | 69/0.1 | 0.40 | 3.40 | 94.2 | |
| 22 | 17/0.160 | 0.76 | 0.23 | 1.3 | 64/0.12 | 0.40 | 3.90 | 59.4 | |
| 20 | 26/0.160 | 0.94 | 0.23 | 1.5 | 74/0.12 | 0.40 | 4.30 | 37.6 | |
| 18 | 41/0.160 | 1.18 | 0.23 | 1.8 | 88/0.12 | 0.40 | 5.00 | 23.9 | |
Applications
- Industrial Automation – Connects sensors, actuators, and controllers in robotics and CNC machinery, ensuring EMI-free signal transmission.
- Automotive Electronics – Powers sensors, ECUs, and infotainment systems while resisting engine-generated interference.
- Control Panels – Links PLCs, relays, and motor drives in factory automation for precise electrical control.
- Communication Networks – Supports data transmission in low-voltage networks (e.g., RS-485, CAN bus) with shielded signal integrity.
- Medical Devices – Integrates into patient monitors and diagnostic tools, safeguarding sensitive electronic signals.
- Renewable Energy Systems – Connects solar inverters, wind turbine controls, and battery management systems.
- Audio-Visual Equipment – Reduces noise in microphones, mixers, and AV systems for clear audio/video output.
- Aircraft Avionics – Routes signals in navigation and communication systems, meeting aerospace EMI standards.
- Marine Electronics – Withstands harsh environments in shipboard control systems and navigation instruments.
- Power Distribution – Distributes low-voltage power in control cabinets and junction boxes.
- Test & Measurement Tools – Ensures accuracy in oscilloscopes and data loggers by minimizing external interference.
- Security Systems – Relays signals in CCTV cameras, alarms, and access control panels for uninterrupted operation.
