UL2651 Elecreic PVC Ribbon Cable, 300V 105℃ 14 to 36 AWG
UL2651 Ribbon Cable

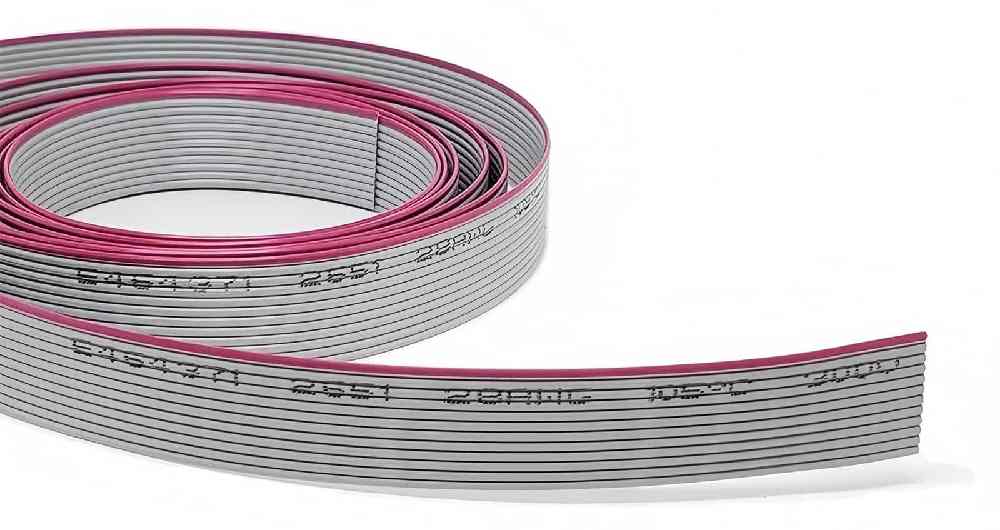

UL2651 Electric Ribbon Cable is a flat, multi-conductor cable designed for organized and space-efficient wiring in electronic devices, appliances, and internal systems. Featuring PVC insulation, it offers excellent flexibility, durability, and resistance to heat, moisture, and abrasion, ensuring reliable performance in confined spaces. The cable complies with UL standards, guaranteeing safety and quality, and is rated for 300V/80°C. Its stranded tinned copper conductors enhance conductivity and corrosion resistance, while the ribbon structure simplifies installation and reduces wire clutter. Ideal for applications like printers, control panels, and data equipment, this cable combines compact design with robust electrical performance for industrial and commercial use.
Features
- Temperature Rating: 105℃.
- Voltage Rating: Rated for 300V.
- Conductor: support bare copper or tinned copper, strand
- Insulation: PVC.
- Wire gauge: 14 to 36AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- PVC insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 问距 Pitch (mm) |
导体Conductor | 绝缘Insulation | 最大导体电阻 masResistance At 20C Ω/km |
Dielectric Strength 耐压强度 (Vac,1min) |
||||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia. (mm) |
芯数 (No.) |
厚度 Thickness (mm) |
外经 O.D (mm) |
|||
| 1.27 | 28 | 7/0.127 | 0.38 | 3 | 0.23 | 0.9*3.81 | 239 | 2000 |
| 4 | 0.23 | 0.9*5.08 | ||||||
| 5 | 0.23 | 0.9*6.35 | ||||||
| 6 | 0.23 | 0.9*7.62 | ||||||
| 7 | 0.23 | 0.9*8.89 | ||||||
| 8 | 0.23 | 0.9*10.16 | ||||||
| 9 | 0.23 | 0.9*11.43 | ||||||
| 10 | 0.23 | 0.9*12.7 | ||||||
| 11 | 0.23 | 0.9*13.97 | ||||||
| 12 | 0.23 | 0.9*15.24 | ||||||
| 13 | 0.23 | 0.9*16.51 | ||||||
| 14 | 0.23 | 0.9*17.78 | ||||||
| 15 | 0.23 | 0.9*19.05 | ||||||
| 16 | 0.23 | 0.9*20.32 | ||||||
| 1 | 28 | 7/0.127 | 0.38 | 3 | 0.23 | 0.9*3.0 | 239 | 2000 |
| 4 | 0.23 | 0.9*4.0 | ||||||
| 5 | 0.23 | 0.9*5.0 | ||||||
| 6 | 0.23 | 0.9*6.0 | ||||||
| 7 | 0.23 | 0.9*7.0 | ||||||
| 8 | 0.23 | 0.9*8.0 | ||||||
| 9 | 0.23 | 0.9*9.0 | ||||||
| 10 | 0.23 | 0.9*10.0 | ||||||
| 11 | 0.23 | 0.9*11.0 | ||||||
| 12 | 0.23 | 0.9*12.0 | ||||||
| 13 | 0.23 | 0.9*13.0 | ||||||
| 14 | 0.23 | 0.9*14.0 | ||||||
| 15 | 0.23 | 0.9*15.0 | ||||||
| 16 | 0.23 | 0.9*16.0 | ||||||
Applications
- Printers/Copiers: Simplifies internal wiring for print heads, sensors, and motors due to its flat, space-saving design.
- Industrial Control Panels: Organizes connections in PLCs, relays, and switches while resisting heat and abrasion.
- Data/Telecom Equipment: Streamlines signal and power distribution in servers, routers, and communication devices.
- Medical Devices: Used in diagnostic machines, monitors, and imaging systems for reliable, low-profile wiring.
- Automotive Electronics: Integrates into dashboards, sensors, and infotainment systems in vehicles.
- Consumer Electronics: Ideal for TVs, gaming consoles, and audio systems requiring tidy internal cabling.
- HVAC Systems: Connects thermostats, actuators, and control boards in heating/cooling units.
- Test/Measurement Tools: Ensures precise signal transmission in oscilloscopes, meters, and lab equipment.
- Robotics/Automation: Supports flexible, high-density wiring in robotic arms, conveyors, and CNC machines.
- LED Lighting Systems: Powers and controls LED arrays in signage, displays, and architectural lighting.
