UL2725 Shielding USB Cable, 30V 80℃ 28 to 20 AWG
UL2725 Shielding Cable

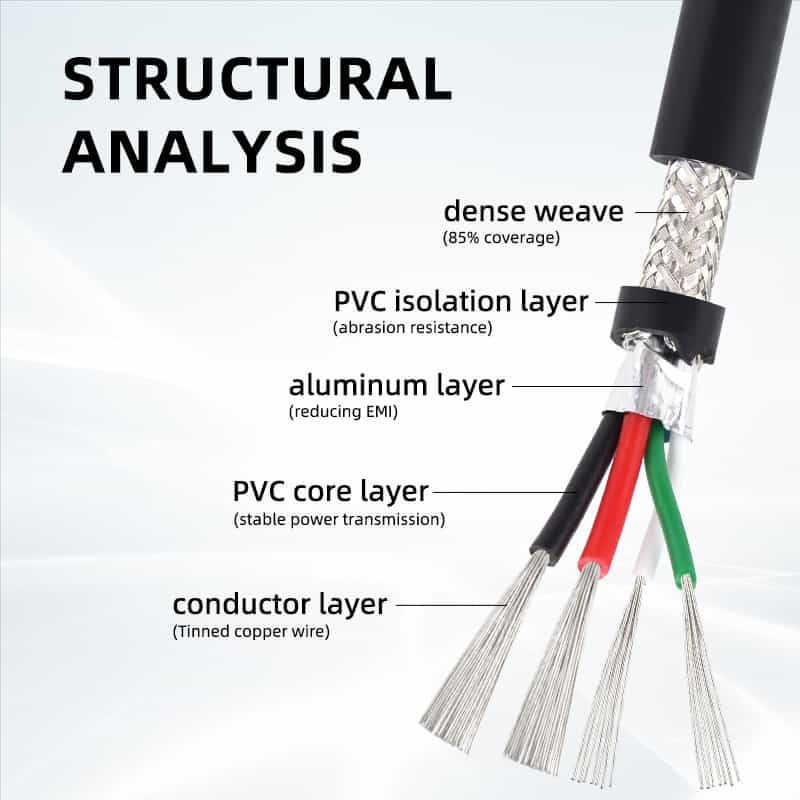

The UL2725 Cable is a versatile, high-performance cable designed for low-voltage applications up to 30V and temperatures of 80℃. Featuring conductor sizes ranging from 28 to 20 AWG, it combines flexibility with durability, making it ideal for industrial automation, telecommunications, and electronic equipment. The cable’s shielded design, typically with a tinned copper braid or foil shield, provides robust protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable signal transmission. Constructed with PVC insulation and a flame-retardant jacket, it meets UL standards for safety and performance. Its compact, lightweight build suits tight spaces while maintaining resistance to abrasion, moisture, and environmental stressors, making it a dependable choice for demanding installations.
Features
- Temperature Rating: 60℃, 80℃.
- Voltage Rating: 30V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: PVC.
- Wire gauge: 28-20AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
28 - 20AWG Cable Specifications
| 导体Conductor | 绝缘Insulation | 屏蔽 Shield |
排流线 Drain |
编织 Braid |
外被Jacket | 外经 O.D (mm) |
Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
||||
| 规格 Size (AWG ) |
构造 Construction (No./mm) |
外经 Dia (mm) |
芯数 (No.) |
厚度 Thickness (mm) |
外经 O.D (mm) |
构造 Construction (No./mm) |
构造 Construction (No./Nomm) |
厚度 Thickness (mm) |
|||
| 28+28 | 7/0.127 | 0.38 | 2 | 0.23 | 0.85 | Al-mylar | 7/0.127 | 16/5/0.10 | 0.58 | 4.00 | 239 |
| 7/0.127 | 0.38 | 2 | 0.26 | 0.90 | 239 | ||||||
| 28+26 | 7/0.127 | 0.38 | 2 | 0.23 | 0.85 | Al-mylar | 7/0.127 | 16/5/0.10 | 0.58 | 4.20 | 239 |
| 7/0.16 | 0.48 | 2 | 0.26 | 1.00 | 150 | ||||||
| 28+24 | 7/0.127 | 0.38 | 2 | 0.23 | 0.85 | Al-mylar | 7/0.127 | 16/5/0.10 | 0.58 | 4.50 | 239 |
| 11/0.16 | 0.61 | 2 | 0.25 | 1.10 | 94.2 | ||||||
| 28+22 | 7/0.127 | 0.38 | 2 | 0.23 | 0.85 | Al-mylar | 7/0.127 | 16/5/0.10 | 0.58 | 4.80 | 239 |
| 17/0.16 | 0.76 | 2 | 0.26 | 1.30 | 59.4 | ||||||
| 28+20 | 7/0.127 | 0.38 | 2 | 0.23 | 0.85 | Al-mylar | 7/0.127 | 16/5/0.10 | 0.58 | 5.20 | 239 |
| 26/0.16 | 0.94 | 2 | 0.26 | 1.50 | 37.6 | ||||||
Applications
- Industrial Automation: Connects USB-enabled sensors, PLCs, or controllers in EMI-heavy settings.
- Medical Devices: Links diagnostic tools (e.g., ultrasound machines) needing interference-free USB communication.
- Outdoor Security Systems: Powers/shields USB cameras or access control devices exposed to weather or EMI.
- Robotics: Transmits USB signals in robotic arms or automated machinery prone to electrical noise.
- Automotive Diagnostics: Interfaces with OBD-II scanners or infotainment systems in electrically noisy vehicles.
- AV Equipment: Ensures stable USB audio/video feeds in mixers, recorders, or live-streaming setups.
- Data Centers: Backup connections for USB management ports in server racks with high interference.
- Renewable Energy Systems: Monitors USB-based sensors in solar/wind installations with harsh conditions.
- Military/Defense: Rugged USB links for field equipment requiring durability and signal integrity.
- Kiosks/ATMs: Reliable USB connectivity for touchscreens or payment terminals in public, high-traffic areas.
