UL3135 Elecreic Silicone Wire, 600V 200℃ 26 to 12 AWG
UL3135 Silicone Wire
The UL3135 silicone rubber jacket wire is a high-performance electrical cable designed for extreme temperature and harsh environment applications. Featuring a flexible, heat-resistant silicone rubber insulation, it operates reliably from -30°C to +200°C, making it ideal for industrial equipment, appliances, automotive systems, and aerospace technology. The wire incorporates a tinned copper conductor for enhanced conductivity and corrosion resistance, while its robust insulation resists moisture, chemicals, ozone, and abrasion. Compliant with UL standards, the UL3135 ensures safety, durability, and long-term reliability in demanding settings such as motors, transformers, and high-temperature lighting. Its versatility and resilience make it a preferred choice for engineers prioritizing thermal stability and mechanical endurance.
Features
- Temperature Rating: -30℃ to 200℃.
- Voltage Rating: 600V.

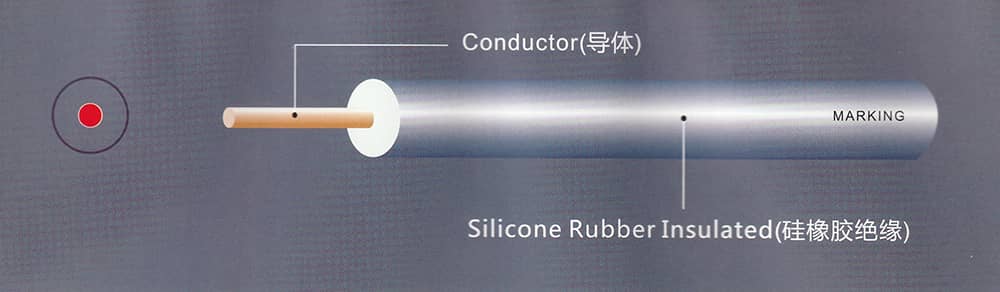

- Conductor: support tinned copper, solid or strand
- Insulation: Silicone Rubber Jacket.
- Wire gauge: 26 to 12AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Silicone insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体 Conductor | 绝缘 Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω2/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 26 | 7/0.160 | 0.48 | 0.76 | 2.00 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.76 | 2.10 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.76 | 2.30 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.76 | 2.50 | 37.6 | 2000 |
| 18 | 41/0.16 | 1.18 | 0.76 | 2.70 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.50 | 9.5 | 2000 |
| 12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 6.3 | 2000 |
Applications
- Industrial Machinery (motors, transformers, high-heat equipment).
- Household Appliances (ovens, toasters, heaters).
- Automotive Systems (engine compartments, exhaust sensors, battery connections).
- Aerospace Wiring (avionics, engine monitoring, cabin heating).
- High-Temperature Lighting (stage lights, industrial lamps).
- Power Tools (drills, grinders with heat-generating components).
- HVAC Systems (furnaces, heating elements, blowers).
- Medical Devices (autoclaves, imaging equipment, sterilization tools).
- Renewable Energy (solar panel junctions, wind turbine systems).
- Marine Electronics (boat engines, navigation systems exposed to moisture).
- Robotics (flexible wiring for moving joints and high-heat zones).
- Military Equipment (durable connections in extreme environments).
