UL3266 Halogen-free XLPE Wire, 300V 125℃ 32 to 10 AWG
UL3266 Halogen-free XLPE Wire

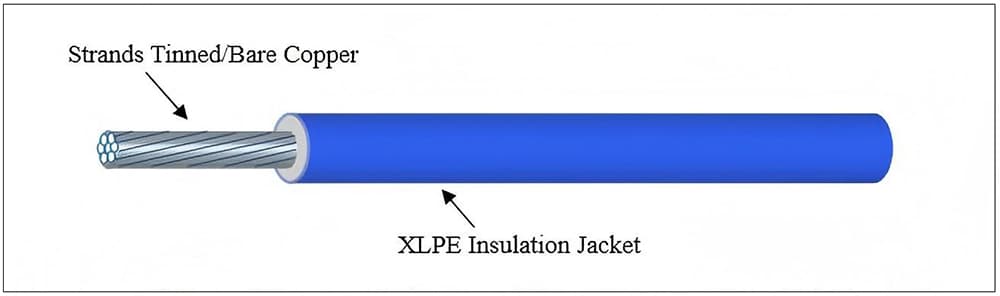

UL Style No. 3266 Halogen-free XLPE Jacket Wire is a high-performance electrical cable designed for applications requiring enhanced safety and environmental compliance. It features a halogen-free cross-linked polyethylene (XLPE) insulation and jacket, which minimizes toxic fumes, smoke, and corrosive gases when exposed to fire, ensuring safer evacuation and reduced environmental impact. Ideal for industrial, commercial, and transportation settings, this wire meets UL standards for durability, thermal stability, and resistance to heat (up to 125°C), moisture, chemicals, and abrasion. Its lightweight, flexible design simplifies installation in tight spaces, while its halogen-free composition aligns with green building initiatives and strict safety regulations, making it a reliable choice for modern infrastructure and sensitive environments.
Features
- Temperature Rating: 125℃.
- Voltage Rating: 300V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32 to 10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体 Conductor | 绝缘 Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.100 | 0.30 | 0.38 | 1.10 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.38 | 1.30 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.38 | 1.40 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.38 | 1.60 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.38 | 1.80 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.38 | 2.10 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.35 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.38 | 2.80 | 9.5 | 2000 |
| 12 | 65/0.254 | 2.36 | 0.38 | 3.40 | 6.3 | 2000 |
| 10 | 105/.254 | 3.38 | 0.38 | 4.00 | 4.2 | 2000 |
Applications
- Industrial Automation: Resists chemicals, heat, and abrasion in machinery.
- Commercial Buildings: Safe for fire-rated installations due to low smoke/toxicity.
- Public Transportation: Used in buses, trains, and metros for fire safety compliance.
- Renewable Energy Systems: Durable in solar/wind installations under harsh weather.
- Data Centers: Prevents toxic emissions in server rooms during fires.
- Marine Applications: Moisture-resistant for shipboard wiring and offshore rigs.
- Mining Equipment: Withstands abrasion and harsh underground conditions.
- Aerospace Wiring: Lightweight, flexible for aircraft electrical systems.
- Healthcare Facilities: Safe for hospitals, ensuring minimal hazardous fumes.
- Public Venues: Installed in theaters, stadiums for crowd evacuation safety.
- EV Charging Stations: Handles high temperatures in electric vehicle infrastructure.
- Telecommunications: Reliable in data/communication networks with thermal stability.
