UL3312 Halogen-free XLPE Wire, 150V 105℃ 32 to 16 AWG
UL3312 Halogen-free PE Wire

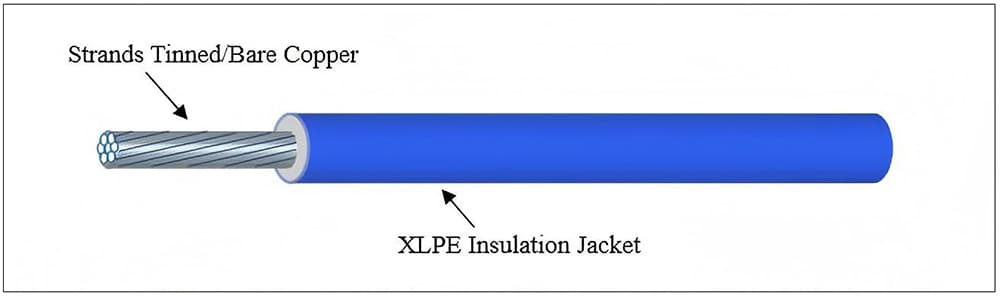

The UL3312 Wire is a halogen-free XLPE insulated cable designed for high safety and durability, suitable for industrial and automotive applications. Rated for 105℃ and 150V, it supports both bare and tinned copper conductors (solid or stranded) in 32-16AWG sizes. Its halogen-free XLPE insulation ensures low smoke and toxicity during combustion, complying with UL758 and UL1581 standards. The wire passes stringent UL VW-1 and FT1 flame tests, enhancing fire safety. Available in multiple colors, it features uniform insulation thickness for easy stripping and cutting, making it ideal for wiring requiring reliability, environmental resistance, and compliance with strict safety regulations.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 150V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32-16AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
32 to 16AWG Wire Specifications
| 导体 Conductor | 绝缘 Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 32 | 7/0.080 | 0.24 | 0.26 | 0.80 | 596 | 1500 |
| 30 | 7/0.100 | 0.30 | 0.26 | 0.85 | 381 | 1500 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.95 | 239 | 1500 |
| 26 | 7/0.160 | 0.48 | 0.26 | 1.05 | 150 | 1500 |
| 24 | 11/0.160 | 0.61 | 0.26 | 1.20 | 94.2 | 1500 |
| 22 | 17/0.160 | 0.76 | 0.26 | 1.35 | 59.4 | 1500 |
| 20 | 26/0.160 | 0.94 | 0.26 | 1.55 | 37.6 | 1500 |
| 18 | 41/0.160 | 1.18 | 0.26 | 1.80 | 23.9 | 1500 |
| 16 | 26/0.254 | 1.49 | 0.26 | 2.10 | 15.1 | 1500 |
Applications
- Automotive Wiring: High-temperature resistance suits engine compartments and vehicle electronics.
- Appliances: Used in internal wiring for ovens, microwaves, and HVAC systems requiring heat resistance.
- Industrial Machinery: Durable insulation withstands harsh environments in motors, sensors, and control panels.
- Renewable Energy Systems: Solar panel wiring and inverters benefit from halogen-free, flame-retardant properties.
- Medical Equipment: Safe for diagnostic devices and imaging systems due to low smoke/toxicity emissions.
- HVAC Systems: Reliable in heating/cooling units exposed to temperature fluctuations.
- Telecommunications: Used in data centers and communication infrastructure for fire safety compliance.
- Marine/Aerospace: Halogen-free insulation meets strict safety standards in confined or high-risk spaces.
- Lighting Systems: Suitable for LED fixtures, industrial lighting, and high-temperature luminaires.
- Public Transportation: Deployed in buses, trains, and aviation for wiring demanding fire safety and durability.
