UL3385 Halogen-free XLPE Wire, 300V 105℃ 32 to 10 AWG
UL3385 Halogen-free XL-PE Wire

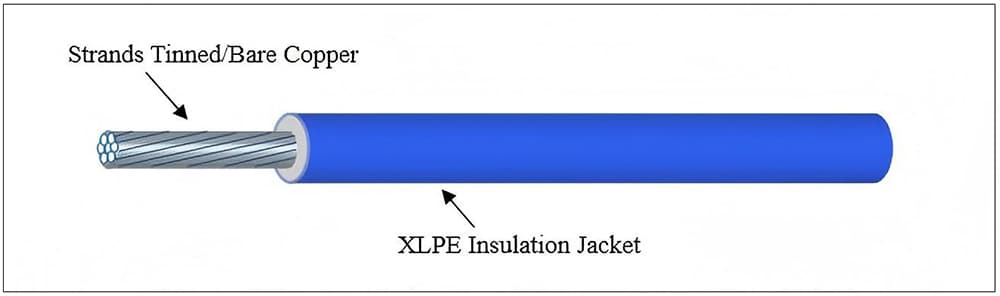

This UL3385 wire is a halogen-free XLPE-jacketed cable designed for high reliability in demanding environments. Rated for 105℃ and 300V, it supports both bare and tinned copper conductors (solid or stranded) in sizes from 32-10 AWG. Its halogen-free cross-linked polyethylene (XLPE) insulation ensures low smoke and toxicity during combustion, complying with UL758 and UL1581 standards. The wire passes stringent UL VW-1 and FT1 flame tests, offering enhanced fire resistance. Uniform insulation thickness simplifies stripping and installation, while multiple color options aid circuit identification. Ideal for appliances, machinery, and automotive applications, UL3385 combines safety, durability, and ease of use in a versatile, UL-certified design.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 300V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32-10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
30 - 14AWG Wire Specifications
| 导体 Conductor | 绝缘 Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω2/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.100 | 0.30 | 0.38 | 1.10 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.38 | 1.30 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.38 | 1.40 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.38 | 1.60 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.38 | 1.80 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.38 | 2.10 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.35 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.38 | 2.80 | 9.5 | 2000 |
Applications
- Appliances (ovens, microwaves) for heat resistance.
- Industrial machinery wiring in high-temperature zones.
- Automotive systems (engine compartments, sensors).
- Medical devices requiring low smoke/toxic emissions.
- HVAC controls for thermal stability.
- Power tools with demanding electrical loads.
- Renewable energy systems (solar inverters, wind turbines).
- Elevator/escalator controls needing fire safety.
- Data center equipment for reliable internal wiring.
- LED lighting in high-heat environments.
- Marine electronics complying with safety standards.
- Aerospace instrumentation with strict flammability requirements.
- Telecom infrastructure (routers, signal systems).
- Robotics/automation for flexible, durable connections.
- Test/measurement devices requiring precision and durability.
