UL3386 Halogen-free XLPE Wire, 600V 105℃ 32 to 10 AWG
UL3386 Halogen-free XLPE Wire

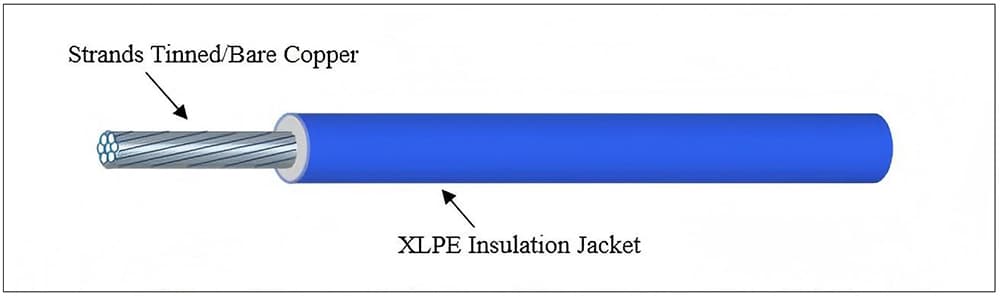

The UL3386 wire is a halogen-free XLPE-jacketed cable designed for high-performance applications, featuring a temperature rating of 105℃ and a voltage rating of 600V. Available in 32-10AWG sizes, it supports both bare and tinned copper conductors (solid or stranded) and comes in multiple colors for easy identification. Its halogen-free cross-linked polyethylene (XLPE) insulation ensures low smoke and toxicity during combustion, complying with UL758 and UL1581 standards. The wire passes stringent UL VW-1 and FT1 flame tests, enhancing safety in demanding environments. Uniform insulation thickness facilitates easy stripping and cutting, making it ideal for industrial, automotive, and electrical installations requiring durability, flame resistance, and environmental safety.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 600V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32-10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
30 - 10AWG Wire Specifications
| 导体Conductor | 绝缘Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.100 | 0.3 | 0.76 | 1.85 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.76 | 1.9 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.76 | 2.1 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.76 | 2.2 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.76 | 2.4 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.76 | 2.6 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.76 | 2.8 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.1 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.5 | 9.5 | 2000 |
| 12 | 65/0.254 | 2.36 | 0.76 | 4 | 6.3 | 2000 |
| 10 | 105/0.254 | 3.38 | 0.76 | 5 | 4.2 | 2000 |
Applications
- Industrial Automation – High-temperature machinery and motor wiring due to its 105℃ rating.
- Automotive Systems – Under-hood or cabin electronics requiring heat and vibration resistance.
- Control Panels – Reliable signal/power transmission in UL-compliant electrical enclosures.
- Appliances – Internal wiring for ovens, heaters, or HVAC units needing flame retardancy.
- Public Infrastructure – Elevators, escalators, and lighting where halogen-free safety is critical.
- Renewable Energy – Solar panel connections and inverters with 600V capacity.
- Fire Alarm Systems – Compliant with flame tests (VW-1/FT1) for emergency circuits.
- Marine/Aerospace – Low-smoke, non-toxic properties for confined or safety-regulated spaces.
