UL3398 Halogen-free XLPE Wire, 300V 105℃ 32 to 10 AWG
UL3398 Halogen-free XLPE Wire

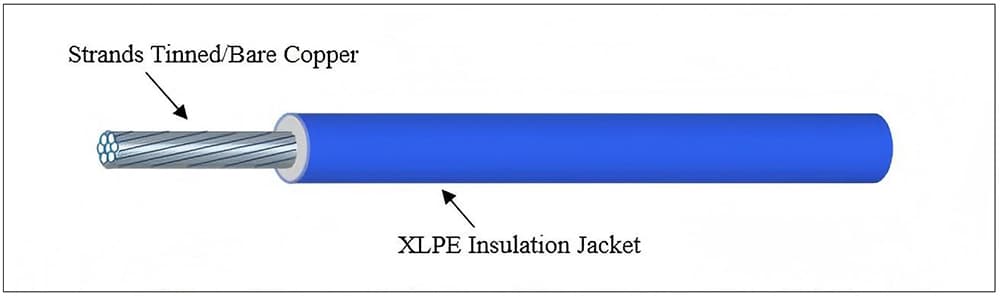

The UL3398 Halogen-free XLPE Jacket Wire is a high-performance electrical wire designed for safety and durability. Rated for 105℃ and 300V, it features halogen-free cross-linked polyethylene (XLPE) insulation, ensuring low smoke emission and minimal toxic fumes during combustion. Compatible with bare or tinned copper conductors (solid or stranded), it supports wire gauges from 32 to 10 AWG and is available in multiple colors for easy identification. Compliant with UL758 and UL1581 standards, it passes rigorous UL VW-1 and FT1 flame tests, making it ideal for appliances, industrial equipment, and commercial installations. Its uniform insulation thickness simplifies stripping and cutting, enhancing installation efficiency while prioritizing environmental and fire safety.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 300V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32-10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
32 - 10AWG Wire Specifications
| 导体Conductor | 绝缘Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω2/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.100 | 0.3 | 0.38 | 1.1 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.2 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.38 | 1.3 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.38 | 1.4 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.38 | 1.6 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.38 | 1.8 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.38 | 2.1 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.35 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.38 | 2.8 | 9.5 | 2000 |
Applications
- Appliances (ovens, microwaves, heaters).
- HVAC systems (motors, compressors).
- Industrial machinery (high-temperature environments).
- Automotive wiring (internal components, sensors).
- Medical equipment (low-smoke, safety-critical devices).
- Commercial lighting (LED fixtures, signage).
- Data centers (server racks, low-smoke cabling).
- Renewable energy systems (solar inverters, wind turbines).
- Control panels (industrial automation).
- Public infrastructure (subways, airports).
- Audio/visual systems (stadiums, theaters).
- Consumer electronics (power supplies, chargers).
