UL4384 Elecreic FRPE Jacket Ribbon Cable, 300V 105℃ 30 to 10 AWG
UL4384 Ribbon Cable

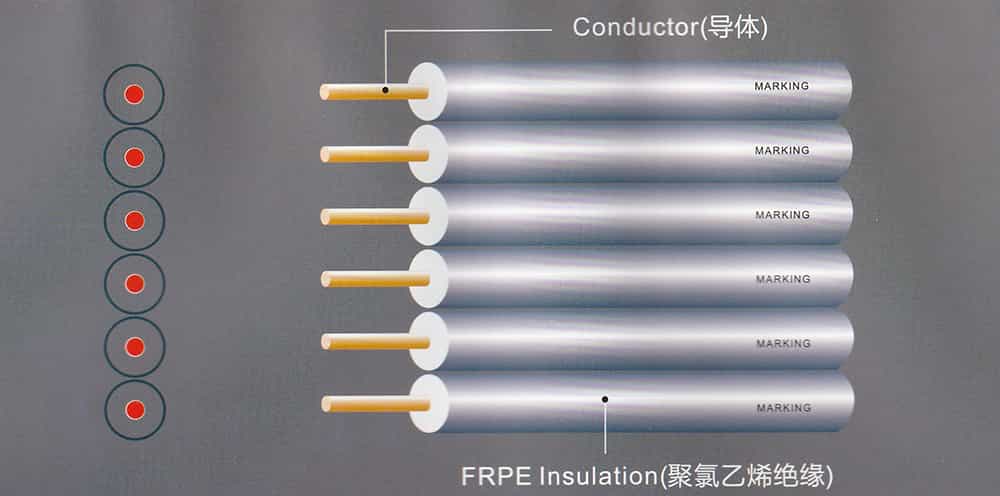

The UL4384 Cable is a high-performance flat cable designed to meet rigorous safety and performance standards. Featuring a Flame Retardant Polyethylene (FRPE) jacket, it offers exceptional resistance to fire, heat, moisture, and chemicals, ensuring reliability in harsh environments. Ideal for high-density wiring applications, its compact, flat design maximizes space efficiency while maintaining flexibility and organized connectivity, making it suitable for electronics, data centers, industrial automation, and telecommunications. The ribbon structure supports stable signal transmission and simplifies installation in confined spaces. Compliant with UL4384, this cable combines durability, safety, and versatility, addressing the demands of modern electrical and electronic systems.
Features
- Temperature Rating: 105℃.
- Voltage Rating: 300V.
- Conductor: bare copper copper, solid or strand
- Insulation: Halogen-free FRPE.
- Wire gauge: 30-10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
24AWG and 26AWG Wire Specifications
| 间距 Pitch (mm) |
导体Conductor | 绝缘Insulation | 最大导体电阻 Mas Resistance At 20C Ω/km |
Dielectric Strength 耐压强度 (Vac,1min) |
||||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia. (mm) |
芯数 (No.) |
厚度 Thickness (mm) |
外经 O.D (mm) |
|||
| 1.5 | 26 | 7/0.16 | 0.48 | 3 | 0.43 | 1.4*4.4 | 150 | 2000 |
| 4 | 0.43 | 1.4*5.9 | ||||||
| 5 | 0.43 | 1.4*7.4 | ||||||
| 6 | 0.43 | 1.4*8.9 | ||||||
| 7 | 0.43 | 1.4*10.4 | ||||||
| 8 | 0.43 | 1.4*11.9 | ||||||
| 9 | 0.43 | 1.4*1.34 | ||||||
| 10 | 0.43 | 1.4*14.9 | ||||||
| 11 | 0.43 | 1.4*16.4 | ||||||
| 12 | 0.43 | 1.4*17.9 | ||||||
| 1.6 | 24 | 11/0.16 | 0.61 | 3 | 0.43 | 1.5*4.7 | 94.2 | 2000 |
| 4 | 0.43 | 1.5*6.3 | ||||||
| 5 | 0.43 | 1.5*7.9 | ||||||
| 6 | 0.43 | 1.5*9.5 | ||||||
| 7 | 0.43 | 1.5*11.1 | ||||||
| 8 | 0.43 | 1.5*12.7 | ||||||
| 9 | 0.43 | 1.5*14.3 | ||||||
| 10 | 0.43 | 1.5*15.9 | ||||||
| 11 | 0.43 | 1.5*17.5 | ||||||
| 12 | 0.43 | 1.5*19.1 | ||||||
Applications
- Data Centers: Used in high-density server racks for organized, space-saving connections between servers, switches, and power supplies.
- Industrial Automation: Integrates into control panels and machinery wiring for reliable signal and power transmission in harsh factory environments.
- Telecommunications: Connects routers, switches, and network hardware, ensuring stable data transfer in communication infrastructure.
- Medical Equipment: Safely wires diagnostic devices (e.g., MRI machines, patient monitors) where flame resistance and precision are critical.
- Automotive Electronics: Supports in-vehicle control systems (e.g., infotainment, sensors) with heat and vibration resistance.
- Aerospace Systems: Deployed in avionics and cockpit instrumentation, meeting rigorous safety and durability standards.
- Consumer Electronics: Streamlines internal wiring for printers, scanners, and gaming consoles, optimizing space and flexibility.
- Renewable Energy: Links components in solar inverters and wind turbines, enduring outdoor exposure and temperature fluctuations.
- Security Systems: Connects CCTV cameras, access control panels, and alarms, ensuring reliability in 24/7 surveillance setups.
- Military Hardware: Used in ruggedized communication devices and field equipment, resistant to extreme conditions.
- Robotics: Facilitates flexible, high-speed signal transmission in robotic joints and arms, even in confined spaces.
- Appliances: Powers smart HVAC systems, refrigerators, and IoT-enabled home devices with compact, fire-safe wiring.
