XLR Connector Cable Assembly, Audio&Video Cables

What is XLR Cable?

Before explaining the XLR cable, what is an XLR connector?

The XLR connector is primarily utilized in professional audio settings, with additional applications in stage lighting. The 3-pin variant is the most prevalent type of XLR connector and has established itself as the industry standard for transmitting balanced audio signals.

The generic term "XLR" initially originated as a trademark of Cannon Electric, with the letters representing an X-model connector featuring an additional latch mechanism and resilient neoprene rubber surrounding the female contacts. And now, you might simply understand the XLR as X (ground), L (left), and R (right), which is the connector wiring.

So, the XLR cable is a type of cable that uses an XLR connector as a plug, connecting the cable to your audio and video device.

XLR Connector Types

• Three-pin (XLR3)
• Four-pin (XLR4)
• Five-pin (XLR5)
• Six-pin (XLR6)
• Seven-pin (XLR7)
• PDN.

What is the advantage of XLR cables?

1. It reduces interference

The enclosed design and protective caps of XLR cables make them super effective in reducing interference and noise. They are like the ultimate way to give you exceptional audio clarity. Unlike other cables, XLRs don't get easily messed up by things like electromagnetic or radio frequencies.

2. Get professional-grade sound quality

XLR cables are the top choice for studio-grade setups, admired by musicians and sound engineers alike. While optical audio cables have emerged, XLRs still reign supreme in terms of superior sound quality and authentic appeal.

3. The versatility of XLR cables

The thing is, XLR cables are super versatile and can be used for all sorts of audio stuff. Like, you can hook them up to your home theater or connect instruments to a sound mixer or mic. So yeah, XLR ports are like the industry standard and all that jazz.

Other qualities of the XLR cables

• You get a really balanced audio performance thanks to the three-pin design that has two conductors and a grounding wire, which helps reduce all the interference and gives you super clean audio.
• The use of XLR cables usually helps to reduce common-mode noise, eliminating any hum or buzz that may have been present in instrument connections. They can also be used for live performances.
• The XLR Connectors possess an exceptional locking capacity, ensuring the prevention of inadvertent disconnection during recording sessions or live performances. This feature effectively eliminates any possibility of signal dropout and guarantees a flawless transmission of high-fidelity sound.
• The XLR cables are more robust and durable than optical audio cables, eliminating the need for extra support and protection. Additionally, they can efficiently work without any loss or distortion in long-range setups.
• The utilization of phantom power is a characteristic found in professional-grade condenser microphones. XLR cables are highly compatible with these types of microphones.

Is XLR better than Jack?

One of the main advantages of Jack cables is that they are super affordable, making them a really budget-friendly choice for consumer audio stuff. You can easily find them in both physical and online electronics stores, so they're totally accessible.

But as we listed the XLR cables' advantages above, you might have understood their difference. While XLR cables are predominant in professional settings, Jack cables also play a significant role in filmmaking. They can connect microphones to cameras or mixers. The key difference is that Jack cables are unbalanced, transmitting signals over a single conductor and a ground wire, which can potentially lead to noise interference.

Is XLR better than USB?

The USB microphones are condenser or dynamic microphones that come with an integrated analog-to-digital converter, so you won't need an audio interface. They are a fantastic plug-and-play solution, especially for online communication. The primary advantage of a USB microphone lies in its exceptional user-friendliness. The downside is that it doesn't have any hardware outputs, and you can't upgrade individual components.

When it comes to professional recording, whether it be for voiceover, vocals, instruments, or any other application, I believe XLR microphones offer superior performance. They allow for the use of analog/digital converters that align with my personal preferences and provide the flexibility to switch between different microphones based on specific needs.

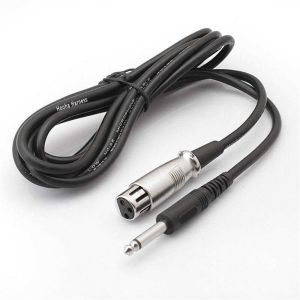

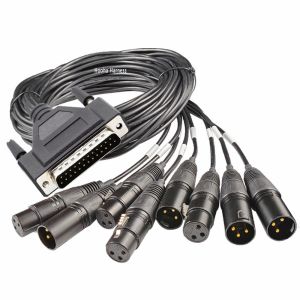

What type of XLR cable adapter does it have?

How to customize your XLR Cable?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
