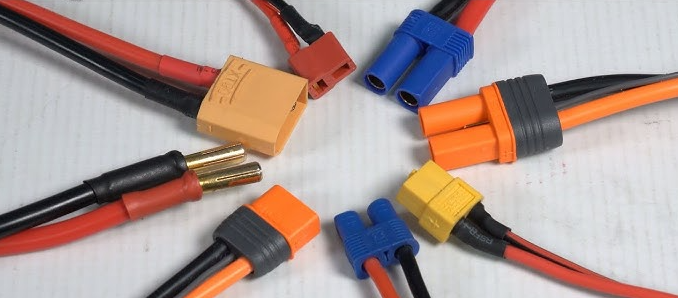

XT Connector, EC Connector, IC Connector

Introduction

XT Connectors

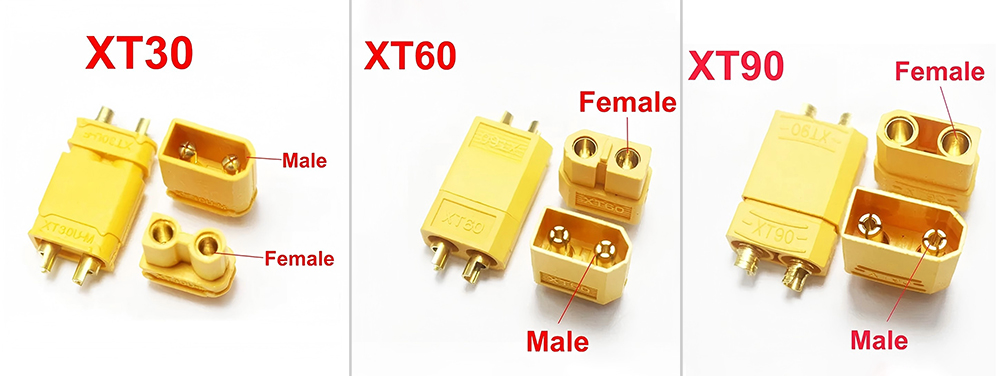

XT connectors are a widely recognized family of high-current DC power connectors, initially developed by Amass Electronics, designed to meet the demanding power transmission needs of lithium battery applications. Characterized by their robust construction, featuring gold-plated brass pins and a high-temperature nylon housing, these connectors are engineered for high conductivity, corrosion resistance, and durability. A key safety feature is their polarized, asymmetrical design, which prevents reverse-polarity connections, making them a reliable choice for high-power applications. The series includes various models denoted by numbers that approximate their current-handling capacity in amps, such as the compact XT30 (15-30A), the versatile and very popular XT60 (30-60A), and the high-power XT90 (up to 90A) . Primarily used in remote-controlled (RC) hobbies, drones, and portable power stations, XT connectors provide efficient and secure power links for battery packs, electronic speed controllers (ESCs), and motors, ensuring optimal performance by minimizing voltage drop and power loss through their low contact resistance. Their combination of safety, reliability, and high performance has established them as a standard in the fields of high-performance model sports and portable energy solutions.

EC connector

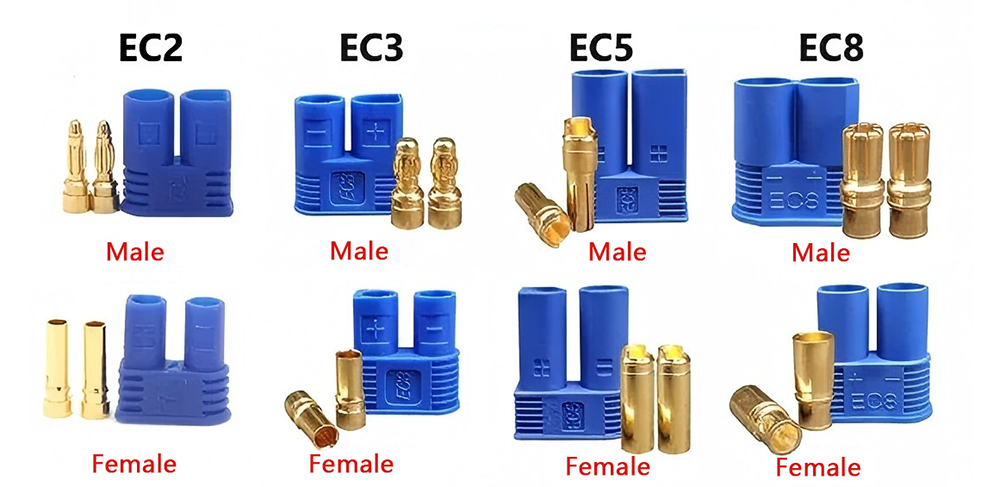

The EC connector is a series of high-current DC power connectors widely used in high-power applications, particularly renowned in the remote-controlled (RC) hobby industry for connecting lithium polymer (LiPo) batteries to electronic speed controllers (ESCs) and motors. The series includes models like EC3, EC5, and EC8, where the number generally corresponds to the connector's current-carrying capacity, with ratings ranging from approximately 60 amps for EC3 to 120 amps for EC5 and up to 240 amps for EC8. These connectors feature bullet-style, gold-plated copper terminals that ensure excellent conductivity and low resistance. They are encased in a durable, often blue nylon plastic housing that provides flame-retardant properties and high-temperature resistance. A key feature of many EC connectors is their polarized design, which prevents reverse-polarity connections, enhancing safety during use. While they are bulkier than some counterparts, like XT-series connectors, EC connectors are praised for being extremely easy to solder and for a compact, simple installation process. Their primary applications extend beyond RC vehicles, drones, and model aviation to include automotive jump starters, which must handle peak currents of 500A or more, as well as various industrial equipment, electric vehicles, and energy storage systems, due to their reliability and high durability.

IC Connector

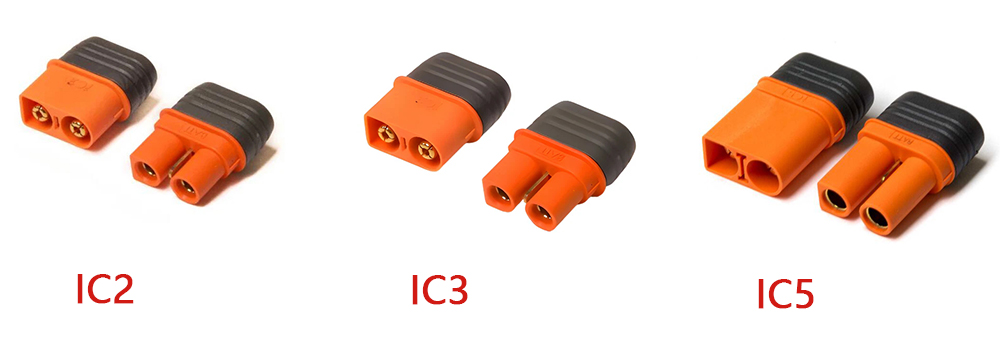

The IC Connector series from Spektrum, comprising models like IC2, IC3, and IC5, is a key component of the Spektrum Smart ecosystem, designed specifically for high-performance radio-control applications. These connectors are engineered to do much more than just transmit power; they incorporate a dedicated data wire that enables communication between Spektrum Smart batteries, chargers, and ESCs (Electronic Speed Controllers) . This smart technology allows for the automatic transfer of vital battery data—such as charge cycles, cell voltage, temperature, and health diagnostics—directly to a compatible charger or transmitter, simplifying the charging process to a single button press and providing real-time telemetry . Physically, the connectors are built for robustness and ease of use, featuring gold-plated contacts, heat-resistant nylon housing, and a "sprung bullet" design that ensures a secure yet easy connection . A significant advantage for hobbyists is the series' full backwards compatibility with the widely adopted EC connector family (e.g., IC3 with EC3, IC5 with EC5), allowing seamless integration of new Smart equipment with existing batteries and devices . In essence, the IC connector transforms a simple power link into an intelligent interface that enhances safety, provides valuable data, and offers a user-friendly experience within the connected Spektrum Smart environment .

How to Choose the Correct Connector?

The initial and most critical step in selecting a battery connector involves a thorough assessment of the electrical demands. The connector's current rating must comfortably exceed the system's maximum continuous and peak draw to ensure safety and prevent overheating. For example, a high-performance radio-controlled model might require the 60-amp capacity of an XT60 or EC5, while a larger application would necessitate an XT90 or EC8. This technical matching extends to the compatible wire gauge, as a proper mechanical and electrical fit is fundamental to minimizing resistance and achieving efficient power transmission for the application's needs.

Beyond raw electrical specifications, the specific application and existing ecosystem heavily influence the ideal choice. For general-purpose projects, drones, and custom builds where cost and wide availability are priorities, the universal XT series offers exceptional value. In competitive RC environments demanding proven robustness under extreme stress, the EC connector family is often the established standard. When operating within a Spektrum Smart system, the IC connector becomes indispensable, as its integrated data communication enables advanced features like battery telemetry and streamlined charging, adding a layer of intelligence and convenience.

The final decision often rests on practical considerations of usability, compatibility, and physical design. The secure friction fit of XT connectors contrasts with the audible click of the IC series' spring-loaded mechanism, which some users prefer for a confirmed connection. While XT and EC connectors are broadly compatible across brands, the IC series offers backward compatibility with EC models but is primarily designed for its proprietary ecosystem. Weighing the need for smart features against the benefits of a universal standard ensures the selected connector not only powers the device but also integrates seamlessly into the user's workflow.
