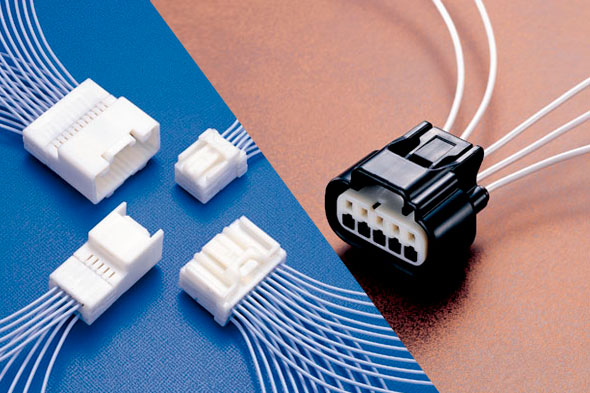

Yazaki 1.0III(040III) Connector

The Yazaki 1.0III(040III) connector is a highly versatile and efficient component that offers various features to meet the diverse needs of different applications. With its compact size and a tab width of 1.0mm (.040 inches), this connector ensures space-saving installation without compromising on performance.

The male terminal has a tangle-less concept with a clean body design. This not only enhances the overall aesthetics but also simplifies the wiring process by reducing tangling issues. The terminal is available in both crimping and IDC versions, providing flexibility for different assembly methods.

Yazaki 1.0III(040III) connector supports wire sizes ranging from 0.3 to 0.5mm2, making it suitable for various wire gauges commonly used in electronic devices and automotive applications.

This connector offers multiple connection ways to cater to different connectivity requirements. It can be used for "wire-to-wire" connections, enabling seamless interconnection between two wires or cables within an electrical system. Additionally, it facilitates "wire-to-printed circuit board" connections, allowing secure integration between wires and PCBs for reliable signal transmission or power distribution purposes. Lastly, it enables "wire-to-devices" connections where it serves as an interface between wires and various devices such as sensors or actuators.

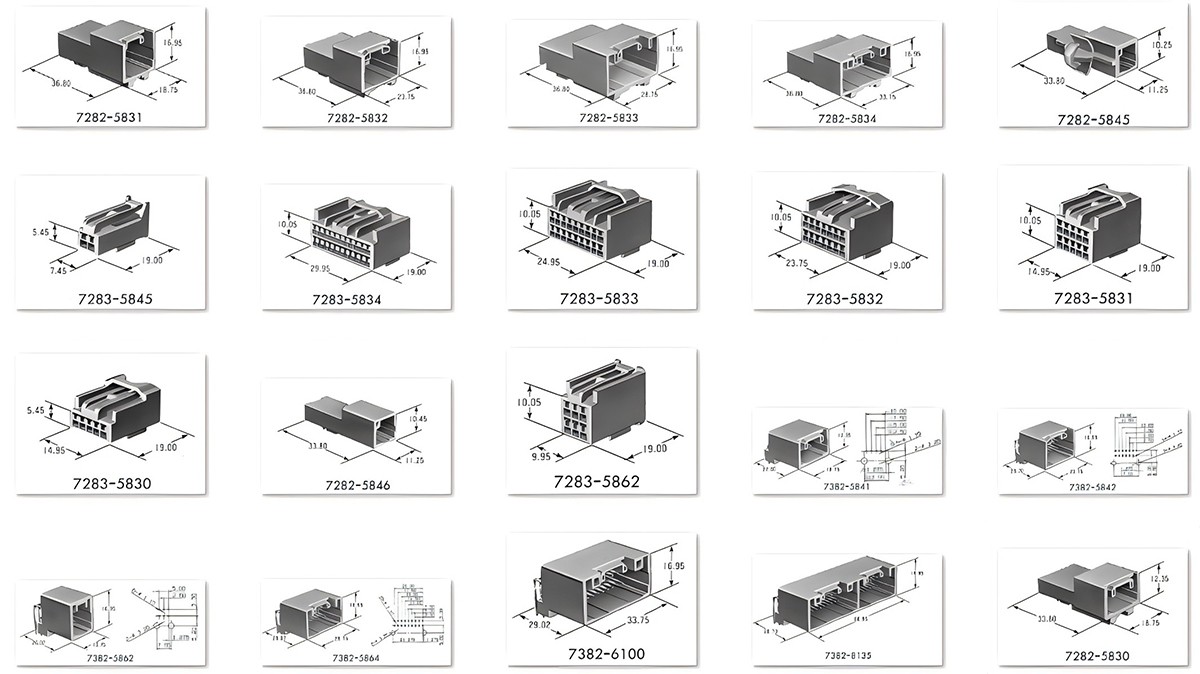

1.0III (040III) Connector Specification Chart

Support Custom Wire Harness Assembly

• Connectors: 2P to 54P.
• Wire Gauge: 0.3～0.5mm²
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
